Oriental Japanese

Elevating residential landscapes with the structural permanence and aesthetic heritage of fired clay roofing.

Overview

Natural Red And Flashed Colors

MCA’s Oriental-Japanese clay roof tile is a unique, interlocking, high quality tile made in the Japanese tradition. This beautiful tile is available in grayish smoked, and various glazed colors and will keep its distinctive appearance while withstanding constant exposure to any weather condition.

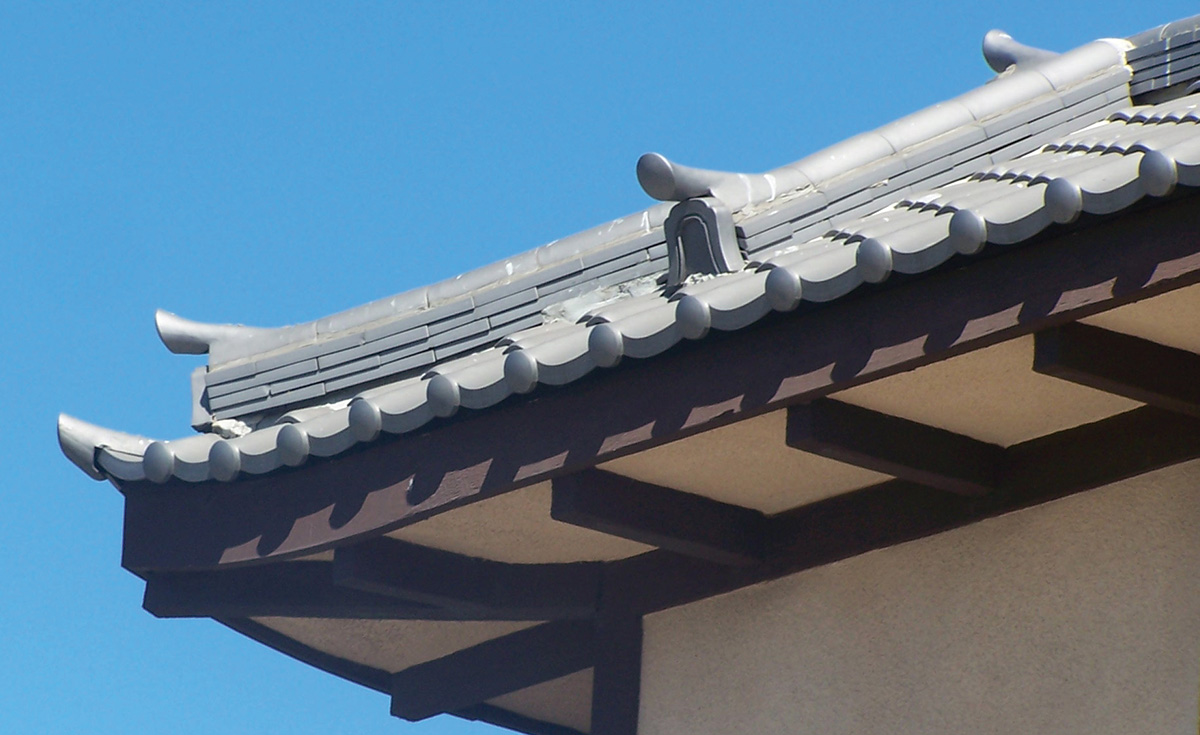

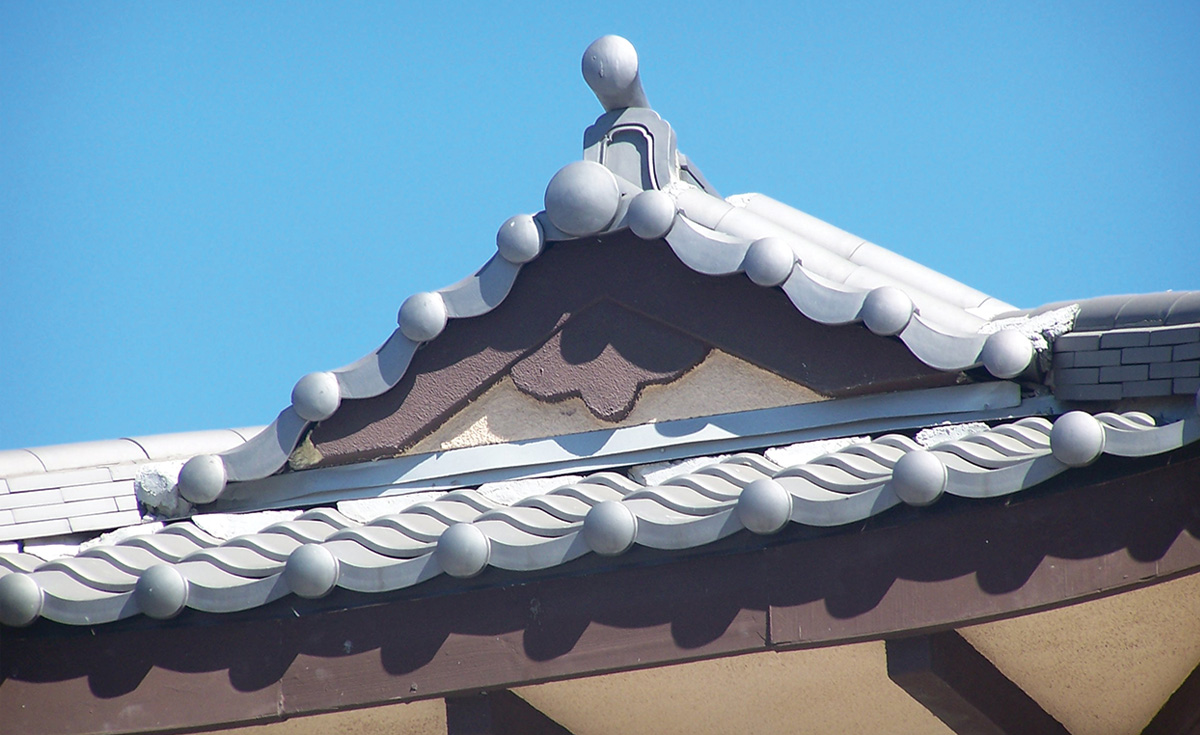

Traditional designs, as in a Japanese style temple or teahouse, will feature ornaments in various shapes and sizes. The most traditional color used for a Japanese style teahouse or temple is the C09 Japanese Black. This color originated in China and was brought to Japan over 1400 years ago. Japanese Black, called “Ibushi” in Japan, is smoked and is a through body color.
Without the use of decorative ornaments, Oriental-Japanese clay roof tile is also suitable for western, contemporary designs.
A 50-Year Limited Warranty is available on all MCA tiles.

Color/Texture Availability

Tile Specifications

Actual Size:
12″ X 12”
Exposed Size:
9-1/2″ x 10-1/2″ O.C.
Weight per square:
864 lbs.
Weight per piece:
6 lbs.
No. of pieces per square:
144 pcs

Metric Tile Specifications

Actual Size:
305mm x 305mm
Exposed Size:
241mm x 266mm
Weight per M2:
54 kg
Weight per piece:
2.72 kg
No. of pieces per M2:
15.5 pcs.

Color Selection

Each finish is achieved through unique firing cycles in our modernized kilns, ensuring every tile carries consistent quality and performance

Full Color and Texture Availability

C01 Blue

C01 Blue

C09 Japanese Black

C09 Japanese Black

C07 Maroon

C07 Maroon

C05 Dark Green

C05 Dark Green

C10 Gray

C10 Gray

C23 Metallic Silver

C23 Metallic Silver

C12 Maple

C12 Maple

C02 Chinese Gold

C02 Chinese Gold

C03 Black

C03 Black

C14 Matte Brown

C14 Matte Brown

×

Blends

Each finish is achieved through unique firing cycles in our modernized kilns, ensuring every tile carries the soul of the earth.

Tile Selection

Preserving the architectural soul of the past requires more than mere imitation

Porducts

Oriental Japanese Products
Field

Field

Eave

Eave

*Embossed Eave

*Embossed Eave

Right Gable

Right Gable

Left Gable

Left Gable

*Straight Eave

*Straight Eave

Right Gable Corner

Right Gable Corner

Left Gable Corner

Left Gable Corner

Ridge Field

Ridge Field

Ridge End

Ridge End

Ridge Starter

Ridge Starter

Ridge Down End

Ridge Down End

Ridge Size 5

Ridge Size 5

Standard Ridge Size 6

Standard Ridge Size 6

Sumaru Size 5

Sumaru Size 5

Two Forked Ridge

Two Forked Ridge

Three Forked Ridge

Three Forked Ridge

Three Forked Eave

Three Forked Eave

Three Forked Eave Set

Three Forked Eave Set

Kaezu Gable Ornament

Kaezu Gable Ornament

Kaezu Hip Ornament

Kaezu Hip Ornament

Snow Stopper

Snow Stopper

Cloud Hip Ornament

Cloud Hip Ornament

Cloud Gable Ornament

Cloud Gable Ornament

×

  • Catalog
  • Code Approvals & SDS
  • Installation Specifications
  • Warranty
  • Detail Drawings

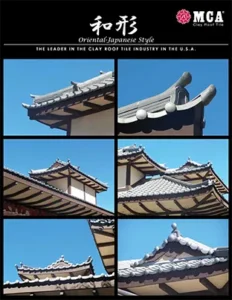

Oriental-Japanese Catalog

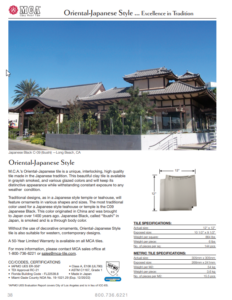

Oriental Japanese Product Data Sheet
General Catalog

CC/Codes, Certifications

Include:
– IAPMO UNIFORM EVALUATION REPORT
– SDS SAFETY DATA
– TDI APPROVAL RC-21
– MIAMI-DADE COUNTY APPROVAL 21-1215.04 EXP 02/16/27

Reports

pdf-iconIAPMO Uniform Evaluation Report No. 0356download-icon
pdf-iconSDS Safety Datadownload-icon
pdf-iconTDI Approval; RC-21download-icon
pdf-iconMiami-Dade County Approval 22-0929.03 Exp. 12/20/27download-icon

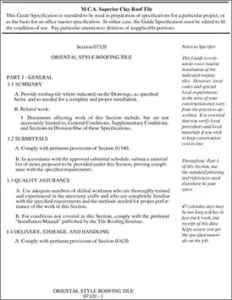

Oriental-Japanese Clay Roof Tile Specification
ARCAT
Specwizard
BIM Objects

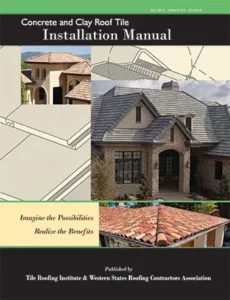

TRI Installation Manual

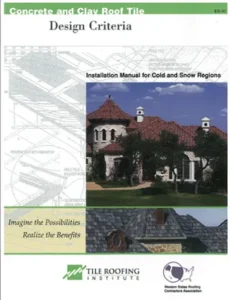

TRI Cold and Snow Installation Manual
50-YEAR LIMITED WARRANTY

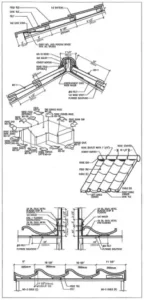

Download Summary Drawing PDF

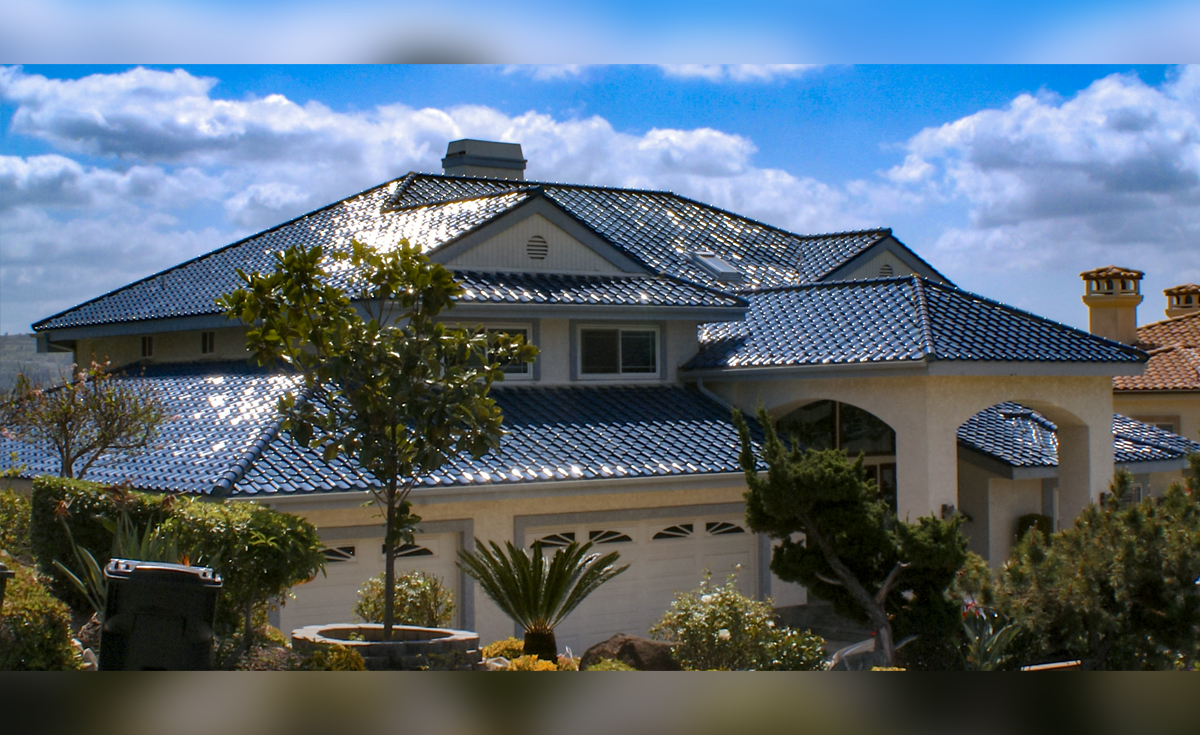

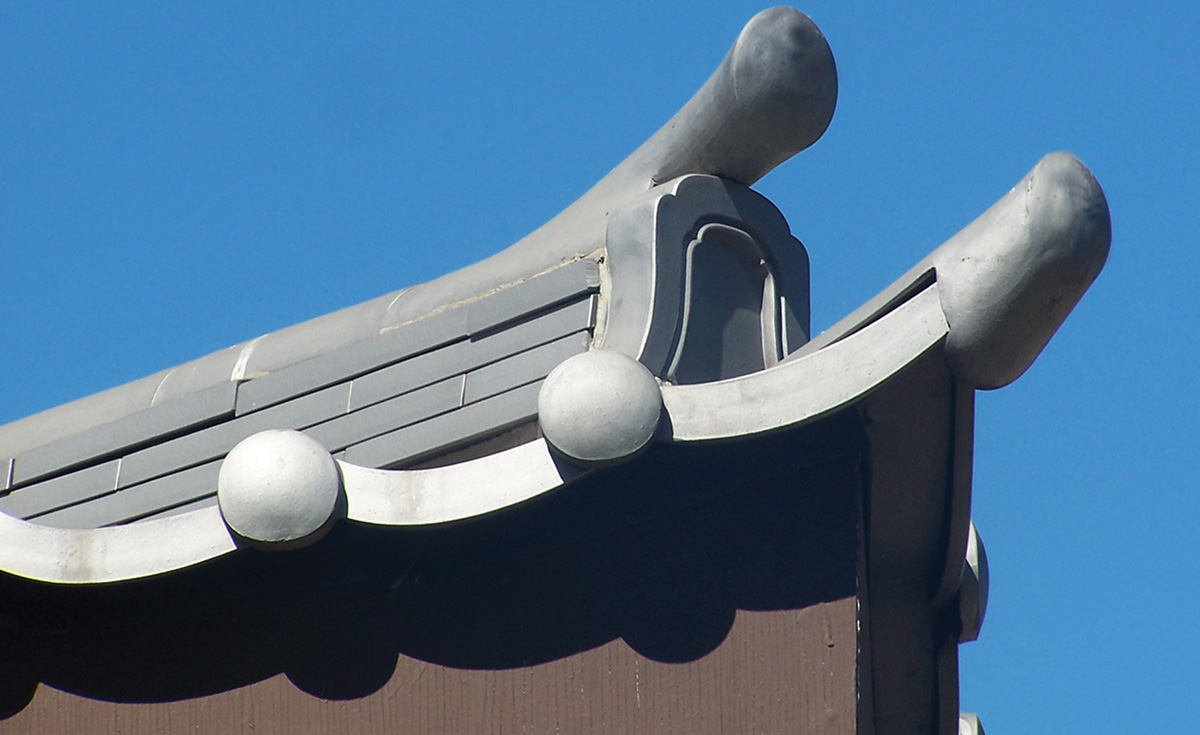

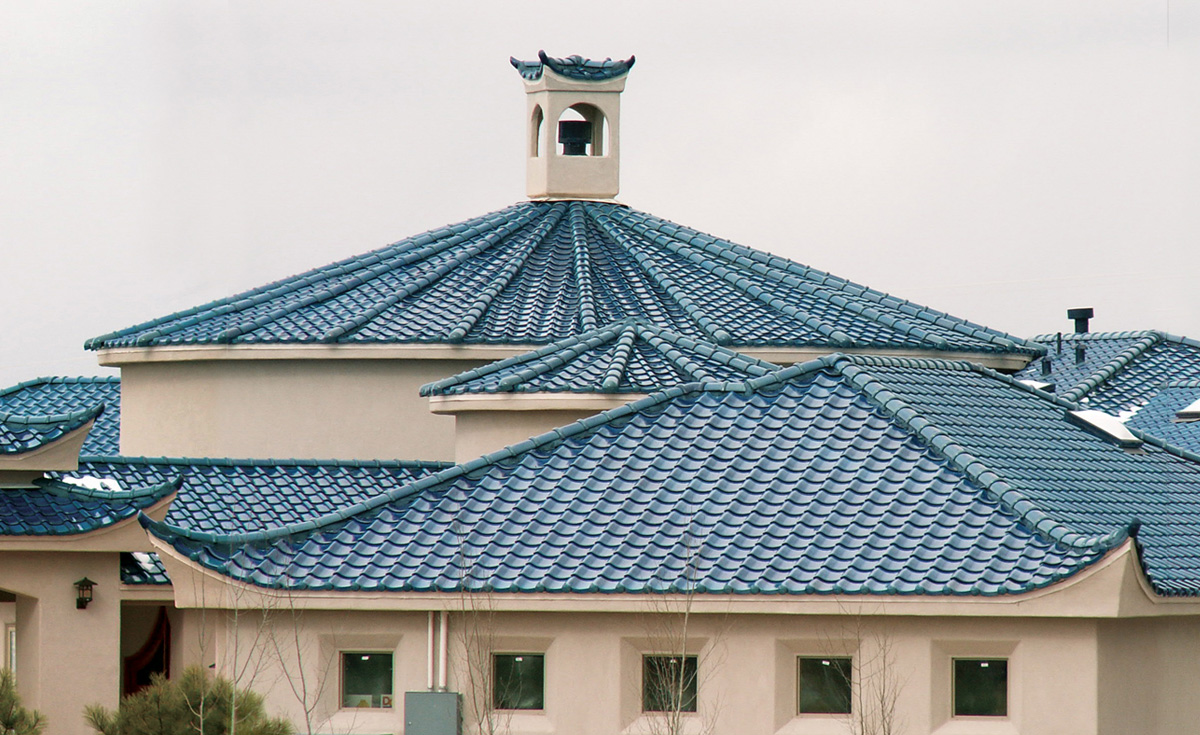

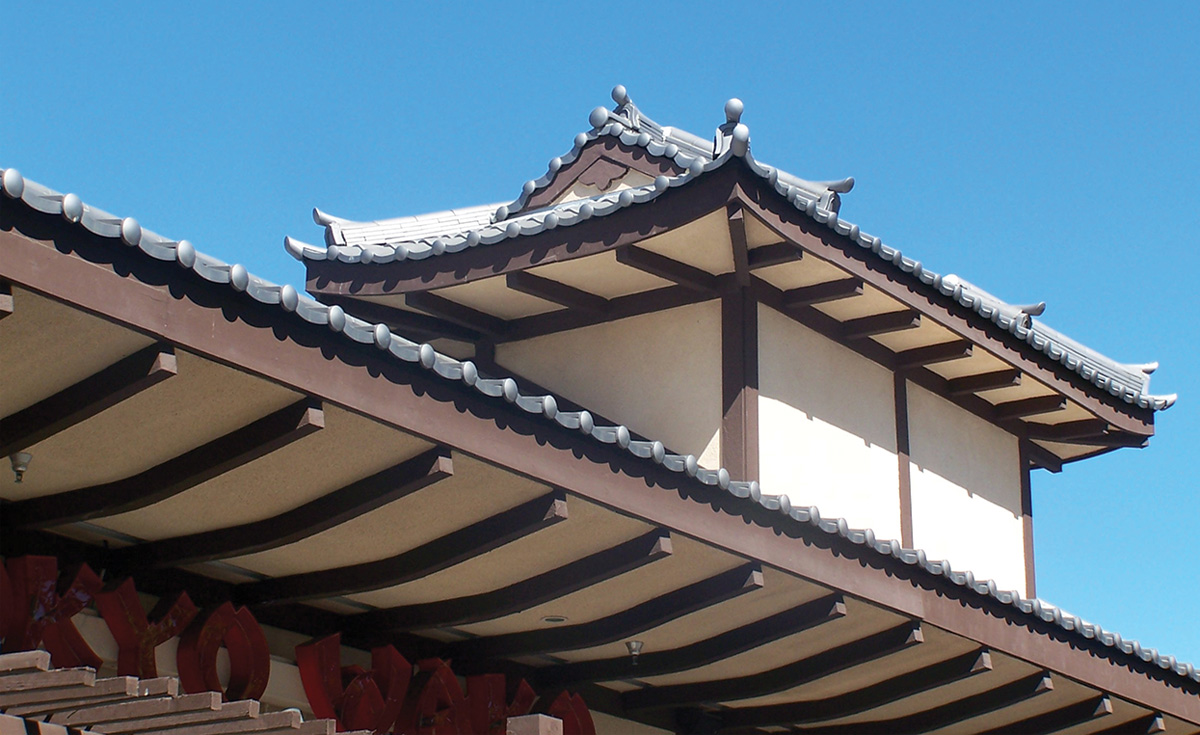

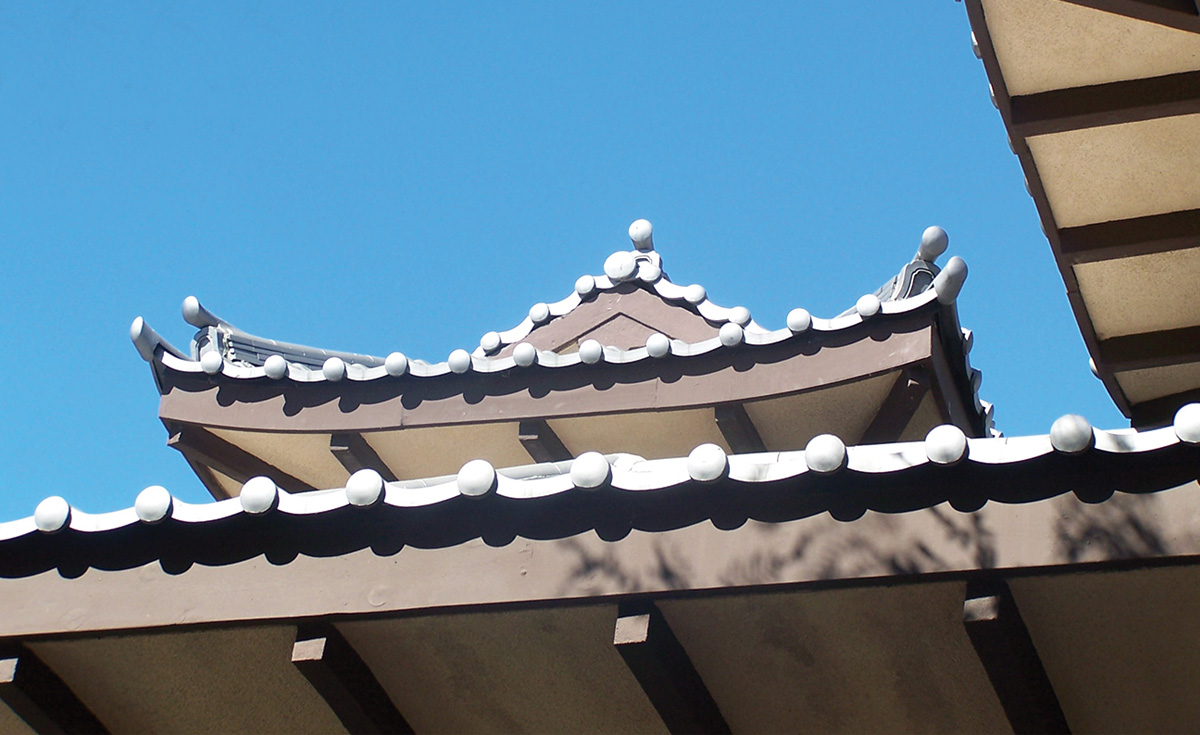

Architecture in Context
