Architectural Excellence

MF108 Interlocking Flat

Elevating residential landscapes with the structural permanence and aesthetic heritage of fired clay roofing.

Overview

Natural Red And Flashed Colors

MCA’s MF108 Flat Interlocking Tile accentuates any architectural theme and makes an impressive statement on any style building or home. It will keep its distinctive appearance while withstanding constant exposure to weather conditions. MF108 is used extensively on commercial, institutional buildings, military buildings and resort projects, as well as custom homes. There are 108 pieces per square, which makes it labor efficient and provides cost savings.

This beautiful clay tile is available in Natural Red and various glazed colors.

Using MF108 Flat tile truly defines the results of art, craftsmanship and the opportunity to experience lasting beauty.

A 50-Year Limited Warranty is available on all MCA Tiles.

Color/Texture Availability

Tile Specifications

Actual Size:
13-3/4″ x 13-3/4″
Exposed Size:
11-1/8″ x 12″
Weight per square:
879 lbs.
Weight per piece:
8.14 lbs.
No. of pieces per square:
108 pcs

Metric Tile Specifications

Actual Size:
345mm x 345mm
Exposed Size:
282mm x 305mm
Weight per M2:
42.8 kg
Weight per piece:
3.69 kg
No. of pieces per M2:
11.6 pcs.

Color Selection

Each finish is achieved through unique firing cycles in our modernized kilns, ensuring every tile carries consistent quality and performance

Full Color and Texture Availability

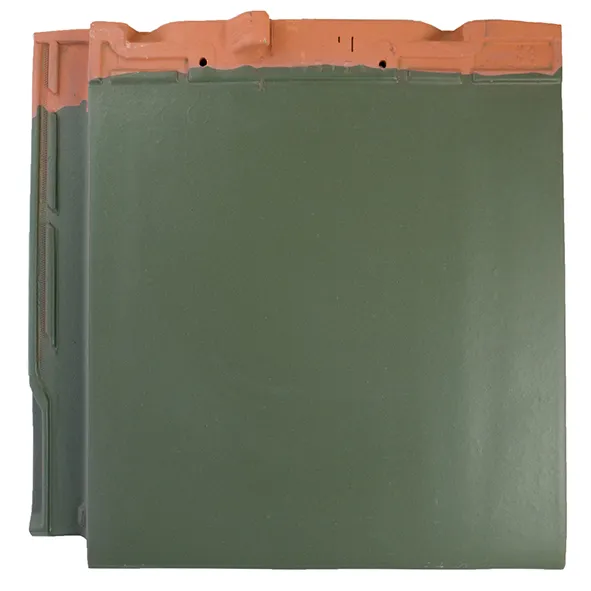

C22 Matte Green

C22 Matte Green

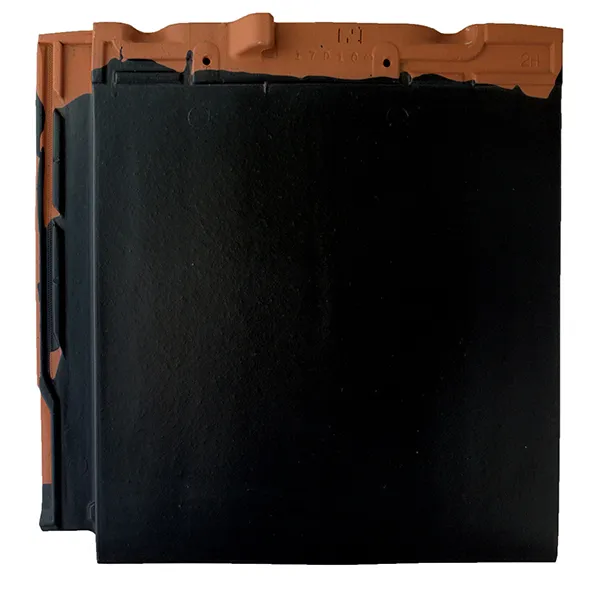

C16 Matte Black

C16 Matte Black

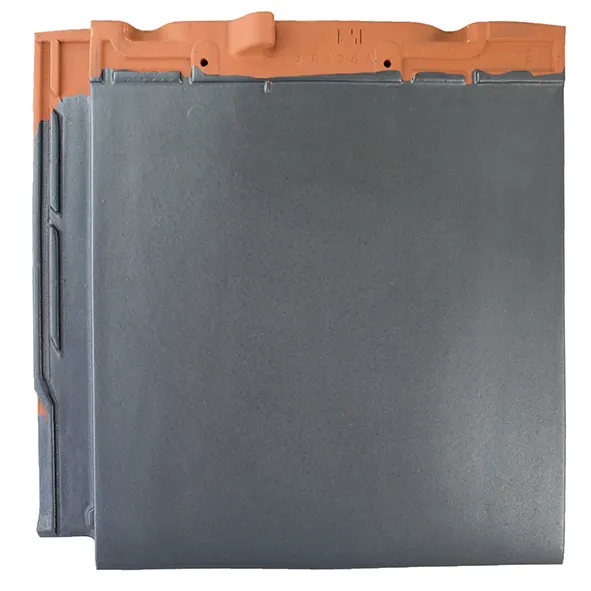

C23 Metallic Silver

C23 Metallic Silver

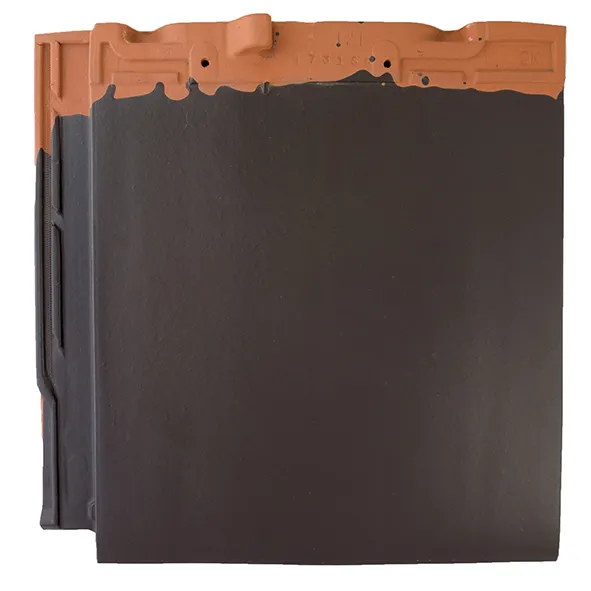

C28 Antique Brown

C28 Antique Brown

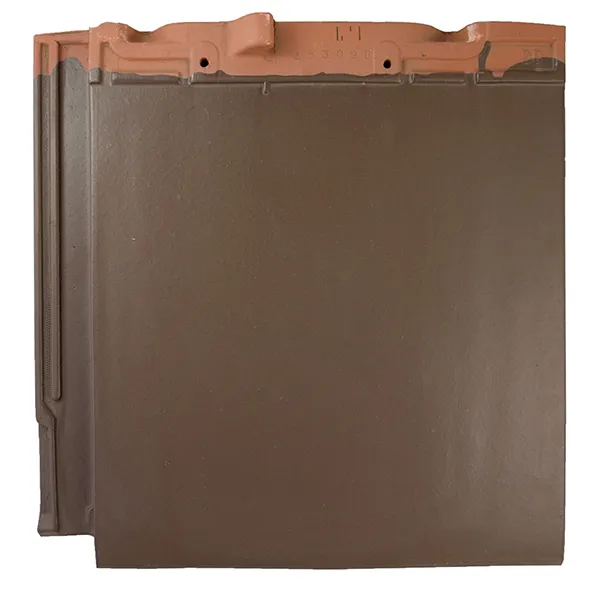

C42 Adobe Brown

C42 Adobe Brown

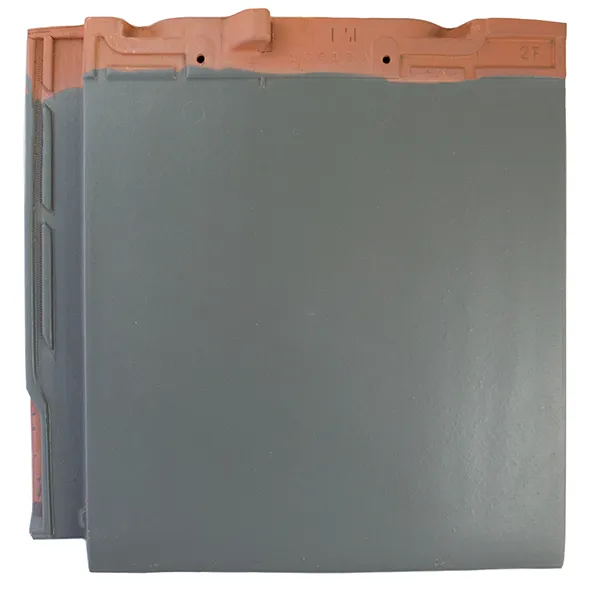

C44 Silver Gray

C44 Silver Gray

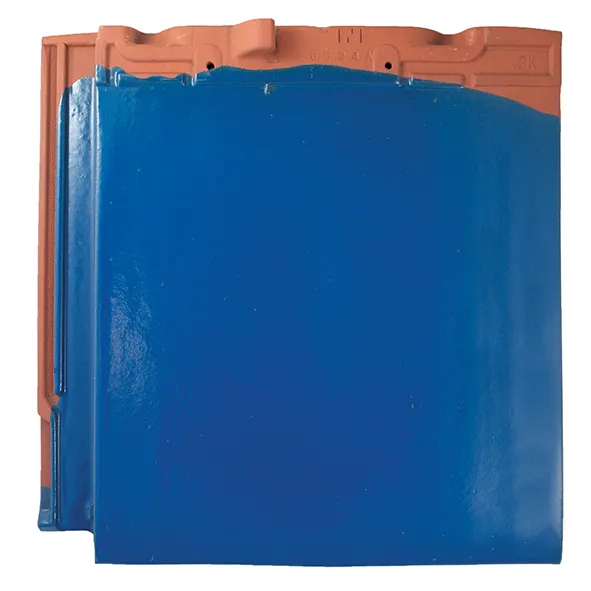

C49 Sky Blue

C49 Sky Blue

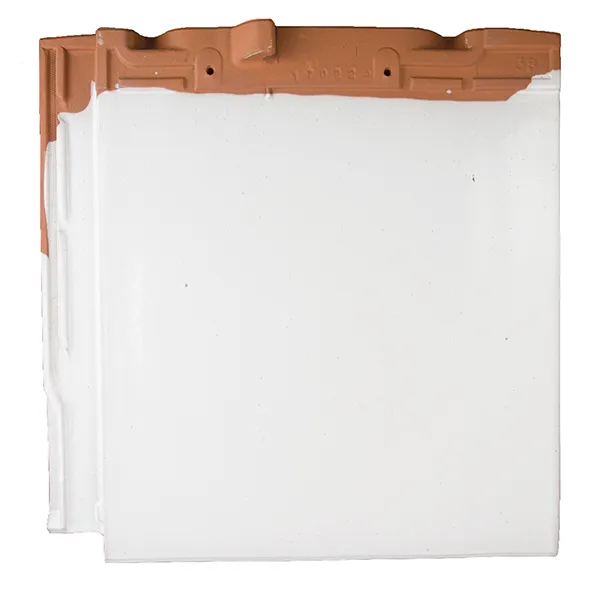

C25 White

C25 White

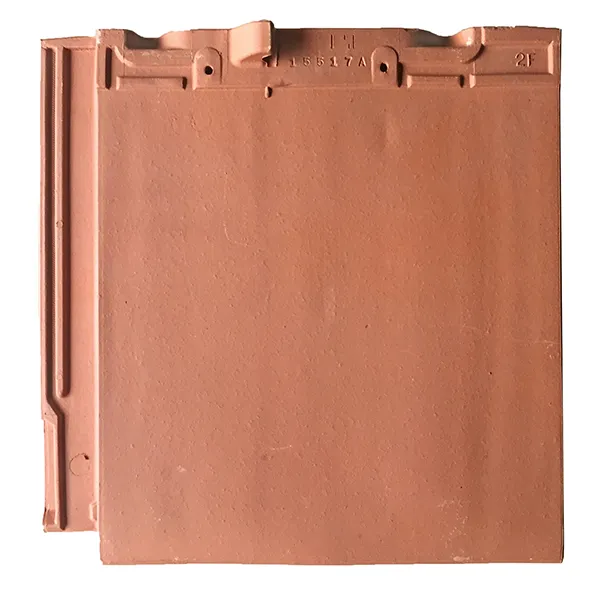

F40 Natural Red

F40 Natural Red

×

Blends

Each finish is achieved through unique firing cycles in our modernized kilns, ensuring every tile carries the soul of the earth.

Tile Selection

Preserving the architectural soul of the past requires more than mere imitation

Porducts

Oriental Japanese Products
  • Catalog
  • Code Approvals & SDS
  • Installation Specifications
  • Warranty
  • Detail Drawings
MF108 Interlocking Flat Catalog

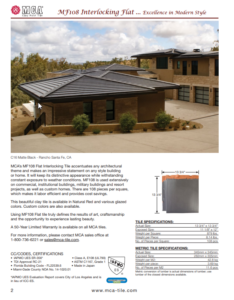

MF108 Flat Product Data Sheet
General Catalog

CC/Codes, Certifications

Include:
– IAPMO UNIFORM EVALUATION REPORT
– SDS SAFETY DATA
– TDI APPROVAL RC-21
– MIAMI-DADE COUNTY APPROVAL 21-1215.04 EXP 02/16/27

Reports

pdf-iconIAPMO Uniform Evaluation Report No. 0356download-icon
pdf-iconSDS Safety Datadownload-icon
pdf-iconTDI Approval; RC-21download-icon
pdf-iconMiami-Dade County Approval 21-1215.05 Exp. 02/16/27download-icon

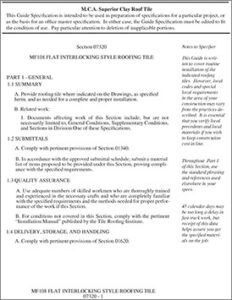

MF108 Flat Clay Roof Tile Specification
PDF cover
spec-wiz2
BIm
TRI Installation Manual
TRI Cold and Snow Installation Manual
50-YEAR LIMITED WARRANTY

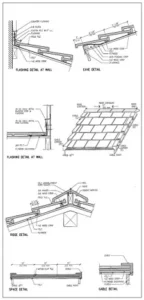

Download Summary Drawings PDF

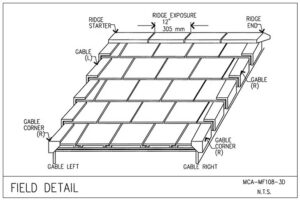

Download Field Detail PDF

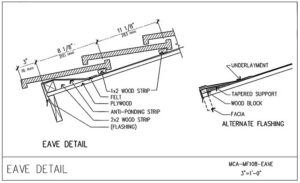

Download Eave Detail PDF

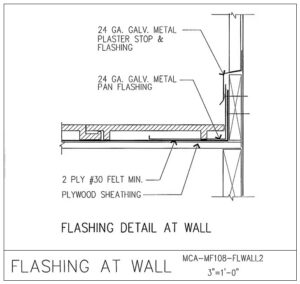

Download Flashing Detail at Wall PDF

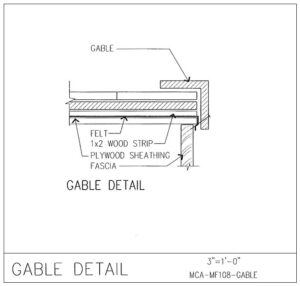

Download Gable Detail PDF

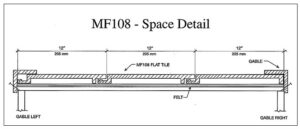

Download MF108 – Space Detail PDF

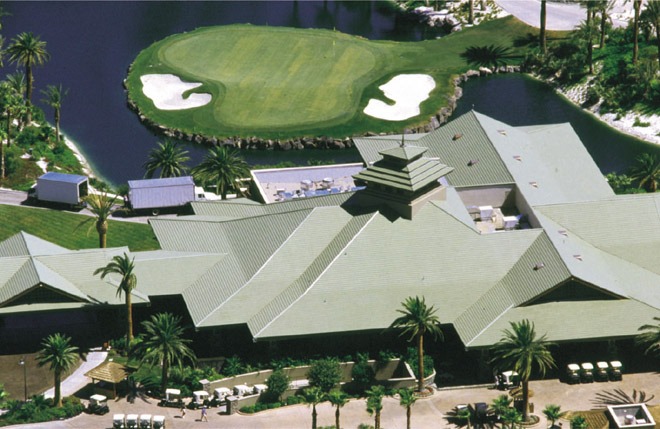

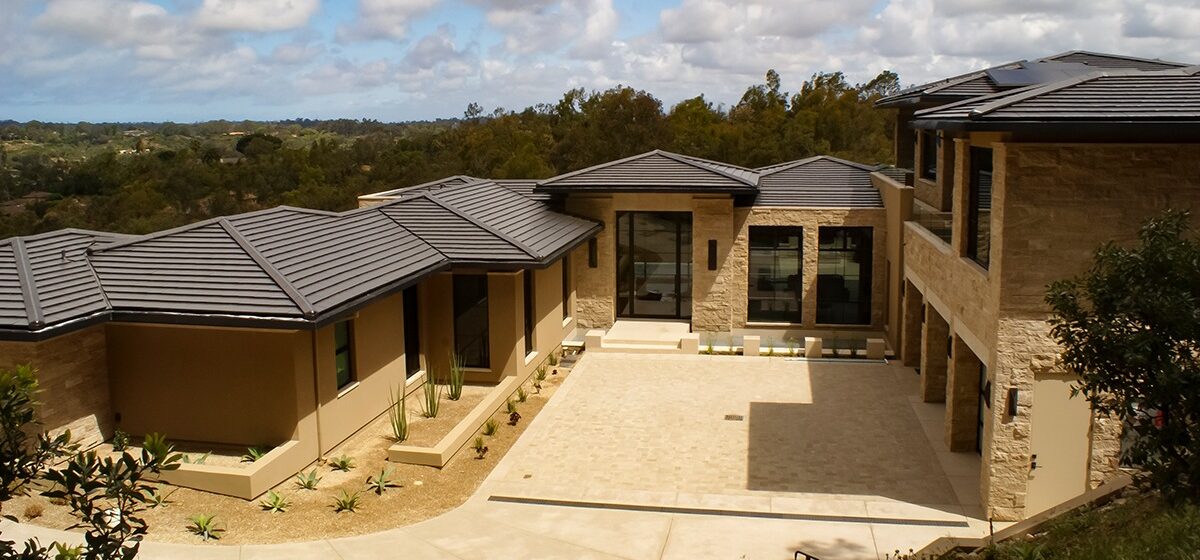

Architecture in Context

Witness the One Piece S Mission across diverse topographies and structural languages.
