Classic “S” Mission

Architectural Excellence

Elevating residential landscapes with the structural permanence and aesthetic heritage of fired clay roofing.

Overview

Classic “S” Mission

Item Code: CS01

Natural Red And Flashed Colors

MCA is proud to announce the most recent addition to our standard tile profile lines- our Classic “S” Mission Clay Roof Tile.

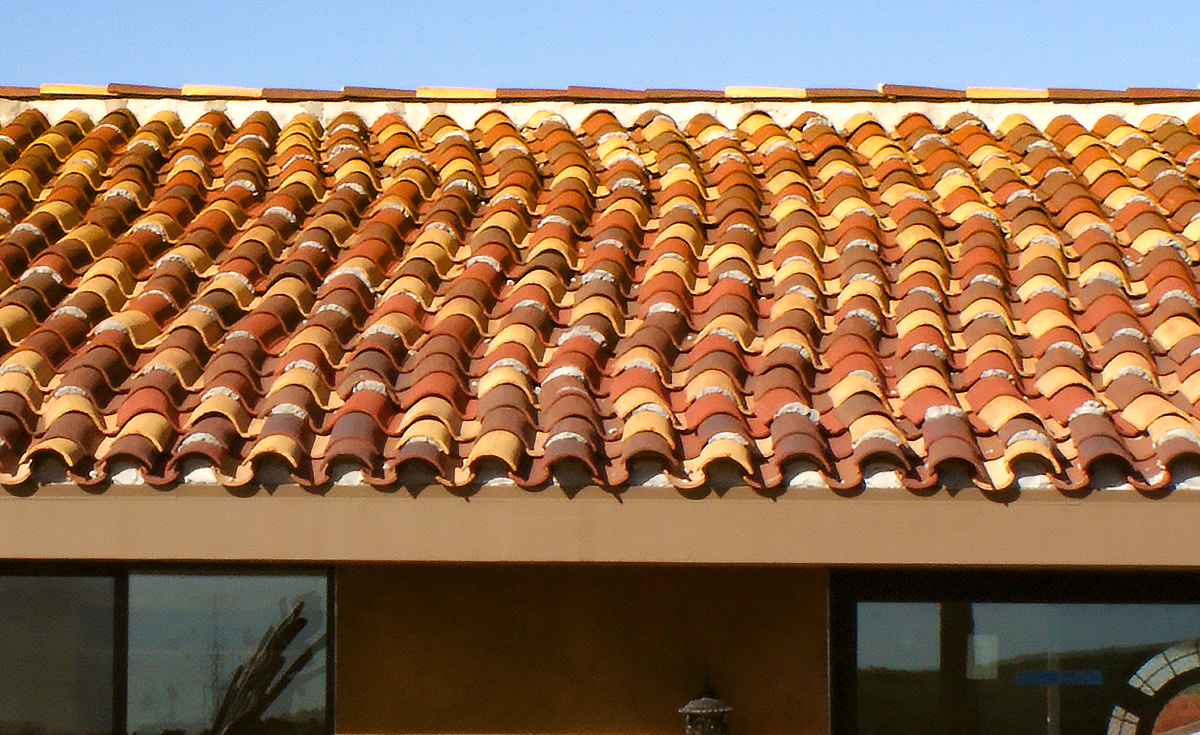

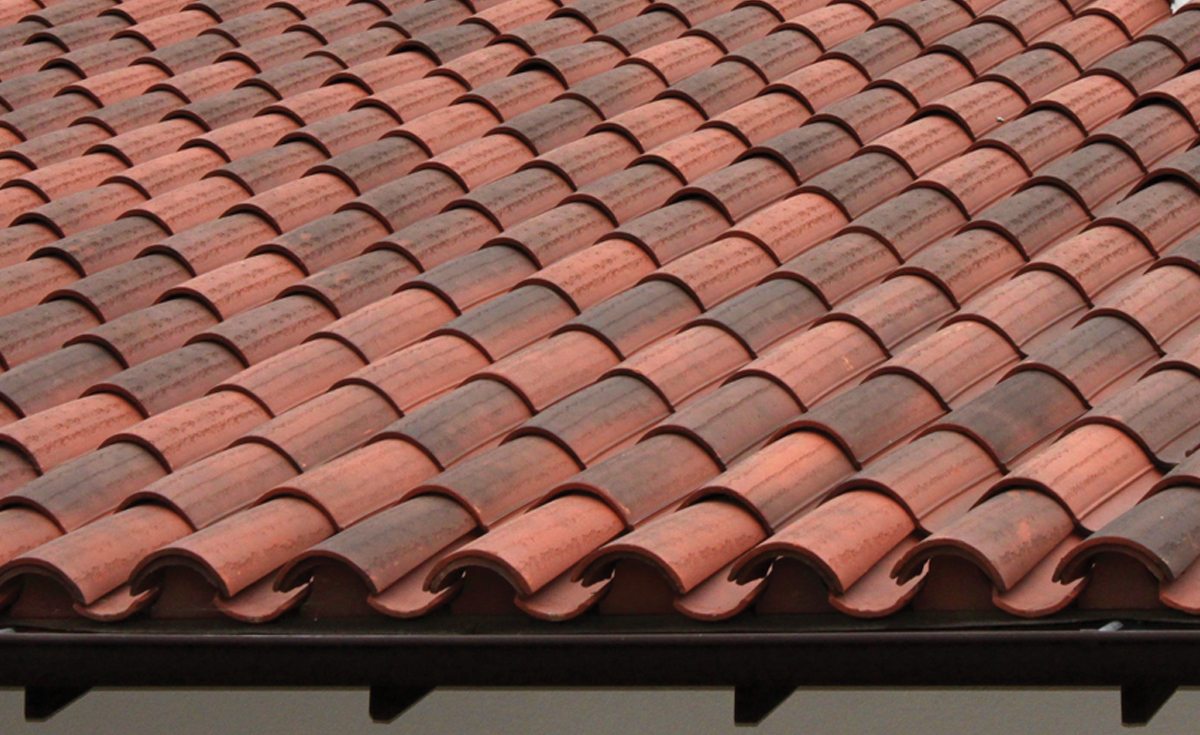

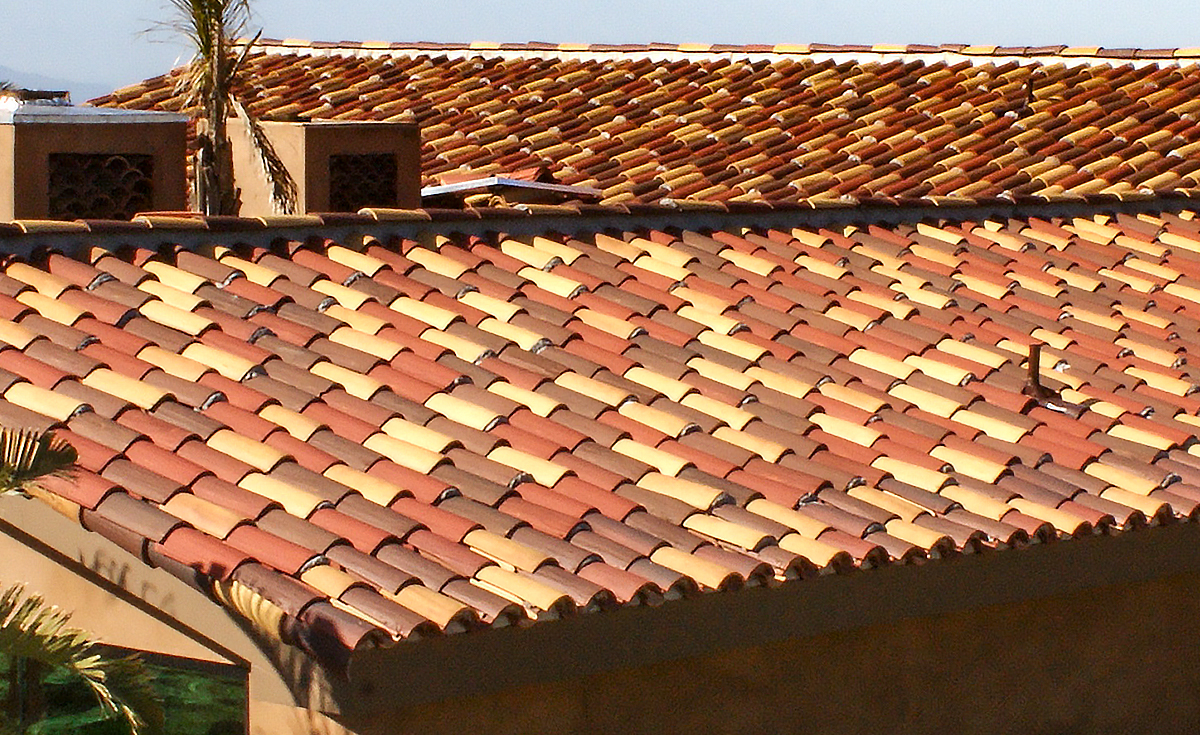

Classic “S” Mission offers a true two-piece tile look while offering the installation and weight savings of a standard “S” tile. Classic “S” installed with a two-piece eave line will astound you with the almost unbelievable look of two piece tile. Fooling all but the most experienced, “only your roofer will know for sure…”

Classic “S Mission tile is available in Natural Red or in an array of colors, blends and textures, including sand cast, to create a signature roof for your custom home or project. A 50-Year Limited Warranty is available on all MCA Tiles.

Color/Texture Availability

Tile Specifications

Actual Size:

19″ X 12”

Exposed Size:

16″ x 10″ O.C.

Weight per square:

788 lbs.

Weight per piece:

8.75 lbs.

No. of pieces per square:

90 pcs

Metric Tile Specifications

Actual Size:

483mm x 305mm

Exposed Size:

406mm x 254mm

Weight per M2:

35.56 kg

Weight per piece:

3.67 kg

No. of pieces per M2:

9.69 pcs/M2

Color Selection

Each finish is achieved through unique firing cycles in our modernized kilns, ensuring every tile carries consistent quality and performance

Full Color and Texture Availability

F40 Natural Red

Solar Reflectance: 0.45

Thermal Emittance: 0.88

F19 Ironwood Crown Flash

Solar Reflectance: 0.28

Thermal Emittance: 0.83

F22 Burnt Sienna Crown Flash

Solar Reflectance: 0.31

Thermal Emittance: 0.84

F23 Canyon Red Crown Flash

Solar Reflectance: 0.36

Thermal Emittance: 0.88

F45 Tobacco Crown Flash

Solar Reflectance: 0.42

Thermal Emittance: 0.86

F72 Mahogany Crown Flash

Solar Reflectance: 0.27

Thermal Emittance: 0.85

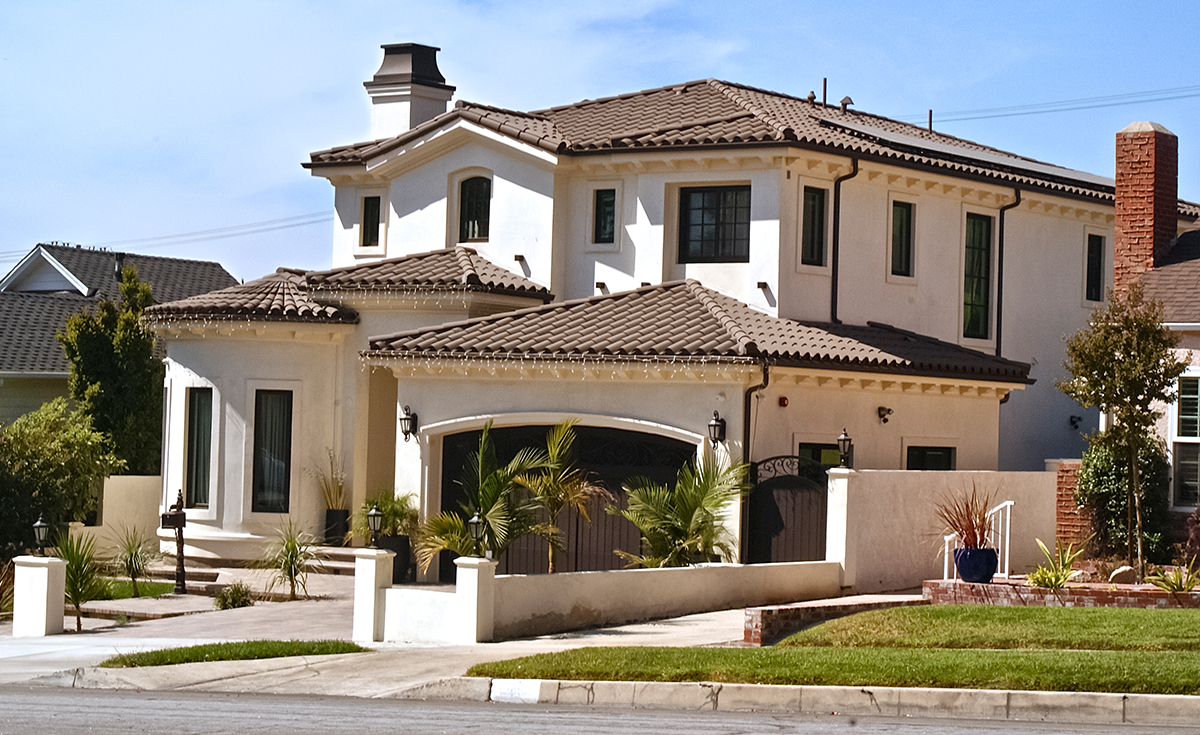

2F19 Ironwood

Solar Reflectance: 0.28

Thermal Emittance: 0.83

2F22 Burnt Sienna

Solar Reflectance: 0.31

Thermal Emittance: 0.84

2F23 Canyon Red

Solar Reflectance: 0.36

Thermal Emittance: 0.88

2F45 Tobacco

Solar Reflectance: 0.42

Thermal Emittance: 0.86

2F72 Mahogany

Solar Reflectance: 0.27

Thermal Emittance: 0.85

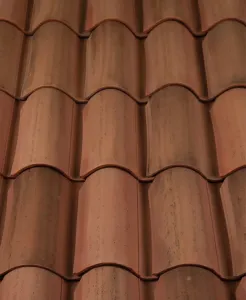

CB364-R Vintage Carmel Blend

Solar Reflectance: 0.36

Thermal Emittance: 0.83

CB364-R Vintage Carmel Blend

Solar Reflectance: 0.31

Thermal Emittance: 0.84

CB364-R Vintage Carmel Blend

Solar Reflectance: 0.29

Thermal Emittance: 0.84

CB46-SC Rustic Tuscan Blend

Solar Reflectance: 0.50

Thermal Emittance: 0.84

CB46-SC Rustic Tuscan Blend

Solar Reflectance: 0.48

Thermal Emittance: 0.84

CB46-SC Rustic Tuscan Blend

Solar Reflectance: 0.44

Thermal Emittance: 0.85

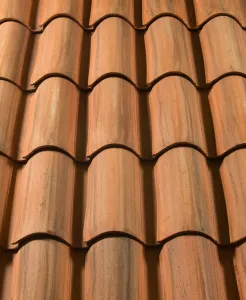

CB47-SM Rustic Provence Blend

Solar Reflectance: 0.44

Thermal Emittance: 0.84

CB47-SM Rustic Provence Blend

Solar Reflectance: 0.38

Thermal Emittance: 0.84

CB47-SM Rustic Provence Blend

Solar Reflectance: 0.35

Thermal Emittance: 0.85

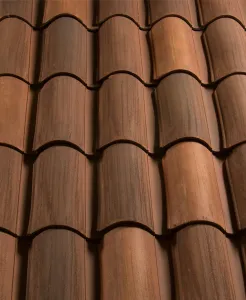

B2F45-MSCXL Tierra Brown Extra Light Blend

Solar Reflectance: 0.44

Thermal Emittance: 0.85

B2F45-MSCXL Tierra Brown Extra Light Blend

Solar Reflectance: 0.37

Thermal Emittance: 0.85

B2F45-MSCXL Tierra Brown Extra Light Blend

Solar Reflectance: 0.29

Thermal Emittance: 0.84

B2F45-MSCXL Tierra Brown Extra Light Blend

Solar Reflectance: 0.31

Thermal Emittance: 0.86

Blends

Each finish is achieved through unique firing cycles in our modernized kilns, ensuring every tile carries the soul of the earth.

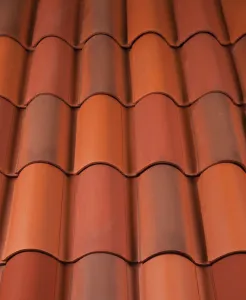

B301 Old Mission Blend®

Solar Reflectance: 0.41

Thermal Emittance: 0.85

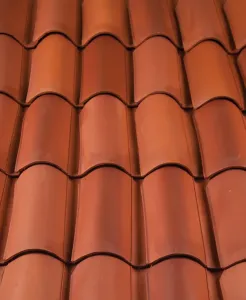

B308 Canyon Red Blend

Solar Reflectance: 0.38

Thermal Emittance: 0.85

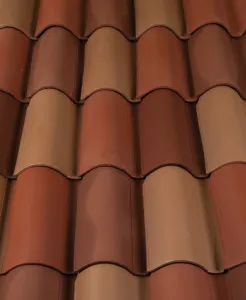

B341 Carmel Blend

Solar Reflectance: 0.37

Thermal Emittance: 0.88

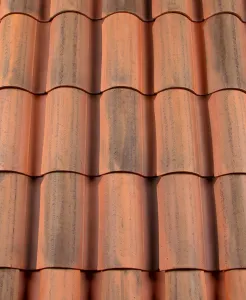

B320-R Rustic Red Blend

Solar Reflectance: 0.38

Thermal Emittance: 0.84

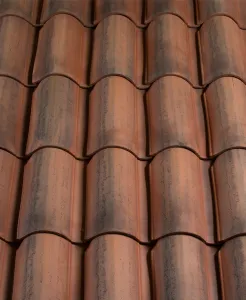

CC135L-R Rustic Red Light

Solar Reflectance: 0.38

Thermal Emittance: 0.84

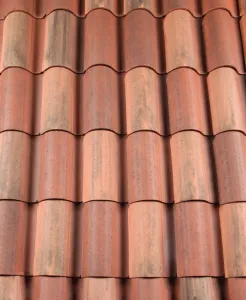

B332-R Houstonian Blend

Solar Reflectance: 0.34

Thermal Emittance: 0.84

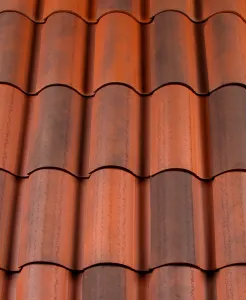

B330-R Old Santa Barbara Blend

Solar Reflectance: 0.33

Thermal Emittance: 0.84

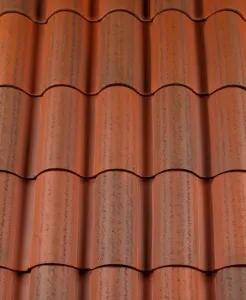

B340-R Vintage Red Blend

Solar Reflectance: 0.29

Thermal Emittance: 0.84

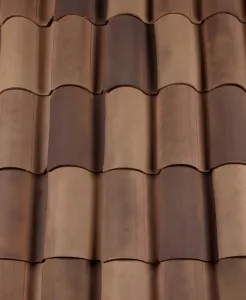

B317-R Taupe Smoke Blend

Solar Reflectance: 0.34

Thermal Emittance: 0.86

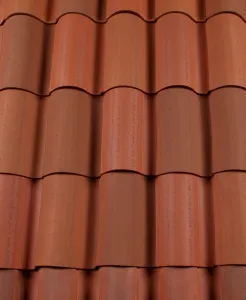

B318-R Café Rustic Blend

Solar Reflectance: 0.37

Thermal Emittance: 0.89

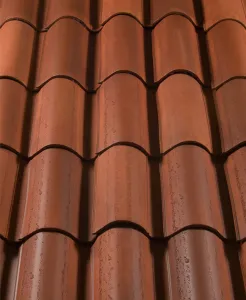

70% B392-R Custom Burnt Sienna Blend 30% B393-R Custom Mahogany Blend

Solar Reflectance: 0.34

Thermal Emittance: 0.85

CB364-R Vintage Carmel Blend

Solar Reflectance: 0.32

Thermal Emittance: 0.83

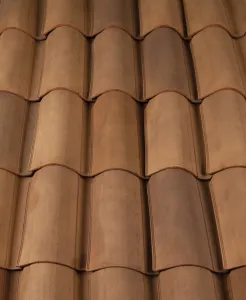

B331-R Zorro Blend

Solar Reflectance: 0.29

Thermal Emittance: 0.84

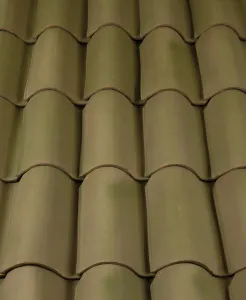

B305 Weathered Green Blend®

Solar Reflectance: 0.43

Thermal Emittance: 0.82

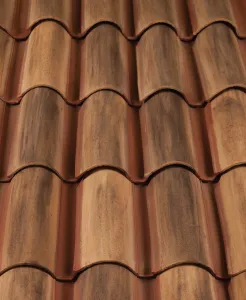

F46-SSC Veneto Diores Blend

Solar Reflectance: 0.40

Thermal Emittance: 0.84

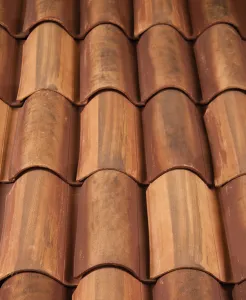

F4645-SSC Tuscan Gold Blend

Solar Reflectance: 0.39

Thermal Emittance: 0.85

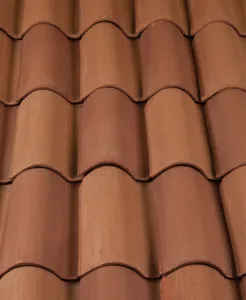

CB360-SC Café Mocca Blend

Solar Reflectance: 0.30

Thermal Emittance: 0.84

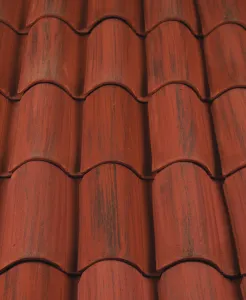

2F43-MSC Villa Rosso Blend

Solar Reflectance: 0.33

Thermal Emittance: 0.84

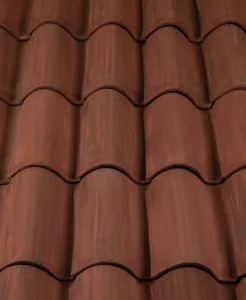

2F45-SSC Tierra Brown Blend

Solar Reflectance: 0.33

Thermal Emittance: 0.86

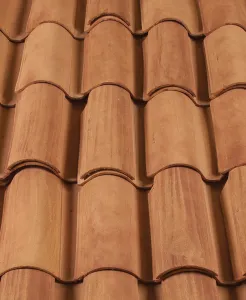

CB46-SC Rustic Tuscan Blend

Solar Reflectance: 0.47

Thermal Emittance: 0.83

CB47-SM Rustic Provence Blend

Solar Reflectance: 0.42

Thermal Emittance: 0.84

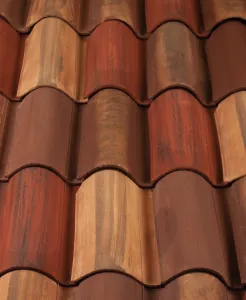

CB389-SC Marco Blend

Solar Reflectance: 0.36

Thermal Emittance: 0.84

B2F45-MSCXL Tierra Brown Extra Light Blend

Solar Reflectance: 0.37

Thermal Emittance: 0.85

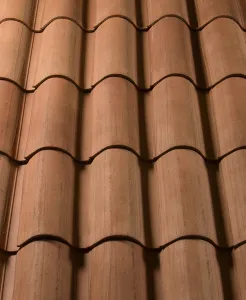

CB2F3445-SC Chocolate Mocca Blend

Solar Reflectance: 0.34

Thermal Emittance: 0.86

Tile Selection

Preserving the architectural soul of the past requires more than mere imitation

Porducts

Oriental Japanese Products

Catalog
Code Approvals & SDS
Installation Specifications
Warranty
Detail Drawings

Classic Catalog

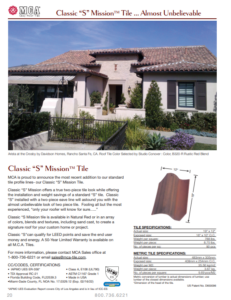

Classic S Product Data Sheet

General Catalog

CC/Codes, Certifications

Include:
– IAPMO UNIFORM EVALUATION REPORT
– SDS SAFETY DATA
– TDI APPROVAL RC-21
– MIAMI-DADE COUNTY APPROVAL 21-1215.04 EXP 02/16/27

Reports

IAPMO Uniform Evaluation Report No. 0356

SDS Safety Data

TDI Approval; RC-21

Miami-Dade County Approval 21-1215.03 Exp. 02/16/27

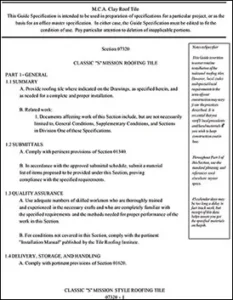

Classic “S” Mission Clay Roof Tile Specification

ARCAT

Specwizard

BIM Objects

TRI Installation Manual

TRI Cold and Snow Installation Manual

50-YEAR LIMITED WARRANTY

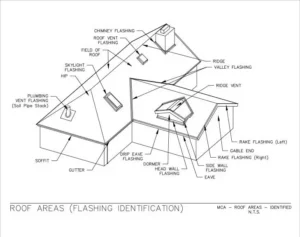

Download Roof Areas PDF

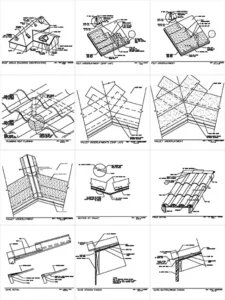

Download Summary Drawings PDF

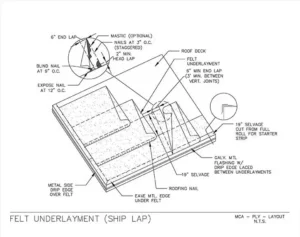

Download Felt Underlayment (SHP LAP) PDF

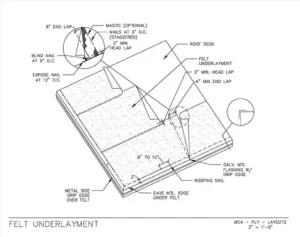

Download Felt Underlayment PDF

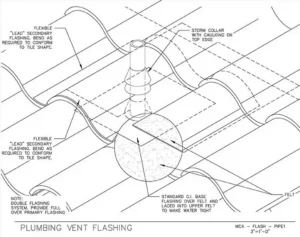

Download Plumbing Vent Flashing PDF

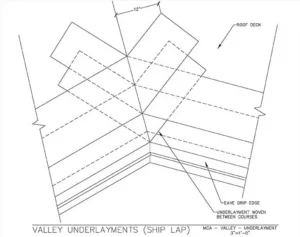

Download Valley Underlayment Woven Double Layer PDF

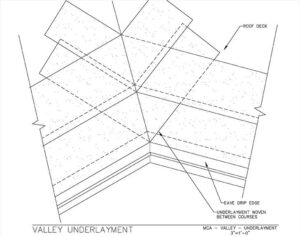

Download Valley Underlayment Woven Single Layer PDF

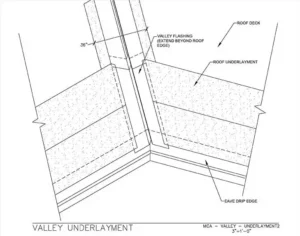

Download Valley Underlayment Overlapping PDF

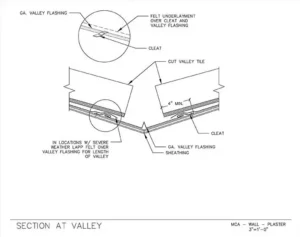

Download Section at Valley PDF

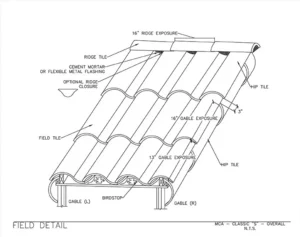

Download Field Detail PDF

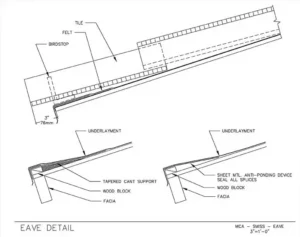

Download Eave Detail PDF

Download Eave Stucco Fascia PDF

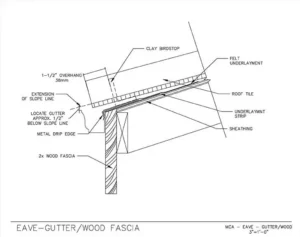

Download Eave-Gutter/ Wood Fascia PDF

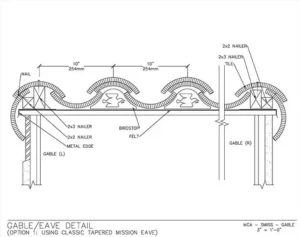

Download Gable/Eave Detail PDF

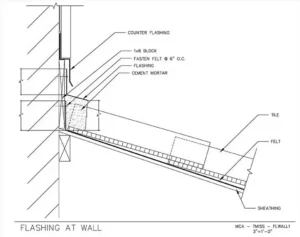

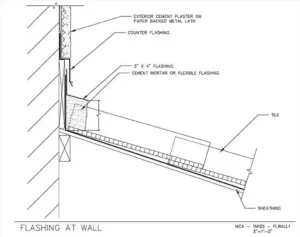

Download Head Wall Flashing with Counterflashing PDF

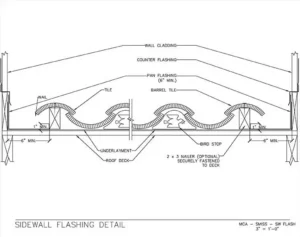

Download Sidewall Flashing Detail PDF

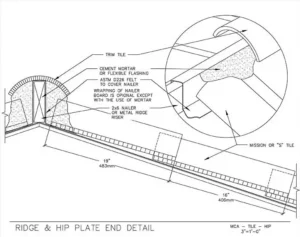

Download Ridge & Hip Plate End Detail PDF

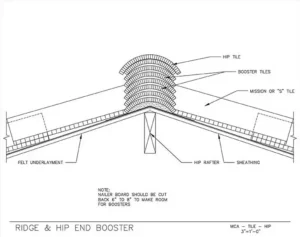

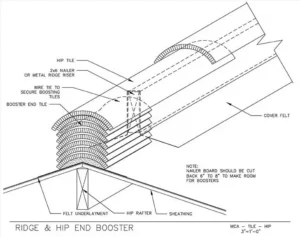

Download Ridge & Hip End Booster PDF

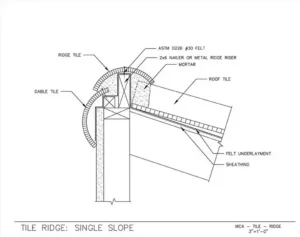

Download Tile Ridge: Single Slope PDF

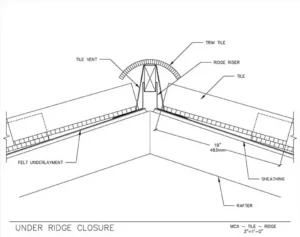

Download Under Ridge Closure PDF

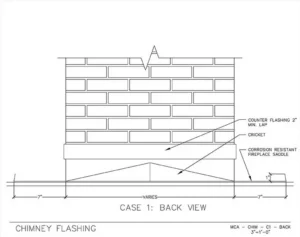

Download Chimney Flashing Back View 1 PDF

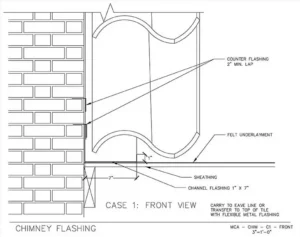

Download Chimney Flashing Front View 1 PDF

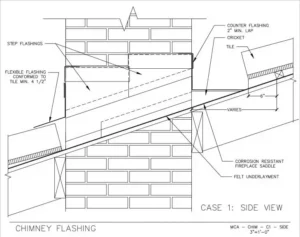

Download Chimney Flashing Side View 1 PDF

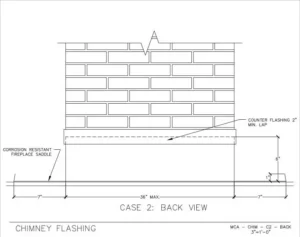

Download Chimney Flashing Back View 2 PDF

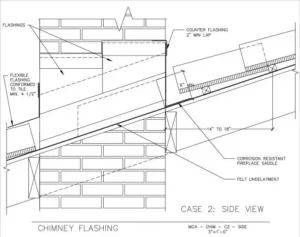

Download Chimney Flashing Side View 2 PDF

Download Chimney Flashing Front View 2 PDF

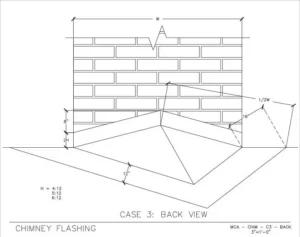

Download Chimney Flashing Back View 3 PDF

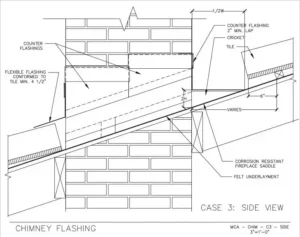

Download Chimney Flashing Side View 3 PDF

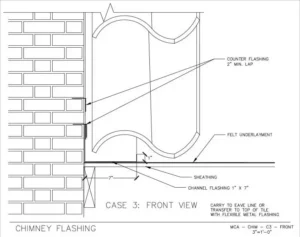

Download Chimney Flashing Front View 3 PDF

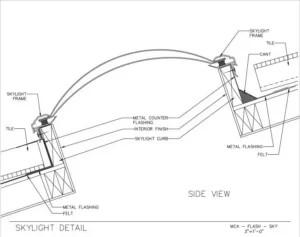

Download Skylight Detail PDF

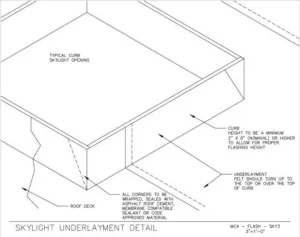

Download Skylight Underlayment Detail PDF

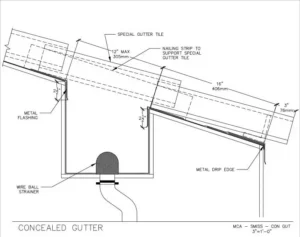

Download Concealed Gutter PDF

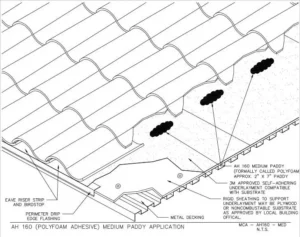

Download AH-160 Polyfoam Adhesive Medium Paddy Application PDF

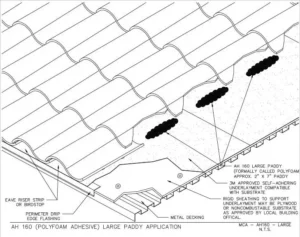

Download AH-160 Polyfoam Adhesive Large Paddy Application PDF

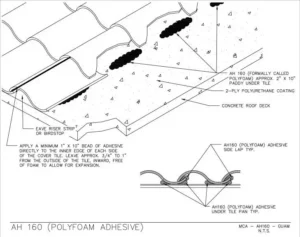

Download AH-160 Polyfoam Adhesive PDF

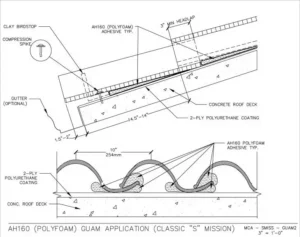

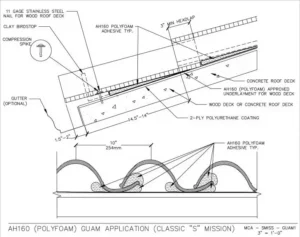

Download AH-160 Polyfoam Guam Application PDF

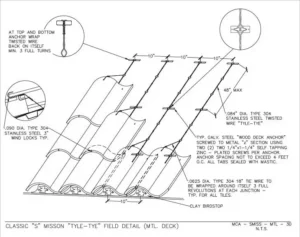

Download Classic “S” Mission “Tyle-Tye” Field Detail (MTL. Deck) PDF

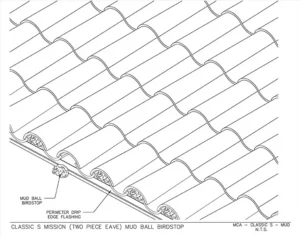

Download Classic “S” Mission (Two Piece Eave) Mud Ball Birdstop PDF

Catalog

Code Approvals & SDS

Installation Specifications

Warranty

Detail Drawings

General Catalog

Catalog

Code Approvals & SDS

Installation Specifications

Warranty

Detail Drawings

General Catalog

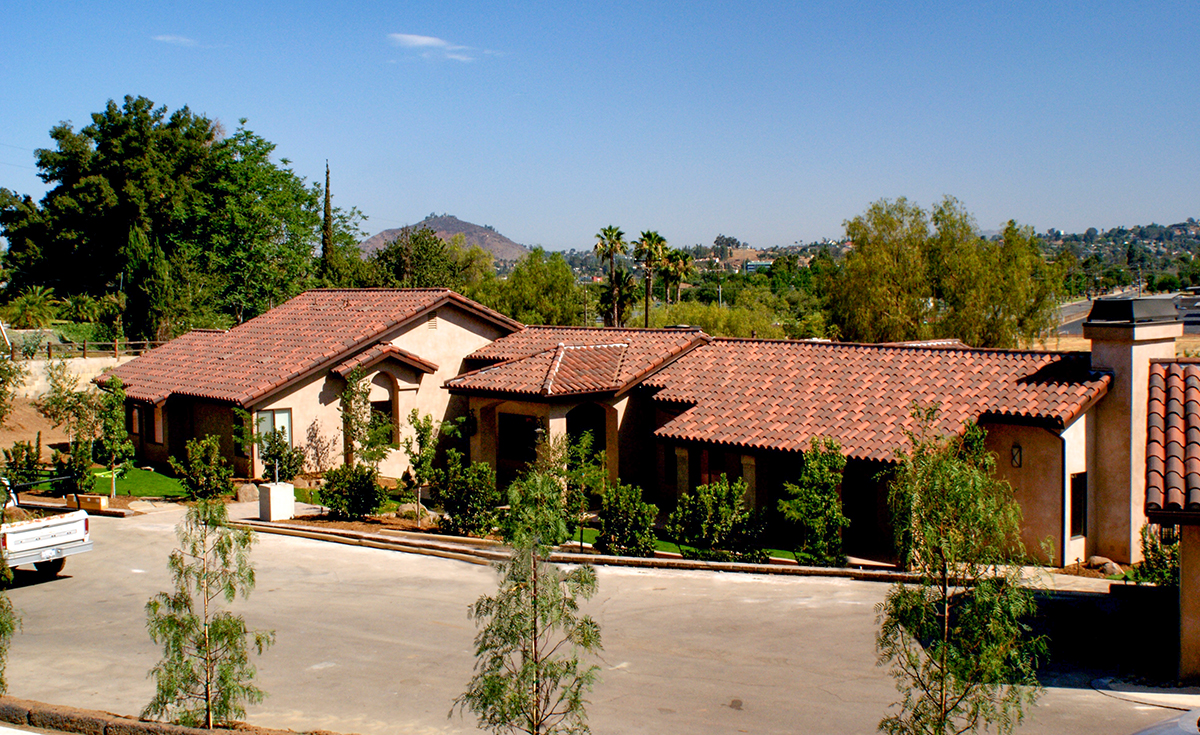

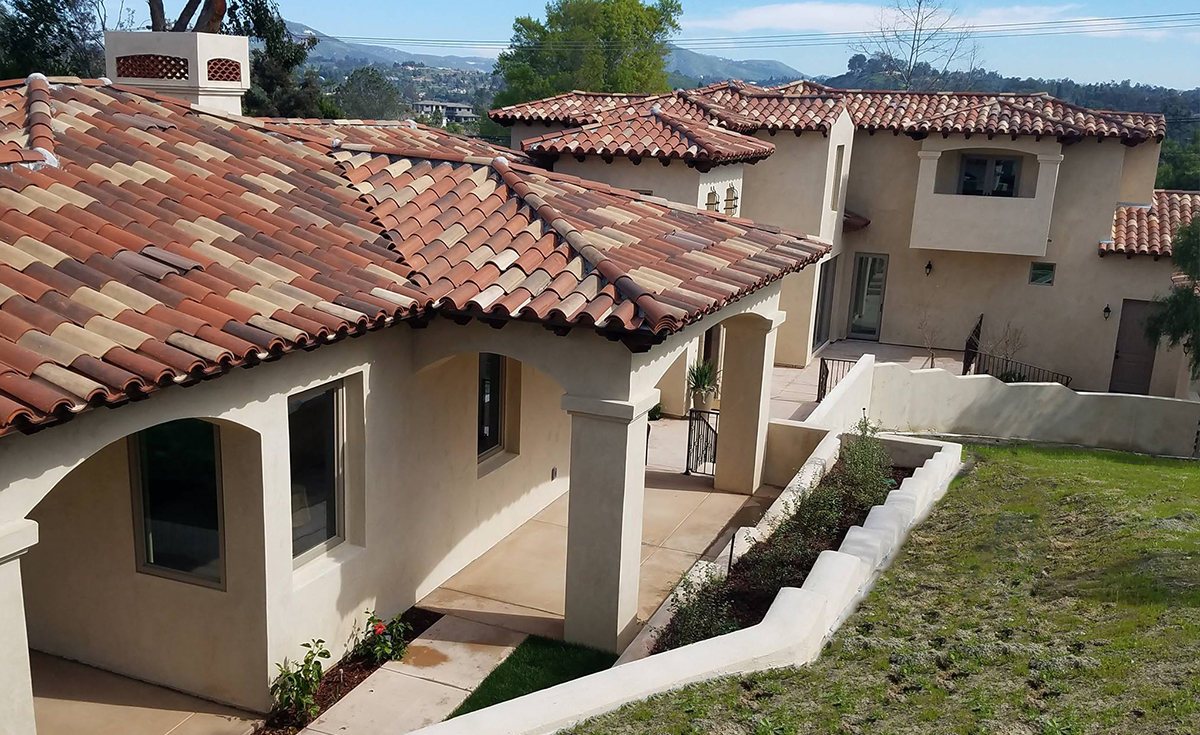

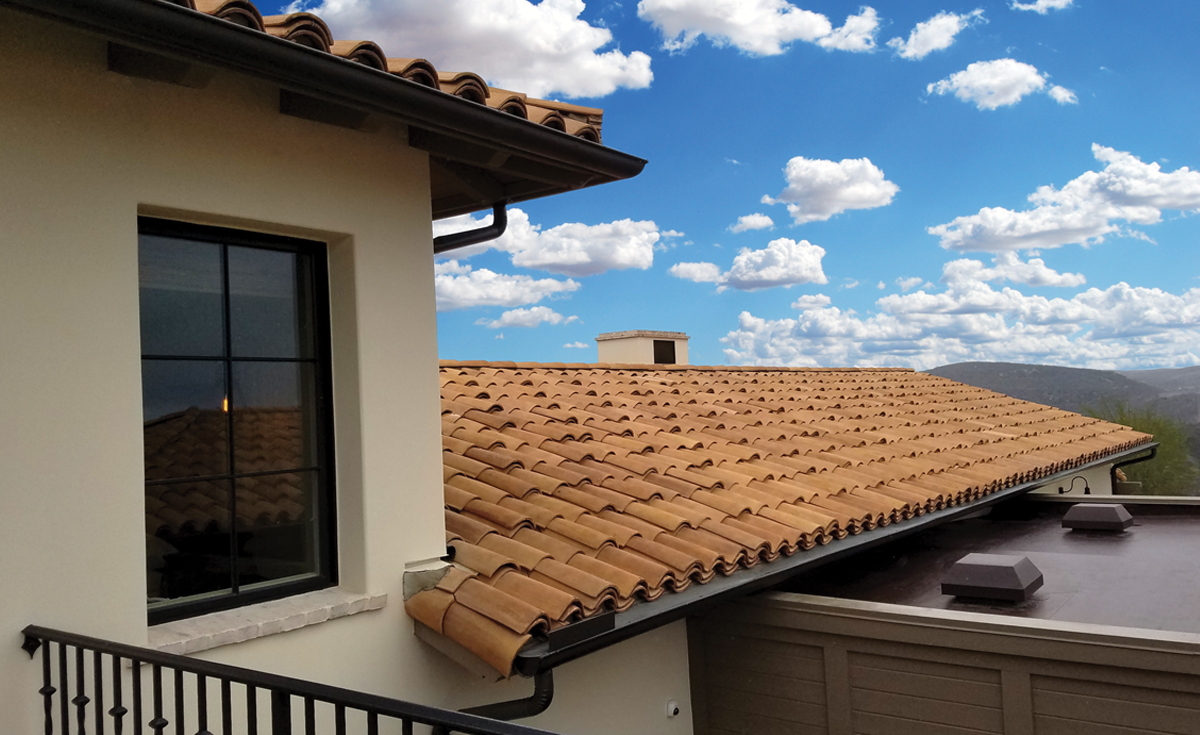

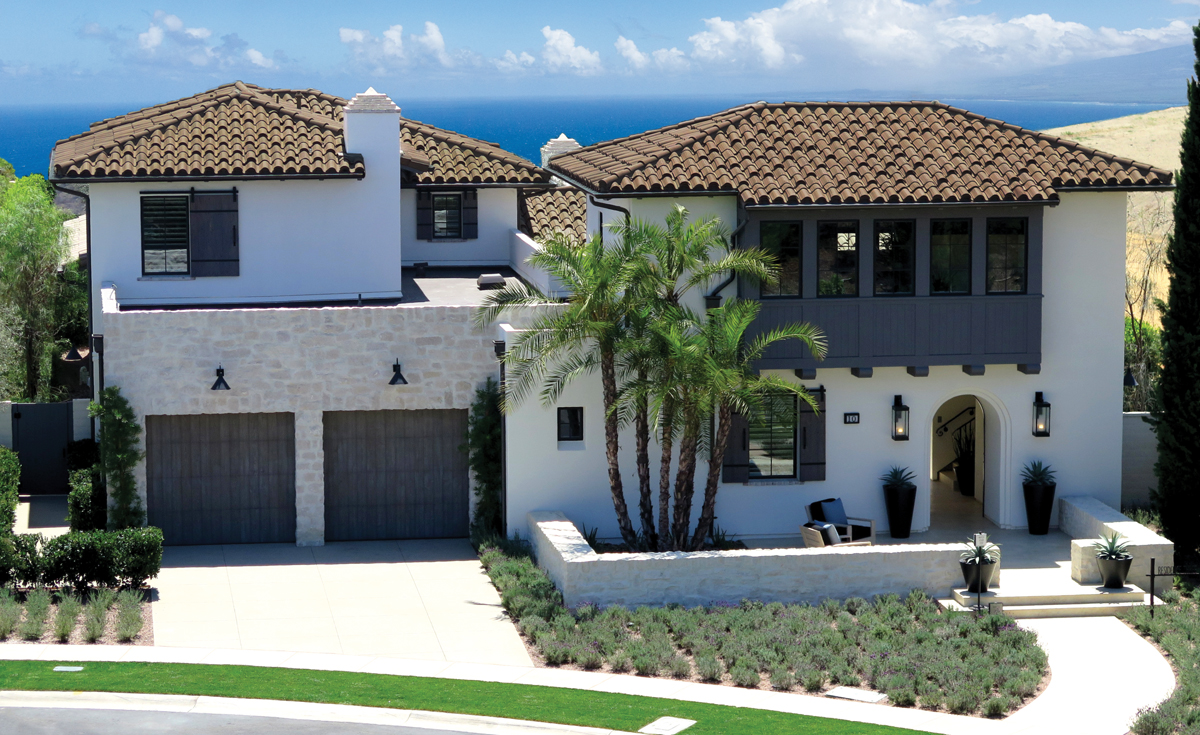

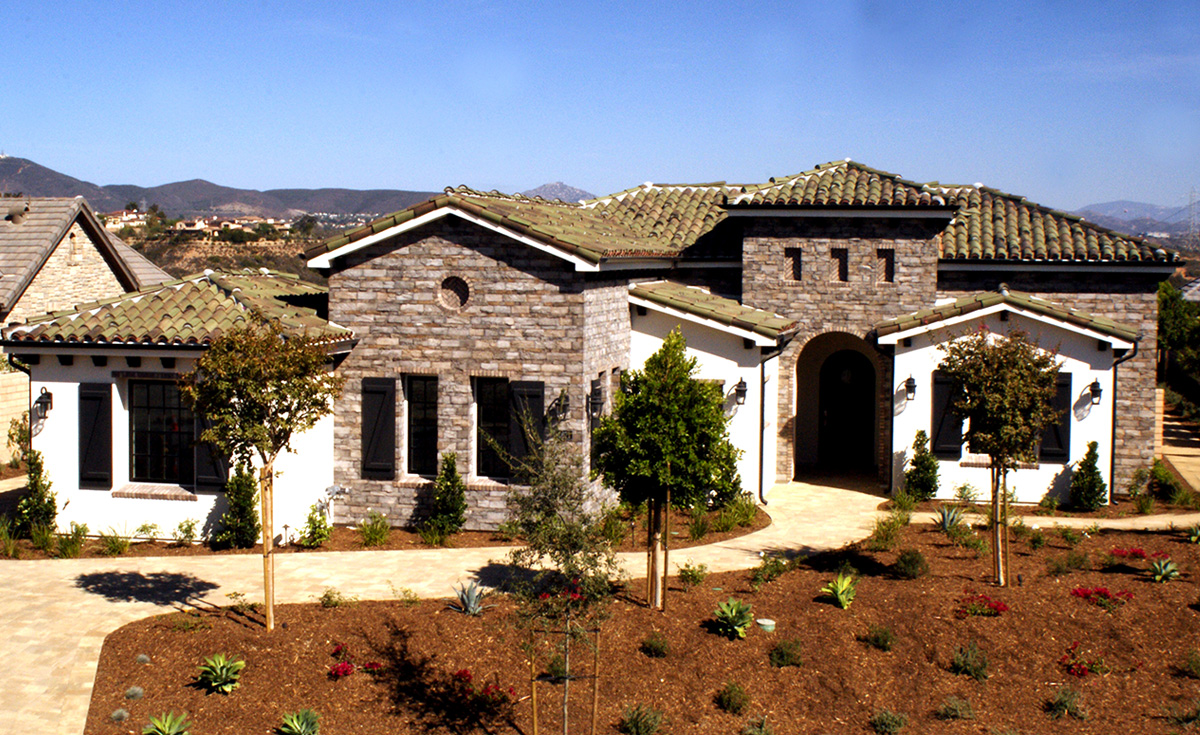

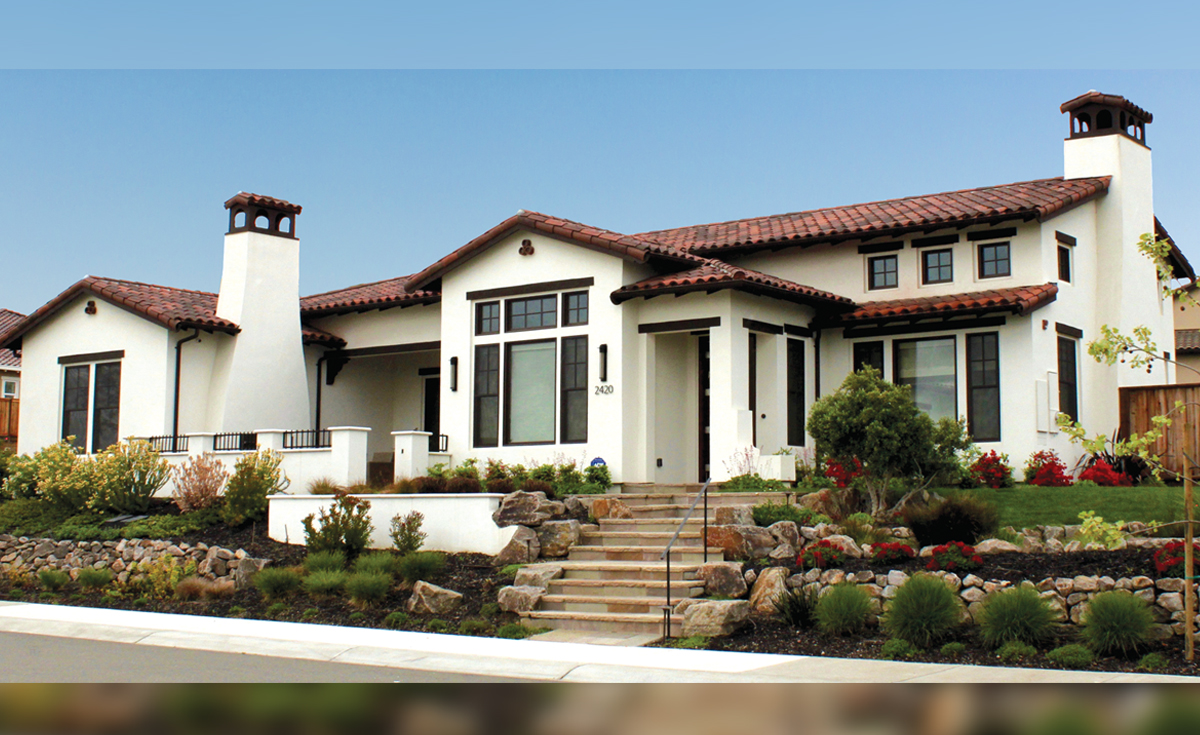

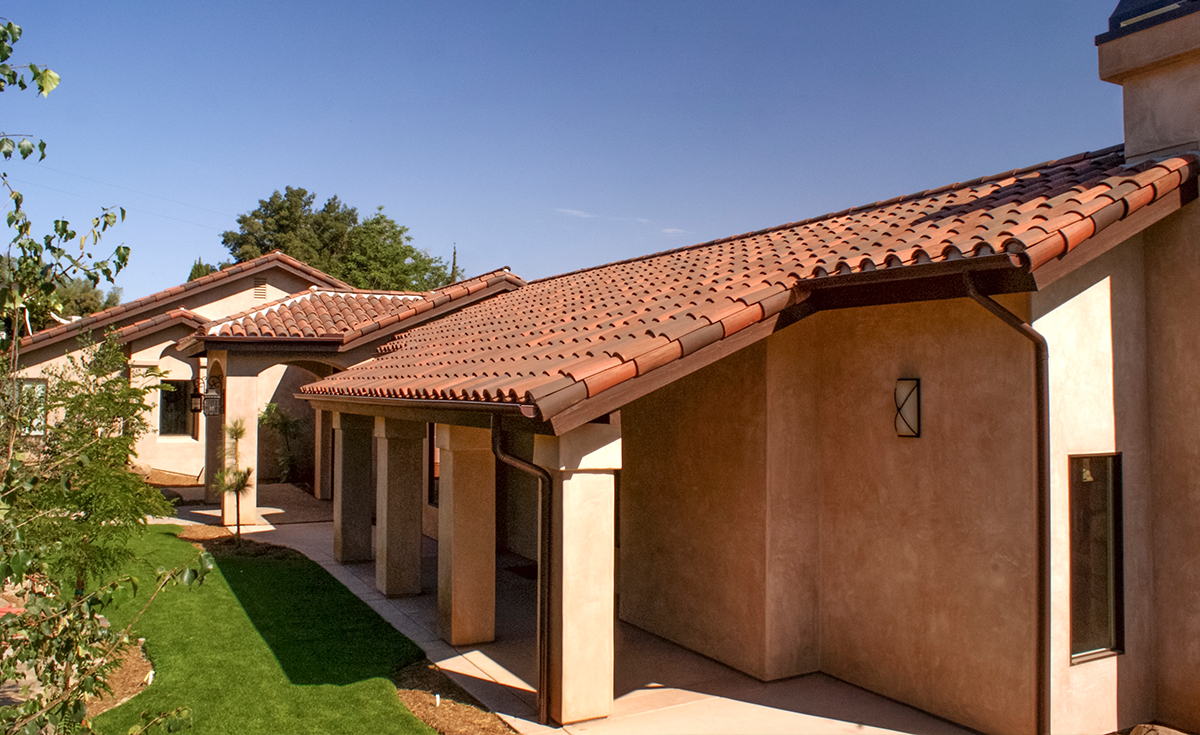

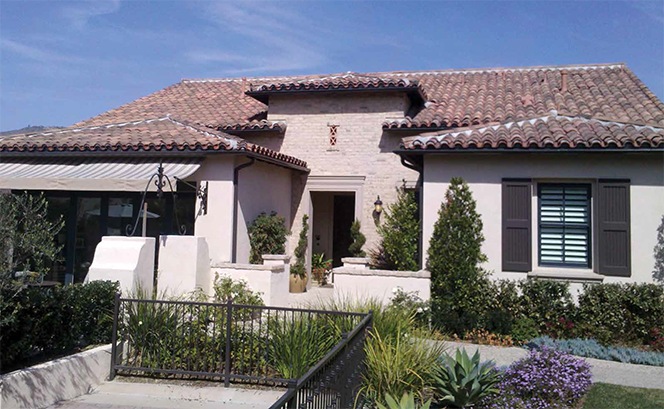

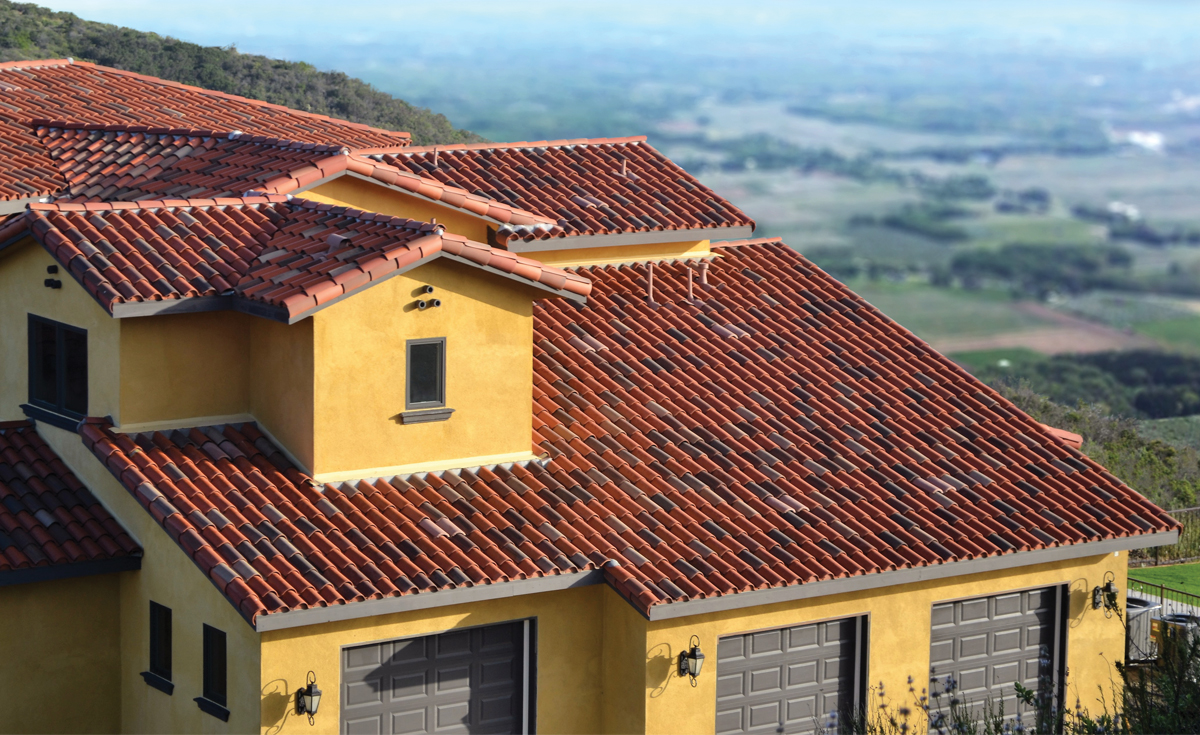

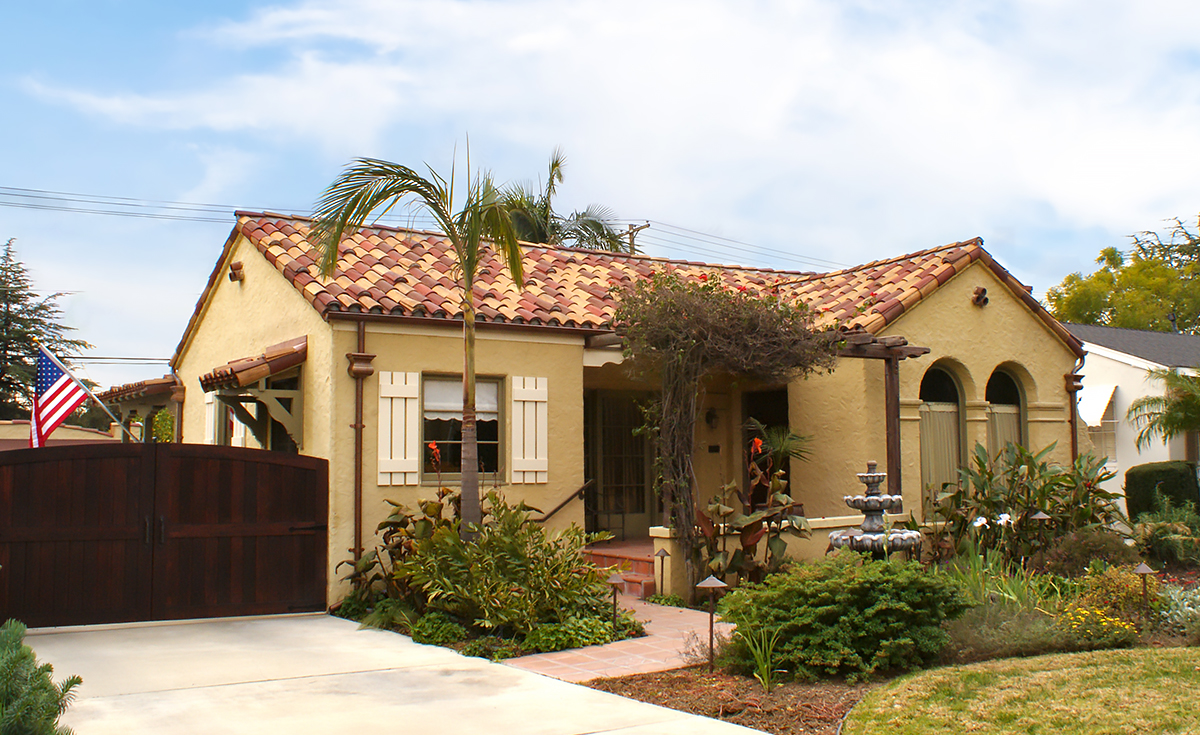

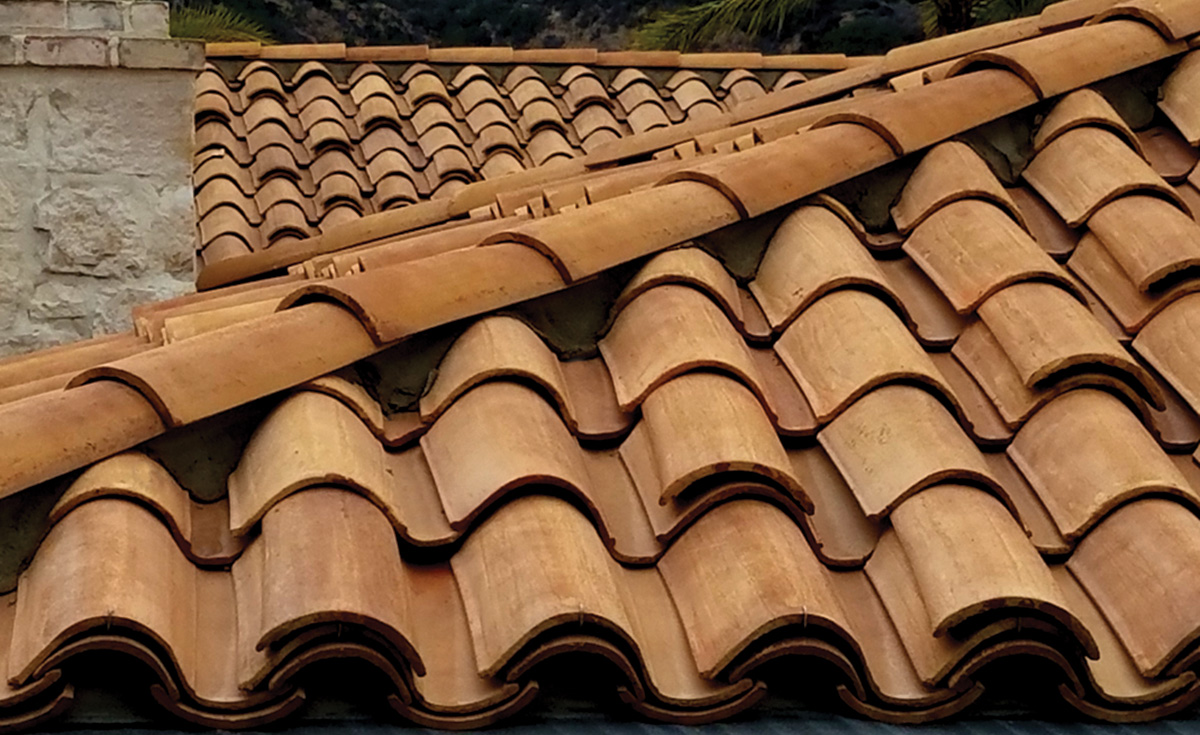

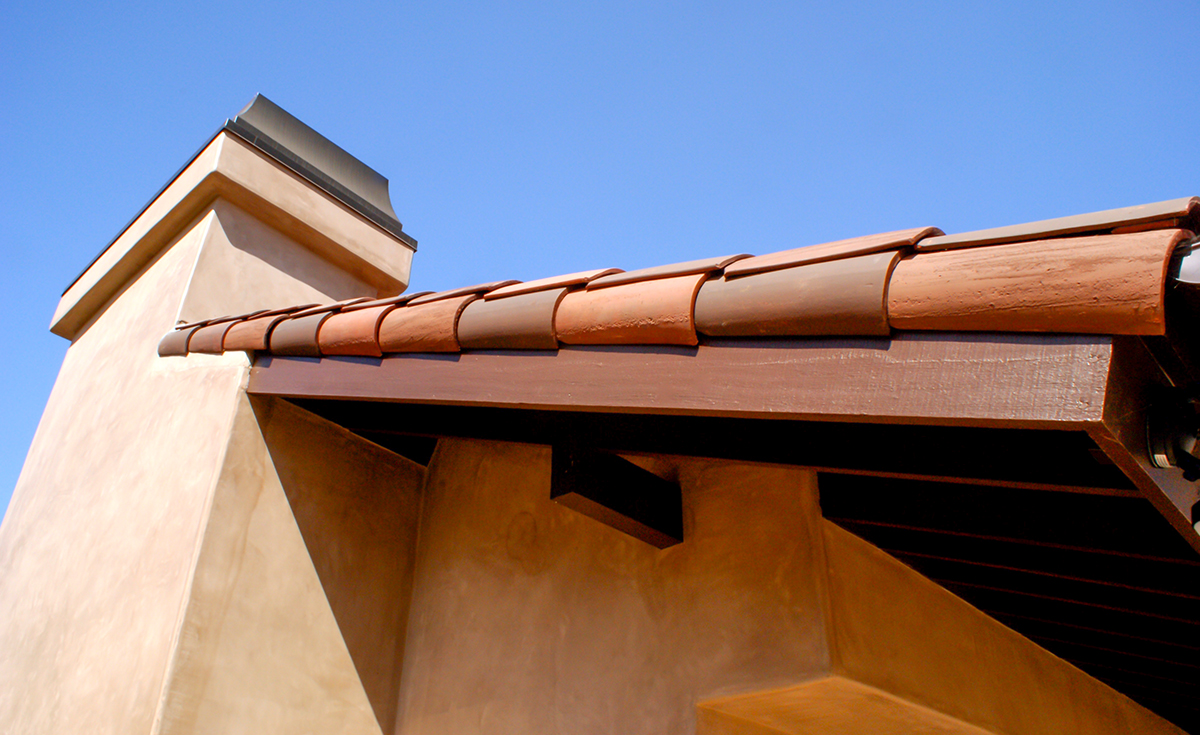

Architecture in Context
