Corona Tapered Mission

Item Code: TB02

Natural Red And Flashed Colors

NATURAL RED AND FLASHED COLORS

For the timely elegance of old world tradition, MCA uses new technology to create our 2-piece Corona Tapered Mission™ clay roof tile. Originally handcrafted by molding clay to the body’s thigh, this heritage has spanned the centuries for today’s installations. This tile is well suited for any Spanish or Mediterranean designs and will enhance the beauty of your project.

MCA’s Corona Tapered Mission™ tile has been widely used on residential, commercial, military, and institutional buildings and is available in our Natural Red (F40) terra cotta, standard and custom colors and blends.

A 50-Year Limited Warranty is available on all MCA Tiles.

Color/Texture Availability

Tile Specifications

Actual Size:

19″ X 8.71″ (5.94″)

Exposed Size:

16″ x 12″ O.C.

Weight per square:

1050 lbs.

Weight per piece:

7 lbs.

No. of pieces per square:

150 pcs (75 tops and 75 pans)

Metric Tile Specifications

Actual Size:

483mm x 222mm (151mm)

Exposed Size:

406mm x 305mm

Weight per M2:

51.32 kg

Weight per piece:

3.18kg

No. of pieces per M2:

16.14pcs

Color Selection

Each finish is achieved through unique firing cycles in our modernized kilns, ensuring every tile carries consistent quality and performance

Full Color and Texture Availability

F40 Natural Red

Solar Reflectance: 0.45

Thermal Emittance: 0.88

2F18 Cinnamon

Solar Reflectance: 0.35

Thermal Emittance: 0.97

2F43 Brick Red

Solar Reflectance: 0.42

Thermal Emittance: 0.84

F45 Tobacco Crown Flash

Solar Reflectance: 0.38

Thermal Emittance: 0.85

2F45 Tobacco Flash

Solar Reflectance: 0.42

Thermal Emittance: 0.86

2F23 Canyon Red

Solar Reflectance: 0.36

Thermal Emittance: 0.88

F41 Traditional Crown Flash

Solar Reflectance: 0.32

Thermal Emittance: 0.88

2F72 Mahogany

Solar Reflectance: 0.27

Thermal Emittance: 0.85

CC139 Vintage Red

Solar Reflectance: 0.3

Thermal Emittance: 0.82

2F25 Wineberry

2F22 Burnt Sienna

Solar Reflectance: 0.31

Thermal Emittance: 0.84

F22 Burnt Sienna Crown Flash

Solar Reflectance: 0.31

Thermal Emittance: 0.84

2F19 Ironwood

Solar Reflectance: 0.28

Thermal Emittance: 0.83

F19 Ironwood Crown Flash

Solar Reflectance: 0.28

Thermal Emittance: 0.83

F28 Carbon Crown Flash

Solar Reflectance: 0.33

Thermal Emittance: 0.83

2F28 Carbon

Solar Reflectance: 0.29

Thermal Emittance: 0.83

2F51 Adobe Black

F42 Antique Black Flash

Solar Reflectance: 0.31

Thermal Emittance: 0.84

CC60 Pale Gray

2F71 Adobe Gray

B318-R Cafe Rustic Blend

Solar Reflectance: 0.37

Thermal Emittance: 0.96

B318-R Cafe Rustic Blend

Solar Reflectance: 0.37

Thermal Emittance: 0.96

B318-R Cafe Rustic Blend

Solar Reflectance: 0.37

Thermal Emittance: 0.96

B330-R Old Santa Barbara Blend

Solar Reflectance: 0.33

Thermal Emittance: 0.84

B330-R Old Santa Barbara Blend

Solar Reflectance: 0.33

Thermal Emittance: 0.84

B330-R Old Santa Barbara Blend

Solar Reflectance: 0.33

Thermal Emittance: 0.84

B317-R Taupe Smoke Blend

Solar Reflectance: 0.34

Thermal Emittance: 0.86

B317-R Taupe Smoke Blend

Solar Reflectance: 0.34

Thermal Emittance: 0.86

B317-R Taupe Smoke Blend

Solar Reflectance: 0.34

Thermal Emittance: 0.86

B319-R Ivory Smoke Blend

Solar Reflectance: 0.51

Thermal Emittance: 0.82

B319-R Ivory Smoke Blend

Solar Reflectance: 0.45

Thermal Emittance: 0.82

B319-R Ivory Smoke Blend

Solar Reflectance: 0.33

Thermal Emittance: 0.82

B331-R Zorro Blend

Solar Reflectance: 0.33

Thermal Emittance: 0.82

B331-R Zorro Blend

Solar Reflectance: 0.38

Thermal Emittance: 0.82

B331-R Zorro Blend

Solar Reflectance: 0.44

Thermal Emittance: 0.83

2F34 Caramel

Solar Reflectance: 0.35

Thermal Emittance: 0.82

B320-R Rustic Red Blend

Solar Reflectance: 0.40

Thermal Emittance: 0.84

B320-R Rustic Red Blend

Solar Reflectance: 0.33

Thermal Emittance: 0.85

B320-R Rustic Red Blend

Solar Reflectance: 0.30

Thermal Emittance: 0.85

RB46 Navajo Gold

Solar Reflectance: 0.53

Thermal Emittance: 0.82

F44 White Buff Crown Flash

Solar Reflectance: 0.76

Thermal Emittance: 0.84

2F44 White Buff

Solar Reflectance: 0.76

Thermal Emittance: 0.84

RB39 Sandstone

Solar Reflectance: 0.62

Thermal Emittance: 0.82

2F46 Adobe Gold

Solar Reflectance: 0.51

Thermal Emittance: 0.82

CF51 Vanilla Buff

Solar Reflectance: 0.58

Thermal Emittance: 0.82

F46 Adobe Gold Crown Flash

Solar Reflectance: 0.54

Thermal Emittance: 0.83

F47 Peach Buff Crown Flash

Solar Reflectance: 0.52

Thermal Emittance: 0.82

RB47 Imperial Peach

Solar Reflectance: 0.50

Thermal Emittance: 0.82

2F47 Peach Buff

Solar Reflectance: 0.52

Thermal Emittance: 0.82

CF62 Apricot Smoke

Solar Reflectance: 0.46

Thermal Emittance: 0.83

RB01 True Buff

Solar Reflectance: 0.49

Thermal Emittance: 0.83

CF50 Apricot Buff

Solar Reflectance: 0.62

Thermal Emittance: 0.83

RB45 Santa Fe Brown

Solar Reflectance: 0.41

Thermal Emittance: 0.82

2F99 Desert Sand

Solar Reflectance: 0.41

Thermal Emittance: 0.82

CF25 Moss Green

2F53 Light Cactus Green

Solar Reflectance: 0.50

Thermal Emittance: 0.84

CC47 Aloha Green

2F49 Kamehameha Green

B305 Weathered Green Blend

Solar Reflectance: 0.43

Thermal Emittance: 0.82

B305 Weathered Green Blend

Solar Reflectance: 0.43

Thermal Emittance: 0.82

B305 Weathered Green Blend

Solar Reflectance: 0.43

Thermal Emittance: 0.82

2F62 Seagreen

2F52 Regency Blue

Solar Reflectance: 0.36

Thermal Emittance: 0.83

CC56 Regal Blue

Blends

Each finish is achieved through unique firing cycles in our modernized kilns, ensuring every tile carries the soul of the earth.

F40 Natural Red

Solar Reflectance: 0.45

Thermal Emittance: 0.88

2F43 Brick Red

Solar Reflectance: 0.42

Thermal Emittance: 0.84

B307 Mediterranean Blend

Solar Reflectance: 0.584

Thermal Emittance: 0.84

B303 Santiago Blend

Solar Reflectance: 0.43

Thermal Emittance: 0.86

B301 Old Mission Blend

Solar Reflectance: 0.41

Thermal Emittance: 0.85

B322 Santa Maria Blend

Solar Reflectance: 0.38

Thermal Emittance: 0.86

B304 Sierra Blend

Solar Reflectance: 0.40

Thermal Emittance: 0.88

B308 Canyon Red Blend

Solar Reflectance: 0.38

Thermal Emittance: 0.85

B217 Carbon Blend

Solar Reflectance: 0.37

Thermal Emittance: 0.85

B220 Madrid Blend

B341 Carmel Blend

Solar Reflectance: 0.37

Thermal Emittance: 0.88

B350 Old Barcelona Blend

Solar Reflectance: 0.35

Thermal Emittance: 0.84

B323 Ironwood Blend

Solar Reflectance: 0.36

Thermal Emittance: 0.85

B351 San Ramon Blend

Solar Reflectance: 0.34

Thermal Emittance: 0.84

B320-R Rustic Red Blend

Solar Reflectance: 0.38

Thermal Emittance: 0.84

B332-R Houstonian Blend

Solar Reflectance: 0.34

Thermal Emittance: 0.84

B333-R Rustic Smoke Blend

Solar Reflectance: 0.36

Thermal Emittance: 0.87

B330-R Old Santa Barbara Blend

Solar Reflectance: 0.33

Thermal Emittance: 0.84

B340-R Vintage Red Blend

Solar Reflectance: 0.29

Thermal Emittance: 0.84

B317-R Taupe Smoke Blend

Solar Reflectance: 0.34

Thermal Emittance: 0.86

B318-R Cafe Rustic Blend

Solar Reflectance: 0.37

Thermal Emittance: 0.89

B319-R Ivory Smoke Blend

Solar Reflectance: 0.43

Thermal Emittance: 0.82

B334-R Rustic Ivory Blend

Solar Reflectance: 0.43

Thermal Emittance: 0.82

B331-R Zorro Blend

Solar Reflectance: 0.383

Thermal Emittance: 0.82

B309 Eclipse Blend

Solar Reflectance: 0.48

Thermal Emittance: 0.83

B339 Suncoast Blend

Solar Reflectance: 0.56

Thermal Emittance: 0.83

B338 Palace Blend

Solar Reflectance: 0.48

Thermal Emittance: 0.83

B329 San Antonio Blend

Solar Reflectance: 0.46

Thermal Emittance: 0.85

2F53 Lt. Cactus Green

CF25 Moss Green Blend

2F52 Regency Blue

B336 St. Thomas Blend

B326 Manele Bay Blend

B337 Coronado Blend

B335 Aloha Blend

B305 Weathered Green Blend

Solar Reflectance: 0.43

Thermal Emittance: 0.82

B327 Old Saguaro Blend

F46-SSC Veneto Diores Blend

F4645-SSC Tuscan Gold Blend

CB360-SC Café Mocca Blend

CB364-R Vintage Carmel Blend

2F45-SSC Tierra Brown Blend

CB389-SC Marco Blend

Tile Selection

Preserving the architectural soul of the past requires more than mere imitation

Porducts

Oriental Japanese Products

Catalog
Code Approvals & SDS
Installation Specifications
Warranty
Detail Drawings

Catalog

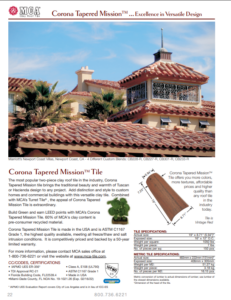

Corona Tapered Product Data Sheet

General Catalog

CC/Codes, Certifications

Include:
– IAPMO UNIFORM EVALUATION REPORT
– SDS SAFETY DATA
– TDI APPROVAL RC-21
– MIAMI-DADE COUNTY APPROVAL 21-1215.04 EXP 02/16/27

Reports

IAPMO Uniform Evaluation Report No. 0356

SDS Safety Data

TDI Approval; RC-21

Miami-Dade County Approval 21-1215.06 Exp. 02/16/27

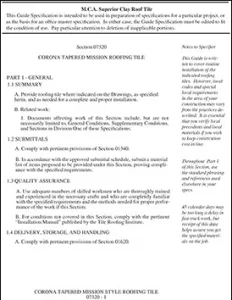

Corona Tapered Mission Clay Roof Tile Specification

ARCAT

SpecWizard

Bim Objects

TRI Installation Manual

TRI Cold and Snow Installation Manual

50-YEAR LIMITED WARRANTY

Download Roof Areas PDF

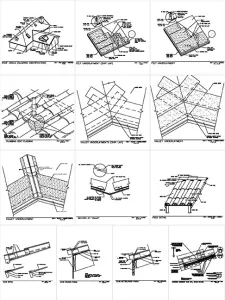

Download Summary Drawings PDF

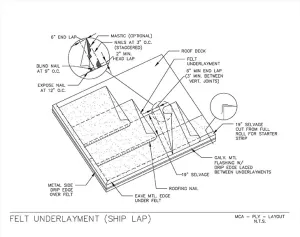

Download Felt Underlayment (SHP LAP) PDF

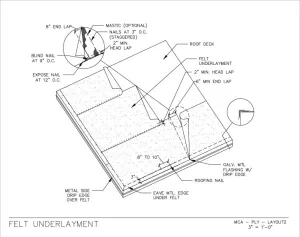

Download Felt Underlayment PDF

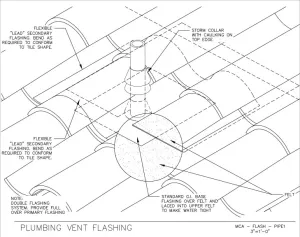

Download Plumbing Vent Flashing PDF

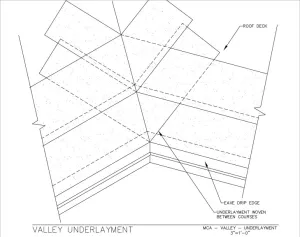

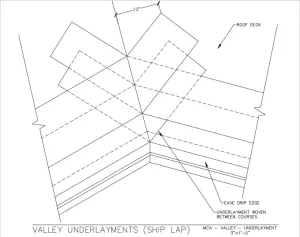

Download Valley Underlayment Woven Double Layer PDF

https://www.mca-tile.com/wp-content/uploads/2014/09/09-Valley-Underlayment1.pdf

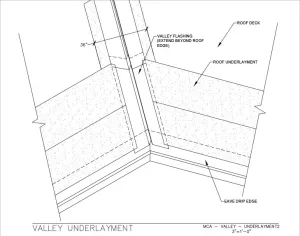

Download Valley Underlayment Overlapping PDF

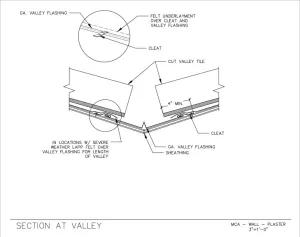

Download Section at Valley PDF

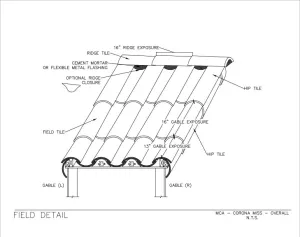

Download Field Detail PDF

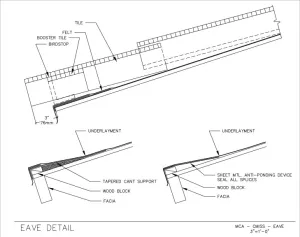

Download Eave Detail PDF

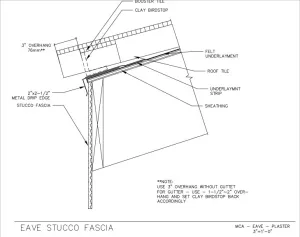

Download Eave Stucco Fascia PDF

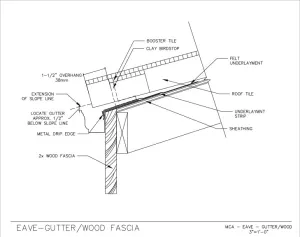

Download Eave Gutter/ Wood Fascia PDF

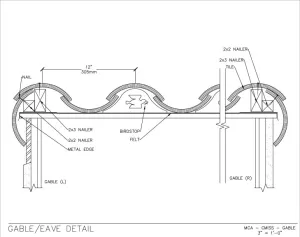

Download Gable/Eave Detail PDF

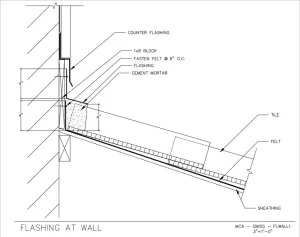

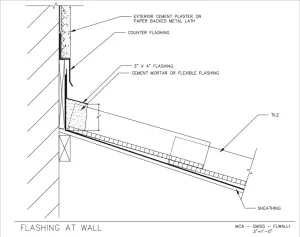

Download Head Wall Flashing with Counterflashing PDF

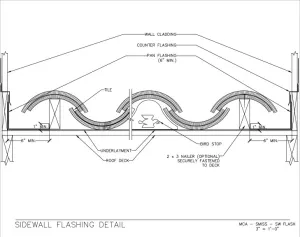

Download Sidewall Flashing Detail PDF

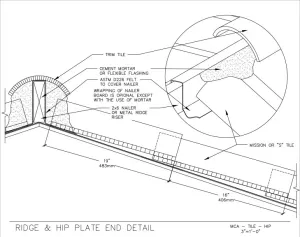

Download Ridge & Hip Plate End Detail PDF

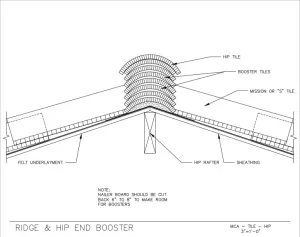

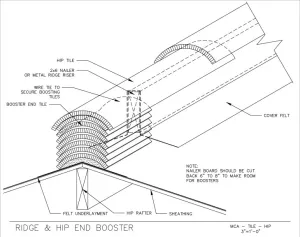

Download Ridge & Hip End Booster PDF

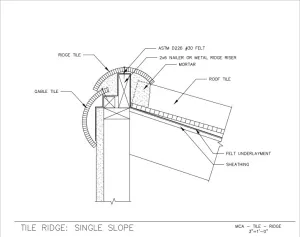

Download Tile Ridge: Single Slope PDF

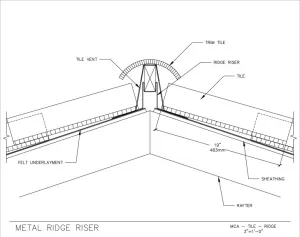

Download Metal Ridge Riser PDF

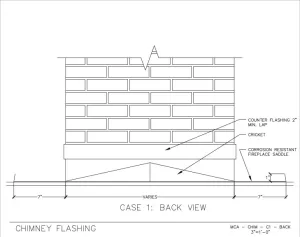

Download Chimney Flashing Back View 1 PDF

Download Chimney Flashing Front View 1 PDF

Download Chimney Flashing Side View 1 PDF

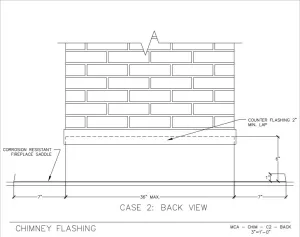

Download Chimney Flashing Back View 2 PDF

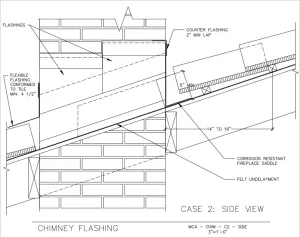

Download Chimney Flashing Side View 2 PDF

Download Chimney Flashing Front View 2 PDF

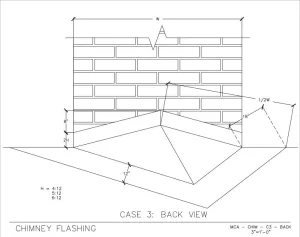

Download Chimney Flashing Back View 3 PDF

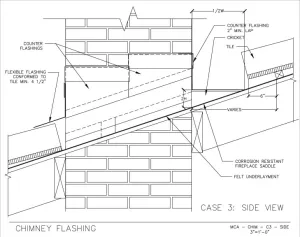

Download Chimney Flashing Side View 3 PDF

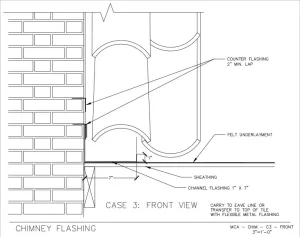

Download Chimney Flashing Front View 3 PDF

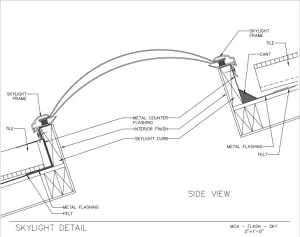

Download Skylight Detail PDF

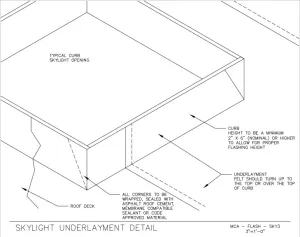

Download Skylight Underlayment Detail PDF

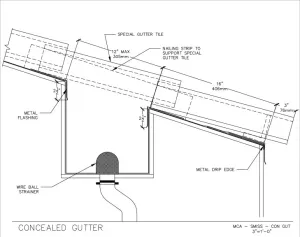

Download Concealed Gutter PDF

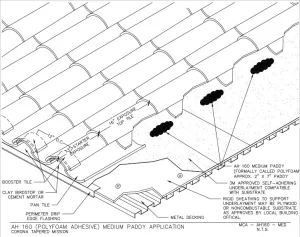

Download AH-160 Polyfoam Adhesive Medium Paddy Application PDF

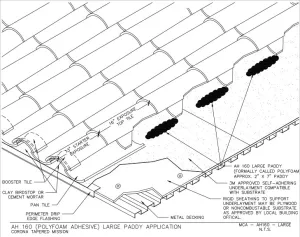

Download AH-160 Polyfoam Adhesive Large Paddy Application PDF

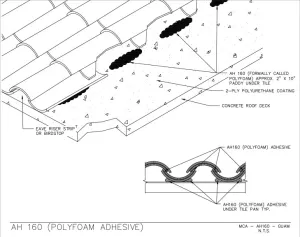

Download AH-160 Polyfoam Adhesive PDF

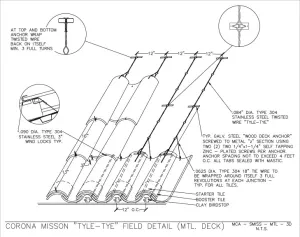

Download Corona Mission “Tyle-Tye” Field Detail (Mtl. Deck) PDF

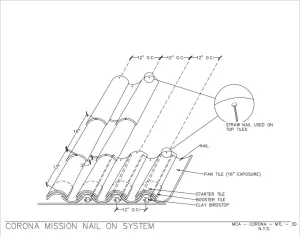

Download Corona Mission Nail on System PDF

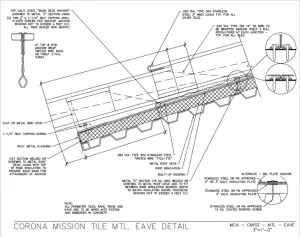

Download Corona Mission Tile Mtl. Eave Detail PDF

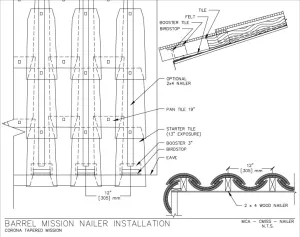

Download Barrel Mission Nailer Installation PDF

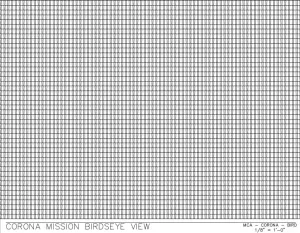

Download Corona Mission Birdseye View PDF

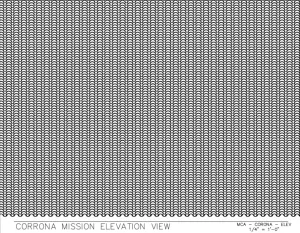

Download Corona Mission Elevation View PDF

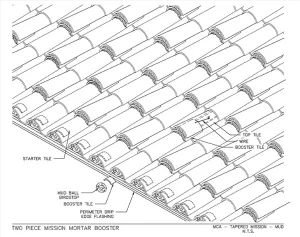

Download Two Piece Mission Mortar Booster PDF

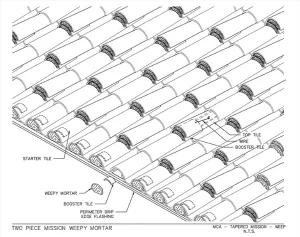

Download Two Piece Mission Weepy Mortar PDF

Catalog

Code Approvals & SDS

Installation Specifications

Warranty

Detail Drawings

General Catalog

Catalog

Code Approvals & SDS

Installation Specifications

Warranty

Detail Drawings

General Catalog

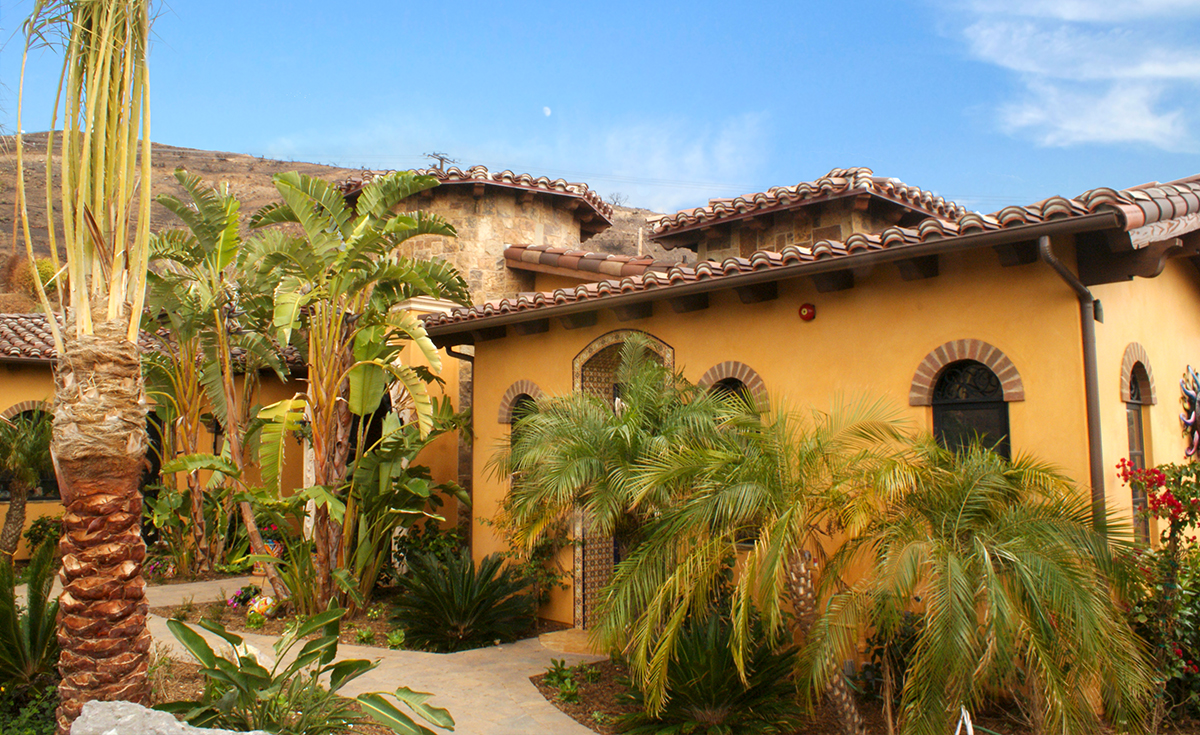

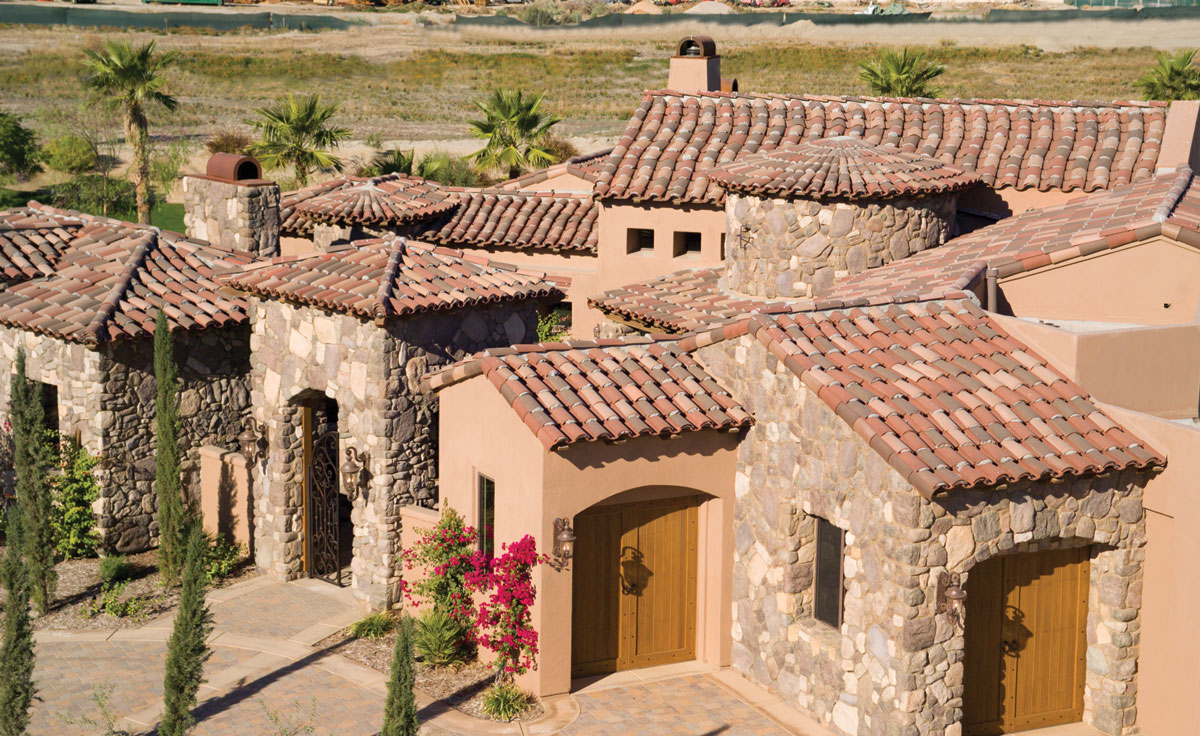

Architecture in Context
