Historical Tile

Elevating residential landscapes with the structural permanence and aesthetic heritage of fired clay roofing.

Overview

Natural Red And Flashed Colors

Replacement clay roof tile for a historical or old building is often impossible to find. If the tile is an extruded product, MCA can reproduce the tile without any minimum piece requirement or tooling charge.

Simply provide a sample piece of the old existing tile for the MCA factory to match.

MCA has successfully matched and recreated tile for historical institutions and landmarks and produces many matches of tiles from old clay companies.

As with all MCA tiles, a 50-Year Limited Warranty is available.

Color/Texture Availability

Tile Specifications

Metric Tile Specifications

Color Selection

Each finish is achieved through unique firing cycles in our modernized kilns, ensuring every tile carries consistent quality and performance

Full Color and Texture Availability

Blends

Each finish is achieved through unique firing cycles in our modernized kilns, ensuring every tile carries the soul of the earth.

Tile Selection

Preserving the architectural soul of the past requires more than mere imitation

Old LA Brick S

Old LA Brick S

((138 pcs/sq) pcs/sq)
SA01

DIMENSIONS

A – Length: 14″
B – Width Bottom: 11.75″
C – Width Top: 11.75″
D – Crown Height: 2.25″
E – Thickness: 0.5″

EXPOSURES/WEIGHTS

Exposure 11″ (L) x 9.5″ O.C.
Weight 6.5 lbs/pc

In 1921, the L.A. Brick Company was formed in Alberhill, CA (near Lake Elsinore).

They produced several styles of S and two-piece Mission tile.

We often find their products in Pasadena, Santa Monica, Los Angeles, and old Southern California towns. MCA can match old colors and textures.



Old LA Brick Gable Right

Old LA Brick Gable Right

SA03

DIMENSIONS

A – Length: 14″
B – Width Bottom: 10.5″
C – Width Top: 10.5″
D – Crown Height: 3.75″
E – Thickness: 0.5″

EXPOSURES/WEIGHTS

Exposure 11″ (L)
Weight 7.25 lbs/pc

In 1921, the L.A. Brick Company was formed in Alberhill, CA (near Lake Elsinore).

They produced several styles of S and two-piece Mission tile.

We often find their products in Pasadena, Santa Monica, Los Angeles, and old Southern California towns. MCA can match old colors and textures.



Old LA Brick Gable Left

Old LA Brick Gable Left

SA04

DIMENSIONS

A – Length: 14″
B – Width Bottom: 6.75″
C – Width Top: 6.75″
D – Crown Height: 3.25″
E – Thickness: 0.5″

EXPOSURES/WEIGHTS

Exposure 11″ (L)
Weight 4.8 lbs/pc

In 1921, the L.A. Brick Company was formed in Alberhill, CA (near Lake Elsinore).

They produced several styles of S and two-piece Mission tile.

We often find their products in Pasadena, Santa Monica, Los Angeles, and old Southern California towns. MCA can match old colors and textures.



Old LA Brick Baby S

Old LA Brick Baby S

((199 pcs/sq) pcs/sq)
SB01

DIMENSIONS

A – Length: 13″
B – Width Bottom: 8.25″
C – Width Top: 8.25″
D – Crown Height: 2.25″
E – Thickness: 0.5″

EXPOSURES/WEIGHTS

Exposure 10″ (L) x 7-1/4″ O.C.
Weight 5.5 lbs/pc

In 1921, the L.A. Brick Company was formed in Alberhill, CA (near Lake Elsinore).

They produced several styles of S and two-piece Mission tile.

We often find their products in Pasadena, Santa Monica, Los Angeles, and old Southern California towns. MCA can match old colors and textures.



Old LA Brick Baby S Gable (R)

Old LA Brick Baby S Gable (R)

SB03

DIMENSIONS

A – Length: 13″
B – Width Bottom: 9.5″
C – Width Top: 8.5″
D – Crown Height: 3.25″
E – Thickness: 0.5″

EXPOSURES/WEIGHTS

Exposure 10″ (L)
Weight 5.15 lbs/pc

Handcrafted right gables for the Baby S.

Also compatible with Old LA Brick LAB tile.



Old LA Brick Baby S Gable (L)

Old LA Brick Baby S Gable (L)

SB04

DIMENSIONS

A – Length: 13″
B – Width Bottom: 6.5″
C – Width Top: 6″
D – Crown Height: 2.75″
E – Thickness: 0.5″

EXPOSURES/WEIGHTS

Exposure 10″ (L)
Weight 3.55 lbs/pc

Handcrafted left gables for the Baby S.

Also compatible with Old LA Brick LAB tile.



Porducts

Oriental Japanese Products
  • Catalog
  • Code Approvals & SDS
  • Installation Specifications
  • Warranty

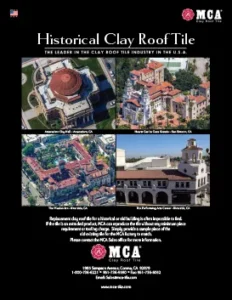

Historical Clay Roof Tile
General Catalog

CC/Codes, Certifications

Include:
– IAPMO UNIFORM EVALUATION REPORT
– SDS SAFETY DATA
– TDI APPROVAL RC-21
– MIAMI-DADE COUNTY APPROVAL 21-1215.04 EXP 02/16/27

Reports

pdf-iconSDS Safety Datadownload-icon
pdf-iconIAPMO Uniform Evaluation Report No. 0356download-icon
pdf-iconMiami-Dade County Approval 17-0329.14 Exp. 02/16/22download-icon
TRI Installation Manual

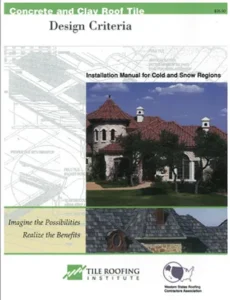

TRI Cold and Snow Installation Manual

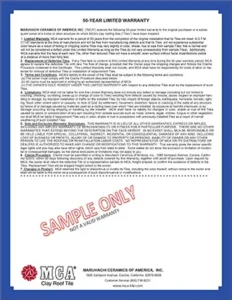

50-YEAR LIMITED WARRANTY

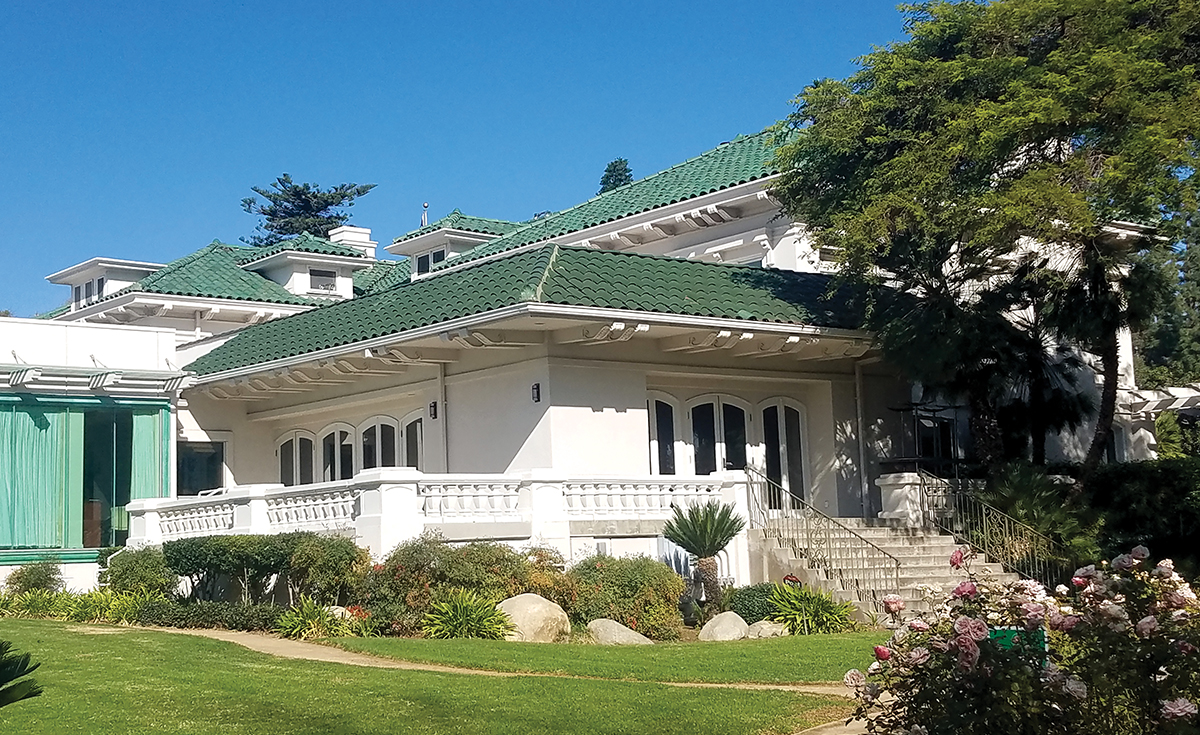

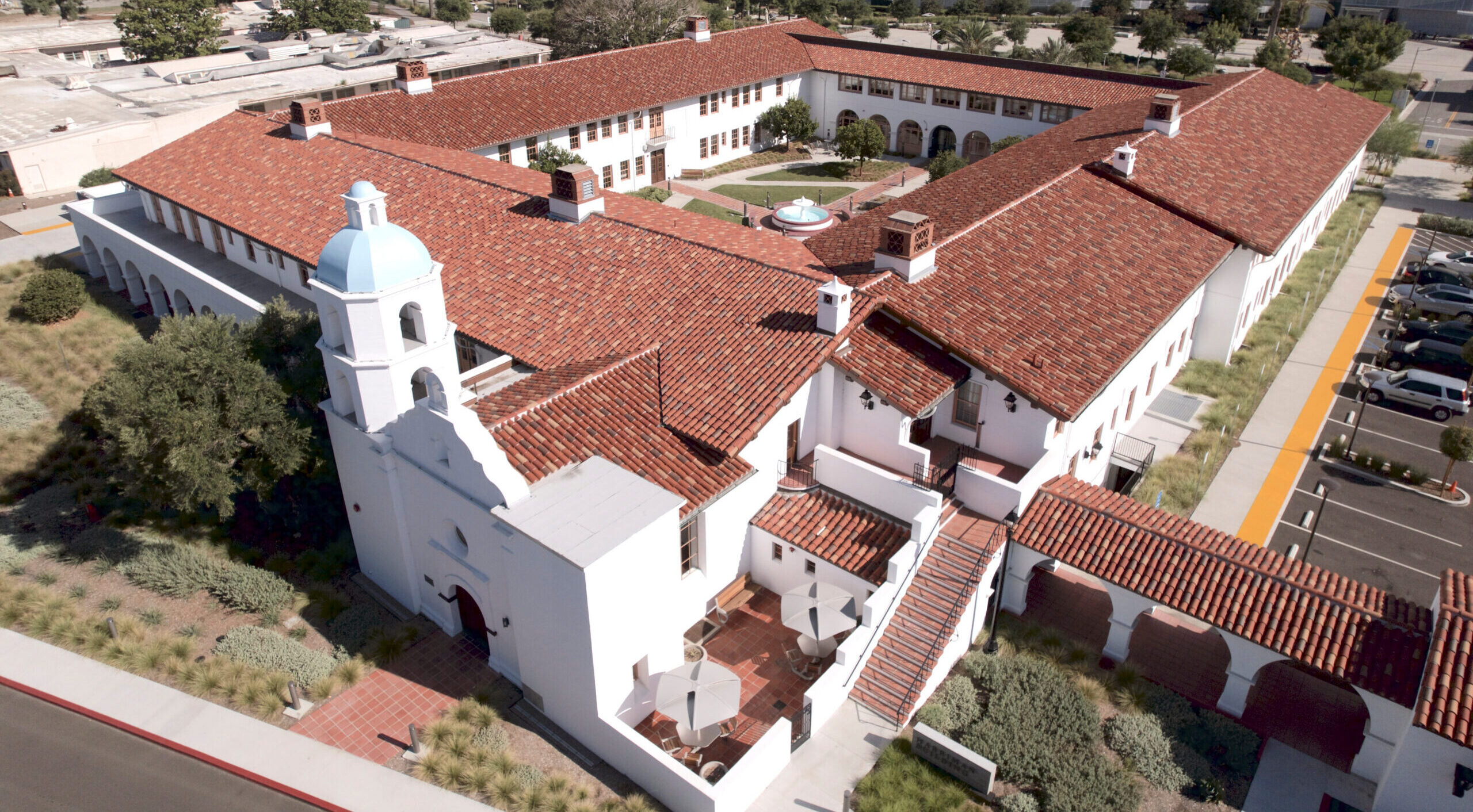

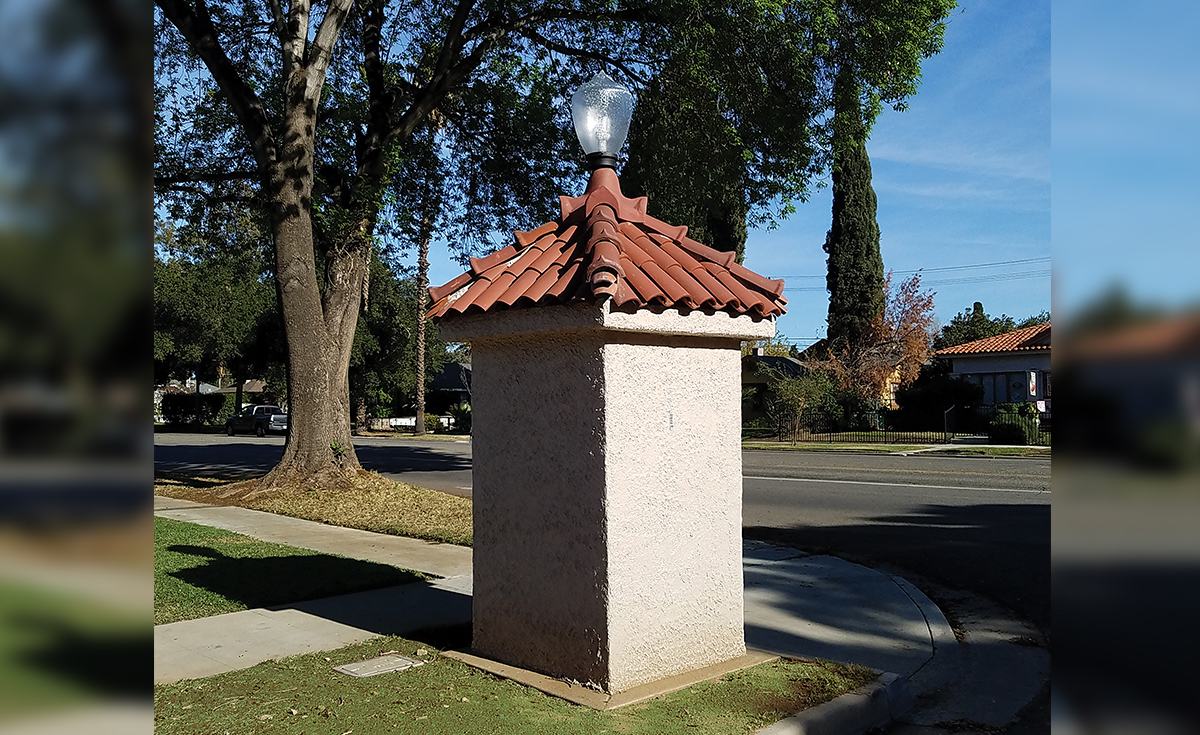

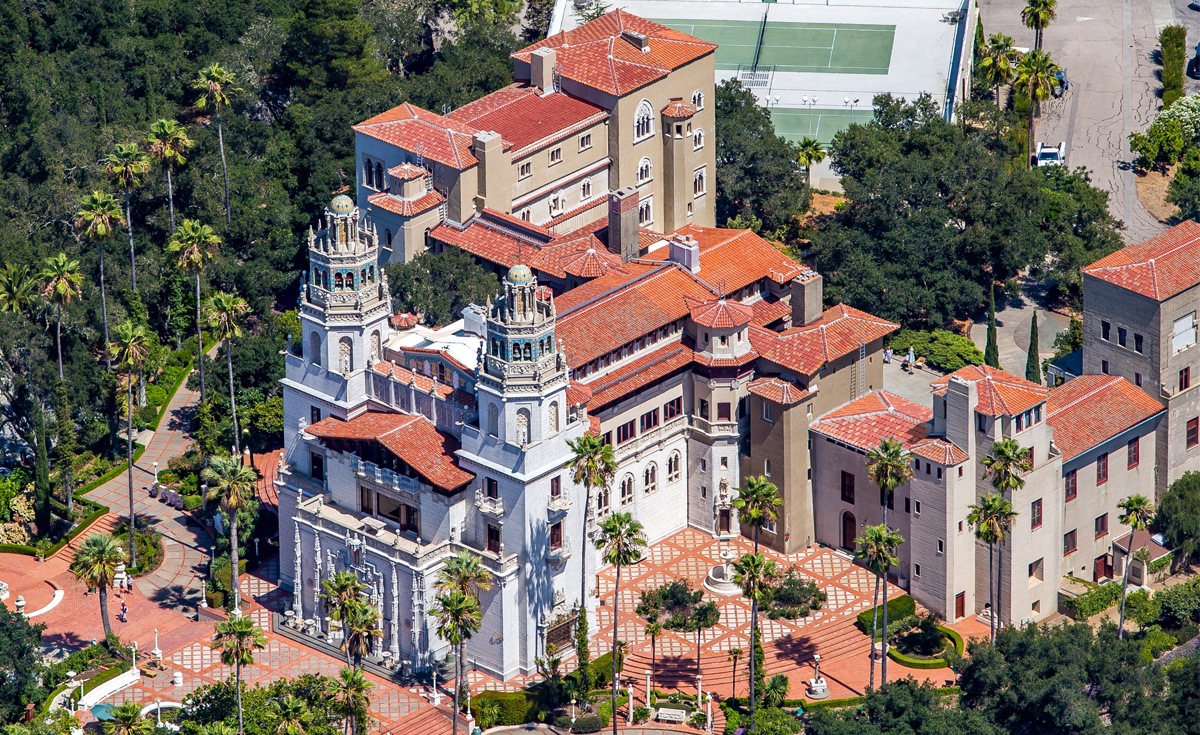

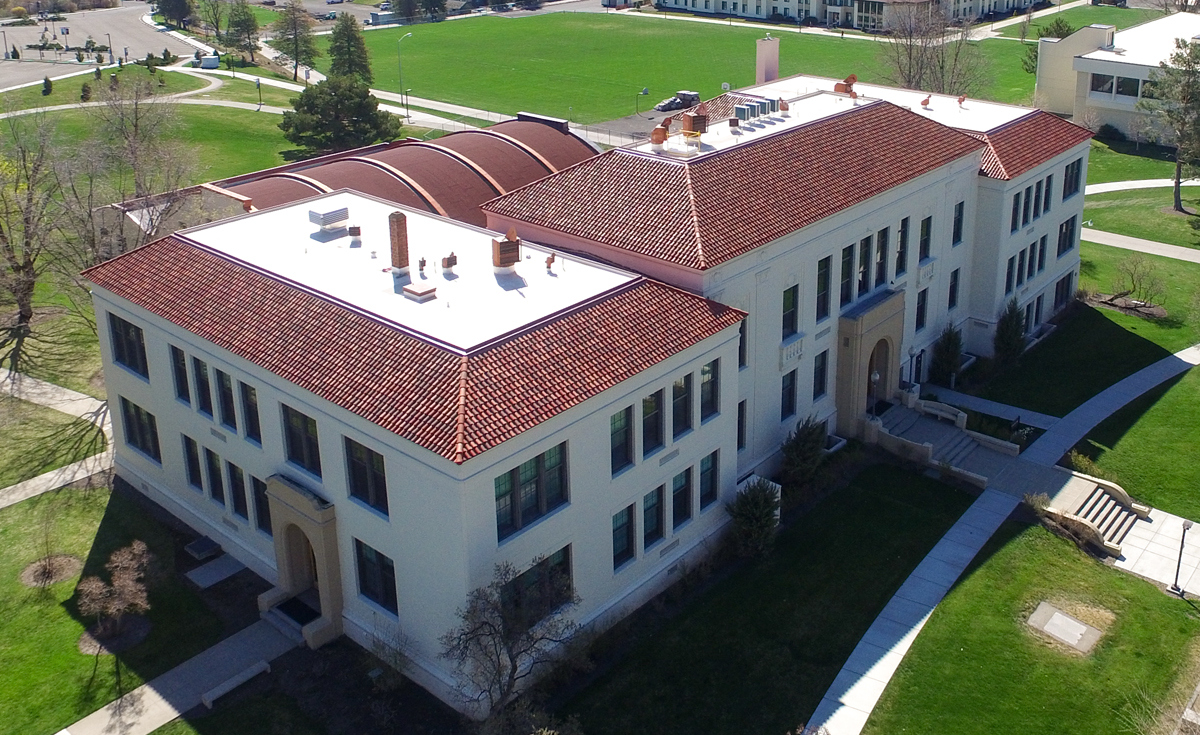

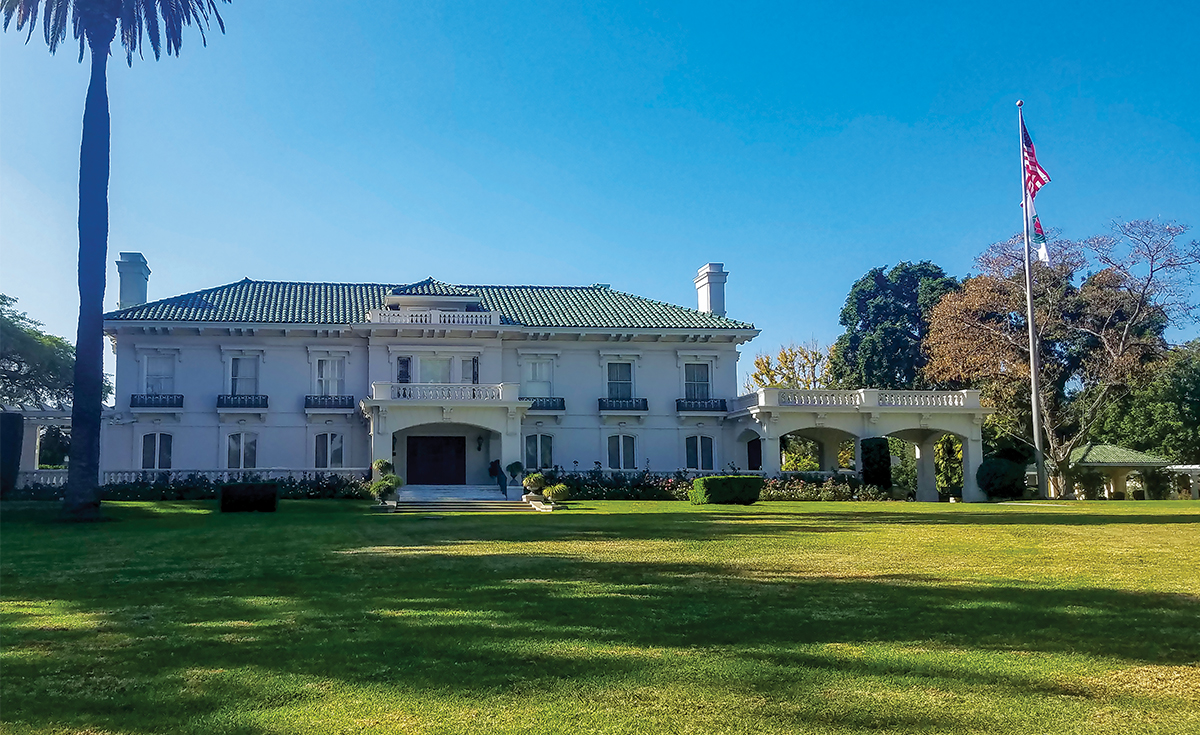

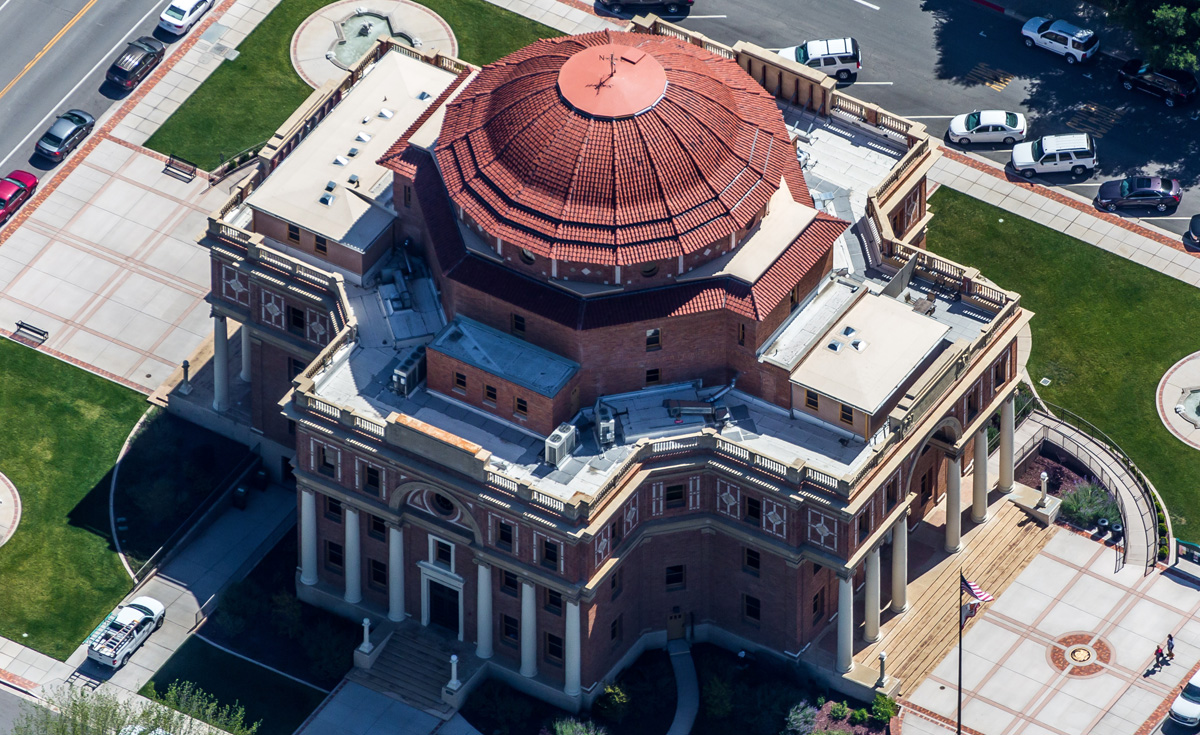

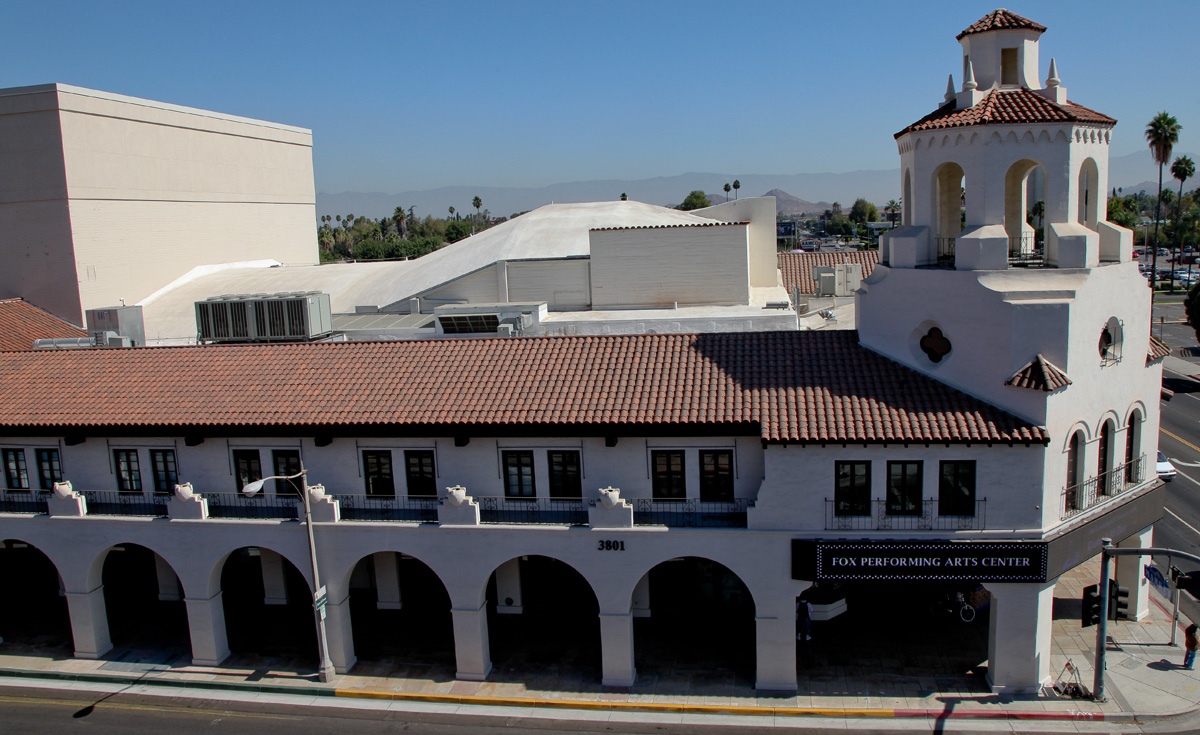

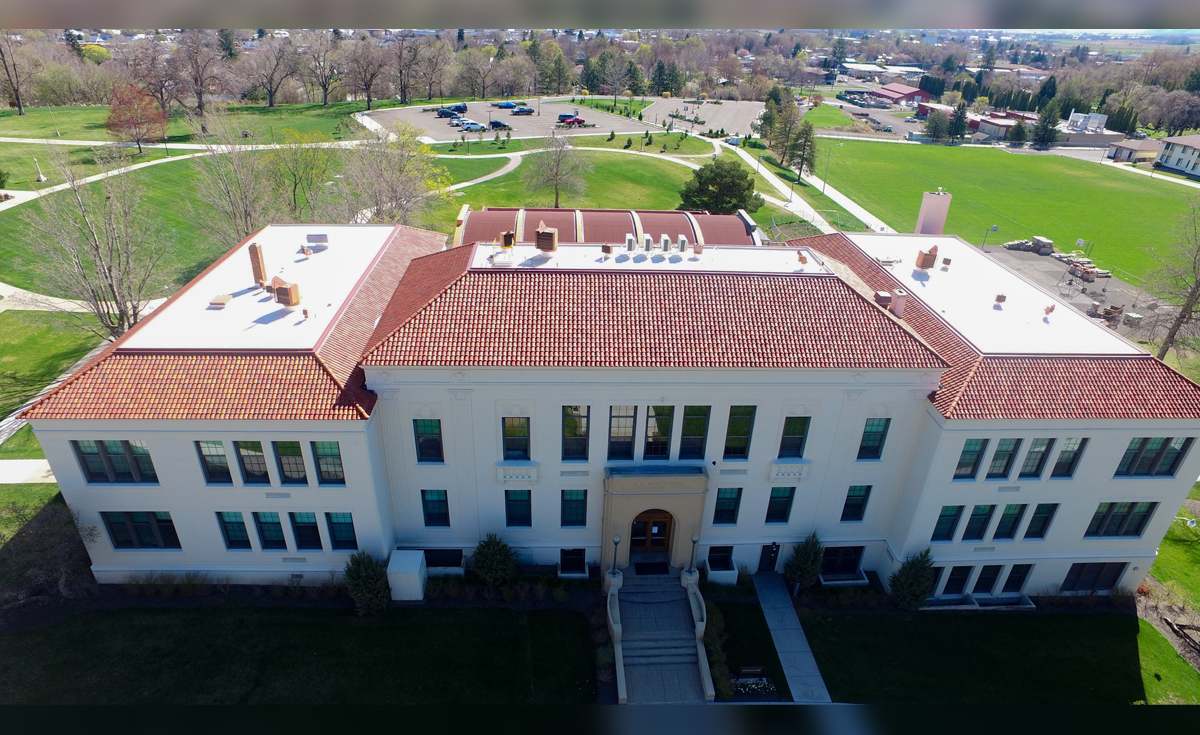

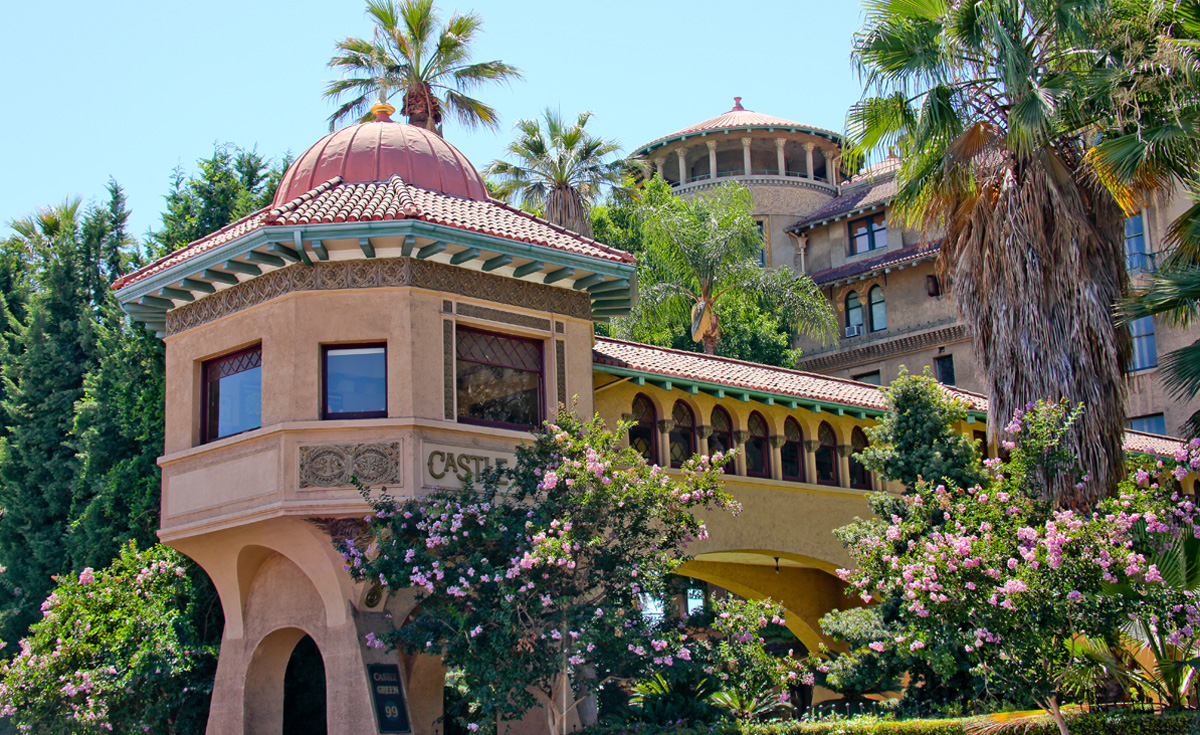

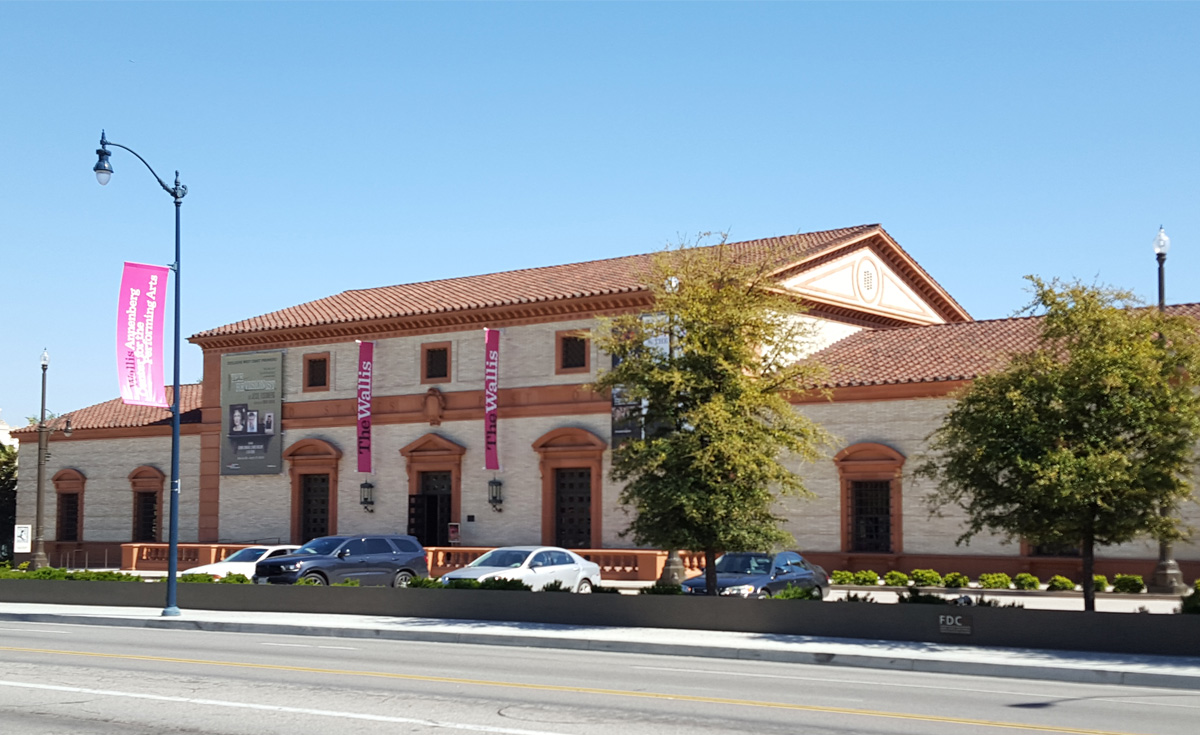

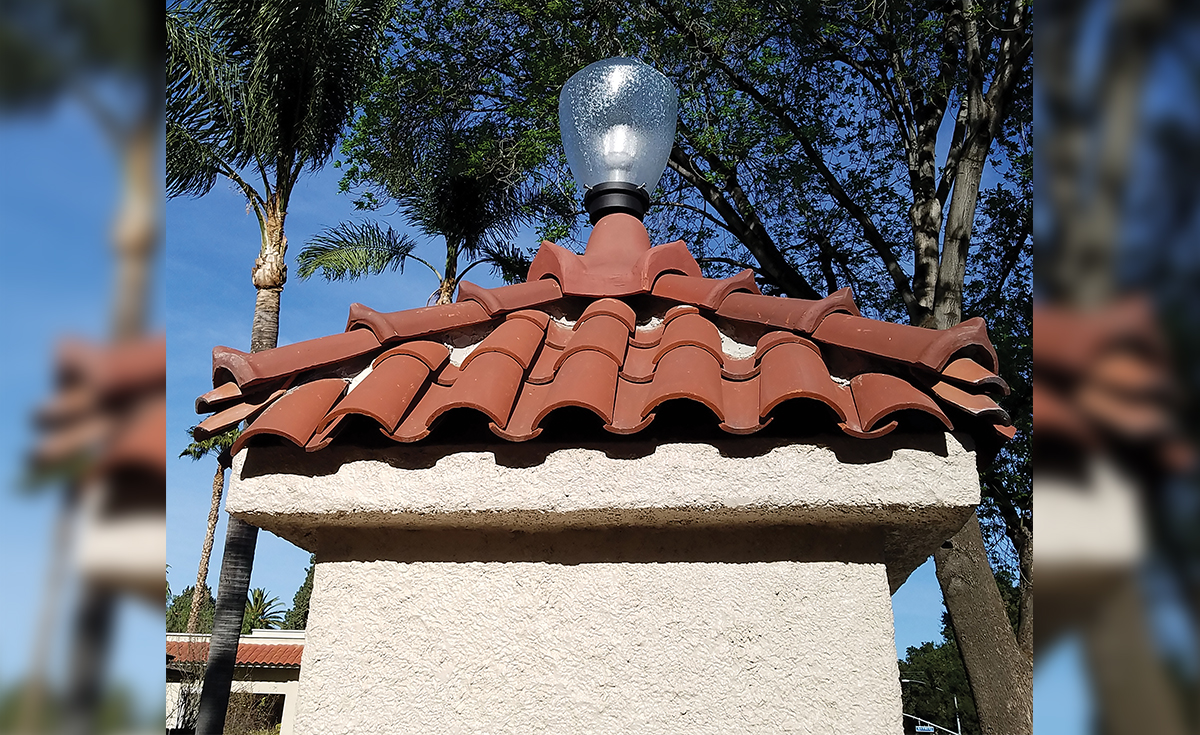

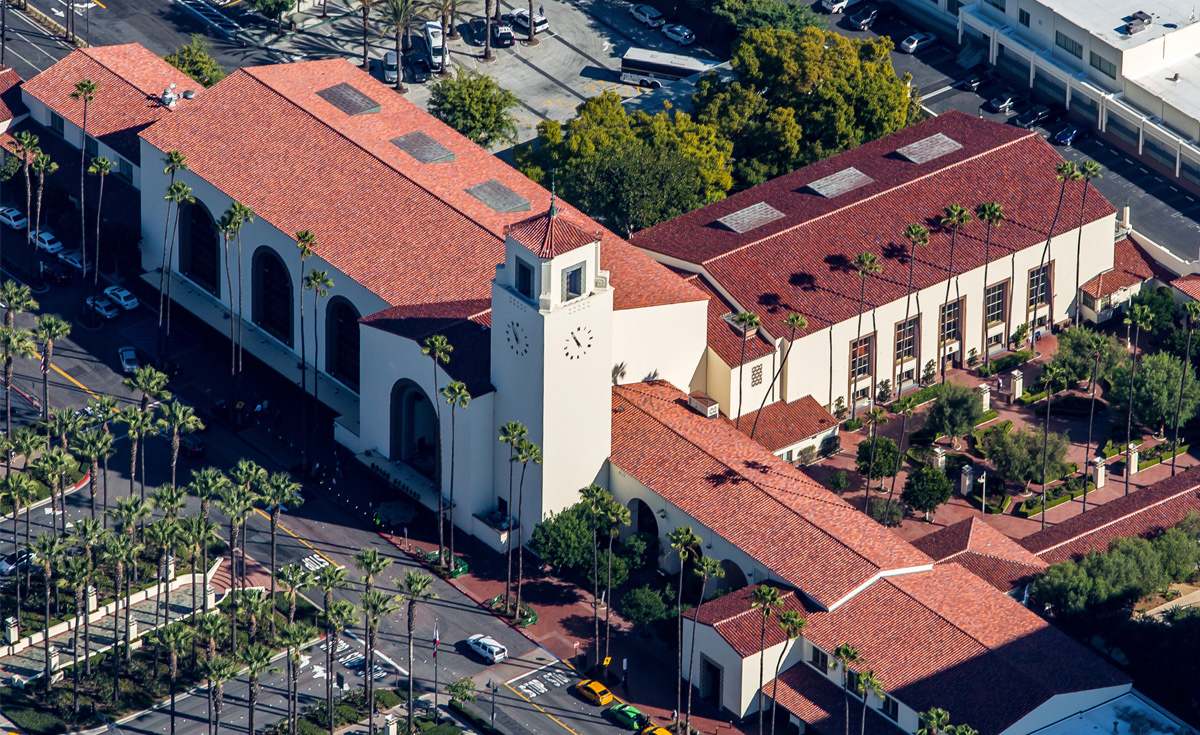

Architecture in Context

Witness the One Piece S Mission across diverse topographies and structural languages.

Bring the MCA Tile to your next site

Our consultants will help you choose the perfect tile profile and color palette to bring your architectural vision to life.
