One Piece “S” Mission

Architectural Excellence

Elevating residential landscapes with the structural permanence and aesthetic heritage of fired clay roofing.

Overview

One Piece “S” Mission

Item Code: DS01

Natural Red And Flashed Colors

NATURAL RED AND FLASHED COLORS

Combine cost savings with a fantastic array of colors available and your choice is clear. One Piece “S” Mission clay roof tile offers tremendous labor savings compare to other “S” tiles on the market. Selection of our Natural Red (F40) terra cotta tiles, standard or custom colors, applied through modern ceramic techniques, using state of the art equipment, will please the most discerning designer.

A 50-Year Limited Warranty is available on all MCA Tiles.

Availability: AL, AR, AZ, CA, FL, GA, HI, ID, LA, MS, NC, NM, NV, OK, OR, SC, TN, TX, UT, WA

Color/Texture Availability

Tile Specifications

Actual Size

19″ X 14.5″

Exposed Size

16″ x 12″ O.C.

Weight per square

788 lbs.

Weight per piece

10.5 lbs.

No. of pieces per square

75 pcs

Metric Tile Specifications

Actual Size

483mm x 356mm

Exposed Size

406mm x 305mm

Weight per M2

38.7 kg

Weight per piece

4.8kg

No. of pieces per M2

8.07 pcs

Color Selection

Each finish is achieved through unique firing cycles in our modernized kilns, ensuring every tile carries consistent quality and performance

Full Color and Texture Availability

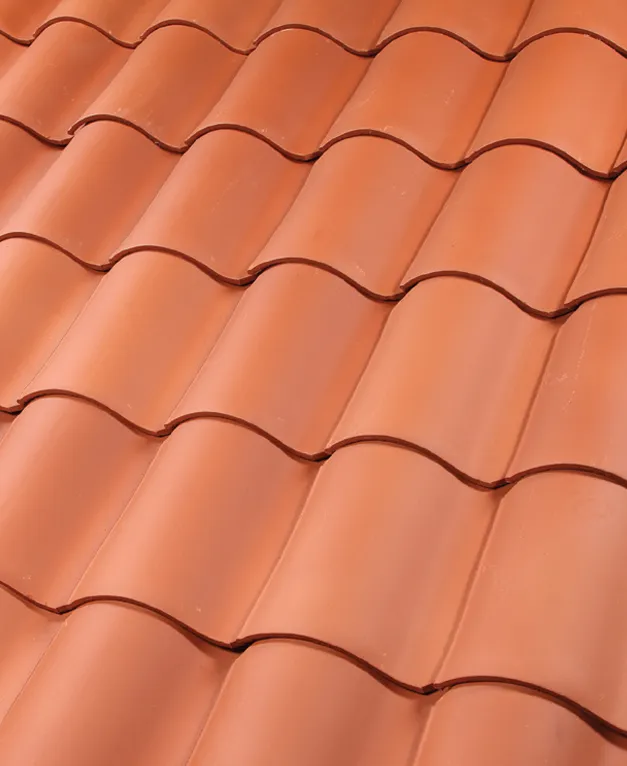

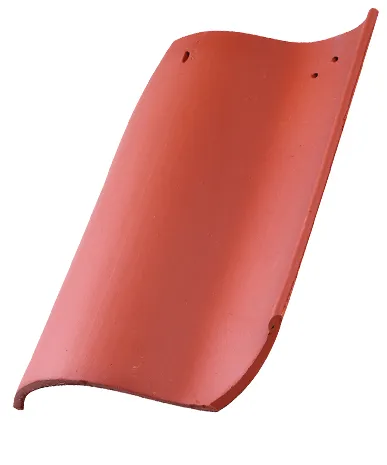

F40 Natural Red

Solar Reflectance: 0.45

Thermal Emittance: 0.88

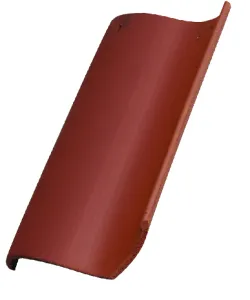

F43 Brick Red Crown Flash

Solar Reflectance: 0.42

Thermal Emittance: 0.84

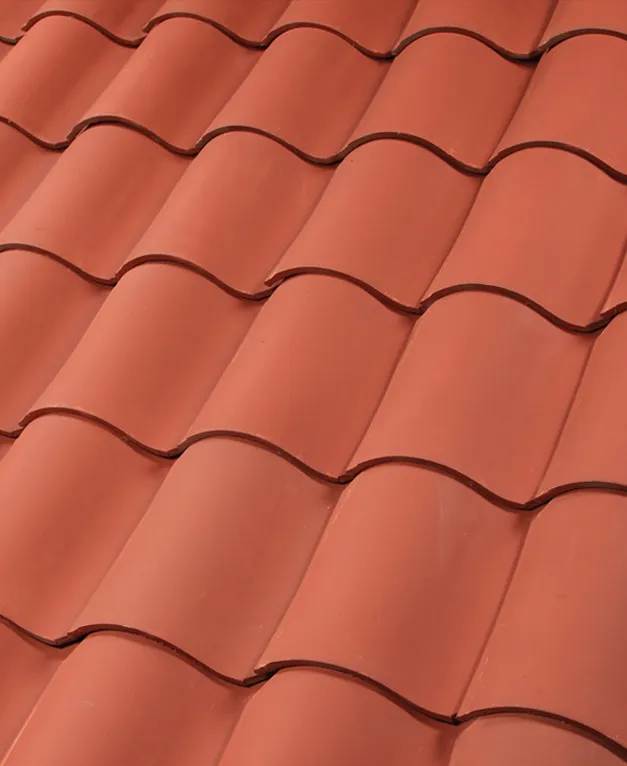

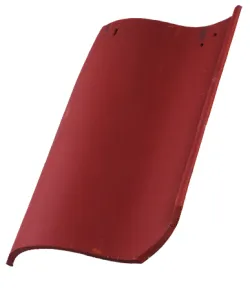

2F43 Brick Red

Solar Reflectance: 0.42

Thermal Emittance: 0.84

F23 Canyon Red Crown Flash

Solar Reflectance: 0.38

Thermal Emittance: 0.84

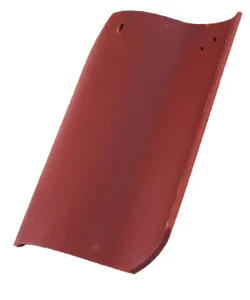

2F23 Canyon Red Full

Solar Reflectance: 0.36

Thermal Emittance: 0.88

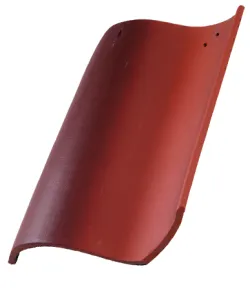

F22 Burnt Sienna Crown Flash

Solar Reflectance: 0.31

Thermal Emittance: 0.84

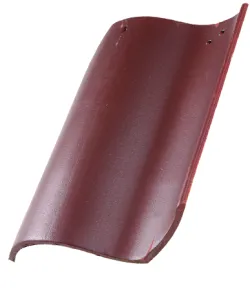

2F22 Burnt Sienna

Solar Reflectance: 0.25

Thermal Emittance: 0.84

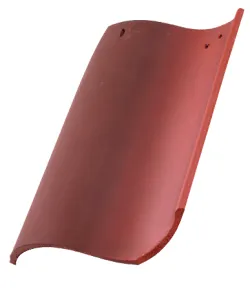

F45 Tobacco

Solar Reflectance: 0.38

Thermal Emittance: 0.85

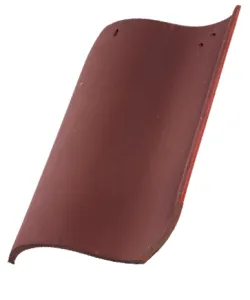

2F45 Tobacco Full

Solar Reflectance: 0.42

Thermal Emittance: 0.86

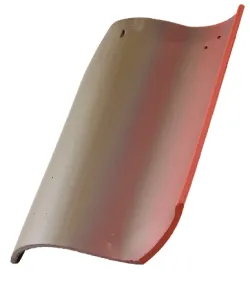

F28 Carbon Crown Flash

Solar Reflectance: 0.33

Thermal Emittance: 0.83

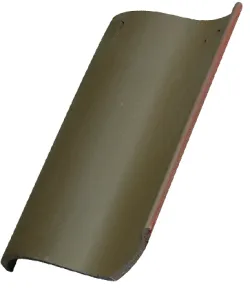

2F28 Carbon

Solar Reflectance: 0.33

Thermal Emittance: 0.83

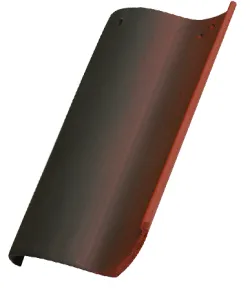

F19 Ironwood Crown Flash

Solar Reflectance: 0.28

Thermal Emittance: 0.83

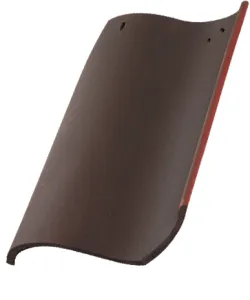

2F19 Ironwood

Solar Reflectance: 0.28

Thermal Emittance: 0.83

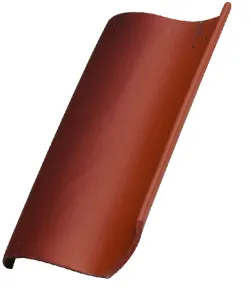

F72 Mahogany Crown Flash

Solar Reflectance: 0.27

Thermal Emittance: 0.85

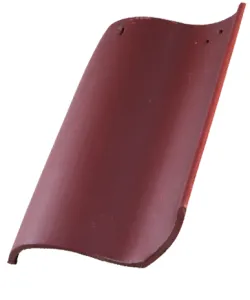

2F72 Mahogany

Solar Reflectance: 0.27

Thermal Emittance: 0.85

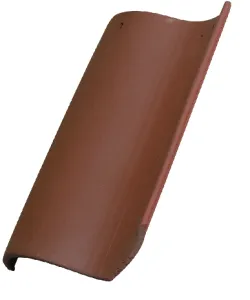

2F18 Cinnamon

Solar Reflectance: 0.35

Thermal Emittance: 0.97

2F25 Wineberry

2F34 Carmel

Solar Reflectance: 0.35

Thermal Emittance: 0.82

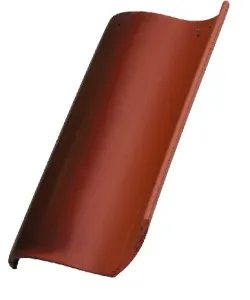

F41 Traditional Flash

F42 Antique Black Crown Flash

Solar Reflectance: 0.31

Thermal Emittance: 0.84

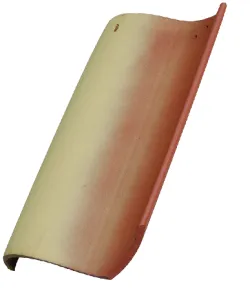

F46 Adobe Gold Crown Flash

Solar Reflectance: 0.54

Thermal Emittance: 0.83

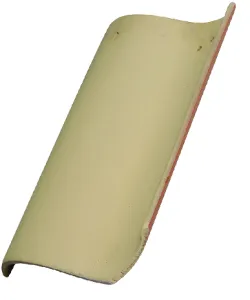

2F46 Adobe Gold Full

Solar Reflectance: 0.51

Thermal Emittance: 0.82

2F51 Adobe Black <br> Please contact our sales office for availability.

2F71 Adobe Gray

2F72 Mahogany

Solar Reflectance: 0.27

Thermal Emittance: 0.85

2F99 Desert Sand

Solar Reflectance: 0.41

Thermal Emittance: 0.82

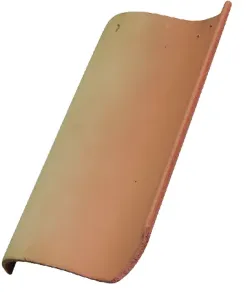

CF62 Apricot Smoke

Solar Reflectance: 0.46

Thermal Emittance: 0.83

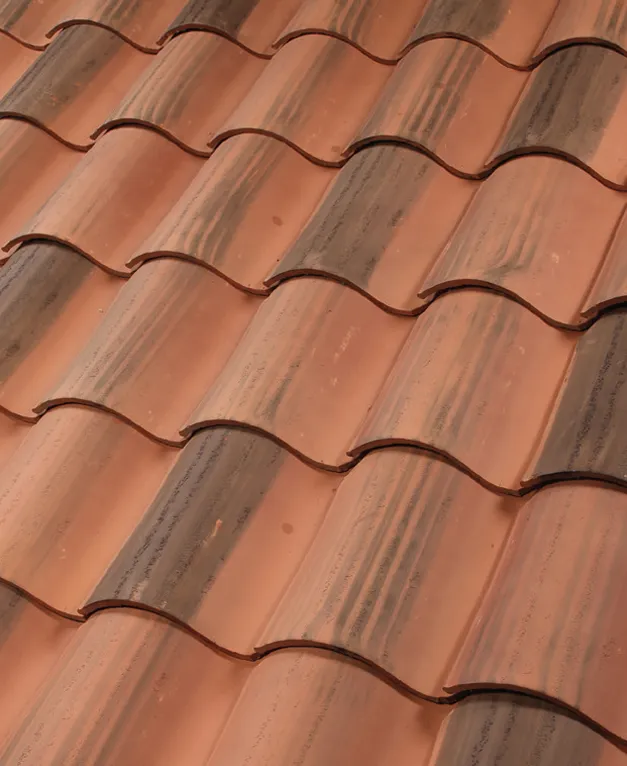

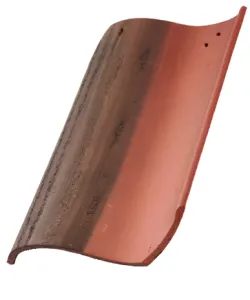

B320-R Rustic Red Blend

Solar Reflectance: 0.40

Thermal Emittance: 0.84

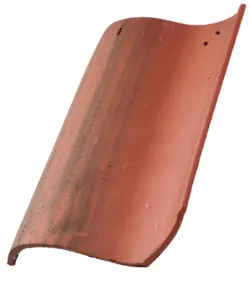

B320-R Rustic Red Blend

Solar Reflectance: 0.33

Thermal Emittance: 0.85

B320-R Rustic Red Blend

Solar Reflectance: 0.30

Thermal Emittance: 0.85

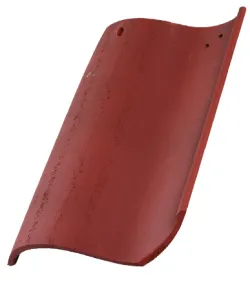

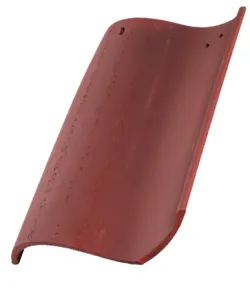

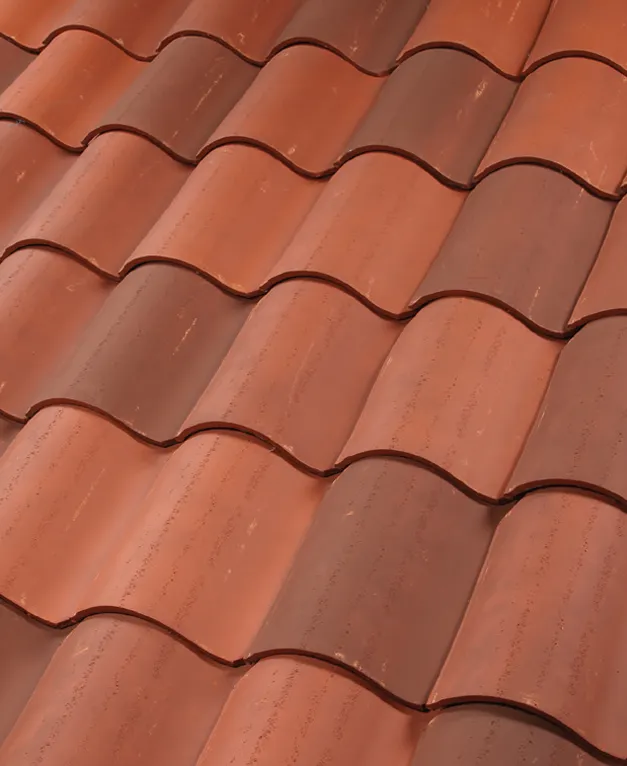

B318-R Café Rustic Blend

Solar Reflectance: 0.37

Thermal Emittance: 0.96

B318-R Café Rustic Blend

Solar Reflectance: 0.37

Thermal Emittance: 0.96

B318-R Café Rustic Blend

Solar Reflectance: 0.37

Thermal Emittance: 0.96

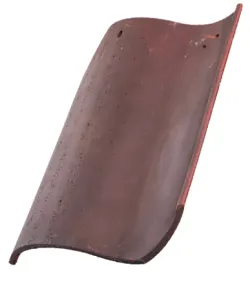

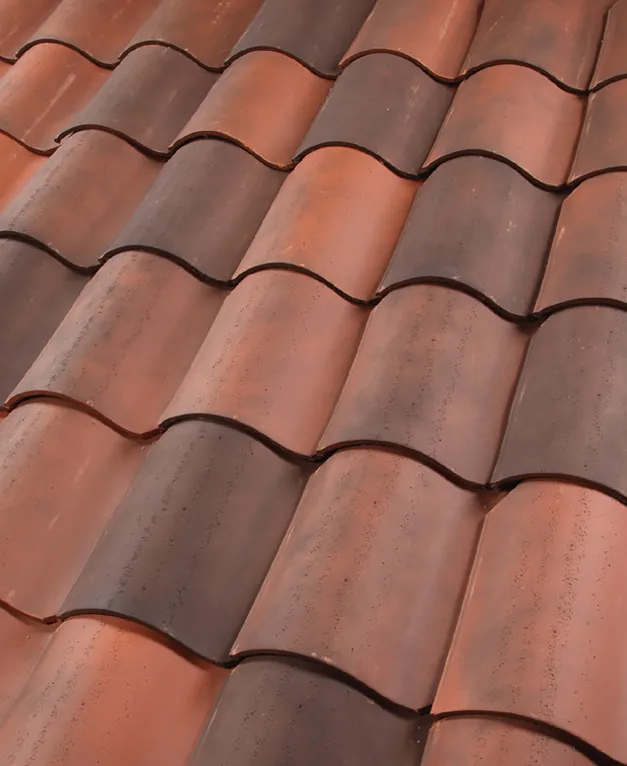

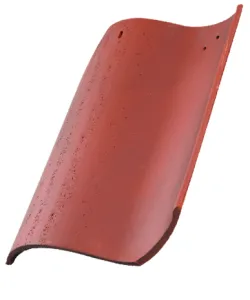

B330-R Old Santa Barbara Blend

Solar Reflectance: 0.33

Thermal Emittance: 0.84

B330-R Old Santa Barbara Blend

Solar Reflectance: 0.33

Thermal Emittance: 0.84

B330-R Old Santa Barbara Blend

Solar Reflectance: 0.33

Thermal Emittance: 0.84

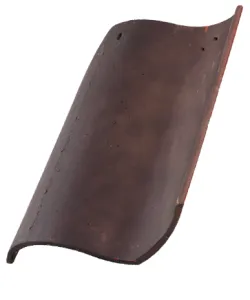

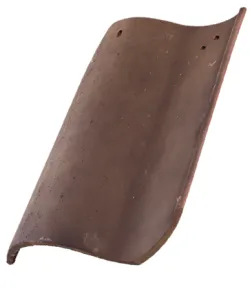

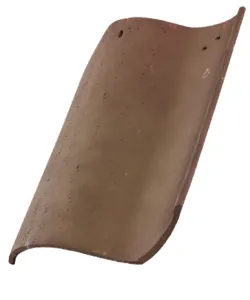

B317-R Taupe Smoke Blend

Solar Reflectance: 0.34

Thermal Emittance: 0.34

B317-R Taupe Smoke Blend

Solar Reflectance: 0.34

Thermal Emittance: 0.86

B317-R Taupe Smoke Blend

Solar Reflectance: 0.34

Thermal Emittance: 0.86

2F34 Carmel Full

Solar Reflectance: 0.35

Thermal Emittance: 0.82

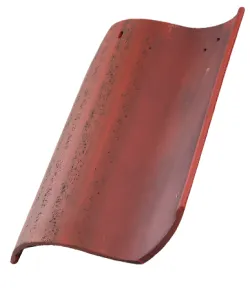

CC139-R Vintage Red

Solar Reflectance: 0.3

Thermal Emittance: 0.82

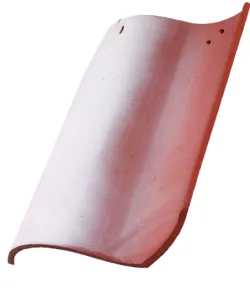

F44 White Buff Crown Flash

Solar Reflectance: 0.76

Thermal Emittance: 0.84

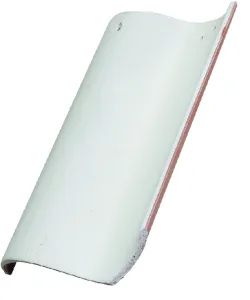

2F44 White Buff

Solar Reflectance: 0.76

Thermal Emittance: 0.84

F47 Peach Buff Crown Flash

Solar Reflectance: 0.52

Thermal Emittance: 0.82

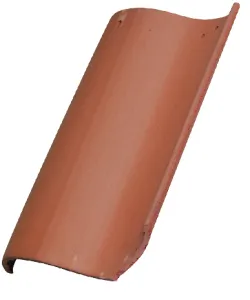

2F47 Peach Buff

Solar Reflectance: 0.52

Thermal Emittance: 0.82

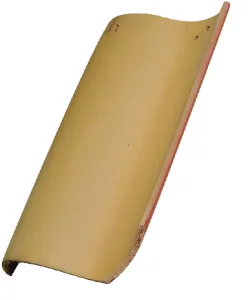

CF50 Apricot Buff

Solar Reflectance: 0.62

Thermal Emittance: 0.83

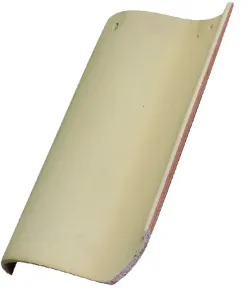

CF51 Vanilla Buff

Solar Reflectance: 0.58

Thermal Emittance: 0.82

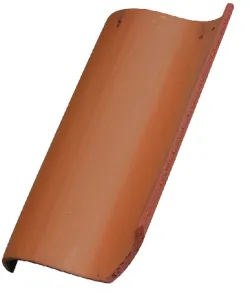

RB01 True Buff

Solar Reflectance: 0.49

Thermal Emittance: 0.83

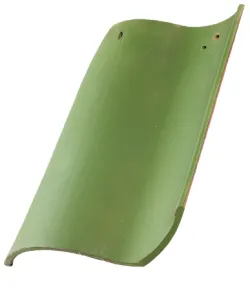

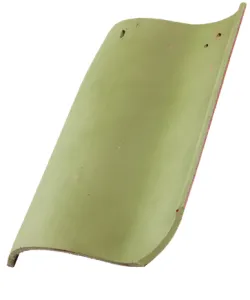

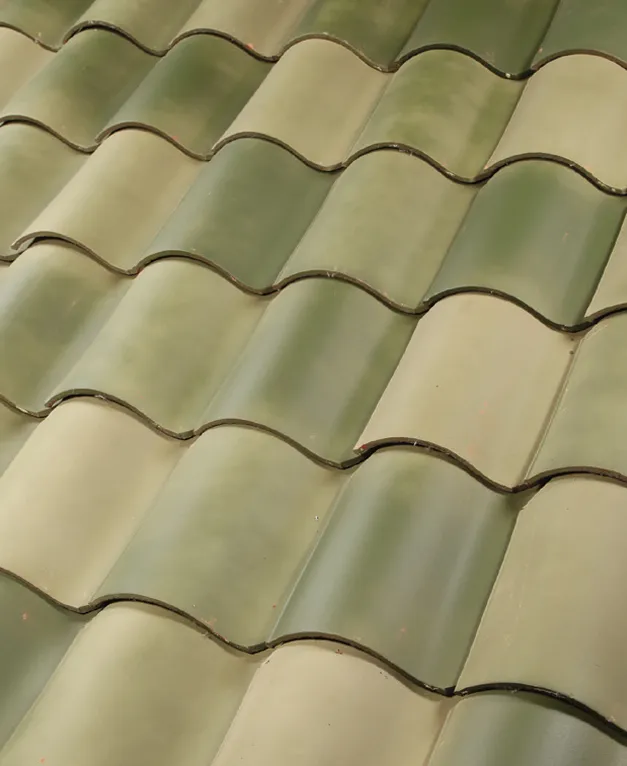

B305 Weathered Green Blend

Solar Reflectance: 0.43

Thermal Emittance: 0.82

B305 Weathered Green Blend

Solar Reflectance: 0.43

Thermal Emittance: 0.82

B305 Weathered Green Blend

Solar Reflectance: 0.43

Thermal Emittance: 0.82

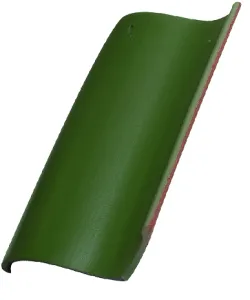

2F48 Cactus Green

2F49 Kamehameha Green

2F52 Regency Blue

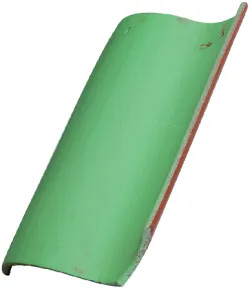

2F62 Seagreen

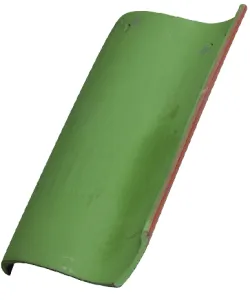

CC47 Aloha Green

Blends

Each finish is achieved through unique firing cycles in our modernized kilns, ensuring every tile carries the soul of the earth.

F40 Natural Red

Solar Reflectance: 0.45

Thermal Emittance: 0.88

2F43 Brick Red

Solar Reflectance: 0.42

Thermal Emittance: 0.84

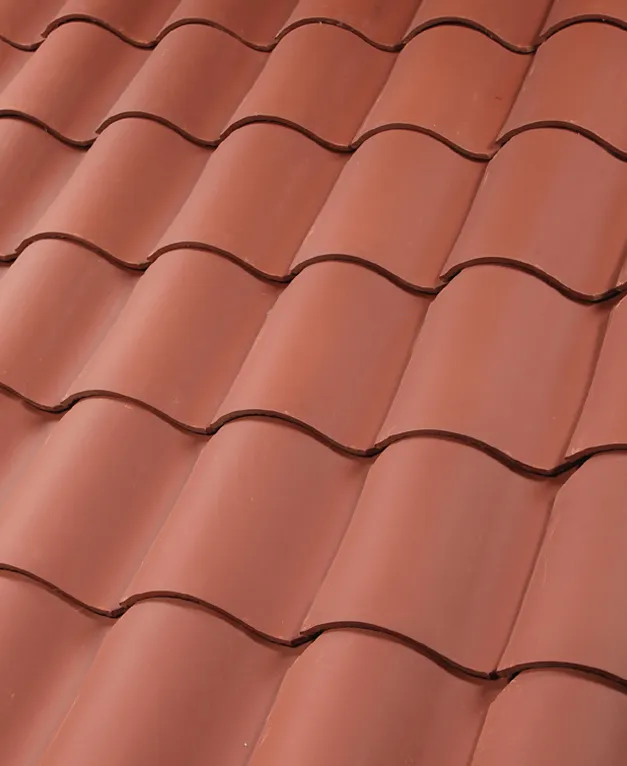

2F23 Canyon Red

Solar Reflectance: 0.38

Thermal Emittance: 0.84

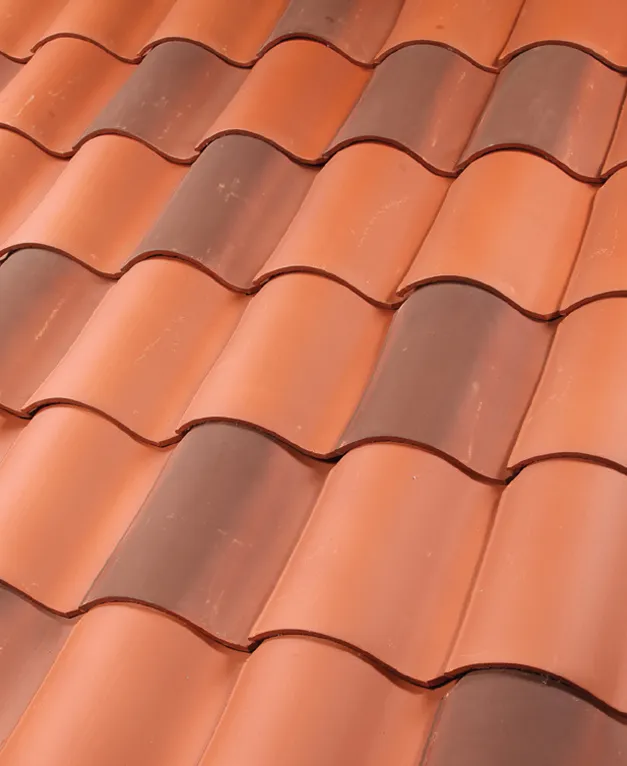

B202 Desert Blend

Solar Reflectance: 0.43

Thermal Emittance: 0.88

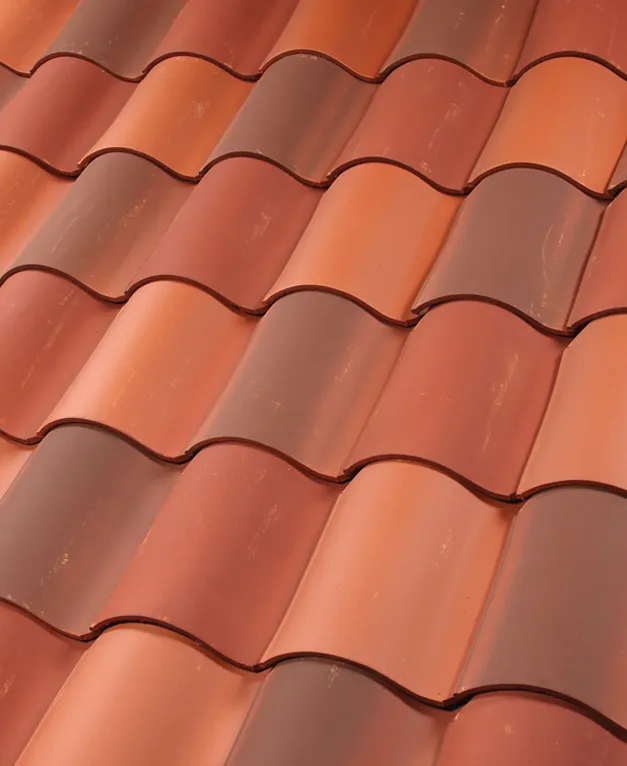

B301 Old Mission Blend

Solar Reflectance: 0.41

Thermal Emittance: 0.86

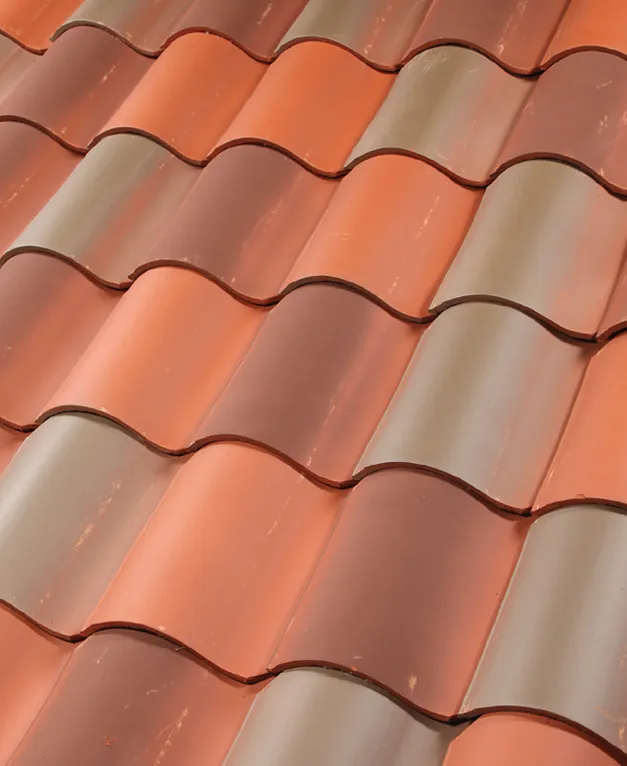

B322 Santa Maria Blend

Solar Reflectance: 0.38

Thermal Emittance: 0.86

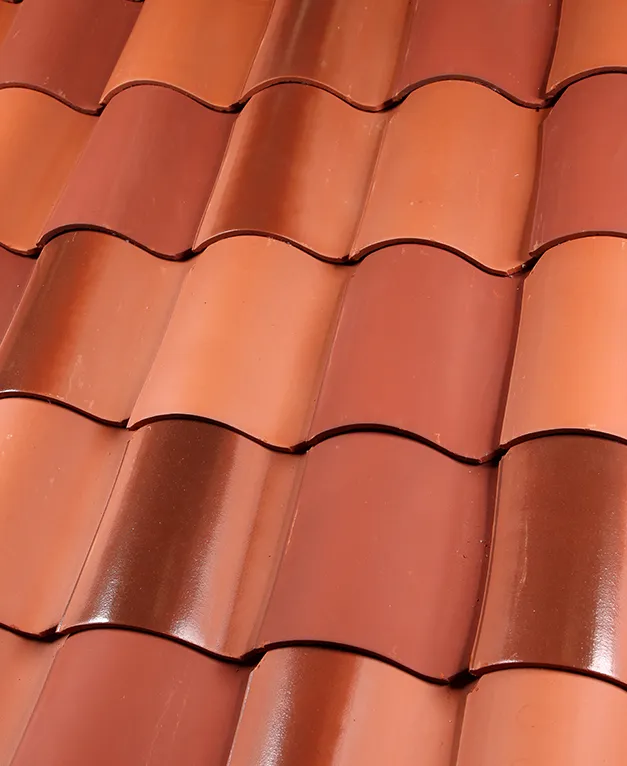

B304 Sierra Blend

Solar Reflectance: 0.40

Thermal Emittance: 0.88

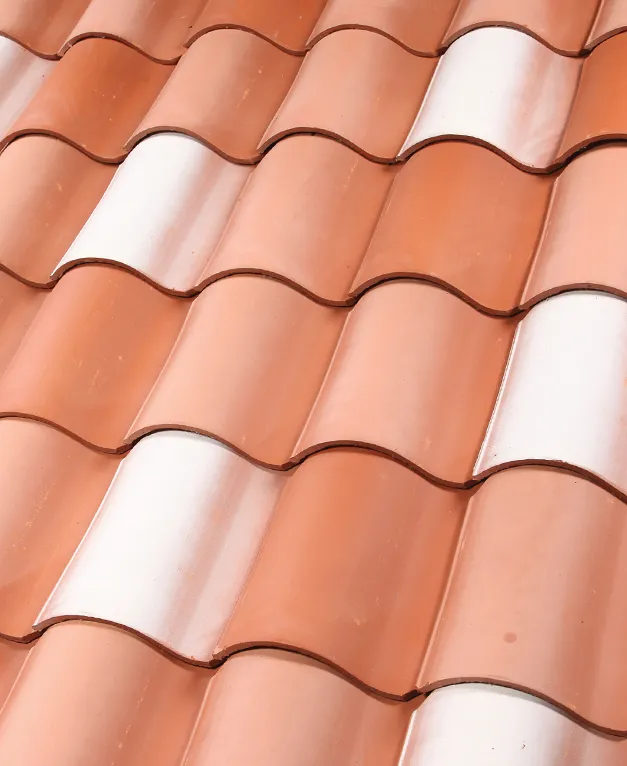

B307 Mediterranean Blend®

Solar Reflectance: 0.584

Thermal Emittance: 0.84

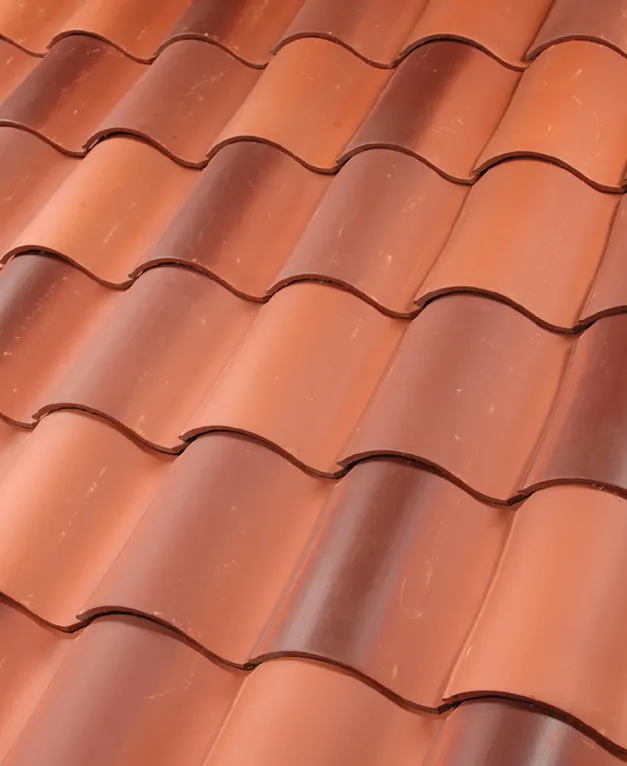

B308 Canyon Red Blend

Solar Reflectance: 0.38

Thermal Emittance: 0.85

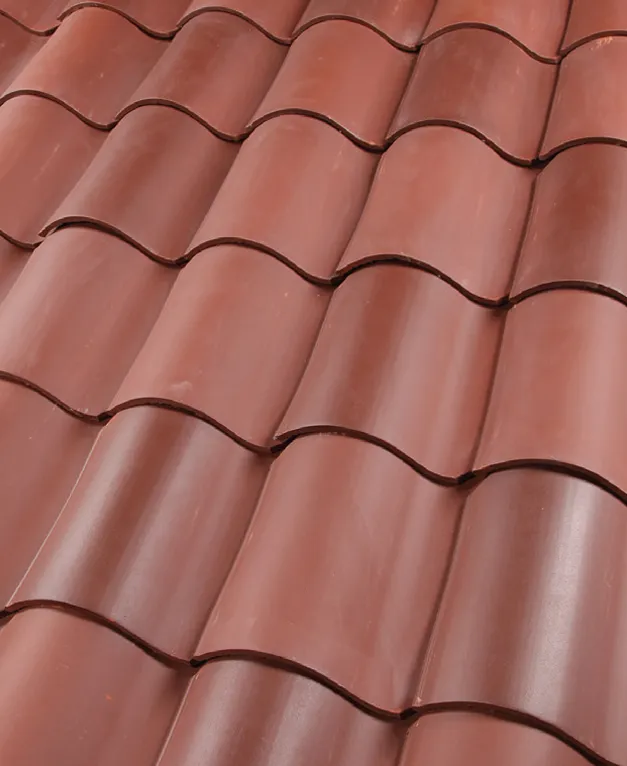

B220 Madrid Blend

Solar Reflectance: 0.25

Thermal Emittance: 0.84

B330-R Old Santa Barbara Blend

Solar Reflectance: 0.33

Thermal Emittance: 0.84

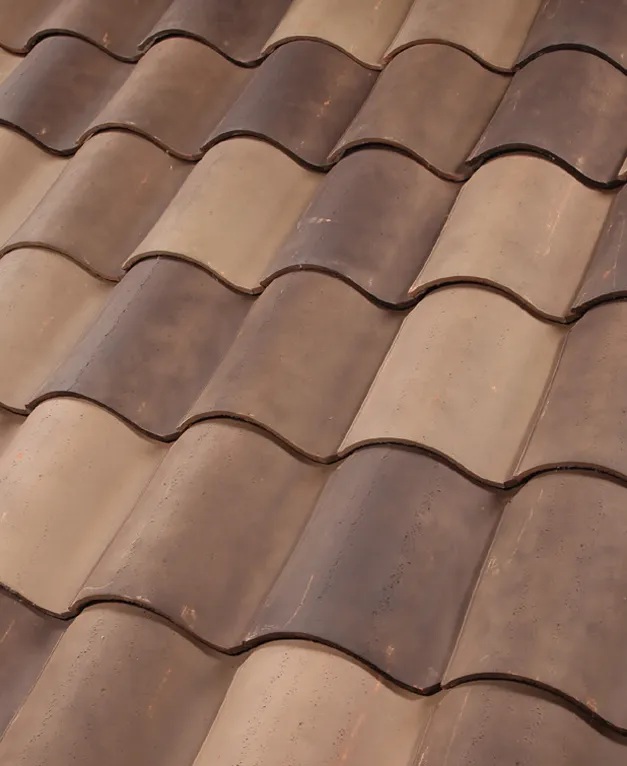

B317-R Taupe Smoke Blend

Solar Reflectance: 0.34

Thermal Emittance: 0.86

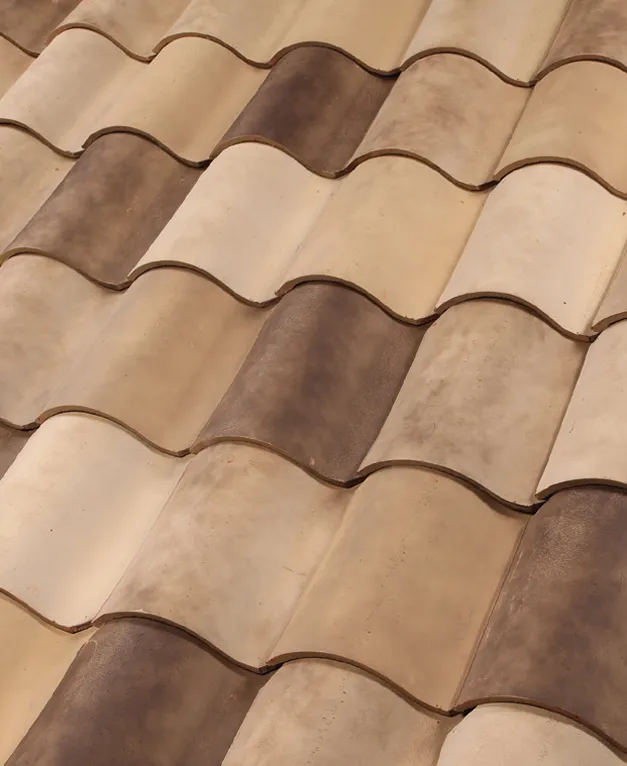

B334-R Rustic Ivory Blend

Solar Reflectance: 0.43

Thermal Emittance: 0.82

B318-R Café Rustic Blend

Solar Reflectance: 0.37

Thermal Emittance: 0.89

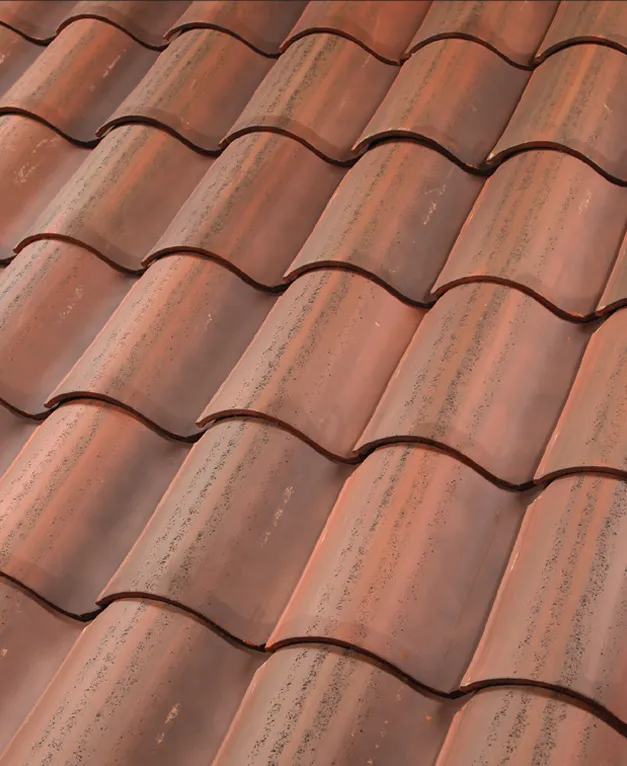

B340-R Vintage Red Blend

Solar Reflectance: 0.29

Thermal Emittance: 0.84

B320-R Rustic Red Blend

Solar Reflectance: 0.38

Thermal Emittance: 0.84

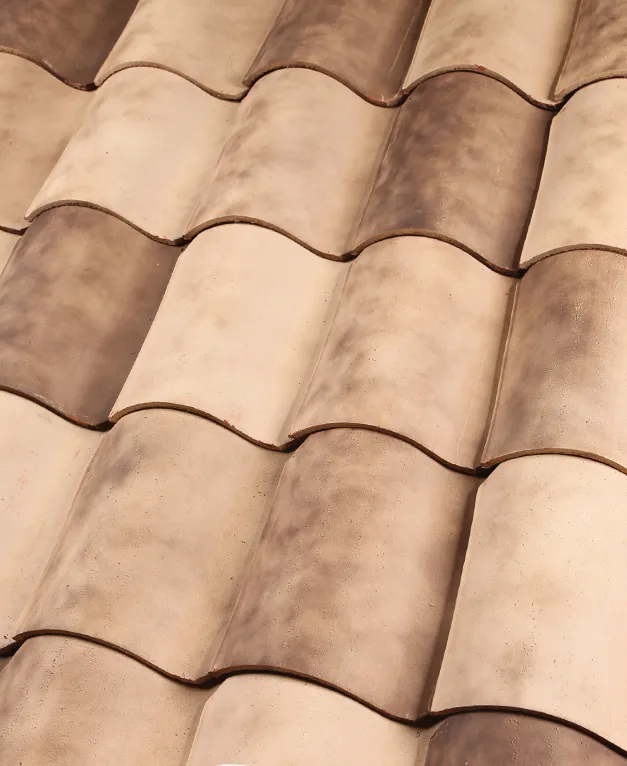

B319-R Ivory Smoke Blend

Solar Reflectance: 0.43

Thermal Emittance: 0.82

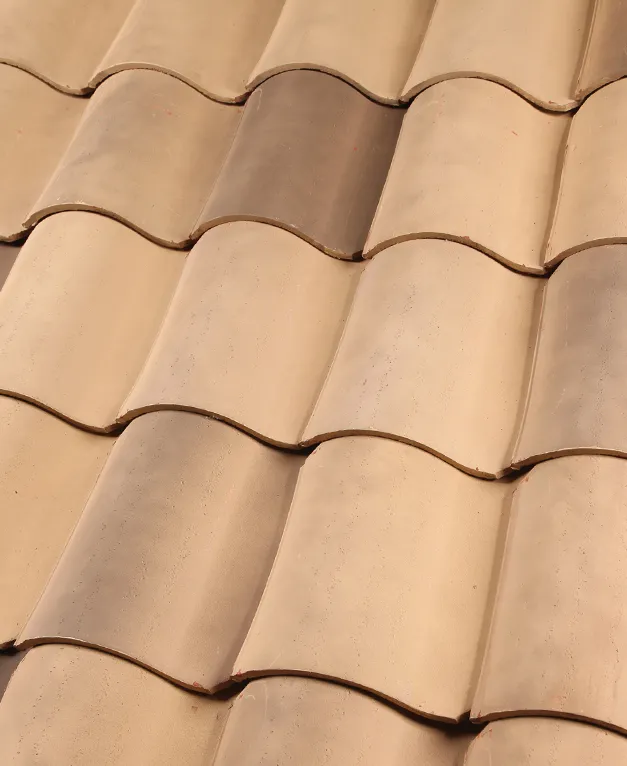

B331-R Zorro Blend

Solar Reflectance: 0.383

Thermal Emittance: 0.82

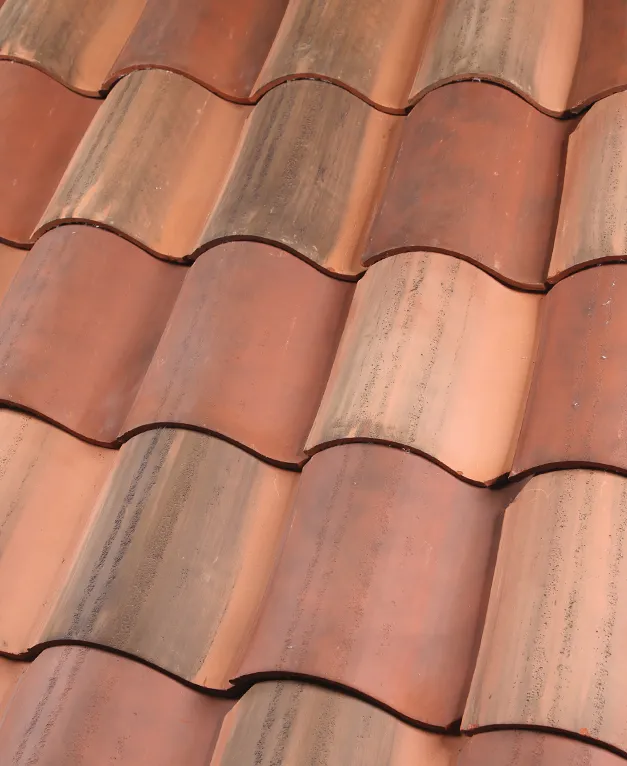

B332-R Houstonian Blend

Solar Reflectance: 0.34

Thermal Emittance: 0.84

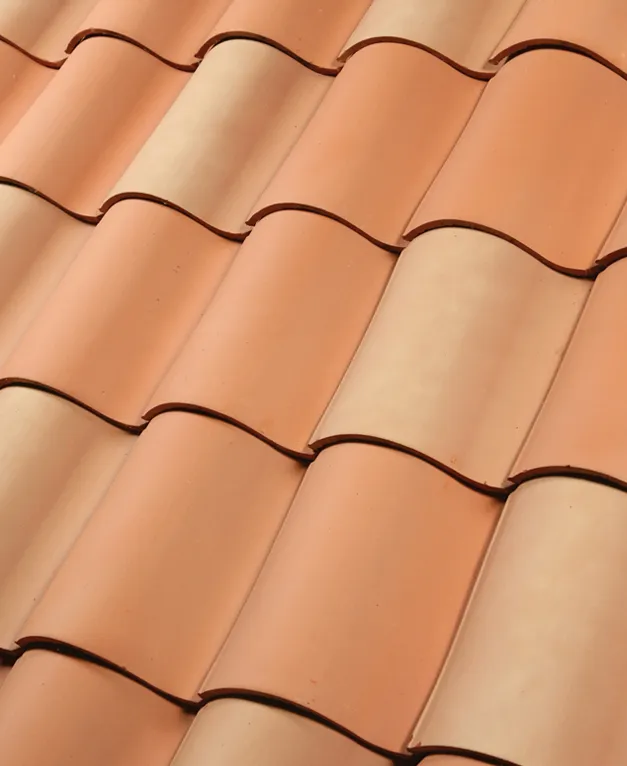

B338 Palace Blend

Solar Reflectance: 0.48

Thermal Emittance: 0.83

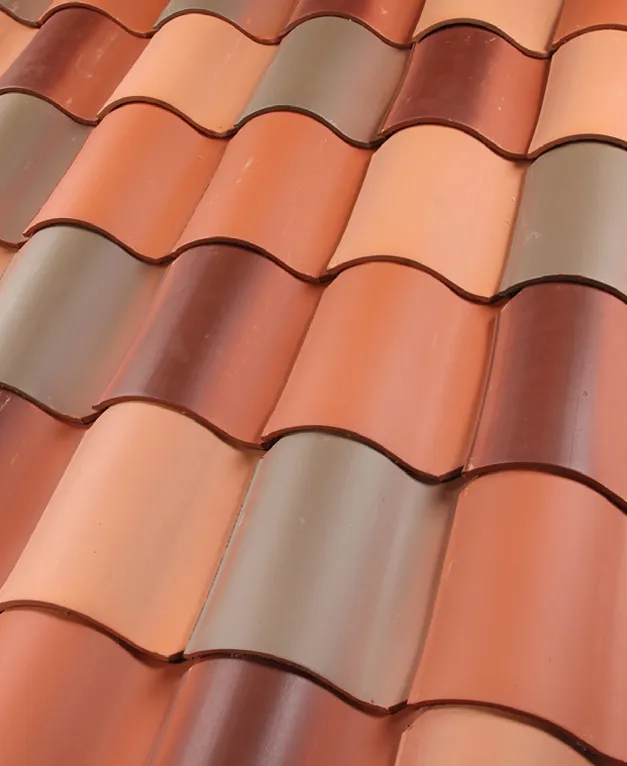

B412 La Paz Blend

Solar Reflectance: 0.40

Thermal Emittance: 0.84

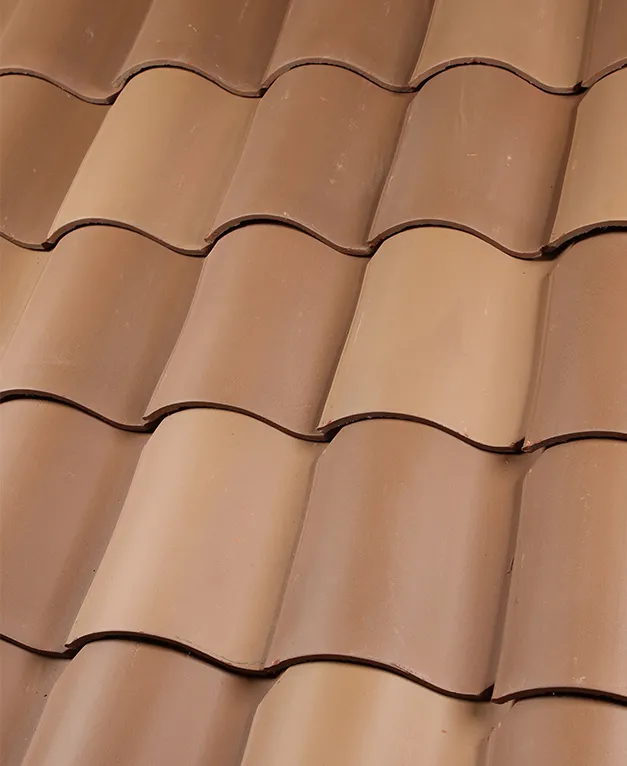

B221 El Dorado Blend

Solar Reflectance: 0.37

Thermal Emittance: 0.82

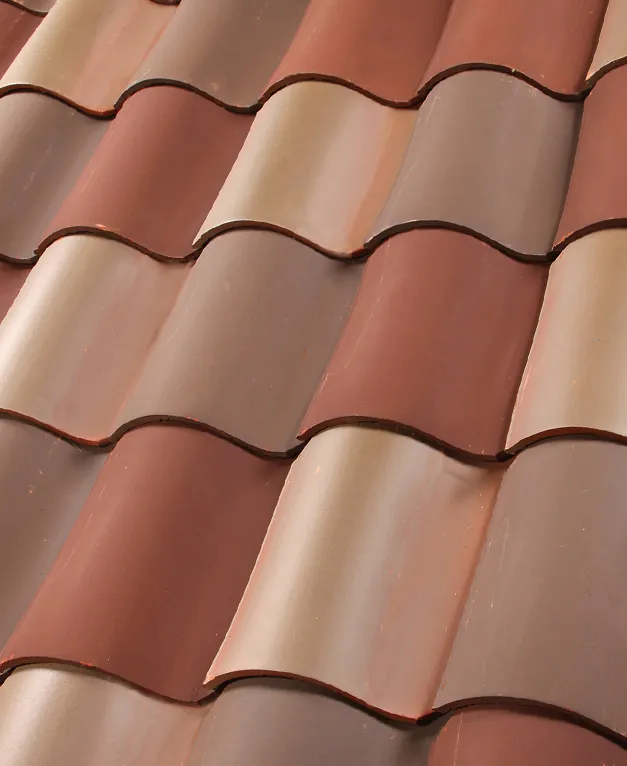

B350 Old Barcelona Blend

Solar Reflectance: 0.35

Thermal Emittance: 0.84

B305 Weathered Green Blend

Solar Reflectance: 0.43

Thermal Emittance: 0.82

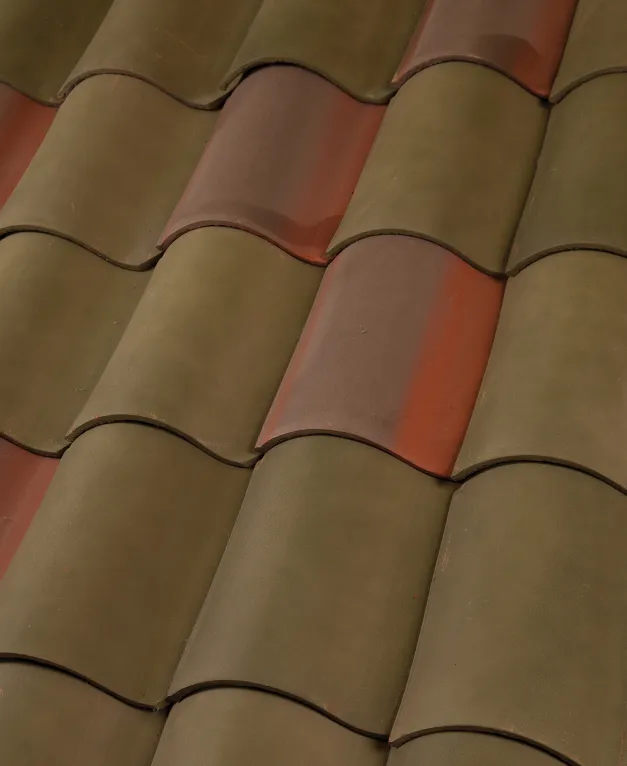

B327 Old Saguaro Blend

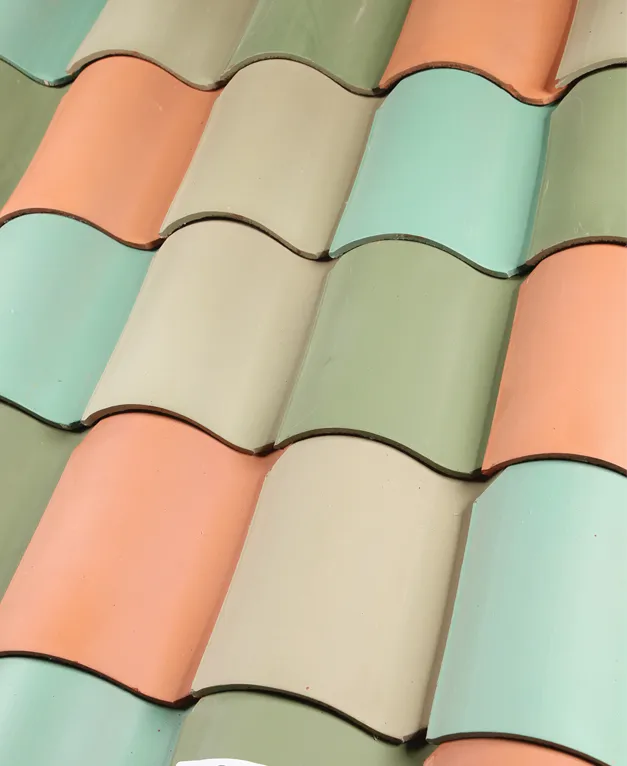

B335 Aloha Blend

Tile Selection

Preserving the architectural soul of the past requires more than mere imitation

Porducts

Oriental Japanese Products

Catalog
Code Approvals & SDS
Installation Specifications
Warranty
Detail Drawings

General Catalog

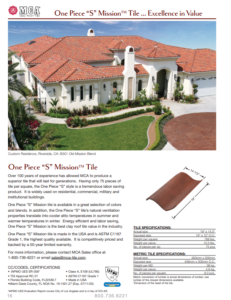

One Piece S Product Data Sheet

CC/Codes, Certifications

Include:
– IAPMO UNIFORM EVALUATION REPORT
– SDS SAFETY DATA
– TDI APPROVAL RC-21
– MIAMI-DADE COUNTY APPROVAL 21-1215.04 EXP 02/16/27

Reports

IAPMO Uniform Evaluation Report No. 0356

SDS Safety Data

Miami-Dade County Approval 22-0602.04 Exp. 07/11/27

TDI Approval; RC-21

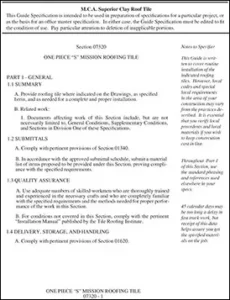

One Piece “S” Mission Clay Roof Tile Specification

ARTCAT

Spechwizard

BlM Objects

TRI Installation Manual

TRI Cold and Snow Installation Manual

50-YEAR LIMITED WARRANTY

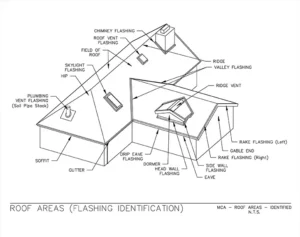

Download Roof Areas PDF

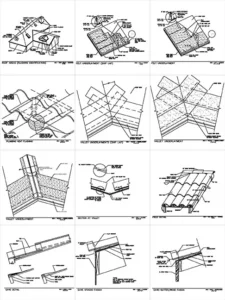

Download Summary Drawings PDF

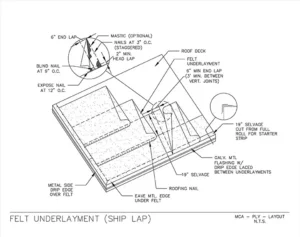

Download Felt Underlayment (SHP LAP) PDF

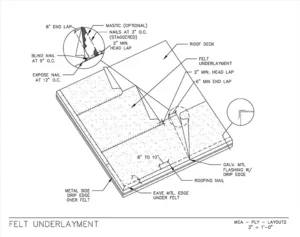

Download Felt Underlayment PDF

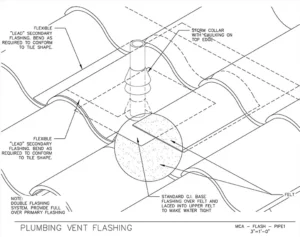

Download Plumbing Vent Flashing PDF

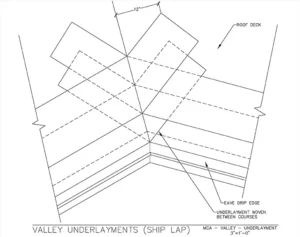

Download Valley Underlayment Woven Double Layer PDF

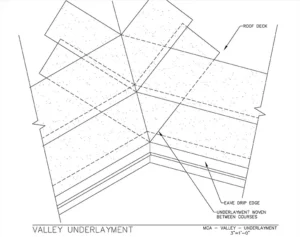

Download Valley Underlayment Woven Single Layer PDF

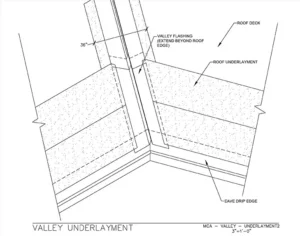

Download Valley Underlayment Overlapping PDF

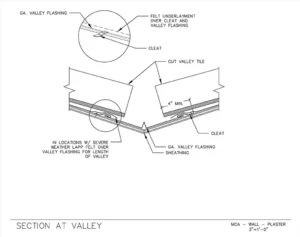

Download Section at Valley PDF

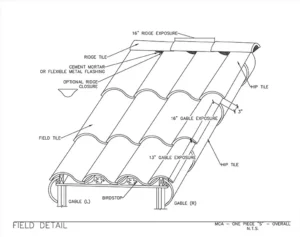

Download Filed Detail PDF

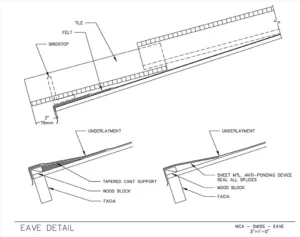

Download Eave Detail PDF

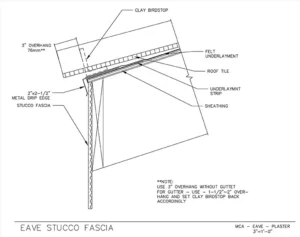

Download Eave Stucco Fascia PDF

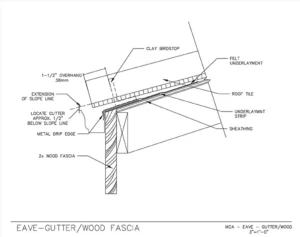

Download Eave-Gutter/ Wood Fascia PDF

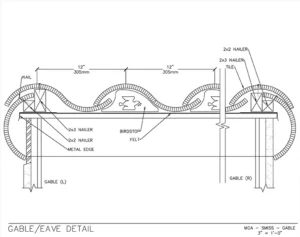

Download Gable/Eave Detail PDF

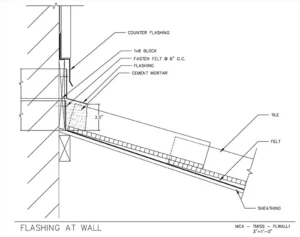

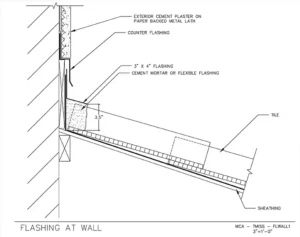

Download Head Wall Flashing with Counterflashing PDF

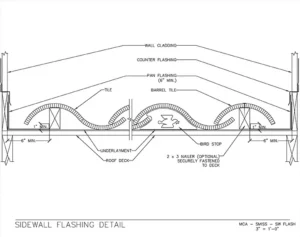

Download Sidewall Flashing Detail PDF

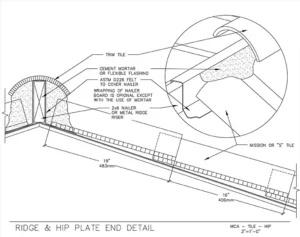

Download Ridge & Hip Plate End Detail PDF

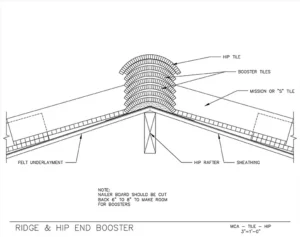

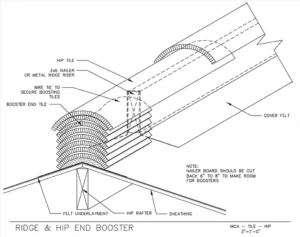

Download Ridge & Hip End Booster PDF

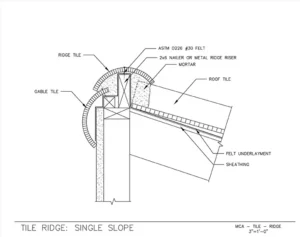

Download Tile Ridge Single Slope PDF

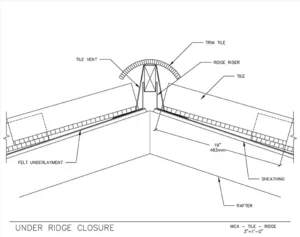

Download Under Ridge Closure PDF

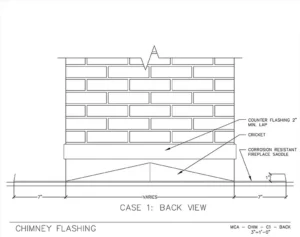

Download Chimney Flashing Back View 1 PDF

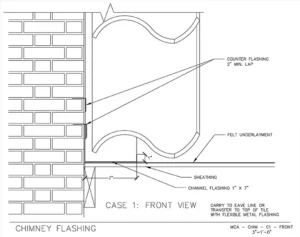

Download Chimney Flashing Front View 1 PDF

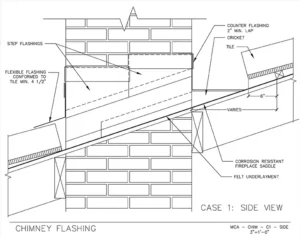

Download Chimney Flashing Side View 1 PDF

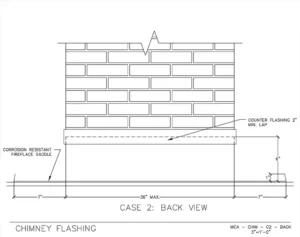

Download Chimney Flashing Back View 2 PDF

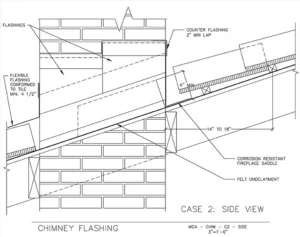

Download Chimney Flashing Side View 2 PDF

Download Chimney Flashing Front View 2 PDF

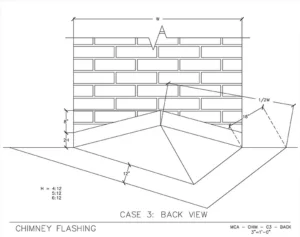

Download Chimney Flashing Back View 3 PDF

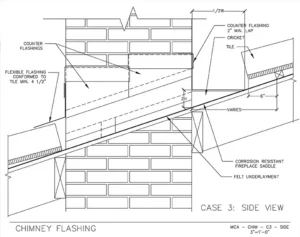

Download Chimney Flashing Side View 3 PDF

Download Chimney Flashing Front View 3 PDF

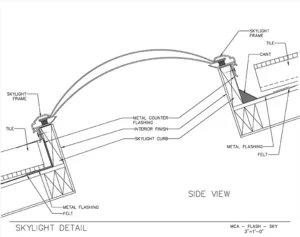

Download Skylight Detail PDF

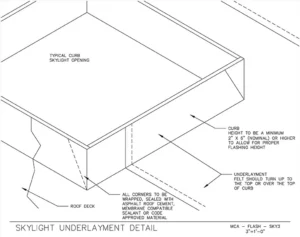

Download Skylight Underlayment Detail PDF

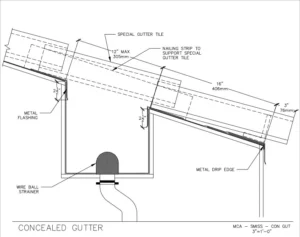

Download Concealed Gutter PDF

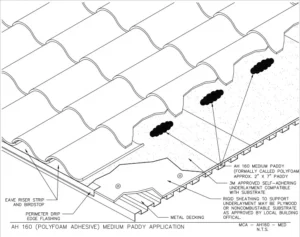

Download AH-160 Polyfoam Adhesive Medium Paddy Application PDF

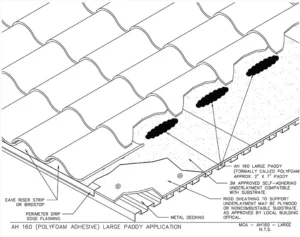

Download AH-160 Polyfoam Adhesive Large Paddy Application PDF

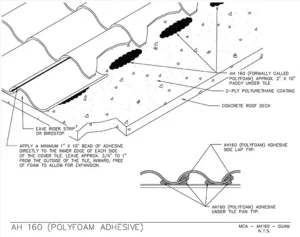

Download AH-160 Polyfoam Adhesive PDF

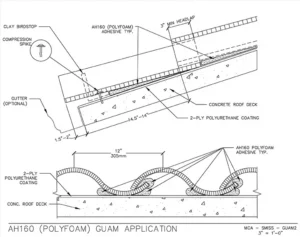

Download AH-160 Polyfoam Guam Application PDF

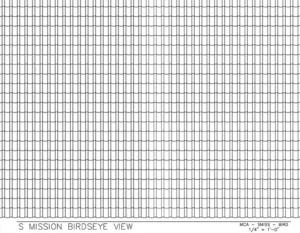

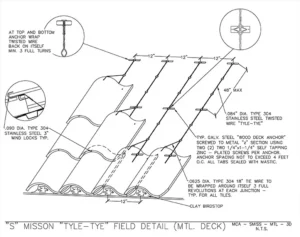

Download “S” Mission “Tyle-Tye” Field Detail PDF

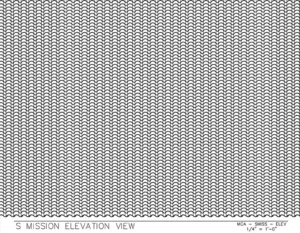

Download “S” Mission Elevation View PDF

Catalog

Code Approvals & SDS

Installation Specifications

Warranty

Detail Drawings

General Catalog

Catalog

Code Approvals & SDS

Installation Specifications

Warranty

Detail Drawings

General Catalog

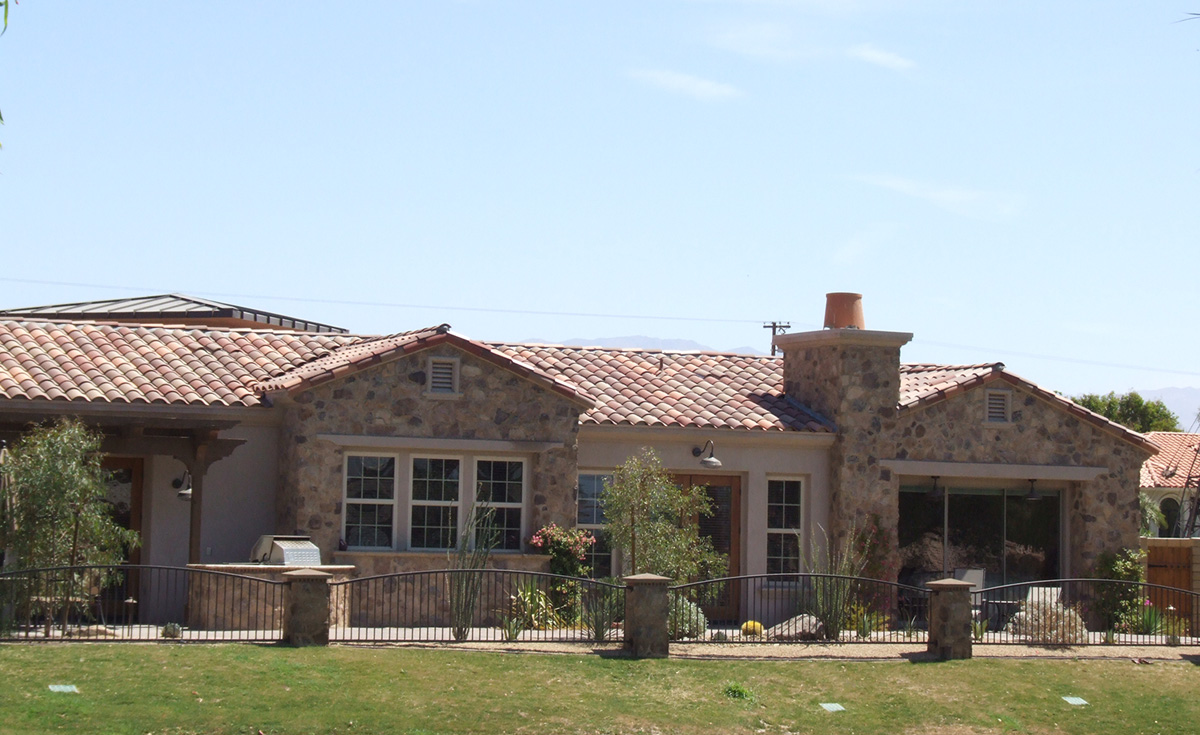

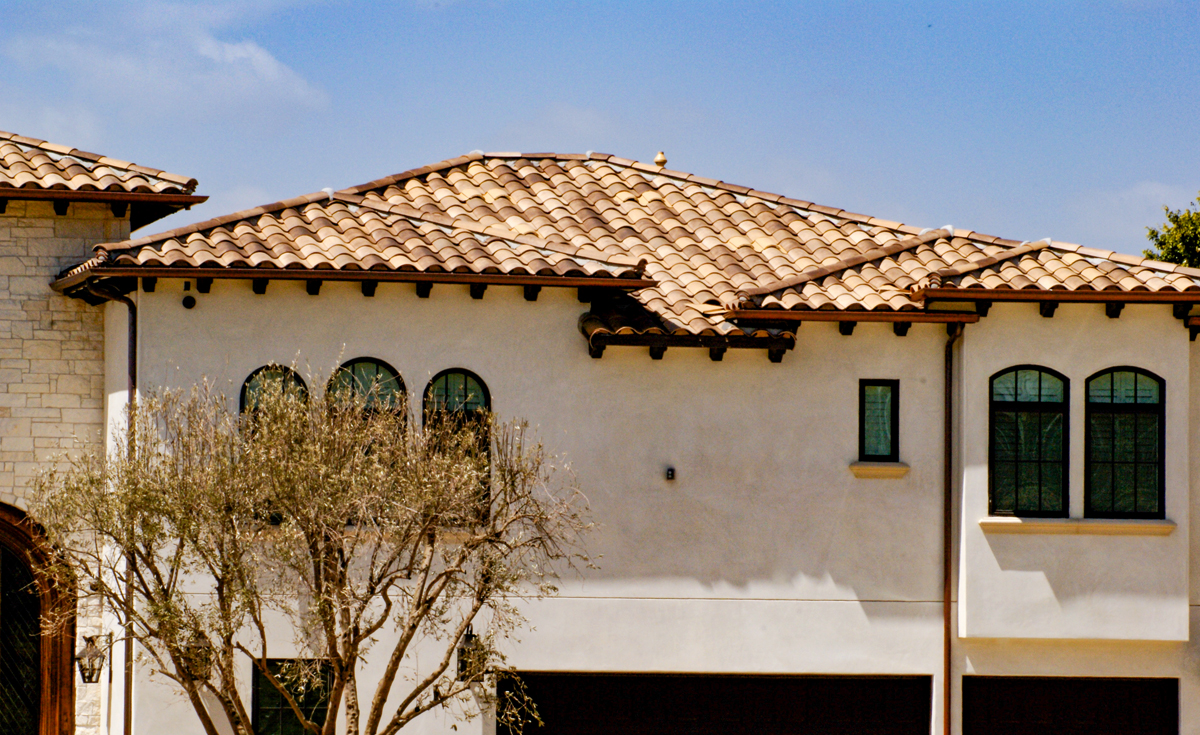

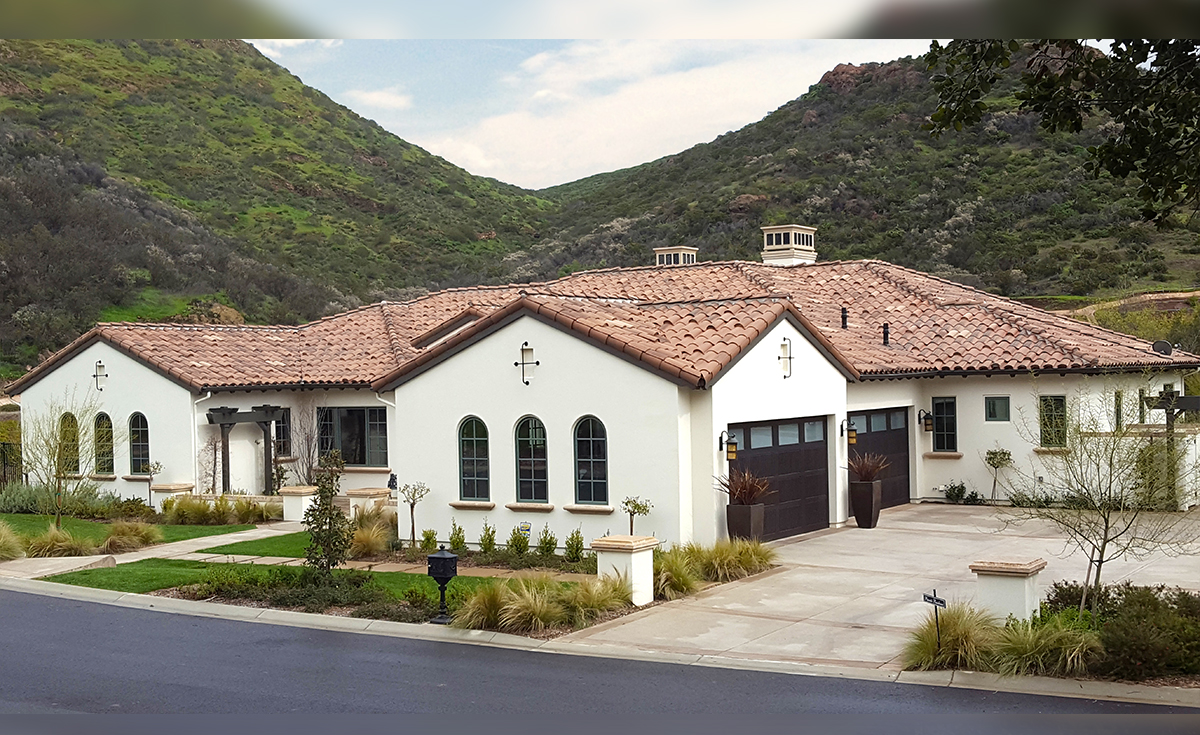

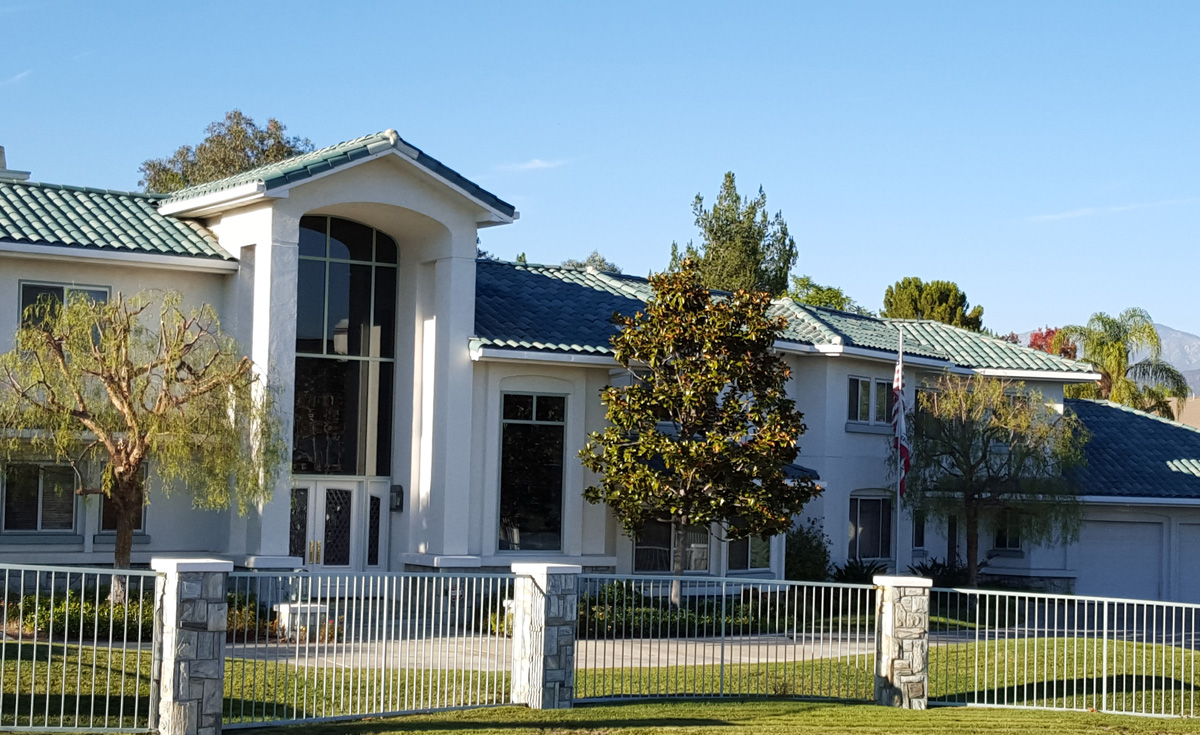

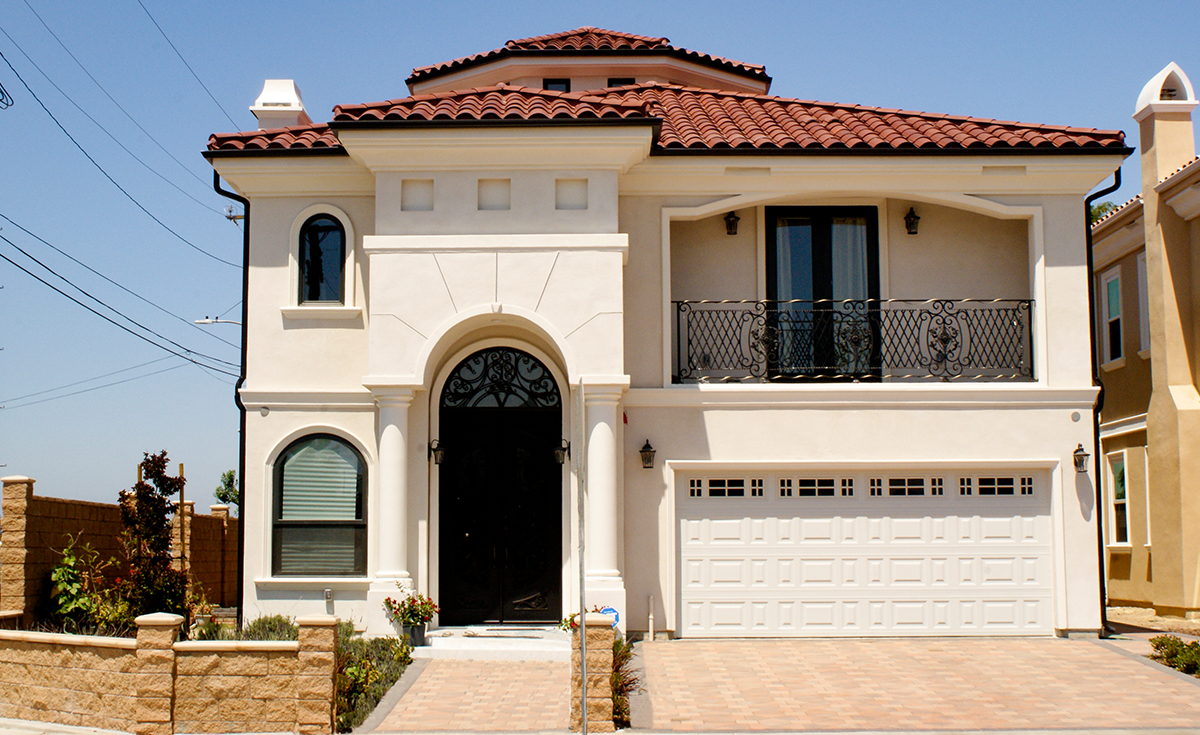

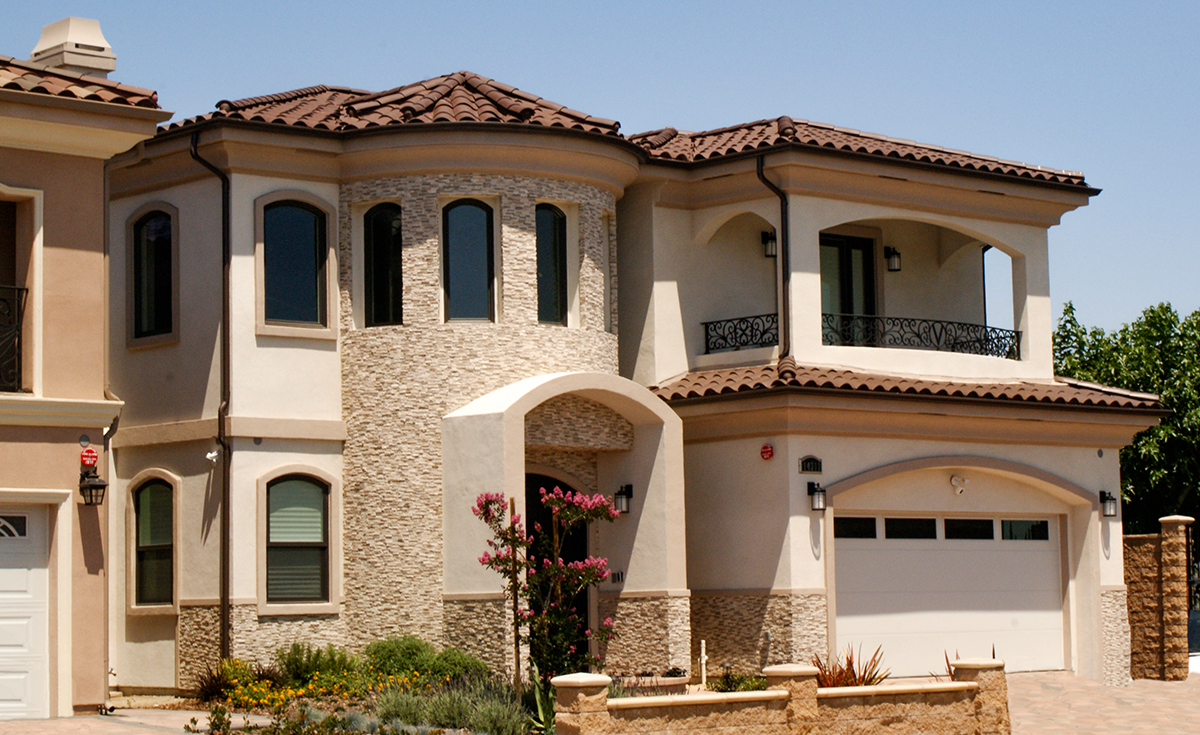

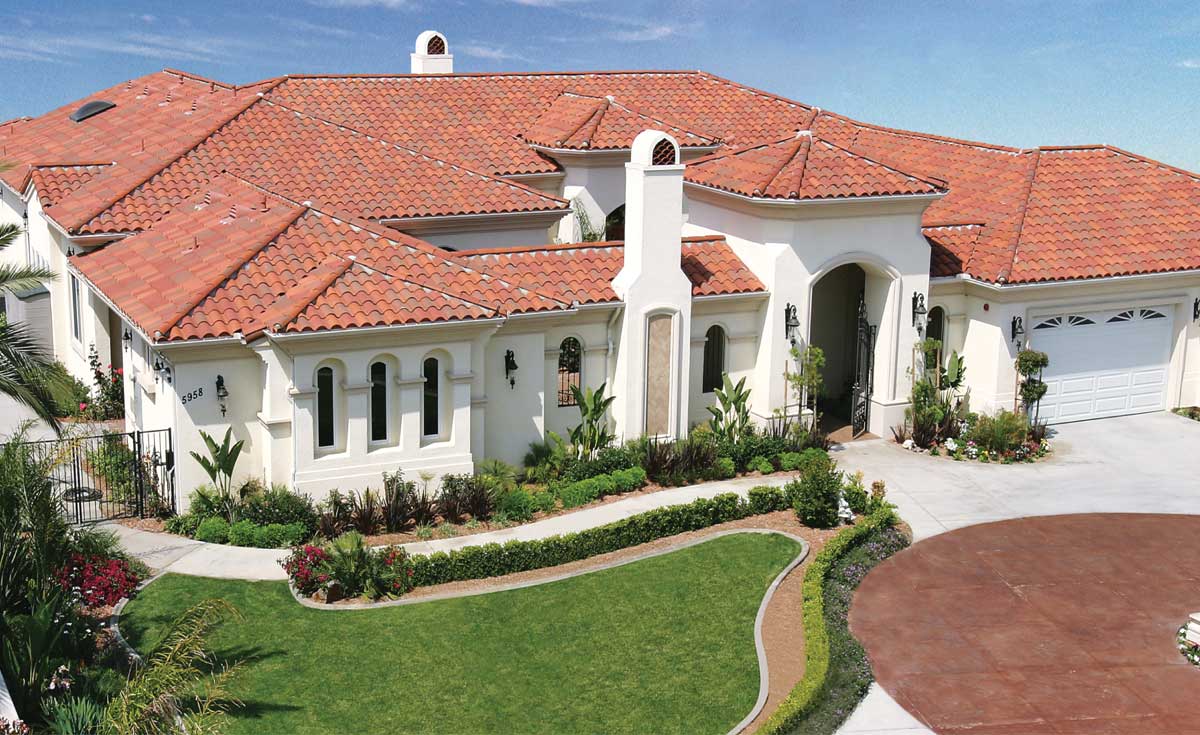

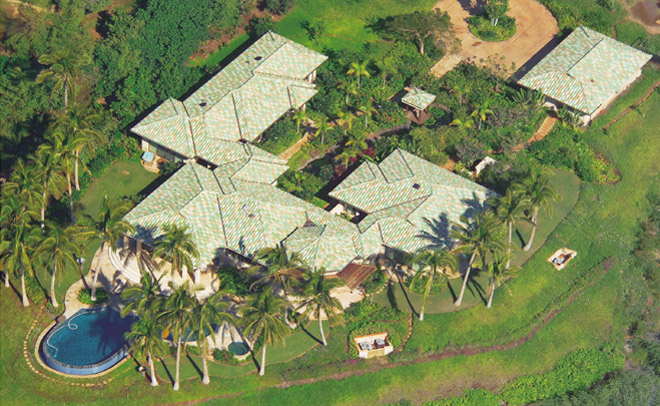

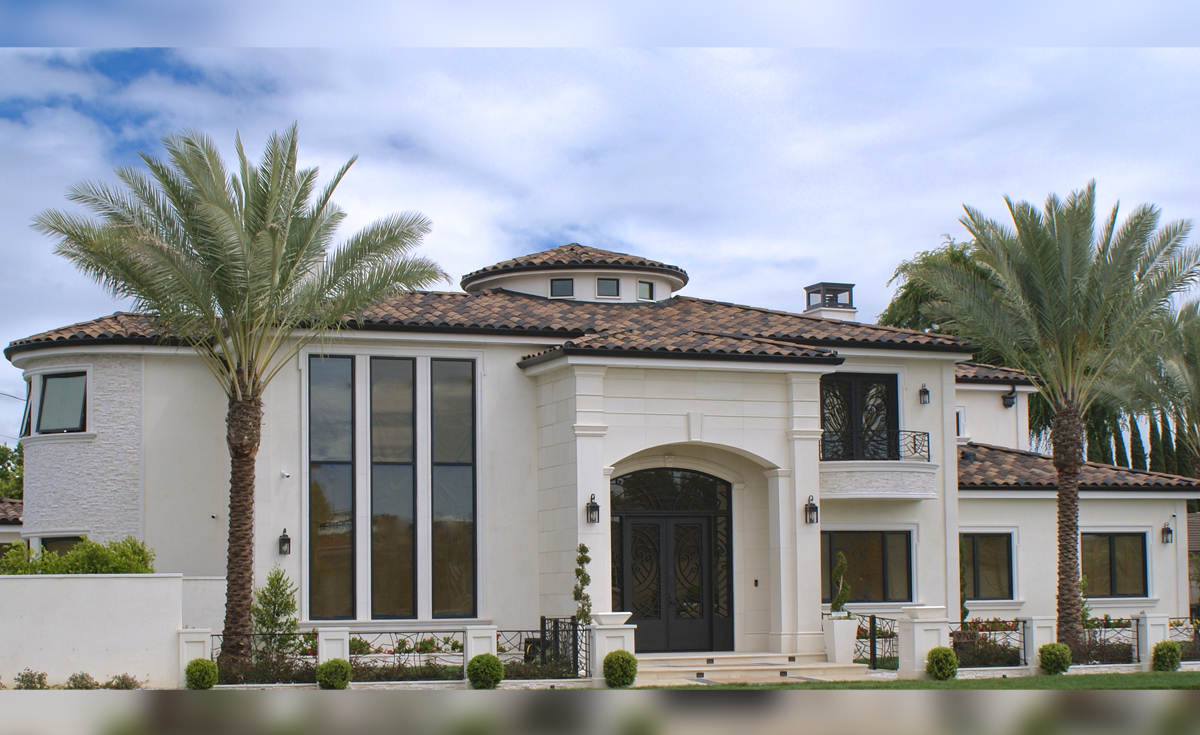

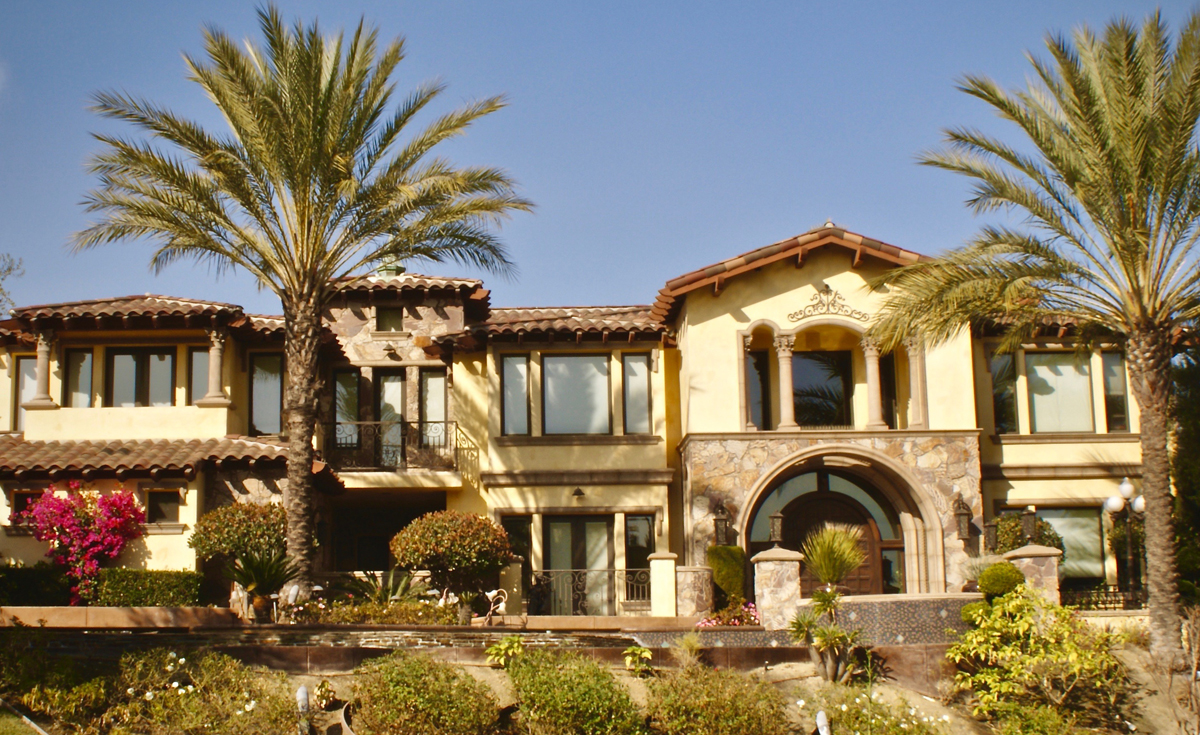

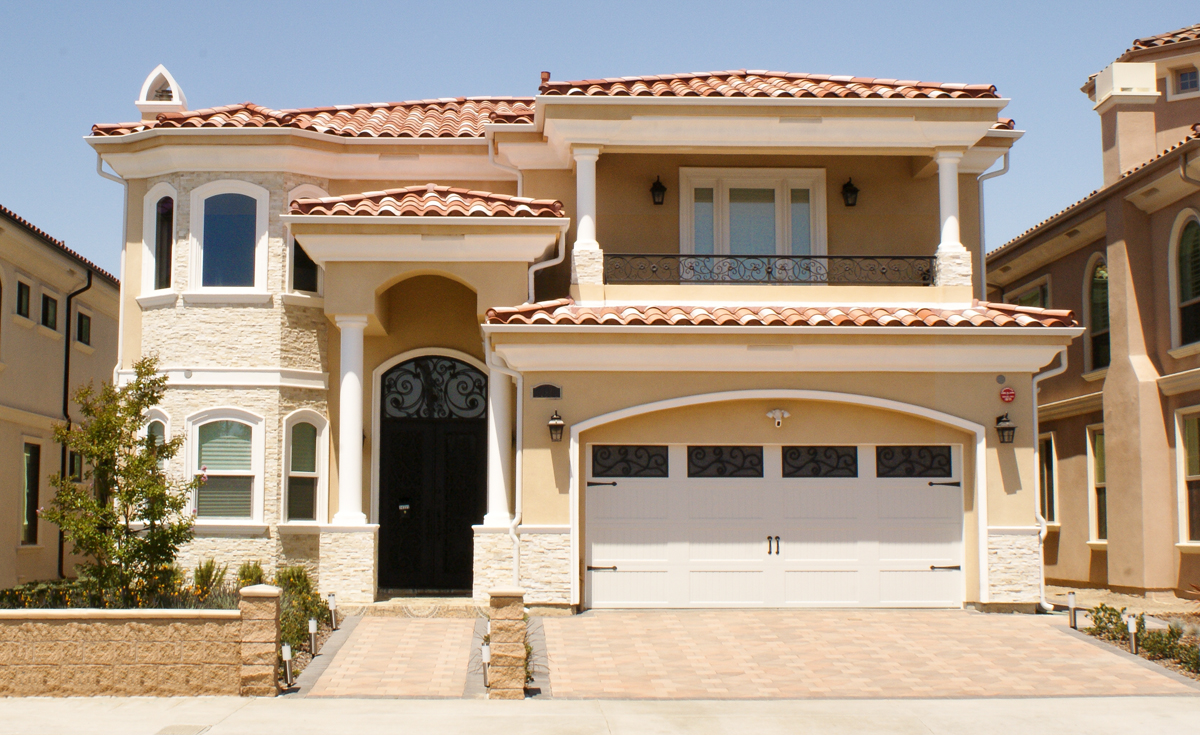

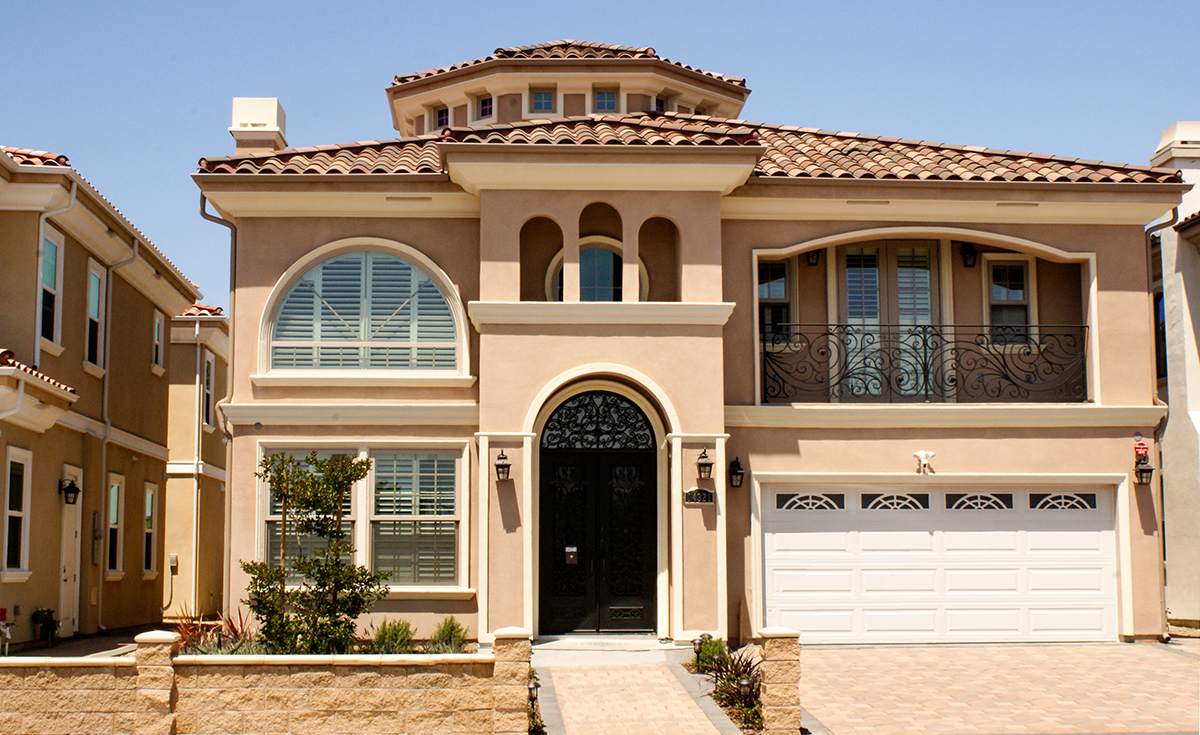

Architecture in Context
