Architectural Excellence

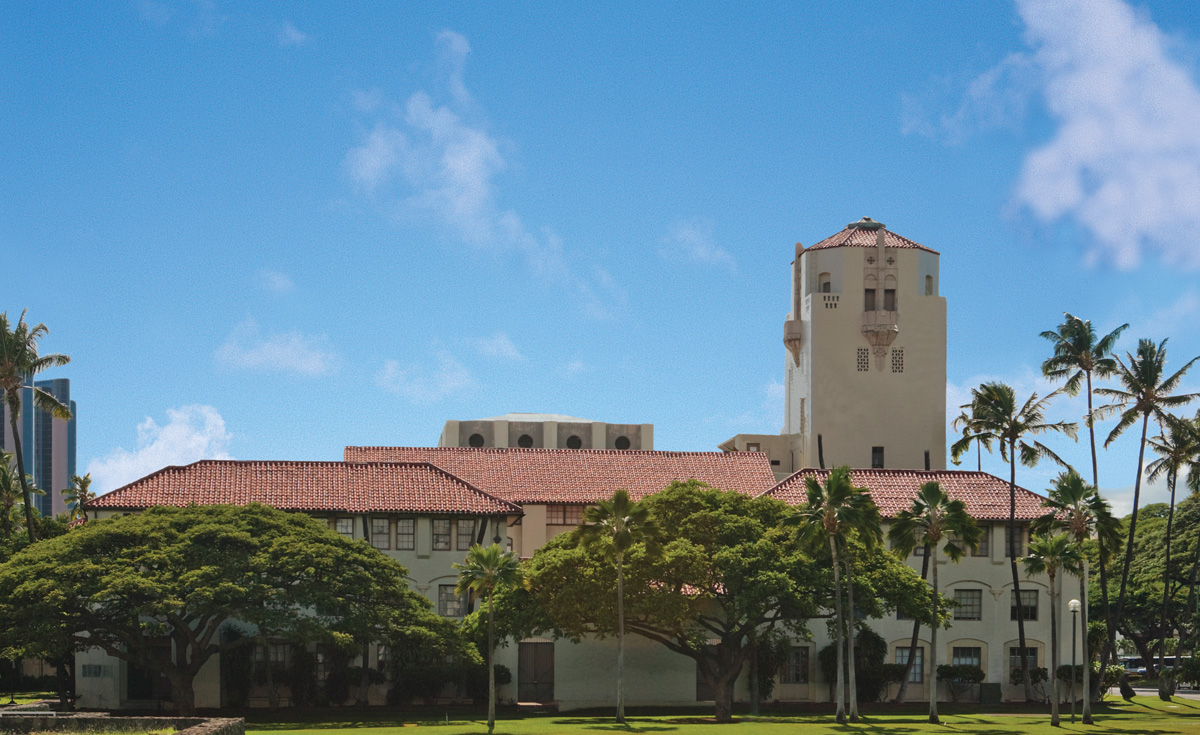

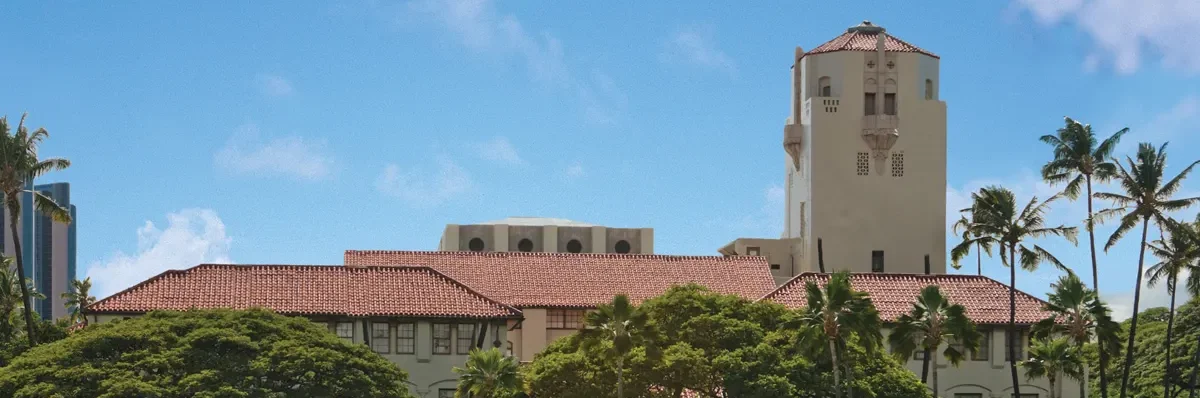

8-Inch Straight Barrel Mission

Elevating residential landscapes with the structural permanence and aesthetic heritage of fired clay roofing.

Overview

Natural Red And Flashed Colors

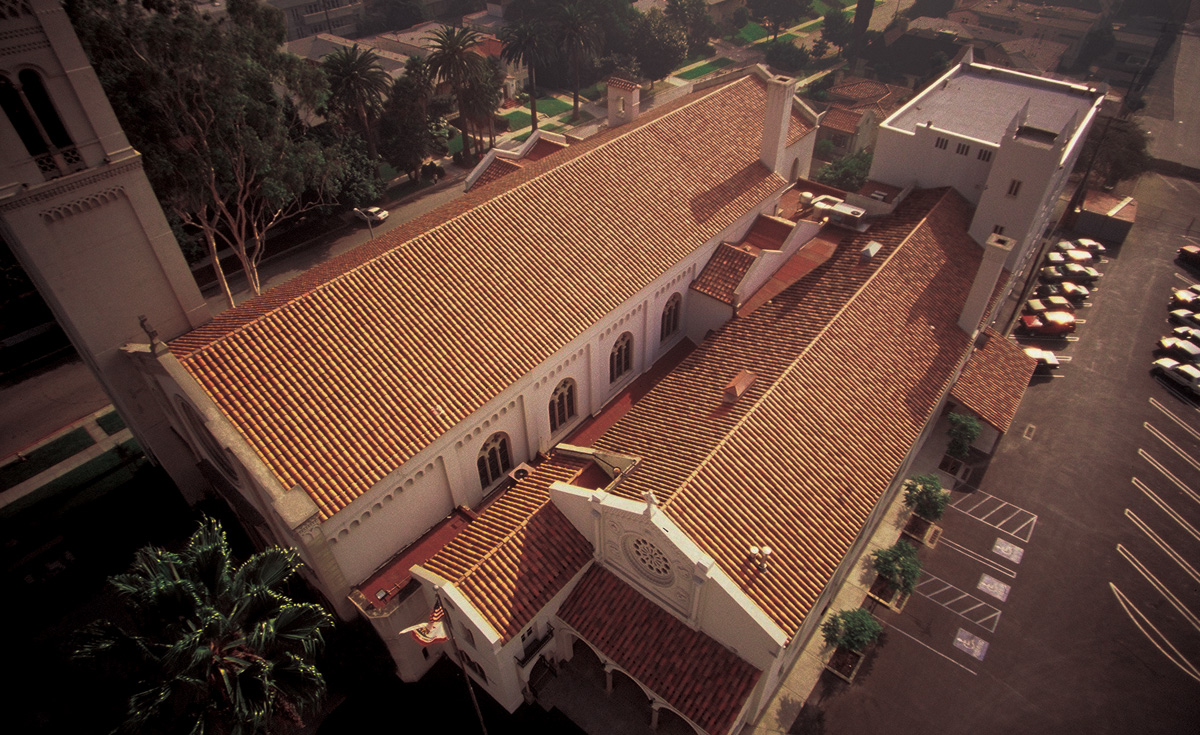

8-Inch Straight Barrel Mission clay roof tile has been produced on the West Coast for more than 100 years and can be seen on many churches, civic centers, and universities. MCA is able to reproduce this timeless classic for restoration of historical projects, as well as for new construction. MCA has mastered the art of replicating the colors and textures of very old tile to match existing tile on earlier period buildings, or to give new buildings a seasoned, historic appeal.



8-Inch Straight Barrel Mission tile is made in the USA and is ASTM C1167 Grade I, the highest quality of clay roof tile available. Competitively priced, this product is also backed by a 50-year limited warranty.

Color/Texture Availability

Tile Specifications

Actual Size
19″ X 8”
Exposed Size
16″ x 11″ O.C
Weight per square
984 lbs.
Weight per piece
6 lbs.
No. of pieces per square
164 pcs

Metric Tile Specifications

Actual Size
483mm x 203mm
Exposed Size
406mm x 279mm O.C.
Weight per M2
47.87 kg/m2
Weight per piece
2.72 kg
No. of pieces per M2
17.6 pcs.

Color Selection

Each finish is achieved through unique firing cycles in our modernized kilns, ensuring every tile carries consistent quality and performance

Full Color and Texture Availability

Blends

Each finish is achieved through unique firing cycles in our modernized kilns, ensuring every tile carries the soul of the earth.

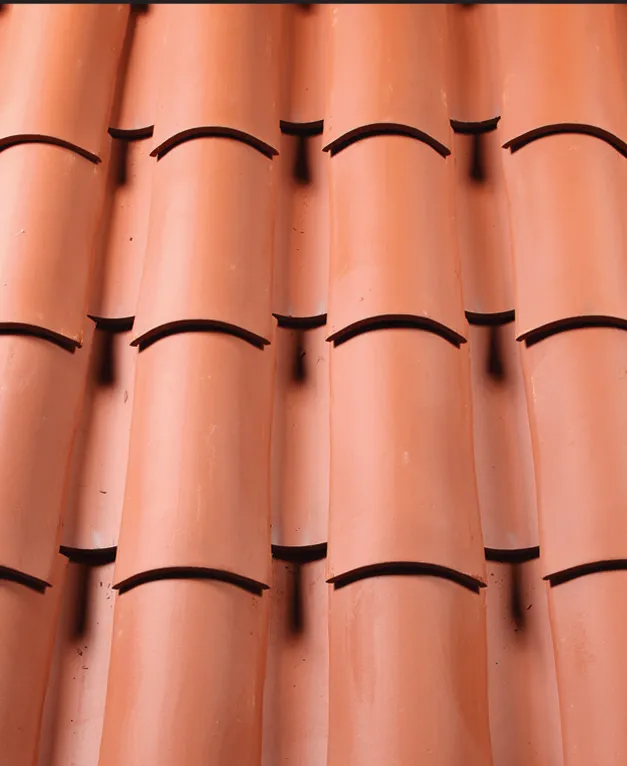

F40 Natural Red

F40 Natural Red

Solar Reflectance: 0.45
Thermal Emittance: 0.88

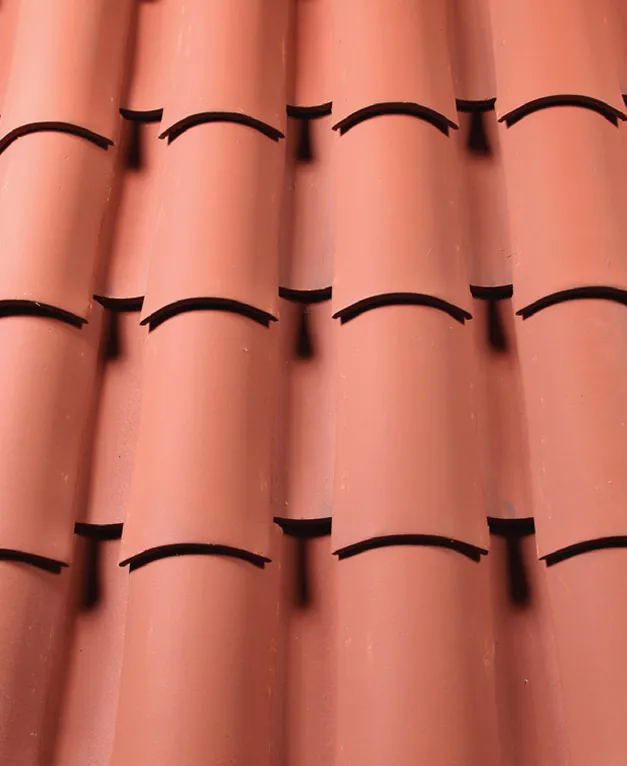

2F43 Brick Red

2F43 Brick Red

Solar Reflectance: 0.42
Thermal Emittance: 0.84

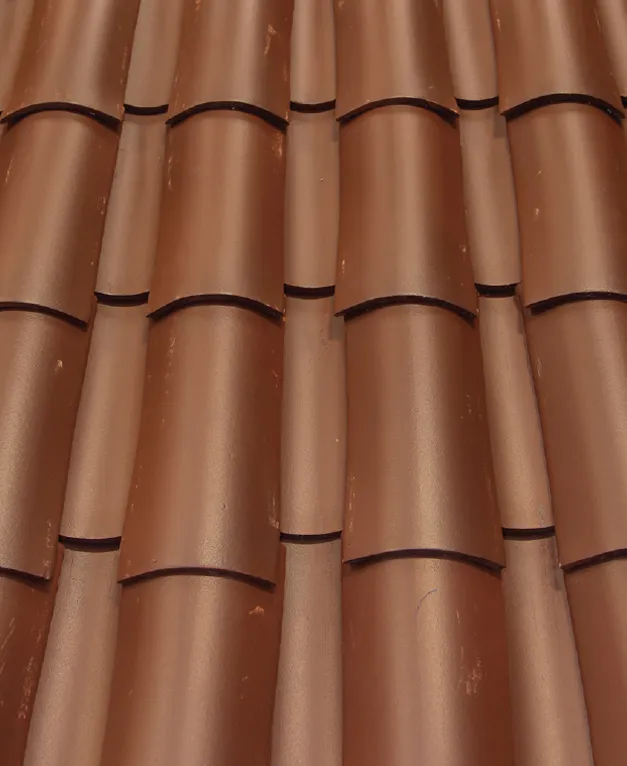

2F22 Burnt Sienna

2F22 Burnt Sienna

Solar Reflectance: 0.31
Thermal Emittance: 0.84

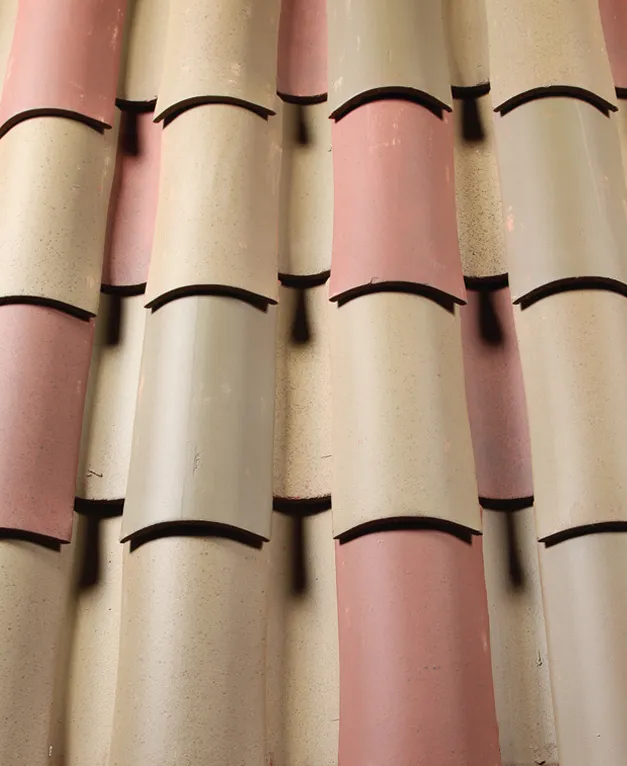

CB366 Alexander & Baldwin Blend

CB366 Alexander & Baldwin Blend

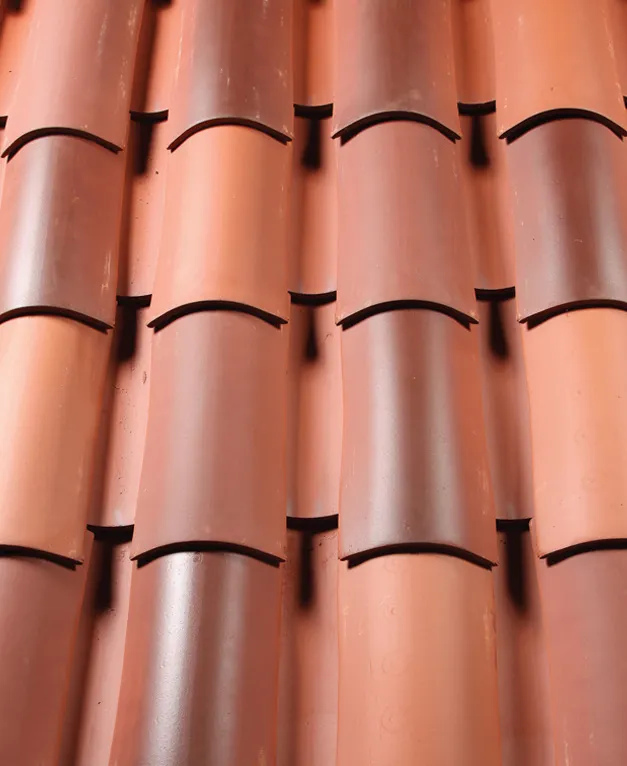

B308 Canyon Red Blend

B308 Canyon Red Blend

Solar Reflectance: 0.38
Thermal Emittance: 0.85

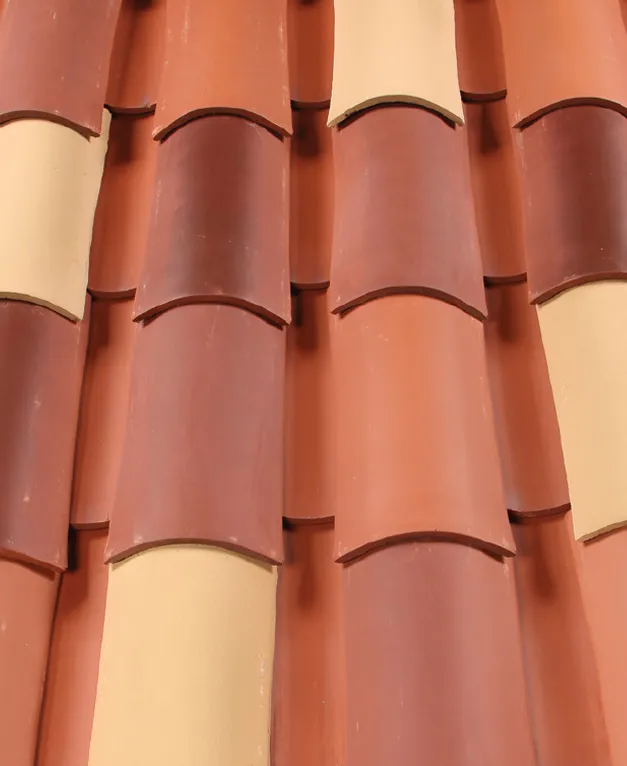

CB425 Nob Hill Blend

CB425 Nob Hill Blend

Solar Reflectance: 0.44
Thermal Emittance: 0.88
×

Tile Selection

Preserving the architectural soul of the past requires more than mere imitation

Porducts

Oriental Japanese Products
  • Catalog
  • Code Approvals & SDS
  • Installation Specifications
  • Warranty
  • Detail Drawings
8 in Straight Barrel Product Data Sheet
General Catalog

CC/Codes, Certifications

Include:
– IAPMO UNIFORM EVALUATION REPORT
– SDS SAFETY DATA
– TDI APPROVAL RC-21
– MIAMI-DADE COUNTY APPROVAL 21-1215.04 EXP 02/16/27

Reports

pdf-iconIAPMO Uniform Evaluation Report No. 0356download-icon
pdf-iconSDS Safety Datadownload-icon
pdf-iconTDI Approval; RC-21download-icon
pdf-iconMiami-Dade County Approval 21-1215.04 Exp. 02/16/27download-icon
8″ Straight Barrel Mission Clay Roof Tile Specification
ARCAT
Specwizard
BIM Objects
TRI Installation Manual
TRI Cold and Snow Installation Manual
50-YEAR LIMITED WARRANTY
Download Roof Areas PDF
Download Summary Drawings PDF
Download Felt Underlayment (SHP LAP) PDF
Download Felt Underlayment PDF
Download Plumbing Vent Flashing PDF
Download Valley Underlayment Woven Double Layer PDF
Download Valley Underlayment Woven Single Layer PDF
Download Valley Underlayment Overlapping PDF
Download Section at Valley PDF
Download Field Detail PDF
Download Eave Detail PDF
Download Eave Stucco Fascia PDF
Download Eave Gutter/Wood Fascia PDF
Download Gable/Eave Detail PDF
Download Head Wall Flashing with Counterflashing PDF
Download Head Wall Flashing with Counterflashing PDF
Download Sidewall Flashing Detail PDF
Download Ridge & Hip Plate End Detail PDF
Download Ridge & Hip End Booster PDF
Download Ridge & Hip End Booster PDF
Download Tile Ridge Single Slope PDF
Download Metal Ridge Riser PDF
Download Chimney Flashing Back View 1 PDF
Download Chimney Flashing Front View 1 PDF
Download Chimney Flashing Side View 1 PDF
Download Chimney Flashing Back View 2 PDF
Download Chimney Flashing Side View 2 PDF
Download Chimney Flashing Front View 2 PDF
Download Chimney Flashing Back View 3 PDF
Download Chimney Flashing Side View 3 PDF
Download Chimney Flashing Front View 3 PDF
Download Skylight Detail PDF
Download Skylight Underlayment Detail PDF
Download Concealed Gutter PDF
Download AH-160 Polyfoam Adhesive Medium Paddy Application PDF
Download AH-160 Polyfoam Adhesive Large Paddy ApplicationPDF
Download AH-160 Polyfoam Guam Application PDF
Download AH 160 Polyfoam Adhesive PDF
Download 8″ Straight Barrel Mission “Tyle-Tye” Field Detail PDF
Download 8″ Straight Barrel Mission Nail on System PDF
Download 8″ Straight Barrel Mission Tile Mtl. Eave Detail PDF
Download Barrel Mission Nailer Installation PDF
Download 8″ Straight Barrel Mission PDF
Download 8″ Straight Barrel Mission PDF
Download Two Piece Mission Mortar Booster PDF
Download Two Piece Mission Weepy Mortar PDF
