Classic Tapered Mission

Elevating residential landscapes with the structural permanence and aesthetic heritage of fired clay roofing.

Overview

Classic Tapered Mission

Item Code: TF02

Natural Red And Flashed Colors

NATURAL RED AND FLASHED COLORS

For the timely elegance of old world tradition, MCA uses new technology to create our 2-piece Classic Tapered Mission™ clay roof tile. Originally handcrafted by molding clay to the body’s thigh, this heritage has spanned the centuries for today’s installations. This tile is well suited for any Spanish or Mediterranean designs and will enhance the beauty of your project.

MCA’s Classic Tapered Mission™ clay roof tile has been widely used on residential, commercial, military, and institutional buildings and is available in out Natural Red (F40) terra cotta, standard and custom colors and blends.

A 50-Year Limited Warranty is available on all MCA Tiles.

Color/Texture Availability

Tile Specifications

Actual Size:

19″ X 7.5″ (5″)

Exposed Size:

16″ x 10″ O.C.

Weight per square:

1008 lbs.

Weight per piece:

5.6 lbs.

No. of pieces per square:

180 pcs (90 tops and 90 pans)

Metric Tile Specifications

Actual Size:

483mm x 191mm

Exposed Size:

406mm x 254mm

Weight per M2:

49.22 kg

Weight per piece:

2.54 kg

No. of pieces per M2:

19.38pcs

Color Selection

Each finish is achieved through unique firing cycles in our modernized kilns, ensuring every tile carries consistent quality and performance

Full Color and Texture Availability

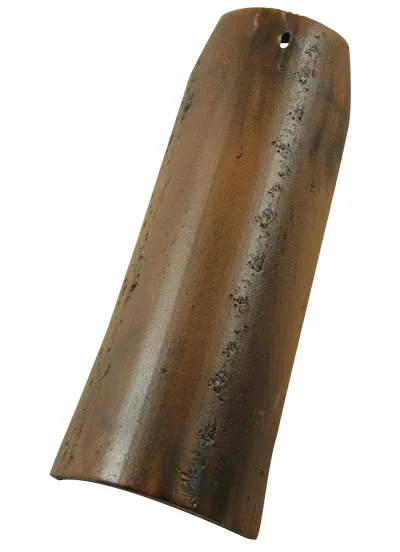

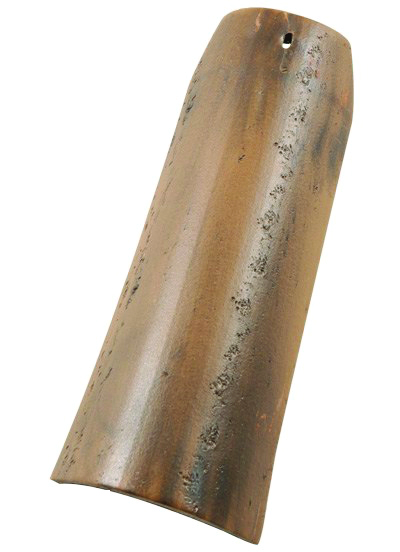

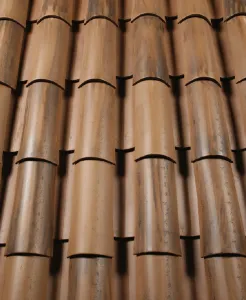

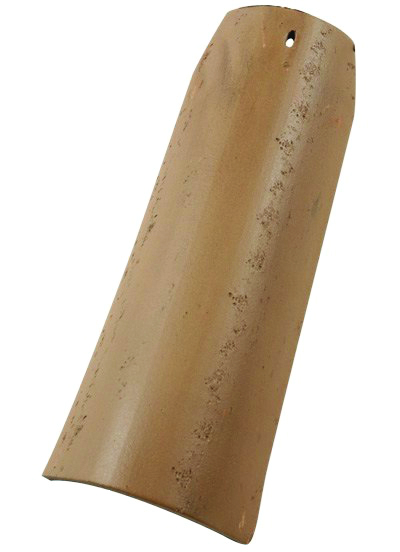

CB364-R Vintage Carmel Blend

CB364-R Vintage Carmel Blend

CB364-R Vintage Carmel Blend

CB364-R Vintage Carmel Blend

CB364-R Vintage Carmel Blend

CB364-R Vintage Carmel Blend

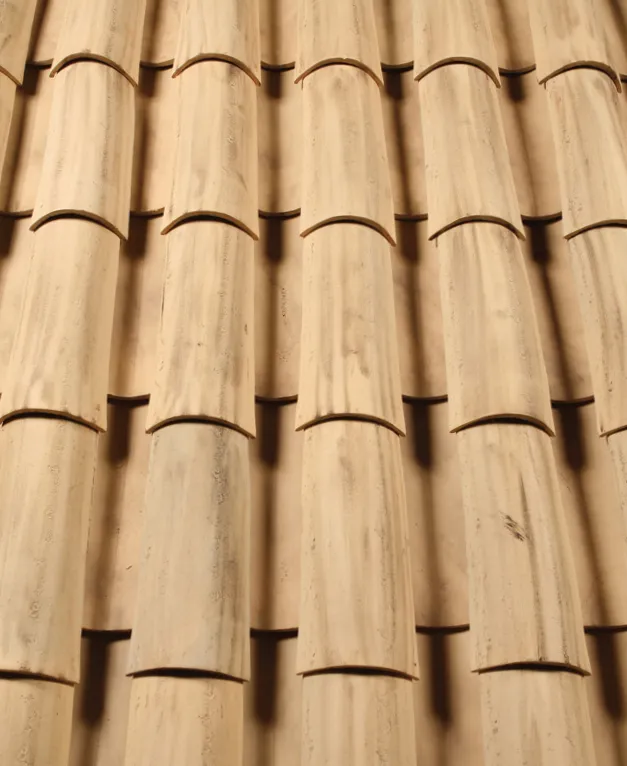

CB383-R Teja Bianco Blend

CB383-R Teja Bianco Blend

CB383-R Teja Bianco Blend

CB383-R Teja Bianco Blend

CB383-R Teja Bianco Blend

CB383-R Teja Bianco Blend

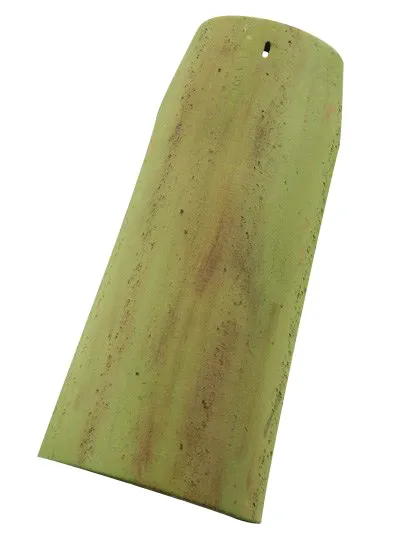

CB388-R Vintage Green Blend

CB388-R Vintage Green Blend

CB388-R Vintage Green Blend

CB388-R Vintage Green Blend

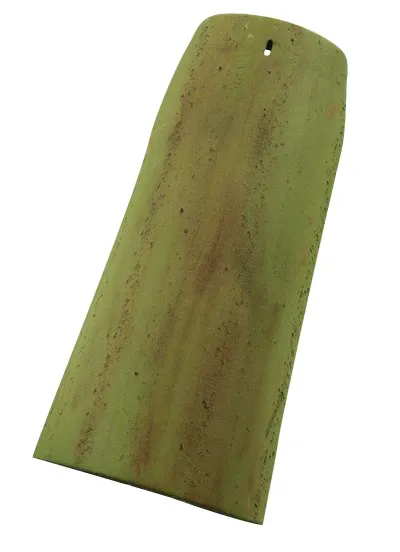

CB388D-R Vintage Green Blend

CB388D-R Vintage Green Blend

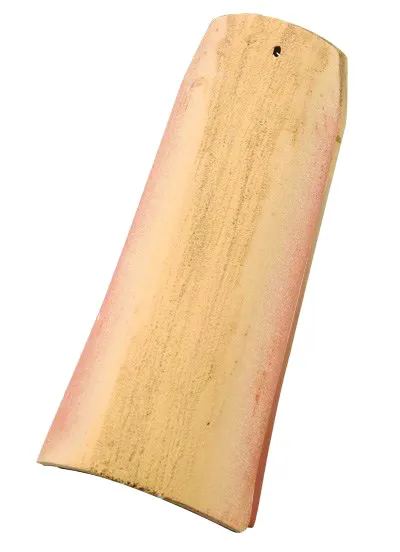

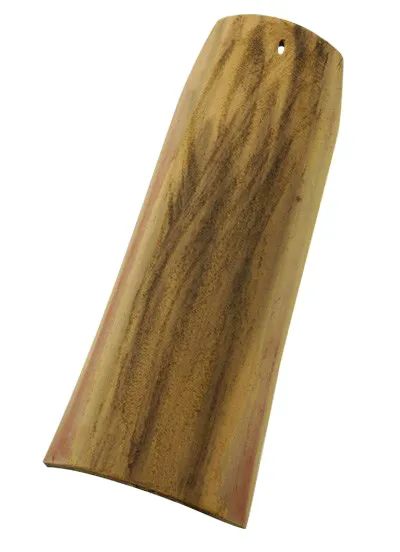

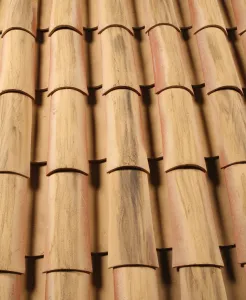

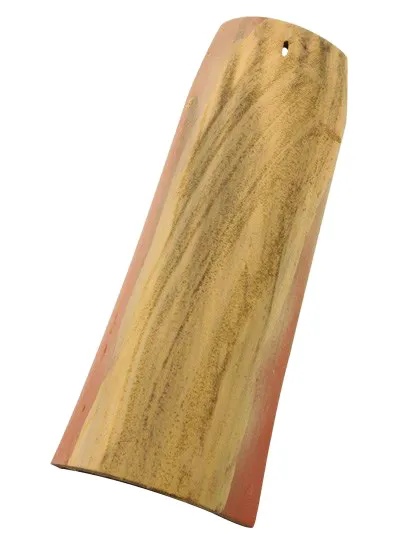

F46-SSC Veneto Diores Blend

F46-SSC Veneto Diores Blend

F46-SSC Veneto Diores Blend

F46-SSC Veneto Diores Blend

F46-SSC Veneto Diores Blend

F46-SSC Veneto Diores Blend

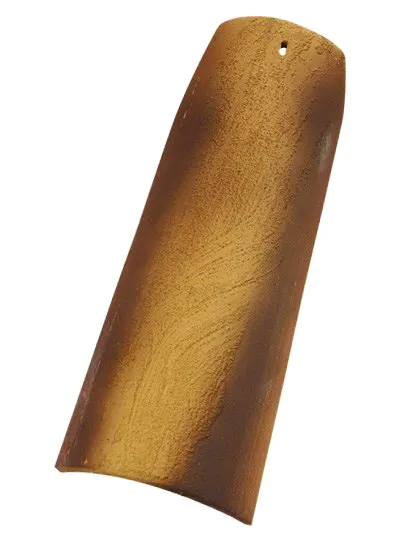

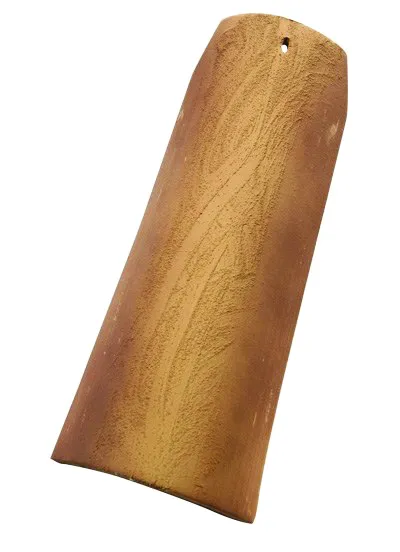

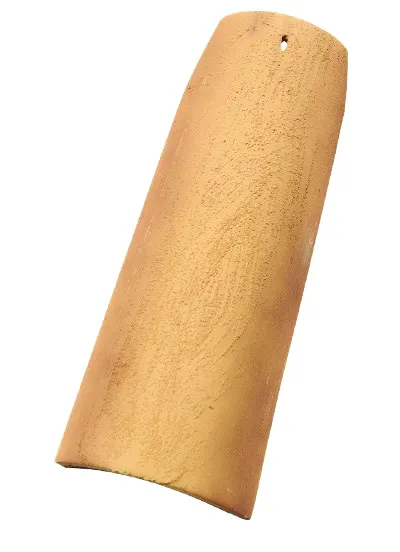

F4645-SSC Tuscan Gold Blend

F4645-SSC Tuscan Gold Blend

F4645-SSC Tuscan Gold Blend

F4645-SSC Tuscan Gold Blend

F4645-SSC Tuscan Gold Blend

F4645-SSC Tuscan Gold Blend

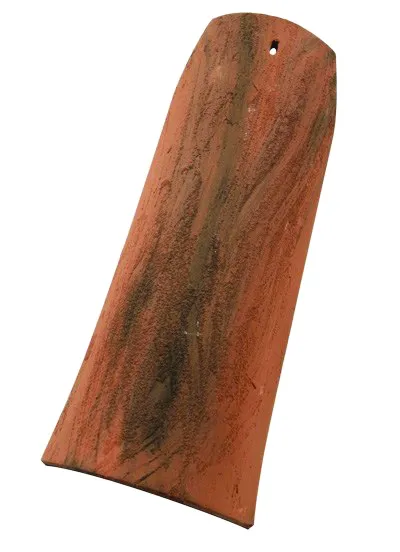

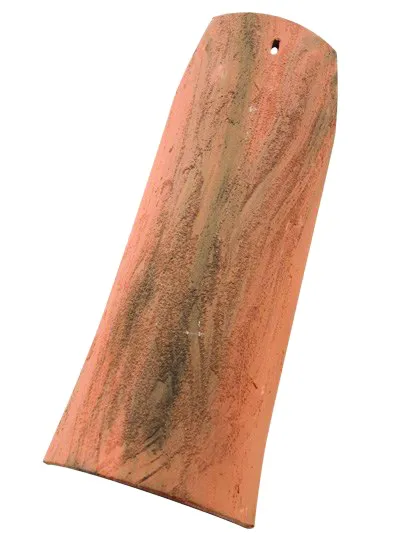

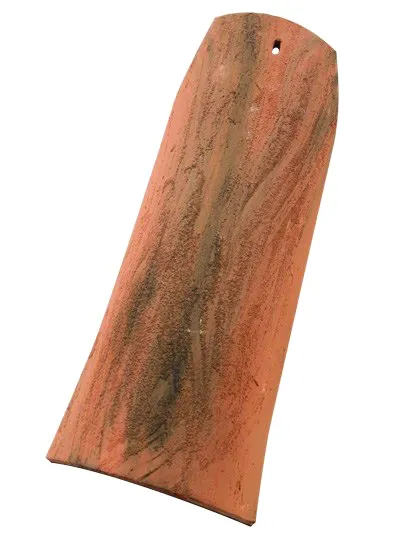

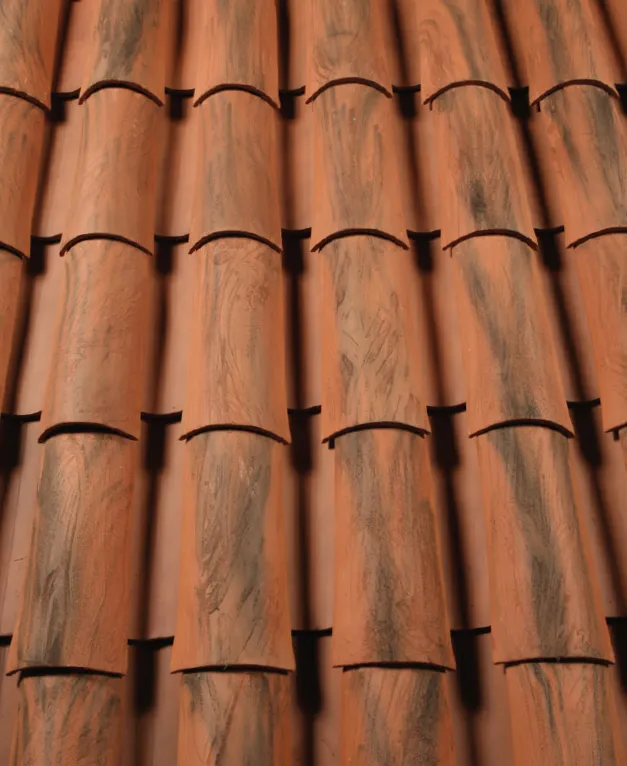

CB387-SC Solare Blend

CB387-SC Solare Blend

CB387-SC Solare Blend

CB387-SC Solare Blend

CB387-SC Solare Blend

CB387-SC Solare Blend

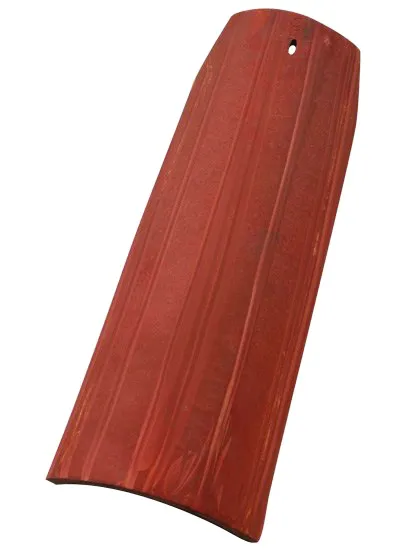

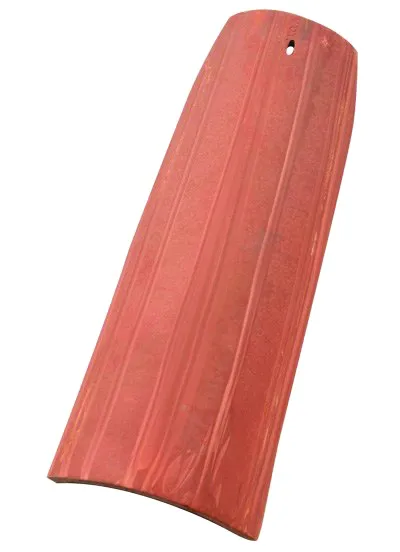

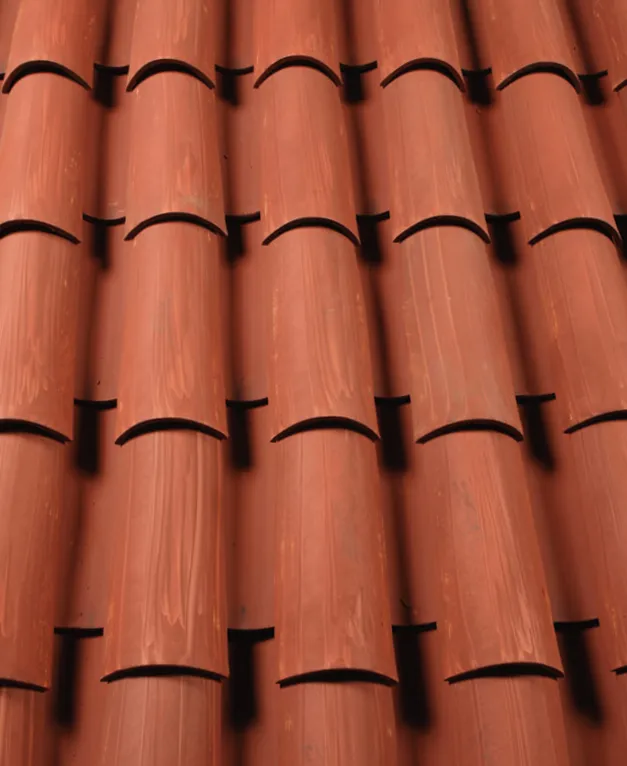

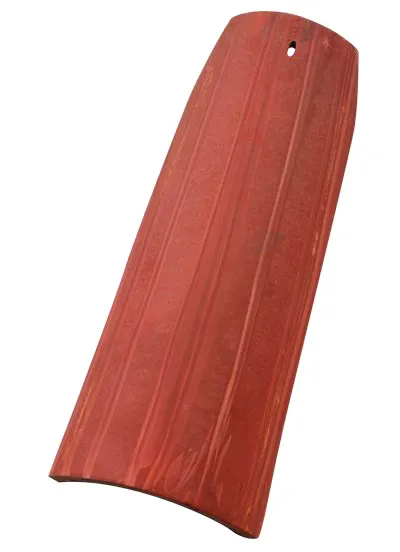

2F43-S Rosso Antico Blend

2F43-S Rosso Antico Blend

2F43-S Rosso Antico Blend

2F43-S Rosso Antico Blend

2F43-S Rosso Antico Blend

2F43-S Rosso Antico Blend

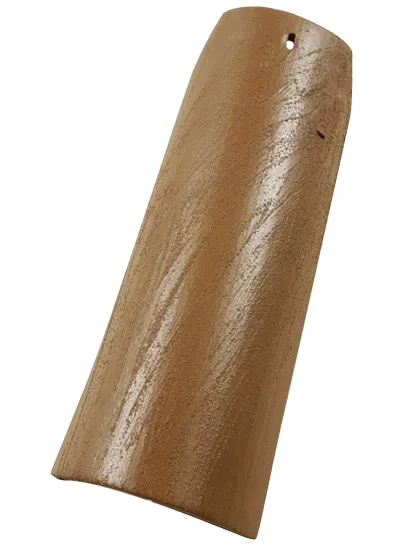

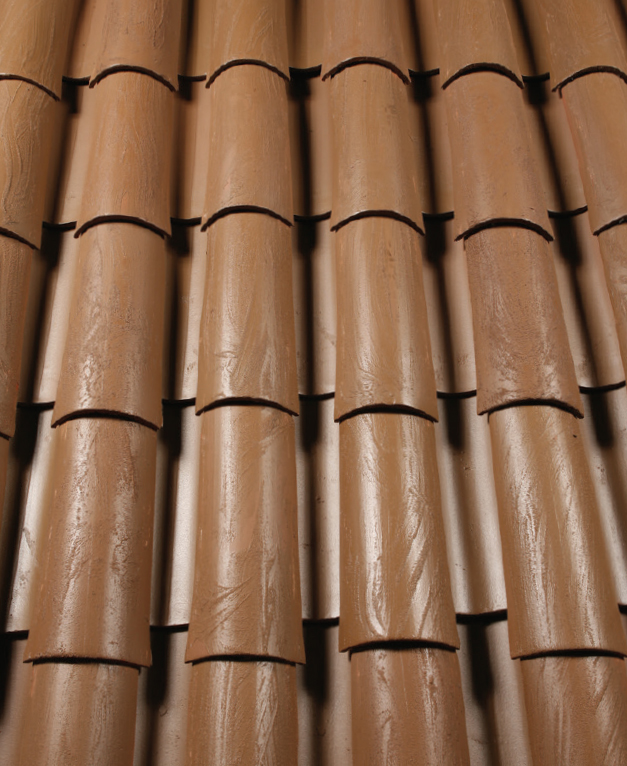

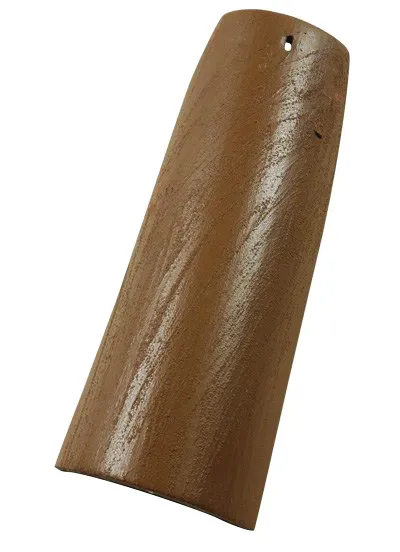

CB360-SC Café Mocca Blend

CB360-SC Café Mocca Blend

CB360-SC Café Mocca Blend

CB360-SC Café Mocca Blend

CB360-SC Café Mocca Blend

CB360-SC Café Mocca Blend

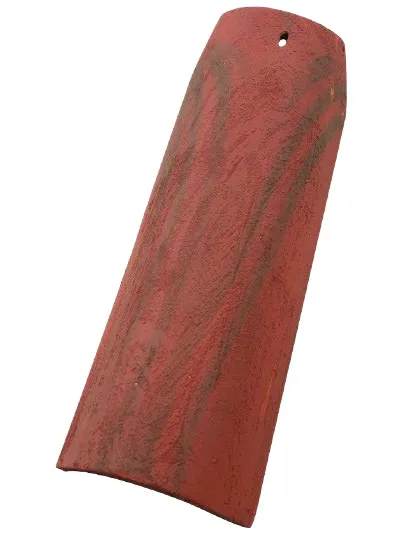

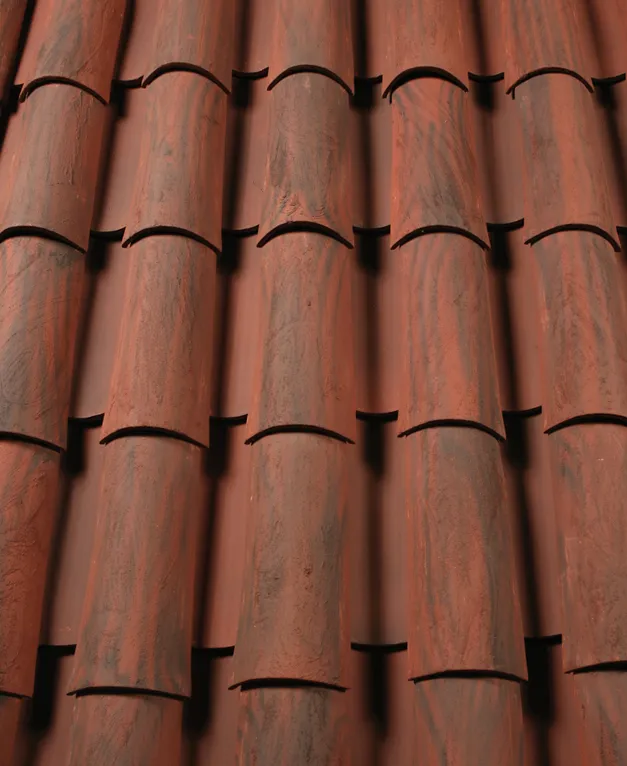

2F43-SSC Villa Rosso Blend

2F43-SSC Villa Rosso Blend

2F43-SSC Villa Rosso Blend

2F43-SSC Villa Rosso Blend

2F43-SSC Villa Rosso Blend

2F43-SSC Villa Rosso Blend

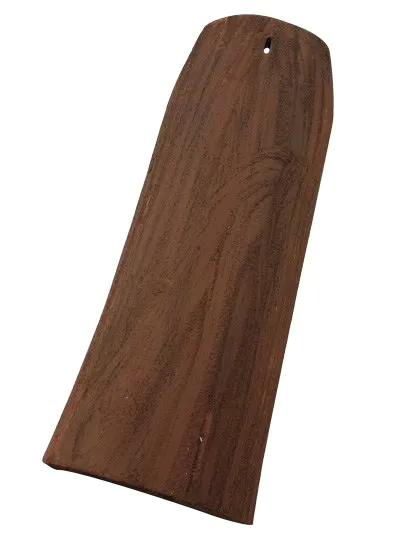

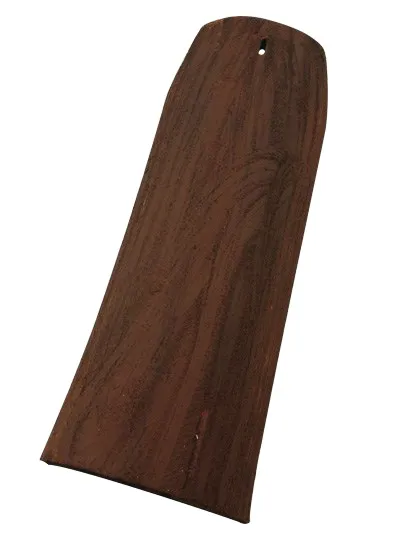

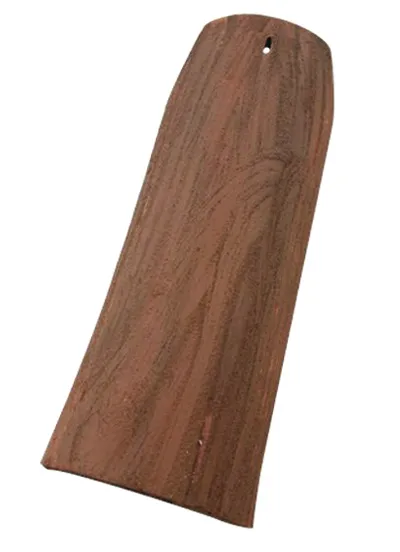

2F45-SSC Tierra Brown Blend

2F45-SSC Tierra Brown Blend

2F45-SSC Tierra Brown Blend

2F45-SSC Tierra Brown Blend

2F45-SSC Tierra Brown Blend

2F45-SSC Tierra Brown Blend

Blends

Each finish is achieved through unique firing cycles in our modernized kilns, ensuring every tile carries the soul of the earth.

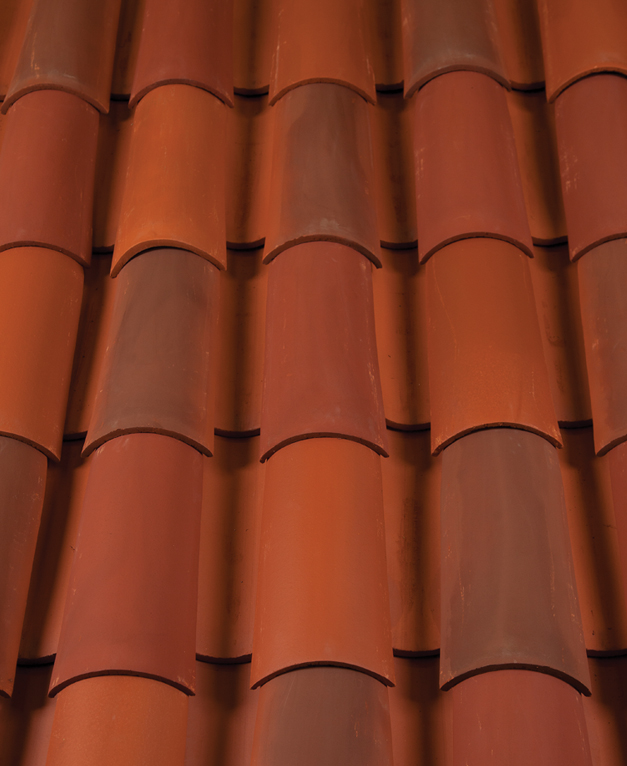

B301 Old Mission Blend

B301 Old Mission Blend

Solar Reflectance: 0.41

Thermal Emittance: 0.85

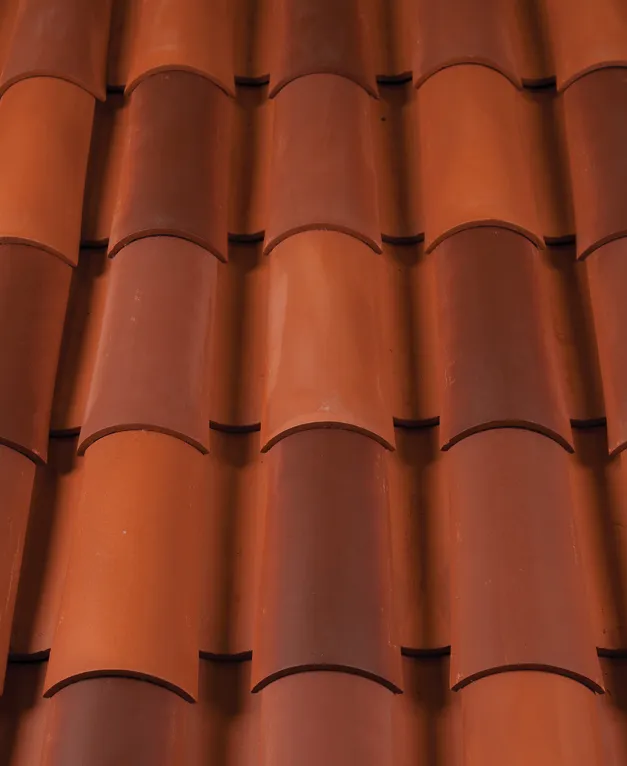

B308 Canyon Red Blend

B308 Canyon Red Blend

Solar Reflectance: 0.38

Thermal Emittance: 0.85

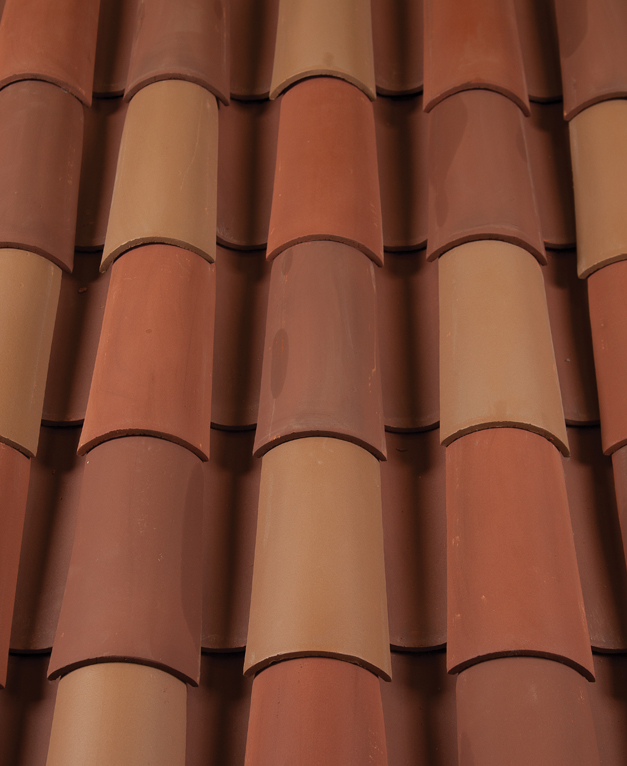

B341 Carmel Blend

B341 Carmel Blend

Solar Reflectance: 0.37

Thermal Emittance: 0.88

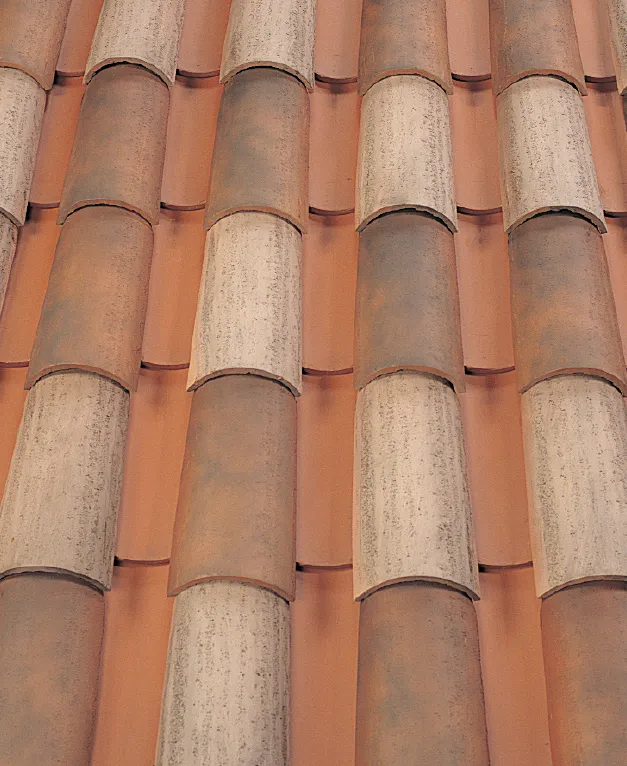

B332-R Houstonian Blend

B332-R Houstonian Blend

Solar Reflectance: 0.34

Thermal Emittance: 0.84

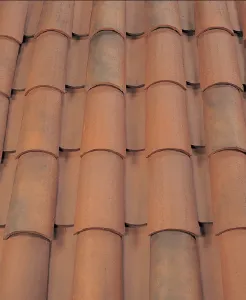

B333-R Rustic Smoke Blend

B333-R Rustic Smoke Blend

Solar Reflectance: 0.36

Thermal Emittance: 0.87

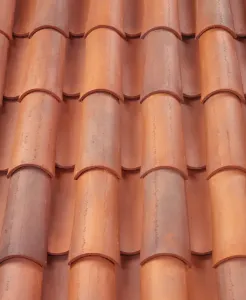

B330-R Santa Barbara Blend

B330-R Santa Barbara Blend

Solar Reflectance: 0.33

Thermal Emittance: 0.84

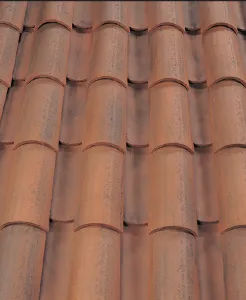

B340-R Vintage Red Blend

B340-R Vintage Red Blend

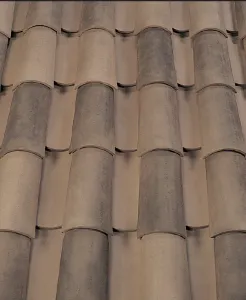

B317-R Taupe Smoke Blend

B317-R Taupe Smoke Blend

Solar Reflectance: 0.34

Thermal Emittance: 0.86

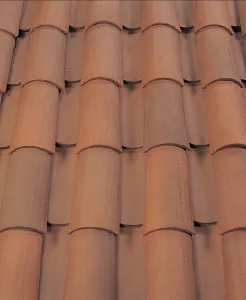

B318-R Cafe Rustic Blend

B318-R Cafe Rustic Blend

Solar Reflectance: 0.37

Thermal Emittance: 0.89

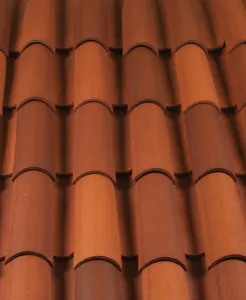

CB22SM-R Burnt Sienna Modified Blend

CB22SM-R Burnt Sienna Modified Blend

CB364-R Vintage Carmel Blend

CB364-R Vintage Carmel Blend

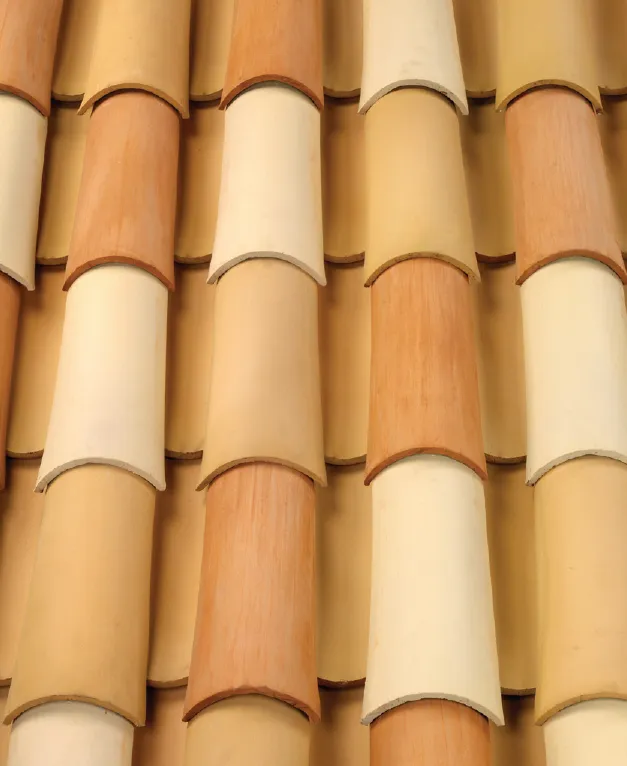

Custom Blend

Solar Reflectance: CF51

Thermal Emittance: RB01

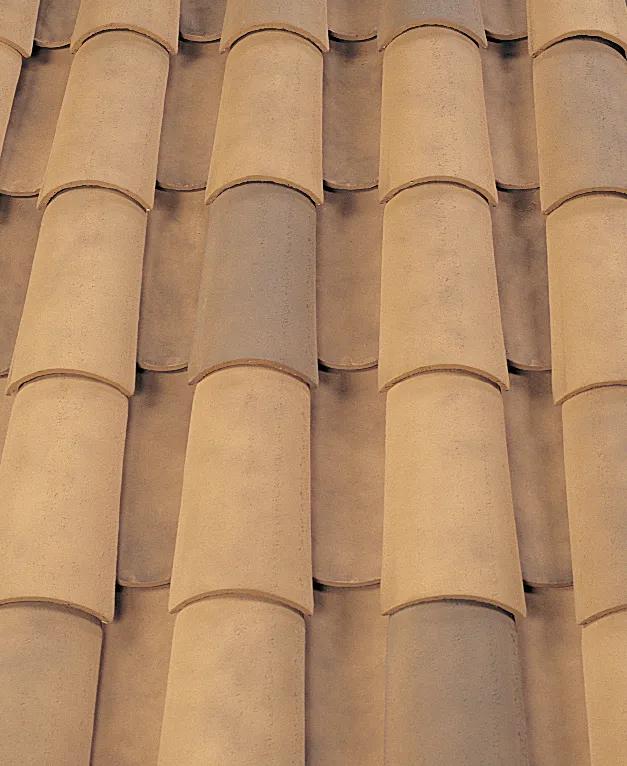

B331-R Zorro Blend

B331-R Zorro Blend

Solar Reflectance: 0.383

Thermal Emittance: 0.82

CB383-R Teja Bianco Blend

CB383-R Teja Bianco Blend

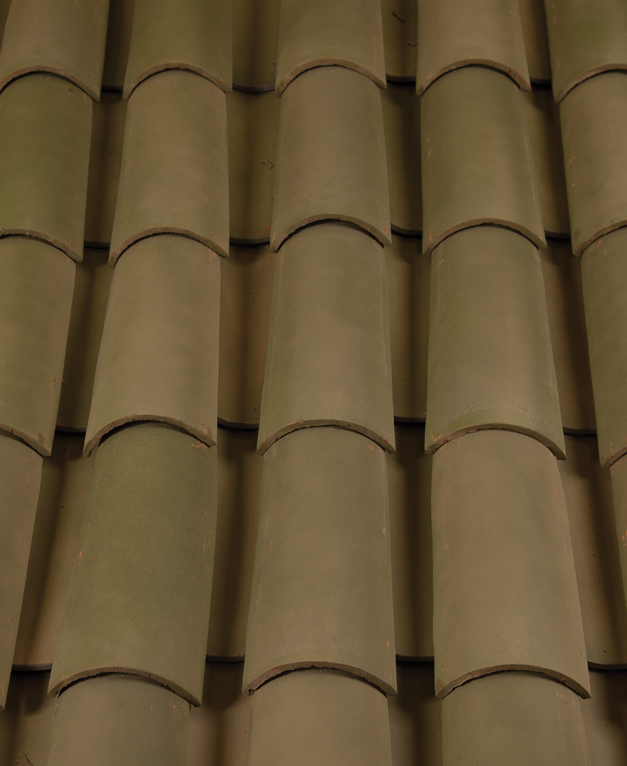

B305 Weathered Green Blend

B305 Weathered Green Blend

Solar Reflectance: 0.43

Thermal Emittance: 0.82

F46-SSC Veneto Diores Blend

F46-SSC Veneto Diores Blend

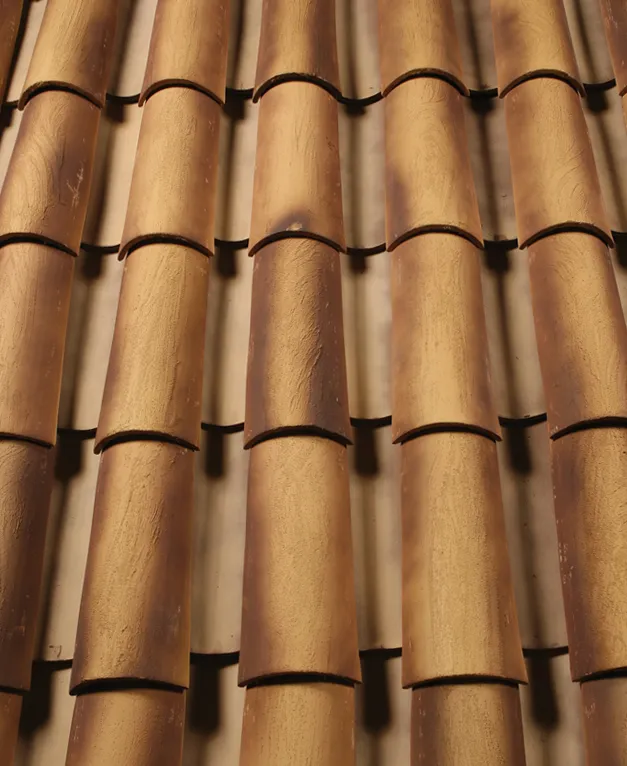

F4645-SSC Tucson Gold Blend

F4645-SSC Tucson Gold Blend

CB387-SC Solare Blend

CB387-SC Solare Blend

2F43-S Rosso Antico Blend

2F43-S Rosso Antico Blend

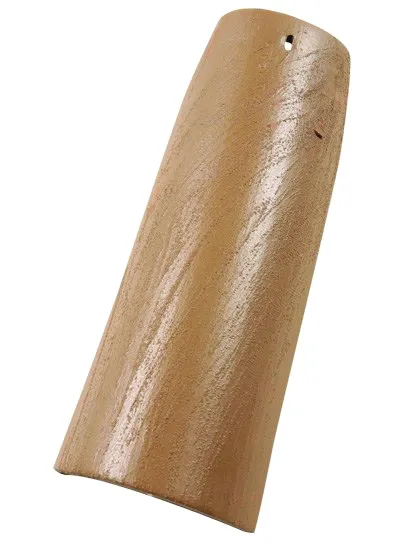

CB360-SC Café Mocca

CB360-SC Café Mocca

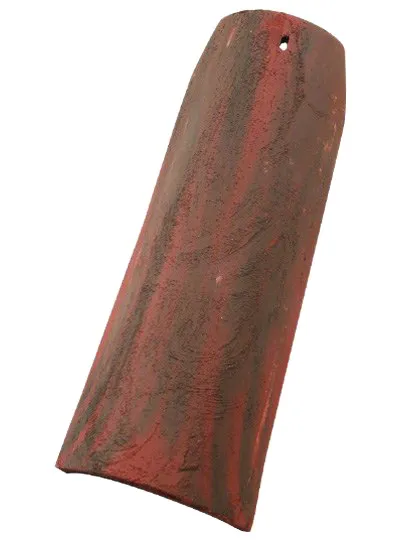

2F43-SSC Villa Rosso Blend

2F43-SSC Villa Rosso Blend

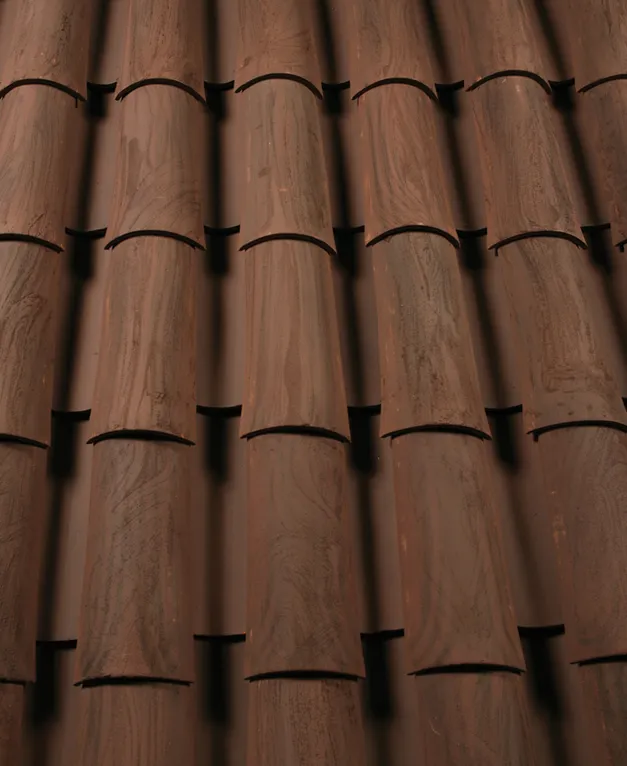

2F45-SSC Tierra Brown Blend

2F45-SSC Tierra Brown Blend

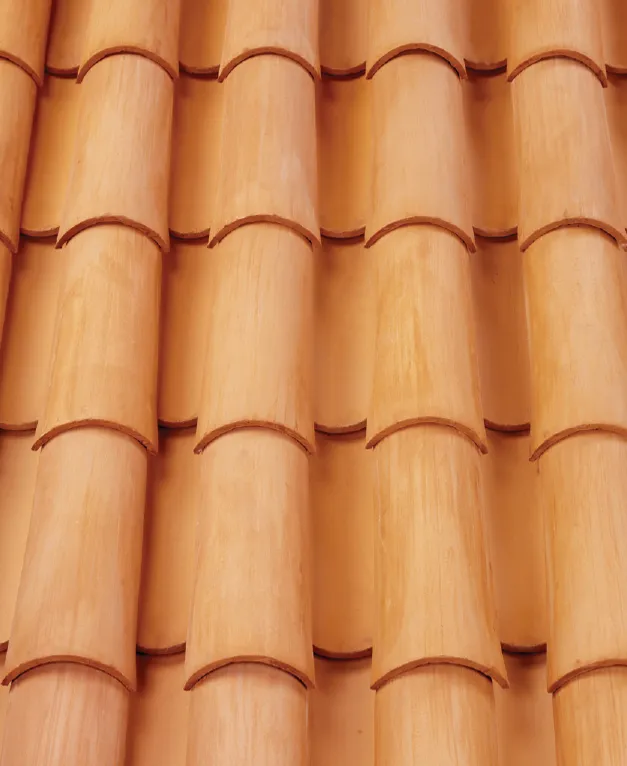

RB01-S True Bluff Slurry Blend

RB01-S True Bluff Slurry Blend

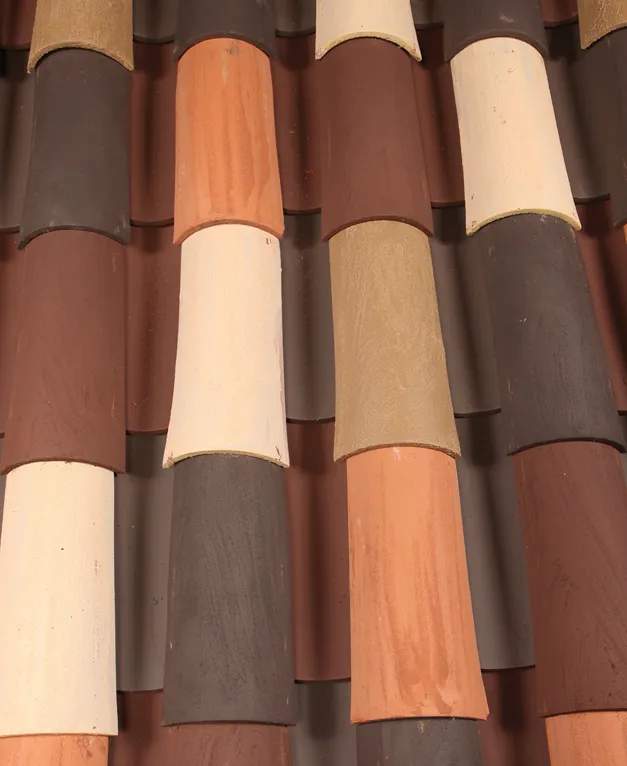

CB404-SC Laguna Del Monte Blend

CB404-SC Laguna Del Monte Blend

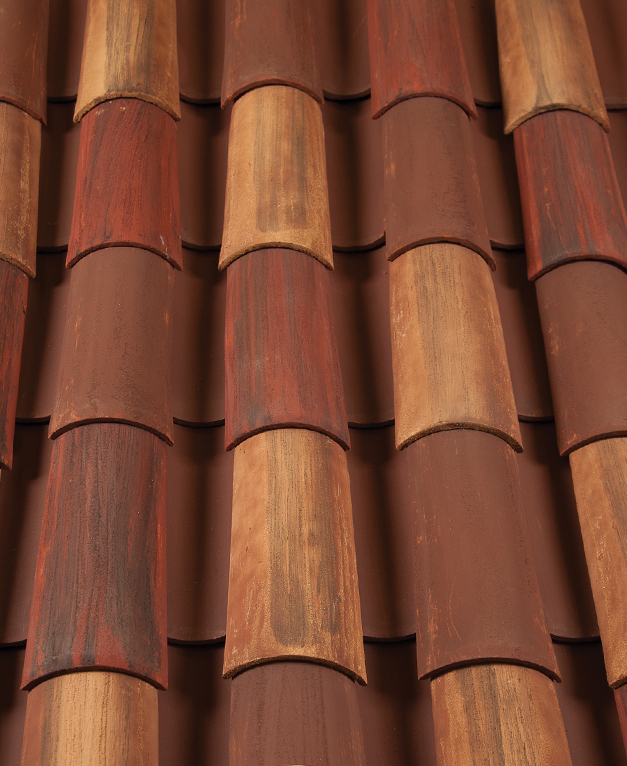

CB389-SC Marco Blend

CB389-SC Marco Blend

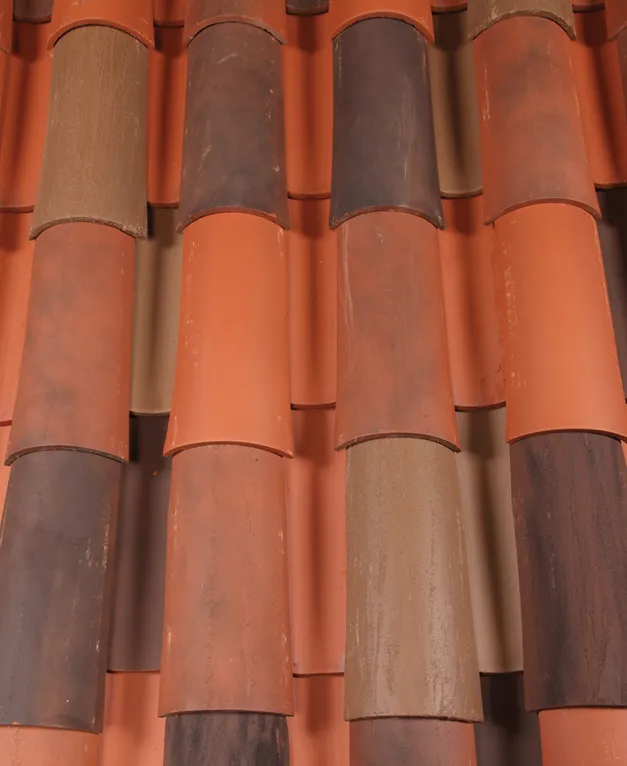

CB421-SC Puerto Nuevo Blend

CB421-SC Puerto Nuevo Blend

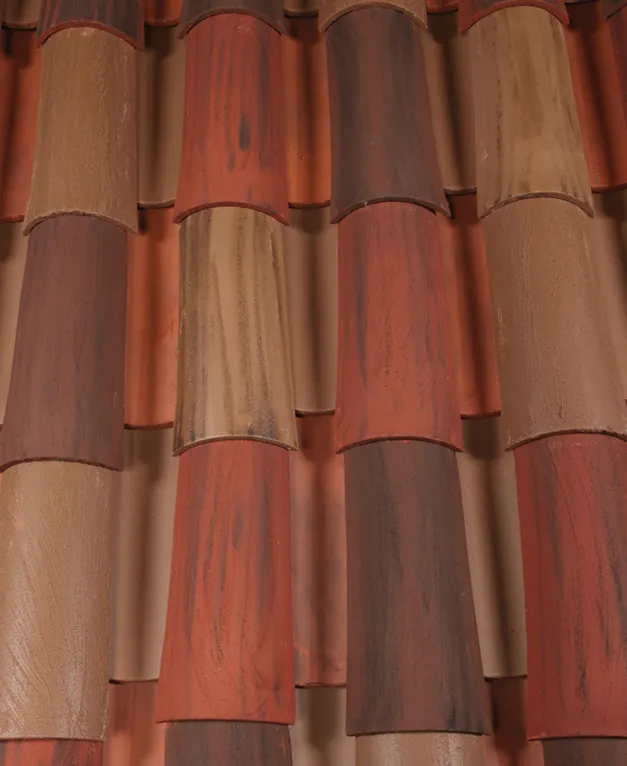

CB419-SC Adobe Antigua Blend

CB419-SC Adobe Antigua Blend

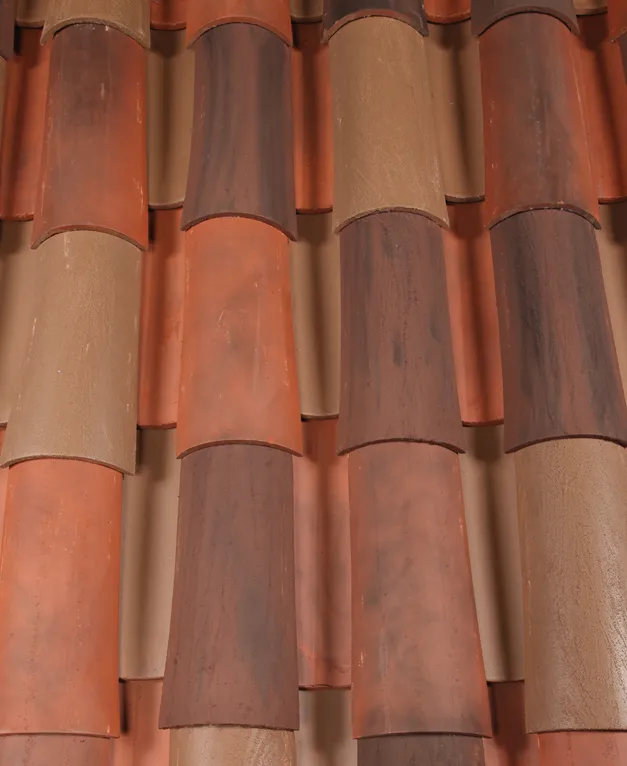

CB417-SC Casa Antigua Blend

CB417-SC Casa Antigua Blend

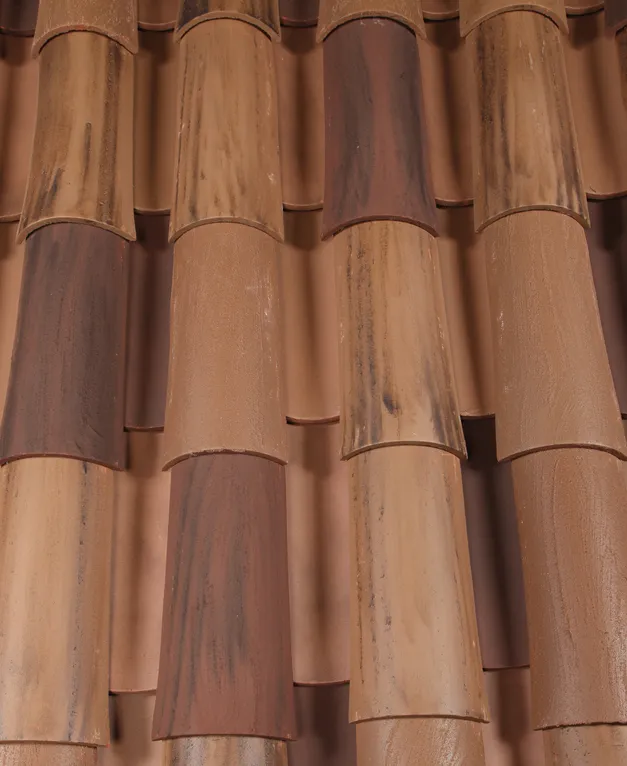

CB416-SC Cafe Viejo Blend

CB416-SC Cafe Viejo Blend

Tile Selection

Preserving the architectural soul of the past requires more than mere imitation

Porducts

Oriental Japanese Products

Catalog
Code Approvals & SDS
Installation Specifications
Warranty
Detail Drawings

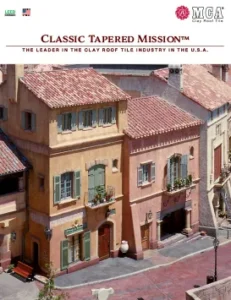

Classic Tapered Mission Catalog

Classic Tapered Mission Catalog

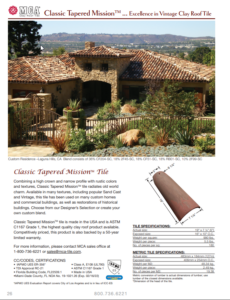

Classic Tapered Product Data Sheet

Classic Tapered Product Data Sheet

General Catalog

General Catalog

CC/Codes, Certifications

Include:
– IAPMO UNIFORM EVALUATION REPORT
– SDS SAFETY DATA
– TDI APPROVAL RC-21
– MIAMI-DADE COUNTY APPROVAL 21-1215.04 EXP 02/16/27

Reports

IAPMO Uniform Evaluation Report No. 0356

SDS Safety Data

TDI Approval; RC-21

Miami-Dade County Approval 21-1215.06 Exp. 02/16/27

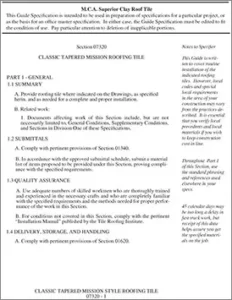

Classic Tapered Mission Clay Roof Tile Specification

Classic Tapered Mission Clay Roof Tile Specification

arcat

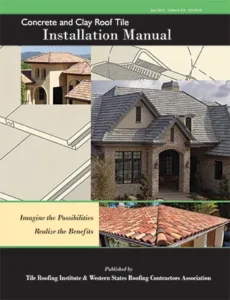

TRI Installation Manual

TRI Installation Manual

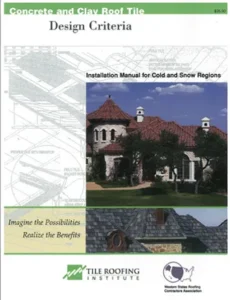

TRI Cold and Snow Installation Manual

TRI Cold and Snow Installation Manual

50-YEAR LIMITED WARRANTY

50-YEAR LIMITED WARRANTY

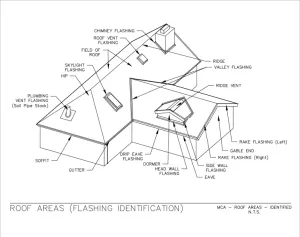

Download Roof Areas PDF

Download Roof Areas PDF

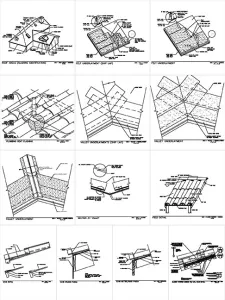

Download Summary Drawings PDF

Download Summary Drawings PDF

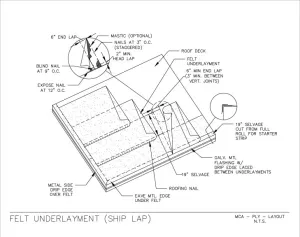

Download Felt Underlayment (SHP LAP) PDF

Download Felt Underlayment (SHP LAP) PDF

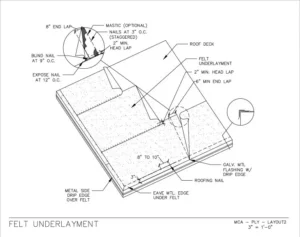

Download Felt Underlayment PDF

Download Felt Underlayment PDF

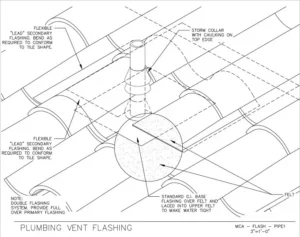

Download Plumbing Vent Flashing PDF

Download Plumbing Vent Flashing PDF

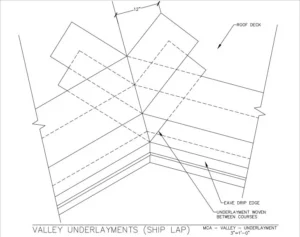

Download Valley Underlayment Woven Double Layer PDF

Download Valley Underlayment Woven Double Layer PDF

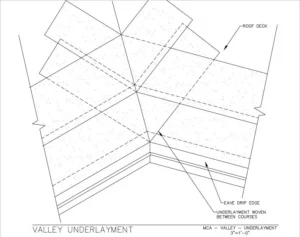

Download Valley Underlayment Woven Single Layer PDF

Download Valley Underlayment Woven Single Layer PDF

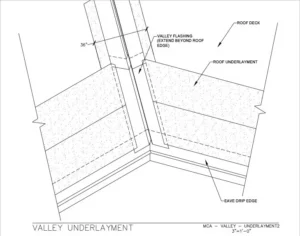

Download Valley Underlayment Overlapping PDF

Download Valley Underlayment Overlapping PDF

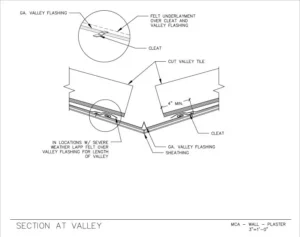

Download Section at Valley PDF

Download Section at Valley PDF

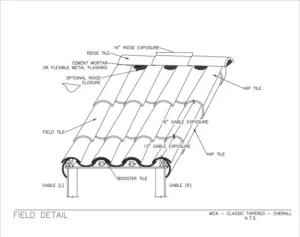

Download Field Detail PDF

Download Field Detail PDF

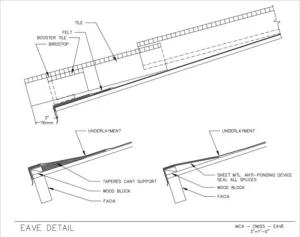

Download Eave Detail PDF

Download Eave Detail PDF

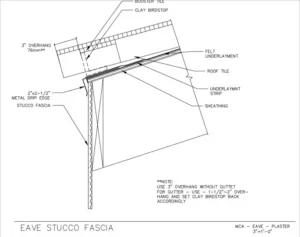

Download Eave Stucco Fascia PDF

Download Eave Stucco Fascia PDF

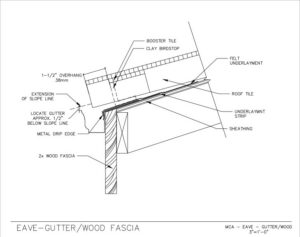

Download Eave Gutter/Wood Fascia PDF

Download Eave Gutter/Wood Fascia PDF

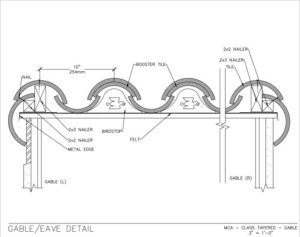

Download Gable/Eave Detail PDF

Download Gable/Eave Detail PDF

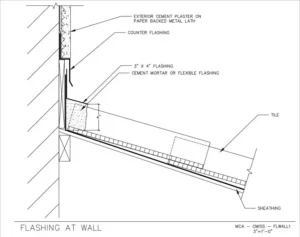

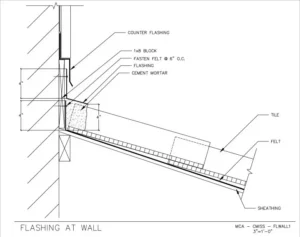

Download Head Wall Flashing with Counterflashing PDF

Download Head Wall Flashing with Counterflashing PDF

Download Head Wall Flashing with Counterflashing PDF

Download Head Wall Flashing with Counterflashing PDF

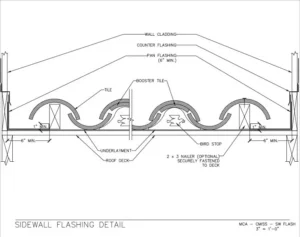

Download Sidewall Flashing Detail PDF

Download Sidewall Flashing Detail PDF

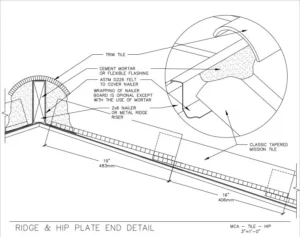

Download Ridge & Hip Plate End Detail PDF

Download Ridge & Hip Plate End Detail PDF

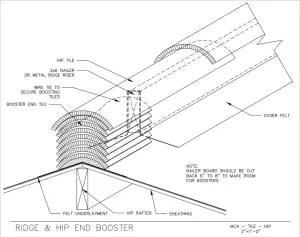

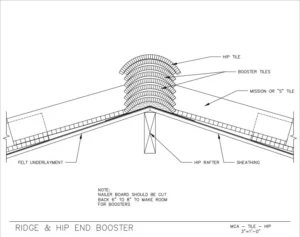

Download Ridge & Hip End Booster PDF

Download Ridge & Hip End Booster PDF

Download Ridge & Hip End Booster PDF

Download Ridge & Hip End Booster PDF

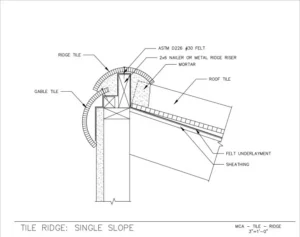

Download Tile Ridge: Single Slope PDF

Download Tile Ridge: Single Slope PDF

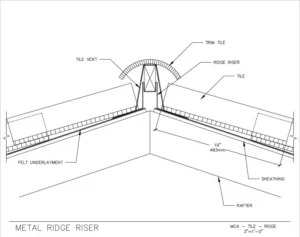

Download Metal Ridge Riser PDF

Download Metal Ridge Riser PDF

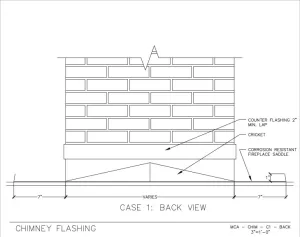

Download Chimney Flashing Back View 1 PDF

Download Chimney Flashing Back View 1 PDF

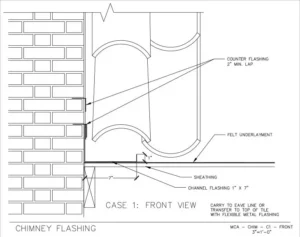

Download Chimney Flashing Front View 1 PDF

Download Chimney Flashing Front View 1 PDF

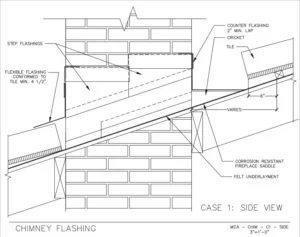

Download Chimney Flashing Side View 1 PDF

Download Chimney Flashing Side View 1 PDF

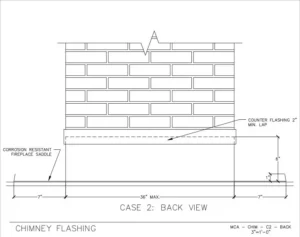

Download Chimney Flashing Back View 2 PDF

Download Chimney Flashing Back View 2 PDF

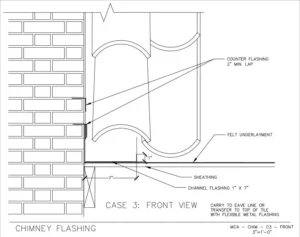

Download Chimney Flashing Front View 3 PDF

Download Chimney Flashing Front View 3 PDF

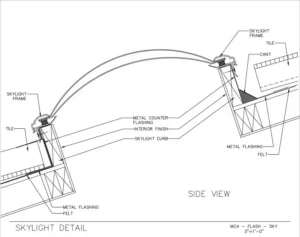

Download Skylight Detail PDF

Download Skylight Detail PDF

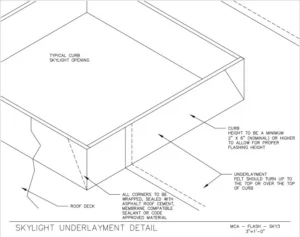

Download Skylight Underlayment Detail PDF

Download Skylight Underlayment Detail PDF

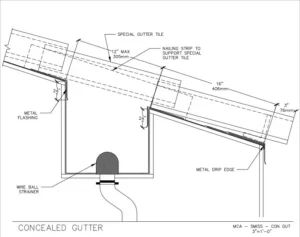

Download Concealed Gutter PDF

Download Concealed Gutter PDF

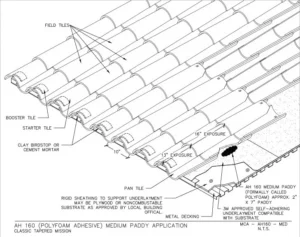

Download AH-160 Polyfoam Adhesive Medium Paddy Application PDF

Download AH-160 Polyfoam Adhesive Medium Paddy Application PDF

Download AH-160 Polyfoam Adhesive Large Paddy Application PDF

Download AH-160 Polyfoam Adhesive Large Paddy Application PDF

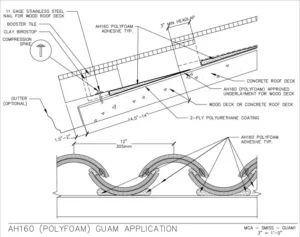

Download AH-160 Polyfoam Guam Application PDF

Download AH-160 Polyfoam Guam Application PDF

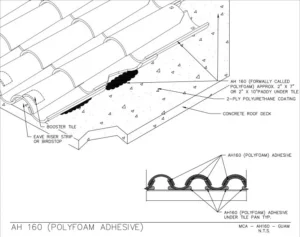

Download AH-160 Polyfoam Adhesive PDF

Download AH-160 Polyfoam Adhesive PDF

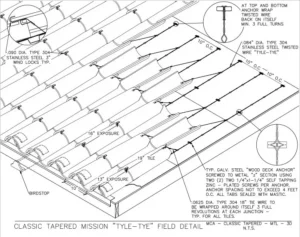

Download Classic Tapered Mission “Tyle-Tye” Field Detail PDF

Download Classic Tapered Mission “Tyle-Tye” Field Detail PDF

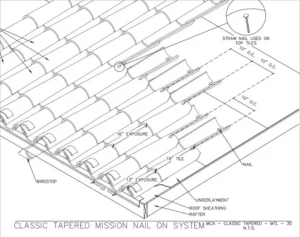

Download Classic Tapered Mission Nail on System PDF

Download Classic Tapered Mission Nail on System PDF

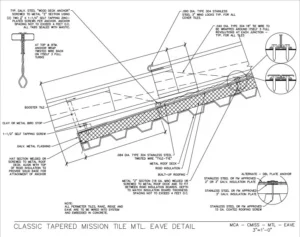

Download Classic Tapered Mission Tile Mtl. Eave Detail PDF

Download Classic Tapered Mission Tile Mtl. Eave Detail PDF

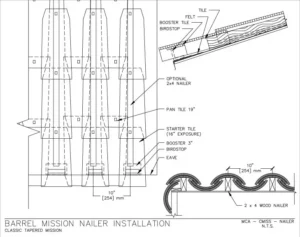

Download Barrel Mission Nailer Installation PDF Download

Download Barrel Mission Nailer Installation PDF Download

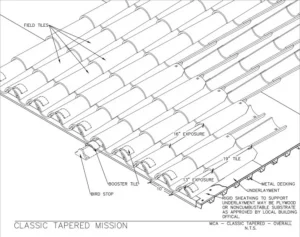

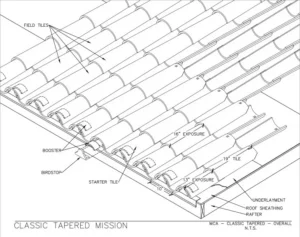

Download Classic Tapered Mission PDF

Download Classic Tapered Mission PDF

Download Classic Tapered Mission PDF

Download Classic Tapered Mission PDF

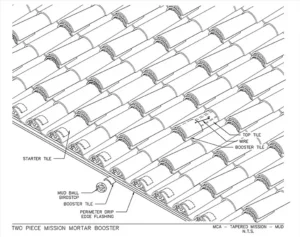

Download Two Piece Mission Mortar Booster PDF

Download Two Piece Mission Mortar Booster PDF

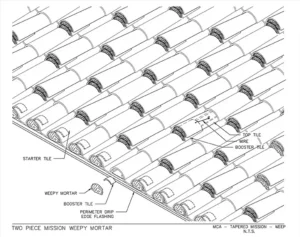

Download Two Piece Mission Weepy Mortar PDF

Download Two Piece Mission Weepy Mortar PDF

Catalog

Code Approvals & SDS

Installation Specifications

Warranty

Detail Drawings

General Catalog

Catalog

Code Approvals & SDS

Installation Specifications

Warranty

Detail Drawings

General Catalog

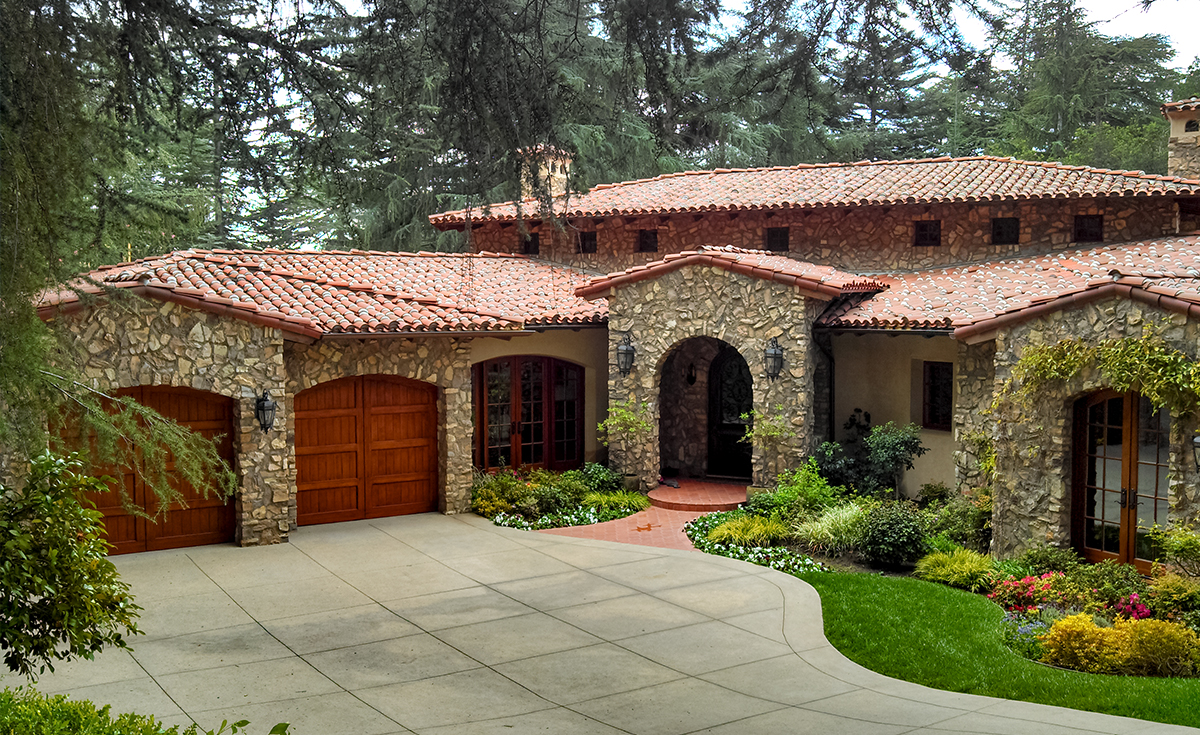

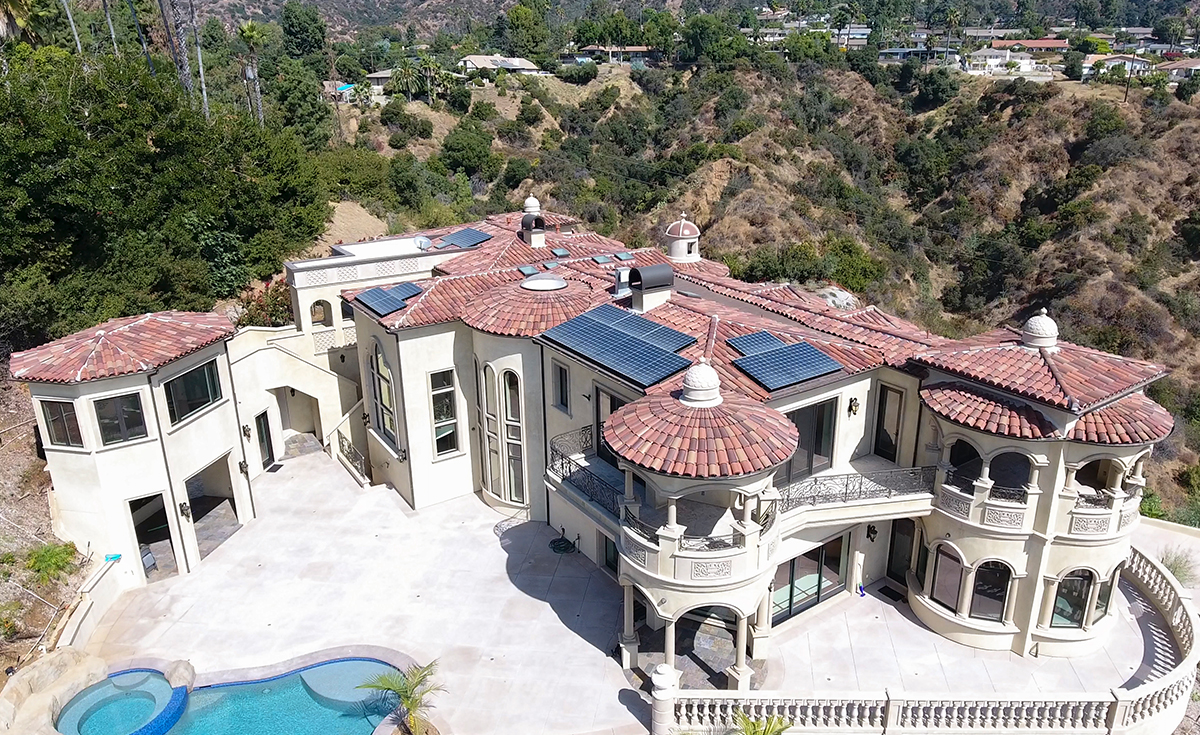

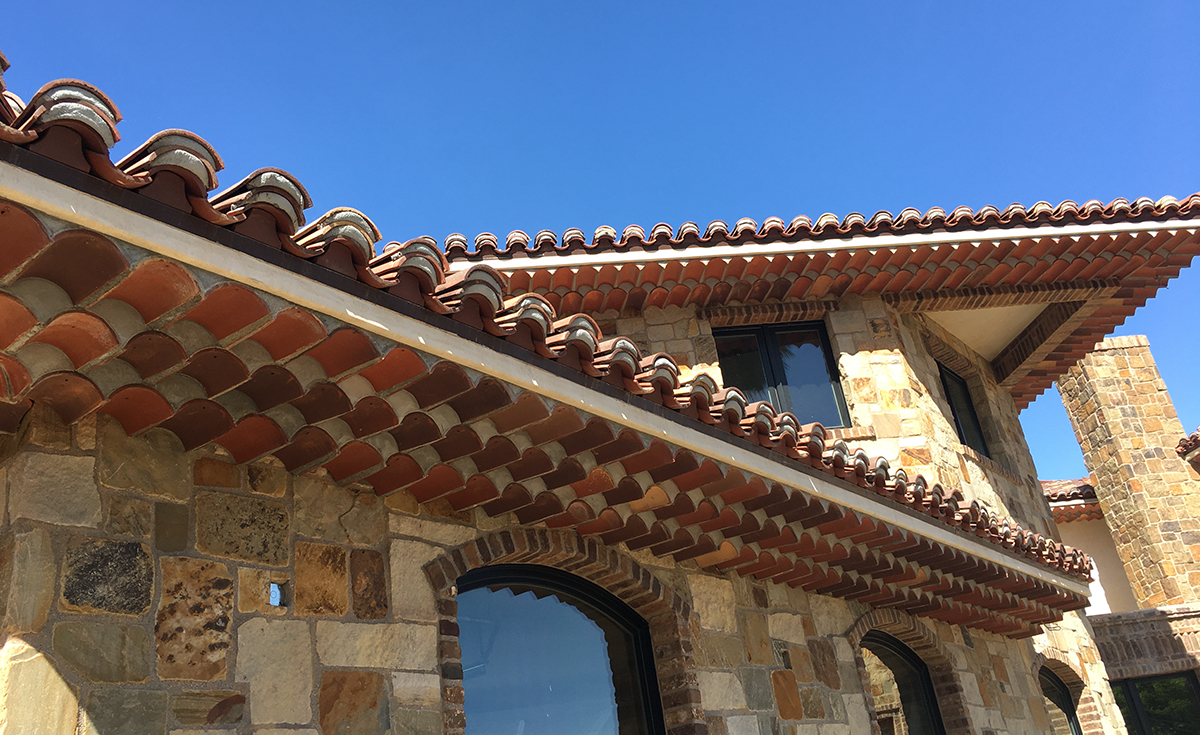

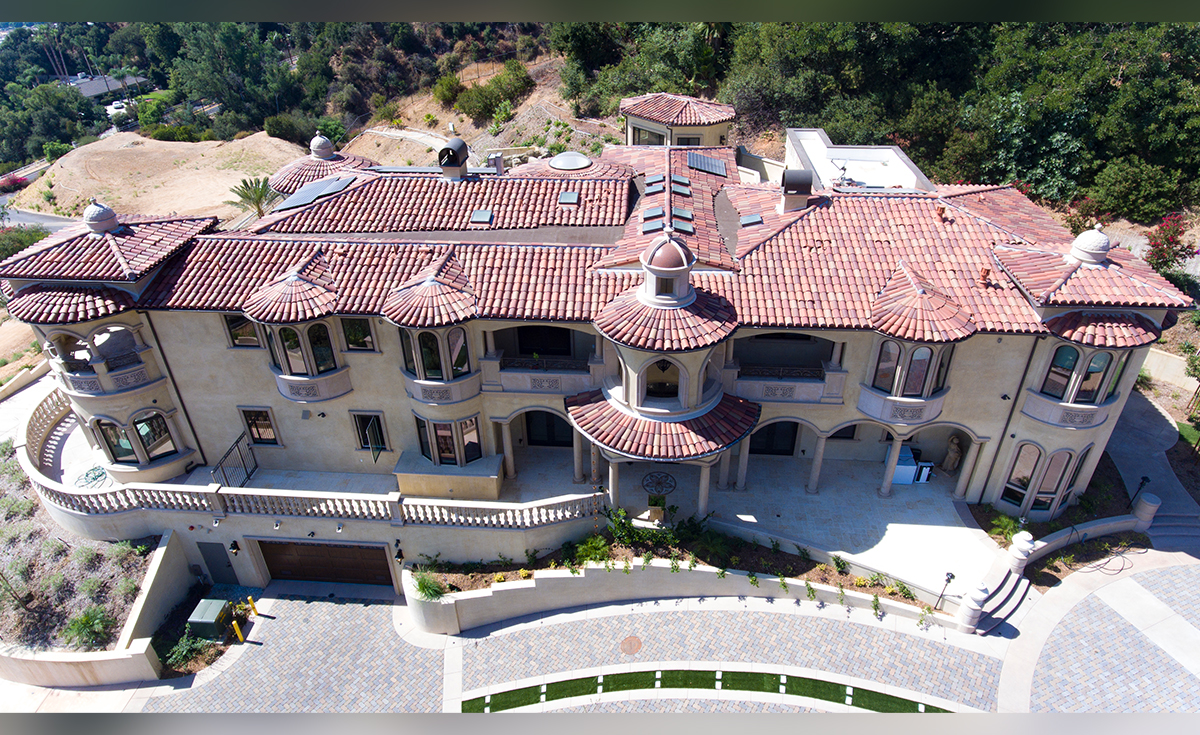

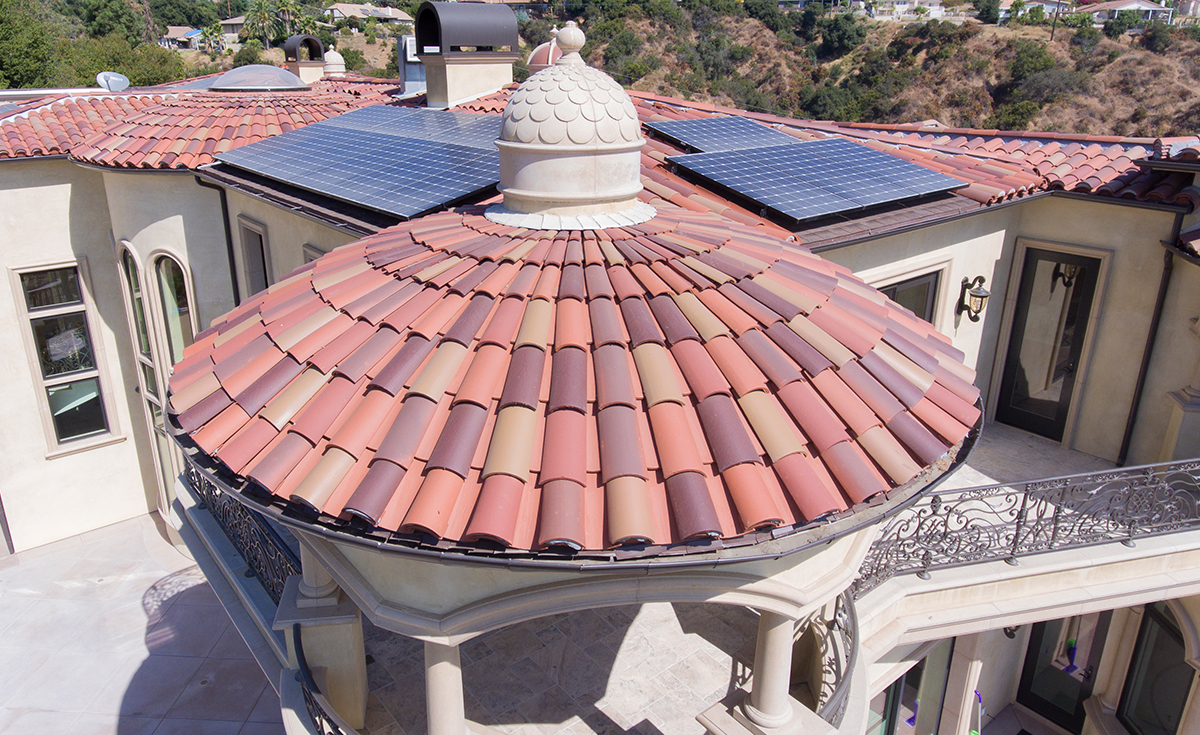

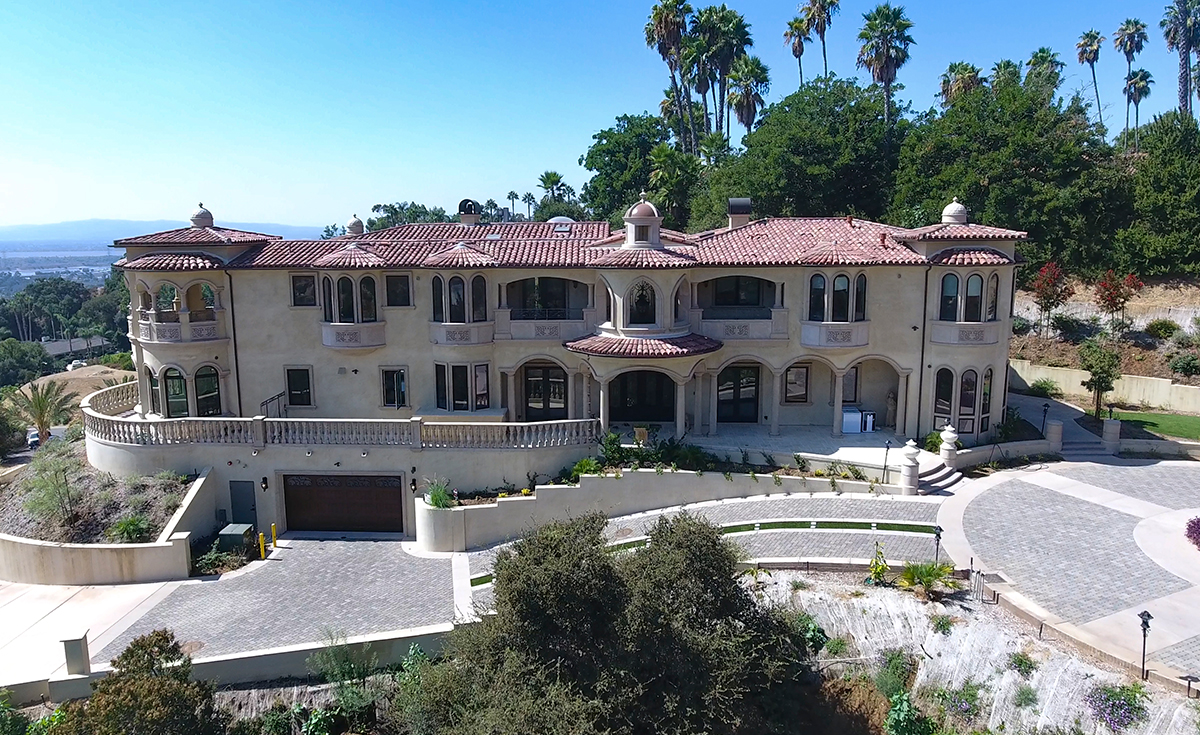

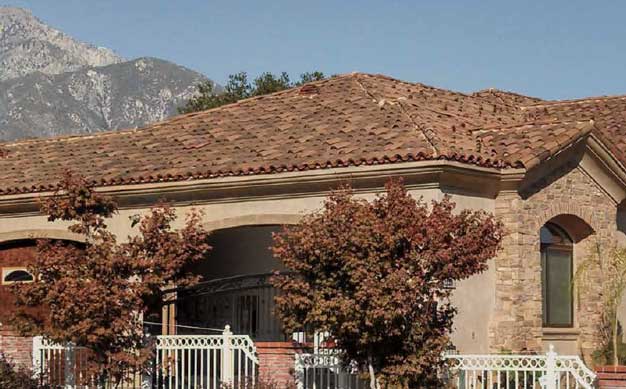

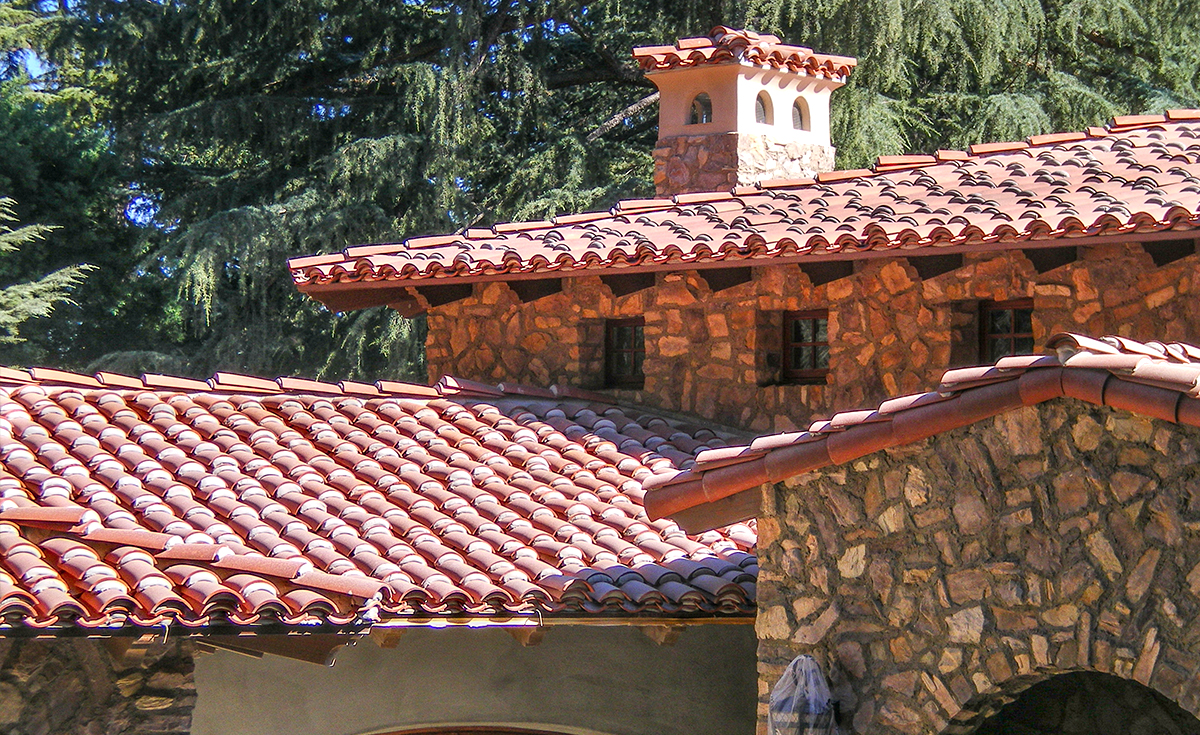

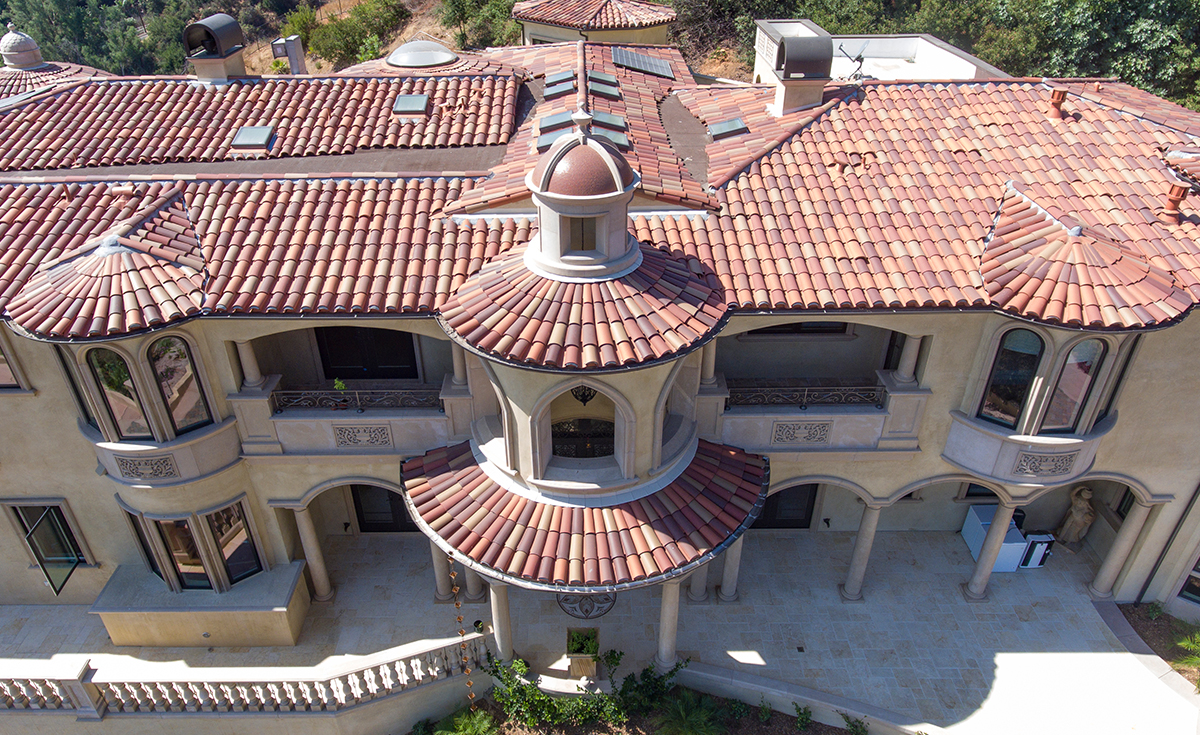

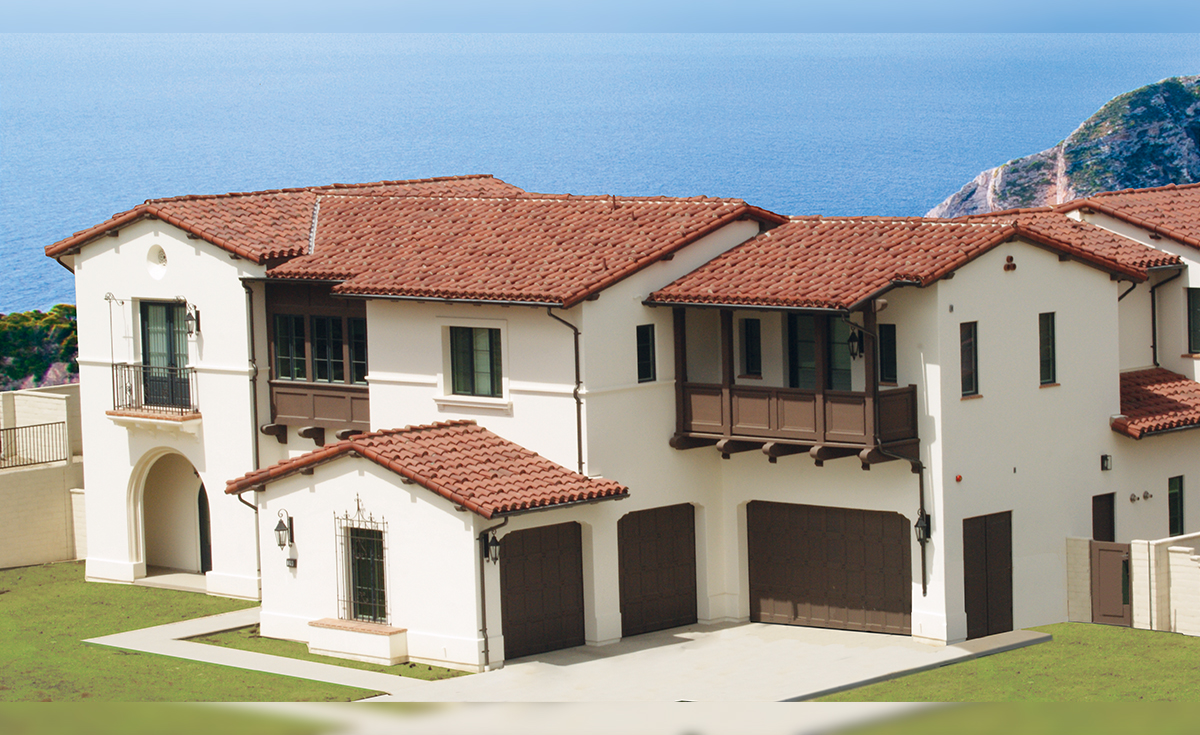

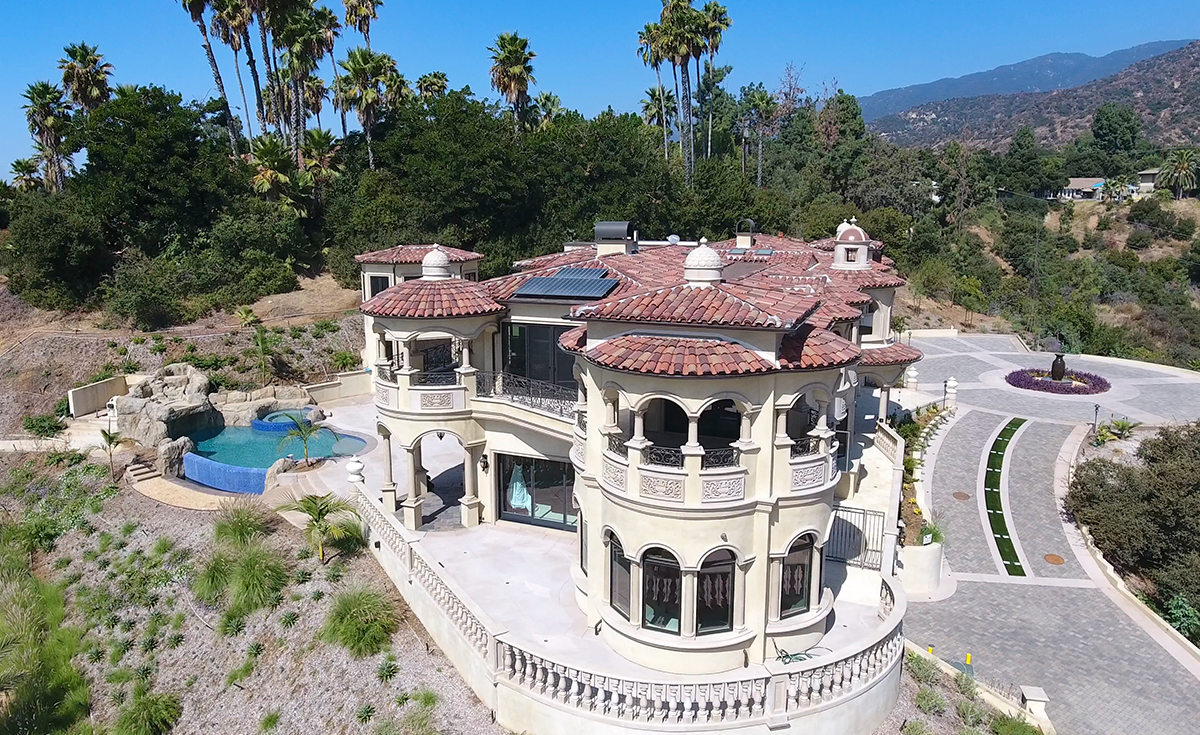

Architecture in Context
