Architectural Excellence

Improved “S”

Elevating residential landscapes with the structural permanence and aesthetic heritage of fired clay roofing.

Overview

Natural Red And Flashed Colors

MCA’s Improved “S” glazed roofing tile is a smart and elegant option for any prestigious project including residential and commercial buildings. Glazed surfaces not only protect the tile from severe weather and high humidity, but Improved “S” is also able to withstand wind loads up to 200 mph. Improved “S” has been used throughout the world in areas subject to occasional high-wind conditions, such as Guam and the Caribbean.

This beautiful tile is available in various glazed colors that will not wear out or fade. Improved “S” tile is suitable for both Japanese influenced architecture as well as western, contemporary designs.

A 50-Year Limited Warranty is available on all MCA tiles.

Color/Texture Availability

Tile Specifications

Actual Size:
12″ x 12.5″
Exposed Size:
10.5″ x 10.5″ O.C.
Weight per square:
950 lbs.
Weight per pan piece:
7.25 lbs.
No. of pieces per square:
131 pcs

Metric Tile Specifications

Actual Size:
310mm x 310mm
Exposed Size:
267mm x 267mm
Weight per M2:
46.39 kg/m2
Weight per pan piece:
3.29 kg/m2
No. of pieces per M2:
14.1 pcs.

Color Selection

Each finish is achieved through unique firing cycles in our modernized kilns, ensuring every tile carries consistent quality and performance

Full Color and Texture Availability

CO1 Blue

CO1 Blue

C02 Chinese Gold

C02 Chinese Gold

C23 Metallic Silver

C23 Metallic Silver

C05 Dark Green

C05 Dark Green

C07 Maroon

C07 Maroon

C11 Chocolate Brown

C11 Chocolate Brown

C12 Maple

C12 Maple

×

Blends

Each finish is achieved through unique firing cycles in our modernized kilns, ensuring every tile carries the soul of the earth.

Tile Selection

Preserving the architectural soul of the past requires more than mere imitation

Porducts

Oriental Japanese Products
  • Catalog
  • Code Approvals & SDS
  • Installation Specifications
  • Warranty
  • Detail Drawings

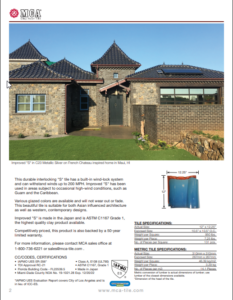

Improved S Product Data Sheet
General Catalog

CC/Codes, Certifications

Include:
– IAPMO UNIFORM EVALUATION REPORT
– SDS SAFETY DATA
– TDI APPROVAL RC-21
– MIAMI-DADE COUNTY APPROVAL 21-1215.04 EXP 02/16/27

Reports

pdf-iconIAPMO Uniform Evaluation Report No. 0356download-icon
pdf-iconSDS Safety Datadownload-icon
pdf-iconTDI Approval; RC-21download-icon
pdf-iconMiami-Dade County Approval 22-0929.02 Exp. 12/20/27download-icon

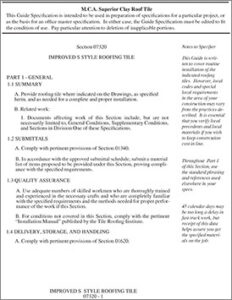

Improved S Clay Roof Tile Specification
ARCAT
Specwizard
BIM Objects
TRI Installation Manual
TRI Cold and Snow Installation Manual
50-YEAR LIMITED WARRANTY

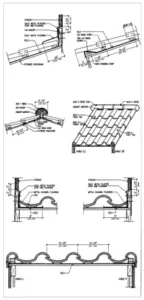

Download Summary Drawings PDF

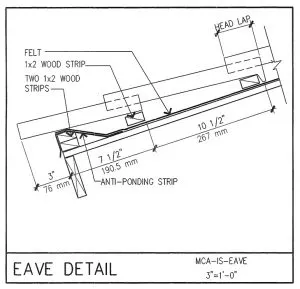

Download Eave Detail PDF

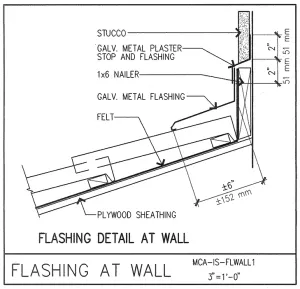

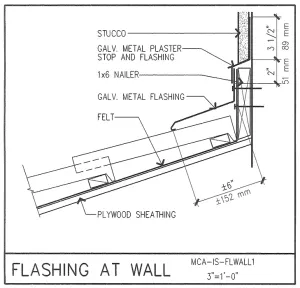

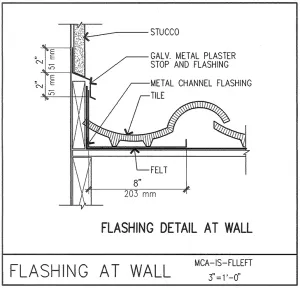

Download Flashing Detail at Wall PDF
Download Flashing Detail at Wall PDF
Download Flashing Detail at Wall PDF

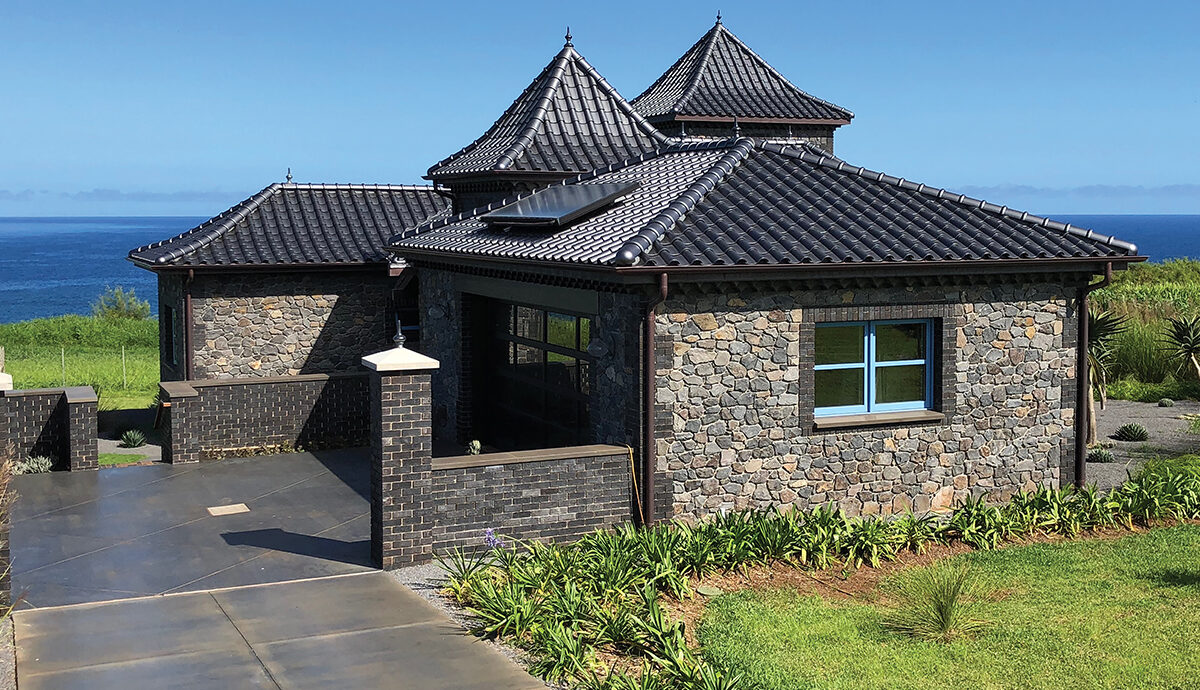

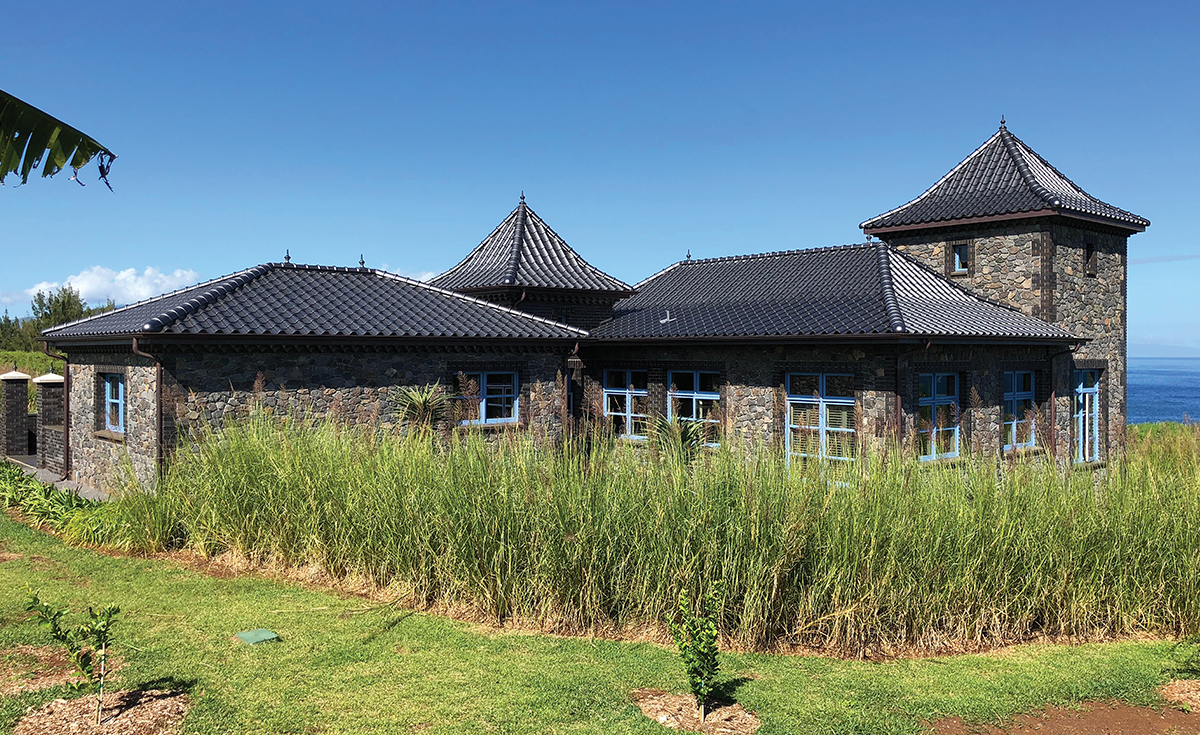

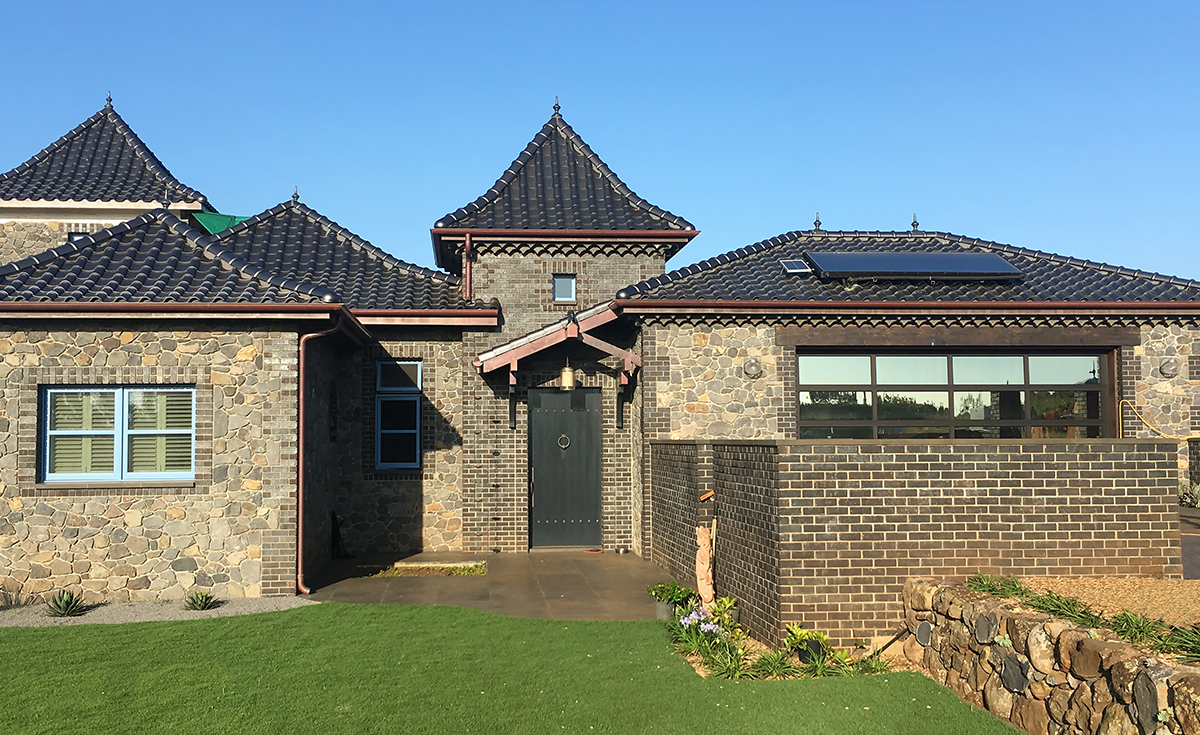

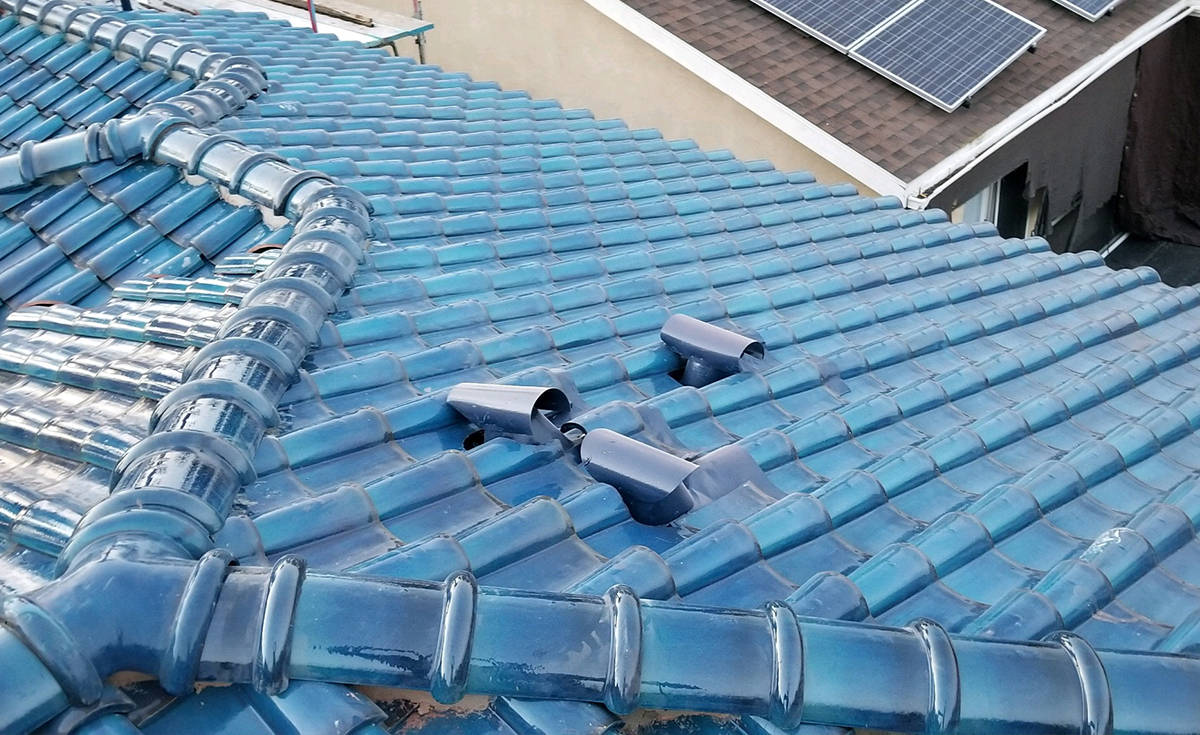

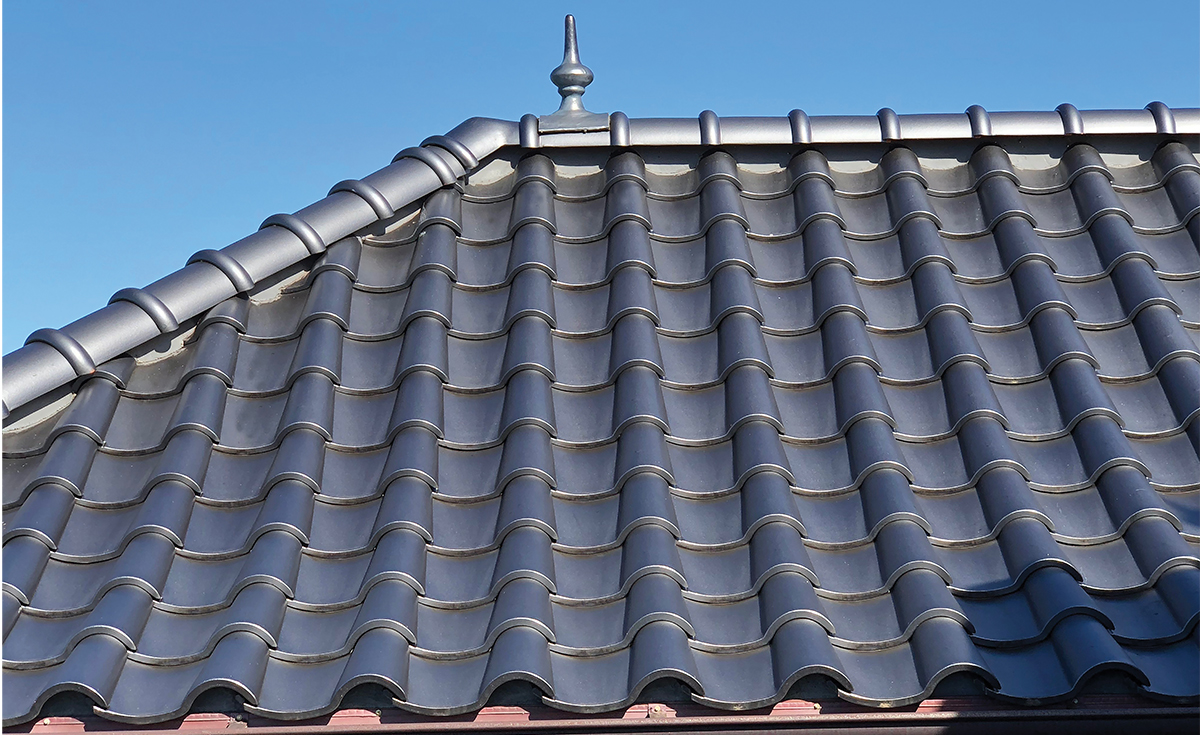

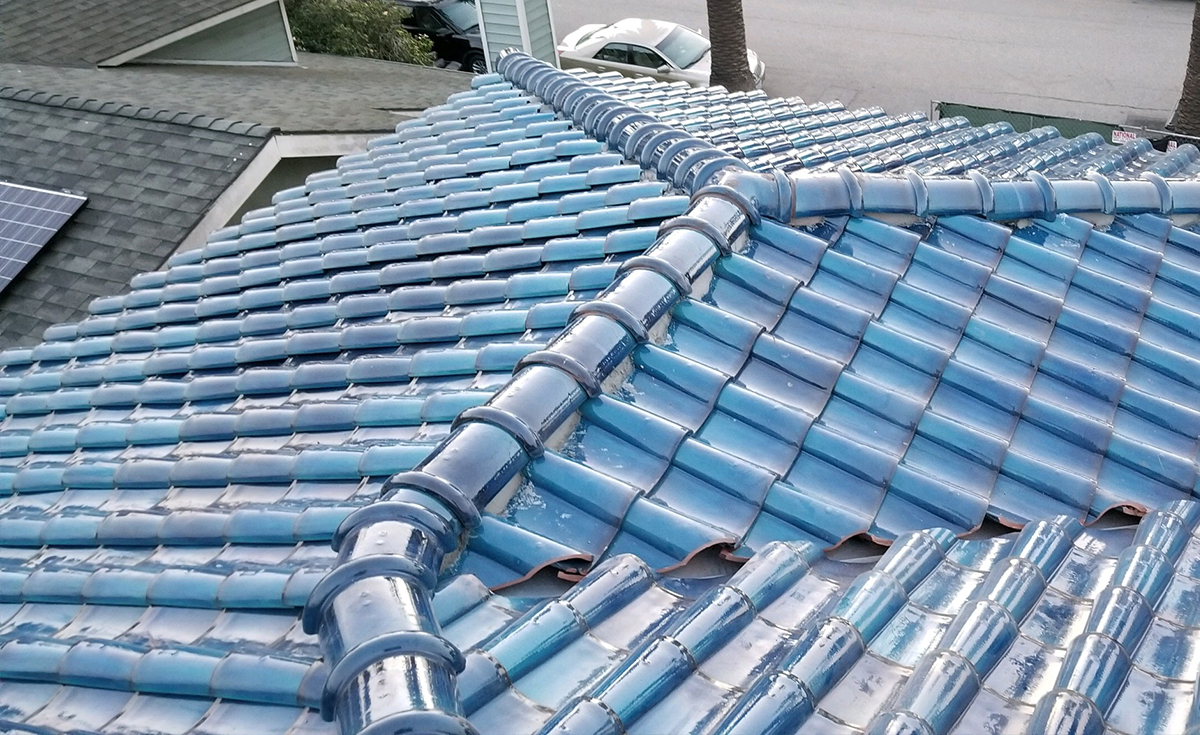

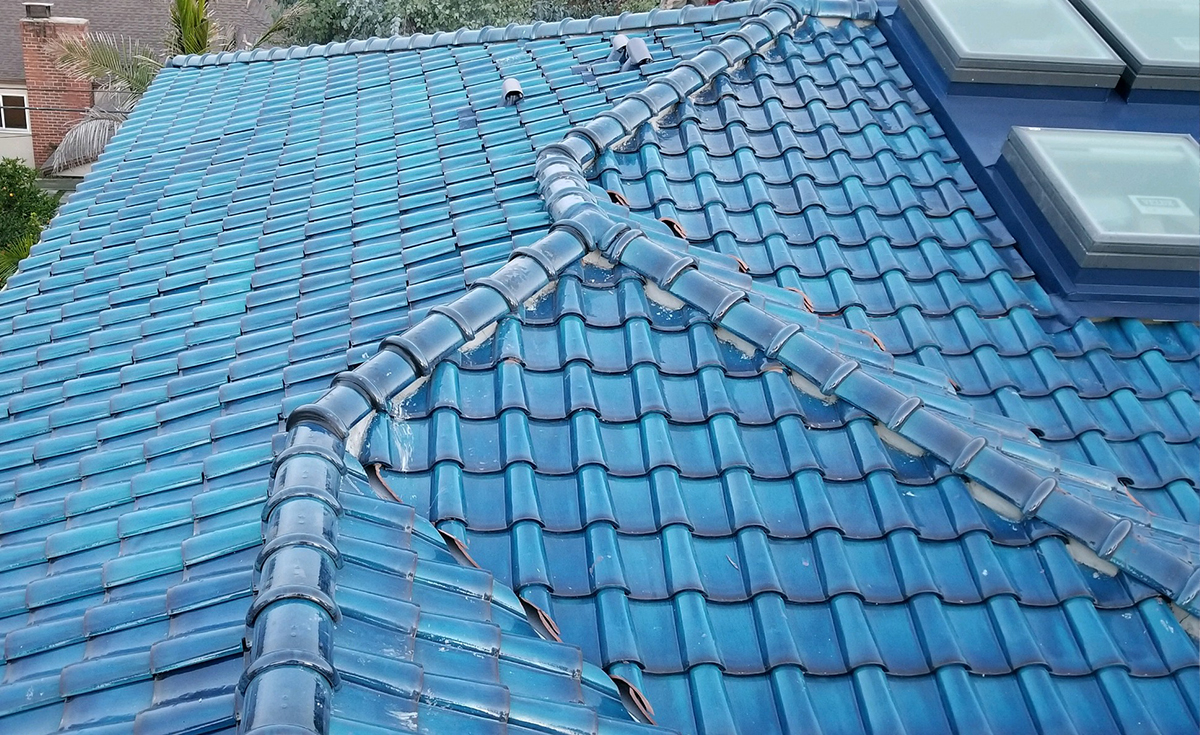

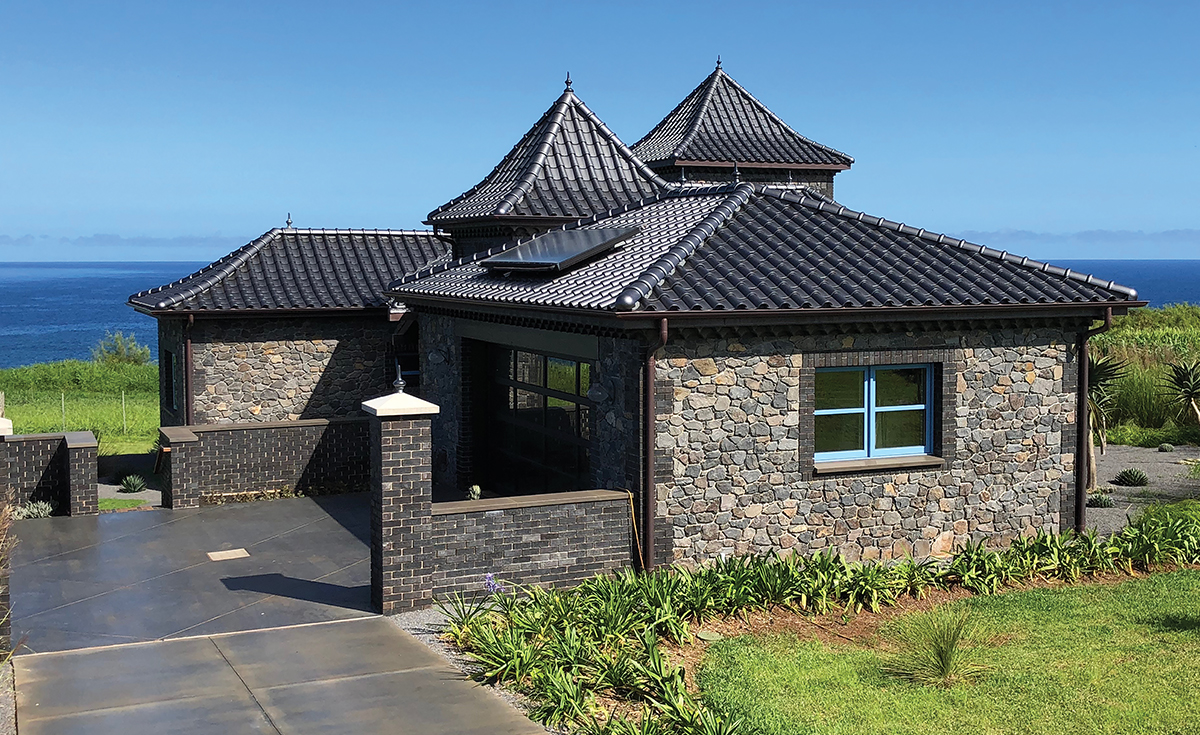

Architecture in Context

Witness the One Piece S Mission across diverse topographies and structural languages.

Bring the MCA Tile to your next site

Our consultants will help you choose the perfect tile profile and color palette to bring your architectural vision to life.
