Classic “S” Mission™ Tile
Item Code: CS01

MCA is proud to announce the most recent addition to our standard tile profile lines- our Classic “S” Mission Clay Roof Tile.

Classic “S” Mission offers a true two-piece tile look while offering the installation and weight savings of a standard “S” tile. Classic “S” installed with a two-piece eave line will astound you with the almost unbelievable look of two piece tile. Fooling all but the most experienced, “only your roofer will know for sure…”

Classic “S Mission tile is available in Natural Red or in an array of colors, blends and textures, including sand cast, to create a signature roof for your custom home or project. Many of these colors and blends are Cool Roof rated products that can qualify for LEED points and save the end user money and energy. A 50-Year Limited Warranty is available on all MCA Tiles.

Tile Specifications:

Actual Size: 19″ X 12”
Exposed Size: 16″ x 10″ O.C.
Weight per square: 788 lbs.
Weight per piece: 8.75 lbs.
No. of pieces per square: 90 pcs

Metric Tile Specifications:

Actual Size: 483mm x 305mm
Exposed Size: 406mm x 254mm
Weight per M2: 35.56 kg
Weight per piece: 3.67 kg
No. of pieces per M2: 9.69 pcs/M2
Metric conversion of lumber is actual dimensions of lumber; use lumber of the closest dimensions available.
*Dimension of the head of the tile.
US Patent No. D650096
Classic S Mission clay roof tile dimensions.

Click the links below to view the color selection of your choice.

Earth Tone | Vintage Earth Tone | Sandcast Colors

Earth Tone Color Family
Classic S Mission clay roof tile, F40 Natural Red terra-cotta color.

F40 Natural Red

CRRC Product ID # 0882-0030
Solar Reflectance Avg. – 0.45
Thermal Emittance Avg. – 0.88

Classic S Mission clay roof tile, F19 Ironwood Crown Flash color.

F19 Ironwood Crown Flash

Solar Reflectance – 0.28
Thermal Emittance – 0.83

Classic S Mission clay roof tile, F22 Burnt Sienna Crown Flash color.

F22 Burnt Sienna Crown Flash

Solar Reflectance – 0.31
Thermal Emittance – 0.84

Classic S Mission clay roof tile, F23 Canyon Red Crown Flash color.

F23 Canyon Red Crown Flash

Solar Reflectance – 0.36
Thermal Emittance – 0.88

Classic S Mission clay roof tile, F45 Tobacco Crown Flash color.

F45 Tobacco Crown Flash

Solar Reflectance – 0.42
Thermal Emittance – 0.86

Classic S Mission clay roof tile, F72 Mahogany Crown Flash color.

F72 Mahogany Crown Flash

Solar Reflectance – 0.27
Thermal Emittance – 0.85

Classic S Mission clay roof tile, 2F19 Ironwood full surface color.

2F19 Ironwood

CRRC Product ID # 0882-0049
Solar Reflectance – 0.28
Thermal Emittance – 0.83

Classic S Mission clay roof tile, 2F22 Burnt Sienna full surface color.

2F22 Burnt Sienna

Solar Reflectance – 0.31
Thermal Emittance – 0.84

Classic S Mission clay roof tile, 2F23 Canyon Red full surface color.

2F23 Canyon Red

Solar Reflectance – 0.36
Thermal Emittance – 0.88

Classic S Mission clay roof tile, 2F45 Tobacco full surface color.

2F45 Tobacco

CRRC Product ID # 0882-0026
Solar Reflectance – 0.42
Thermal Emittance – 0.86

Classic S Mission clay roof tile, 2F72 Mahogany full surface color.

2F72 Mahogany

Solar Reflectance – 0.27
Thermal Emittance – 0.85

Vintage Earth Tone Color Family
Classic S Mission tile, Light variation color within CB364-R Vintage Carmel Blend

CB364-R Vintage Carmel Blend
(Light Variation within Blend)
Solar Reflectance – 0.36
Thermal Emittance – 0.83

Classic S Mission tile, Medium variation color within CB364-R Vintage Carmel Blend

CB364-R Vintage Carmel Blend
(Medium Variation within Blend)
Solar Reflectance – 0.31
Thermal Emittance – 0.84

Classic S Mission tile, Dark variation color within CB364-R Vintage Carmel Blend.

CB364-R Vintage Carmel Blend
(Dark Variation within Blend)
Solar Reflectance – 0.29
Thermal Emittance – 0.84

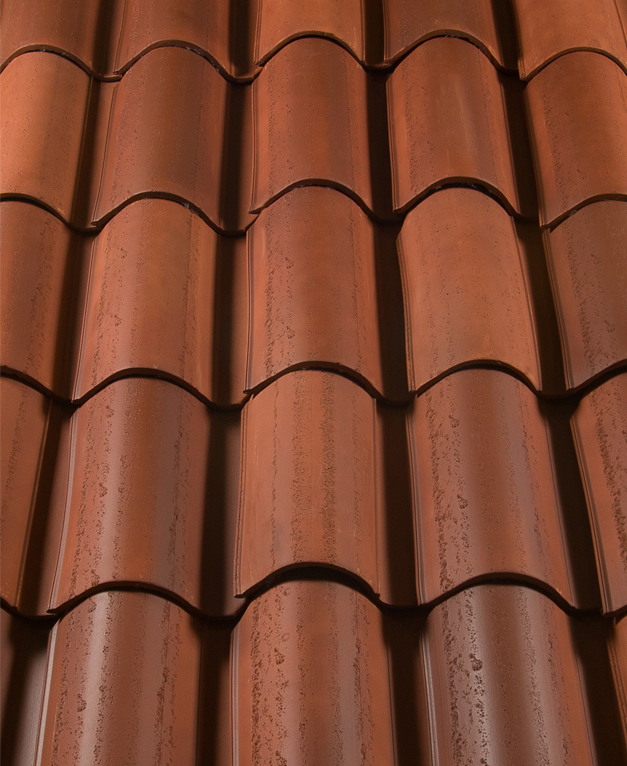

Classic S Mission tile, Light variation color with B392-R Burnt Sienna Blend.

B392-R Custom Burnt Sienna Blend
(Light Variation within Blend)
Solar Reflectance – 0.38
Thermal Emittance – 0.85

Classic S Mission tile, Medium variation color with B392-R Burnt Sienna Blend.

B392-R Custom Burnt Sienna Blend
(Medium Variation within Blend)
Solar Reflectance – 0.32
Thermal Emittance – 0.86

Classic S Mission tile, Dark variation color with B392-R Burnt Sienna Blend.

B392-R Custom Burnt Sienna Blend
(Dark Variation within Blend)
Solar Reflectance – 0.27
Thermal Emittance – 0.86

Classic S Mission tile, Light variation color within B393-R Custom Mahogany Blend.

B393-R Custom Mahogany Blend
(Light Variation within Blend)
Solar Reflectance – 0.37
Thermal Emittance – 0.85

Classic S Mission tile, Medium variation color within B393-R Custom Mahogany Blend.

B393-R Custom Mahogany Blend
(Medium Variation within Blend)
Solar Reflectance – 0.35
Thermal Emittance – 0.85

Classic S Mission tile, Dark variation color within B393-R Custom Mahogany Blend.

B393-R Custom Mahogany Blend
(Dark Variation within Blend)
Solar Reflectance – 0.33
Thermal Emittance – 0.86

Sandcast Color Family
Classic S Mission clay roof tile, Light variation color within CB46-SC Rustic Tuscan Blend.

CB46-SC Rustic Tuscan Blend
(Light Variation within Blend)
Solar Reflectance – 0.50
Thermal Emittance – 0.84

Classic S Mission clay roof tile, Medium variation color within CB46-SC Rustic Tuscan Blend.

CB46-SC Rustic Tuscan Blend
(Medium Variation within Blend)
Solar Reflectance – 0.48
Thermal Emittance – 0.84

Classic S Mission clay roof tile, Dark variation color within CB46-SC Rustic Tuscan Blend.

CB46-SC Rustic Tuscan Blend
(Dark Variation within Blend)
Solar Reflectance – 0.44
Thermal Emittance – 0.85

Classic S Mission clay roof tile, Light variation color within CB47-SC Rustic Provence Blend.

CB47-SM Rustic Provence Blend
(Light Variation within Blend)
Solar Reflectance – 0.44
Thermal Emittance – 0.84

Classic S Mission clay roof tile, Medium variation color within CB47-SC Rustic Provence Blend.

CB47-SM Rustic Provence Blend
(Medium Variation within Blend)
Solar Reflectance – 0.38
Thermal Emittance – 0.84

Classic S Mission clay roof tile, Dark variation color within CB47-SC Rustic Provence Blend.

CB47-SM Rustic Provence Blend
(Dark Variation within Blend)
Solar Reflectance – 0.35
Thermal Emittance – 0.85

Classic S Mission clay roof tile, Extra Light variation color within B2F45XL-MSC Tierra Brown Extra Light Blend.

B2F45-MSCXL Tierra Brown Extra Light
Blend
(Extra Light Variation within Blend)
Solar Reflectance – 0.44
Thermal Emittance – 0.85

Classic S Mission clay roof tile, Light variation color within B2F45XL-MSC Tierra Brown Extra Light Blend.

B2F45-MSCXL Tierra Brown Extra Light
Blend
(Light Variation within Blend)
Solar Reflectance – 0.37
Thermal Emittance – 0.85

Classic S Mission clay roof tile, Medium variation color within B2F45XL-MSC Tierra Brown Extra Light Blend.

B2F45-MSCXL Tierra Brown Extra Light
Blend
(Medium Variation within Blend)

Solar Reflectance – 0.29
Thermal Emittance – 0.84

Classic S Mission clay roof tile, Dark variation color within B2F45XL-MSC Tierra Brown Extra Light Blend.

B2F45-MSCXL Tierra Brown Extra Light
Blend
(Dark Variation within Blend)

Solar Reflectance – 0.31
Thermal Emittance – 0.86

Also available in all standard and designer colors not pictured

You can click the links below to view the color selection of your choice.

Standard Earth Tone Blends | Vintage Earth Tone Blends | Vintage Buff Blends |
Green Blends | Sandcast Colors and Blends

Standard Earth Tone Blend Selections
Classic S Mission clay roof tile in B301 Old Mission Blend®.

B301 Old Mission Blend®

CRRC Product ID # 0882-0058
Solar Reflectance Avg. – 0.41
Thermal Emittance Avg. – 0.85

Classic S Mission clay roof tile in B308 Canyon Red Blend.

B308 Canyon Red Blend

CRRC Product ID # 0882-0056
Solar Reflectance Avg. – 0.38
Thermal Emittance Avg. – 0.85

Classic S Mission clay roof tile in B341 Carmel Blend.

B341 Carmel Blend

Solar Reflectance Avg. – 0.37
Thermal Emittance Avg. – 0.88

Vintage Earth Tone Blend Selections
Classic S Mission clay roof tile, B320-R Rustic Red Blend.

B320-R Rustic Red Blend
(Light, Medium, & Dark Variations)
Solar Reflectance Avg. – 0.38
Thermal Emittance Avg. – 0.84

Classic S Mission clay roof tile, Light variation display of B320-R Rustic Red.

CC135L-R Rustic Red Light
(Light Variation)
Solar Reflectance Avg. – 0.38
Thermal Emittance Avg. – 0.84

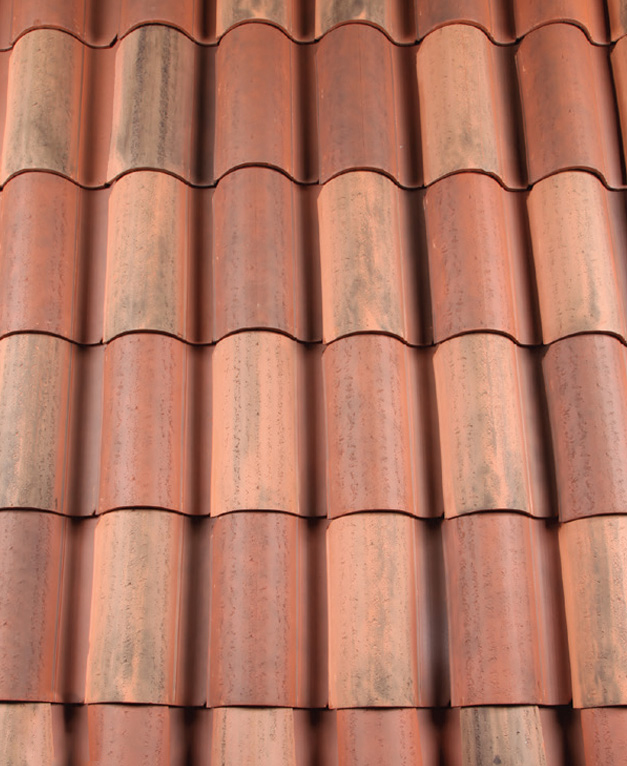

Classic S Mission clay roof tile, B332-R Houstonian Blend.

B332-R Houstonian Blend
(Light, Medium, & Dark Variations)
Solar Reflectance Avg. – 0.34
Thermal Emittance Avg. – 0.84

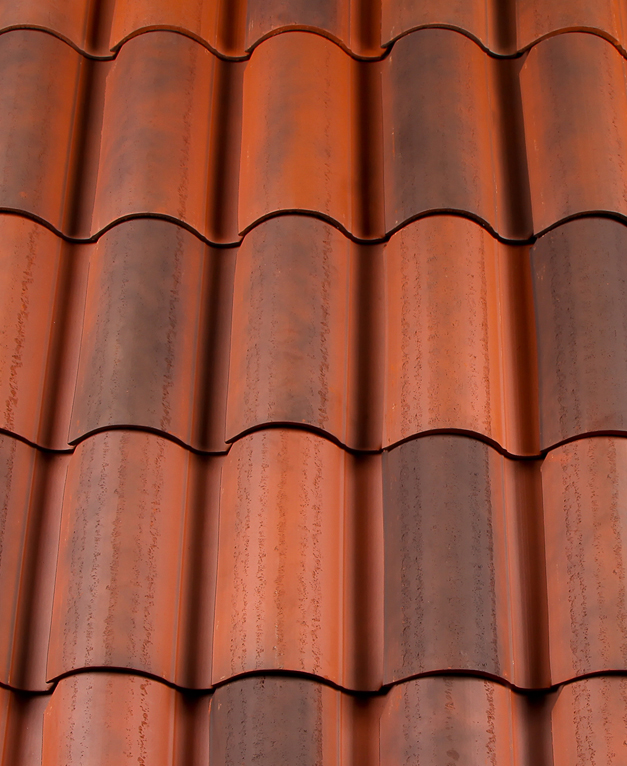

Classic S Mission clay roof tile, B330-R Old Santa Barbara Blend.

B330-R Old Santa Barbara Blend
(Light, Medium, & Dark Variations)
CRRC Product ID # 0882-0059
Solar Reflectance Avg. – 0.33
Thermal Emittance Avg. – 0.84

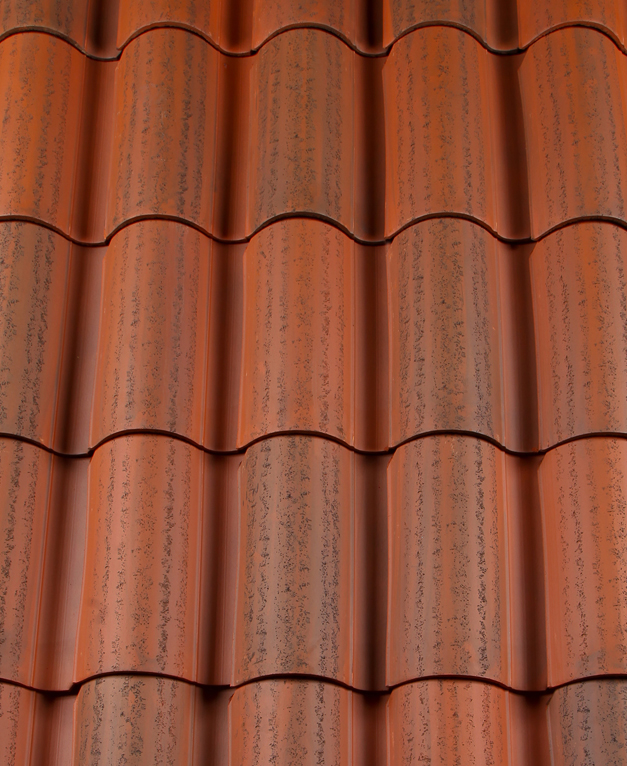

Classic S Mission clay roof tile, B340-R Vintage Red Blend.

B340-R Vintage Red Blend
(Light, Medium, & Dark Variations)
Solar Reflectance Avg. – 0.29
Thermal Emittance Avg. – 0.84

Classic S Mission clay roof tile, B317-R Taupe Smoke Blend.

B317-R Taupe Smoke Blend
(Light, Medium, & Dark Variations)
CRRC Product ID # 0882-0080
Solar Reflectance Avg. – 0.34
Thermal Emittance Avg. – 0.86

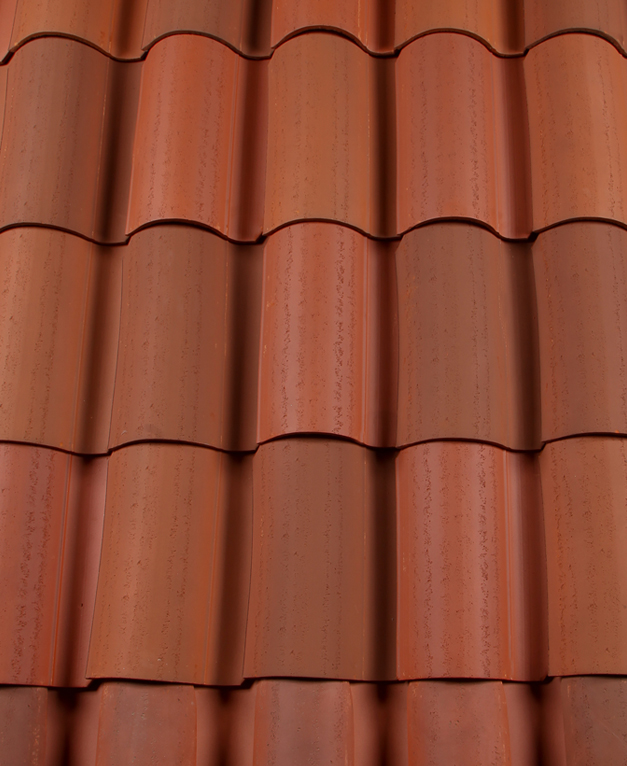

Classic S Mission clay roof tile, B318-R Café Rustic Blend.

B318-R Café Rustic Blend
(Light, Medium, & Dark Variations)
Solar Reflectance Avg. – 0.37
Thermal Emittance Avg. – 0.89

70% B392-R Custom Burnt Sienna Blend / 30% B393-R Custom Mahogany Blend

70% B392-R Custom
Burnt Sienna Blend
30% B393-R Custom
Mahogany Blend

Solar Reflectance Avg. – 0.34
Thermal Emittance Avg. – 0.85

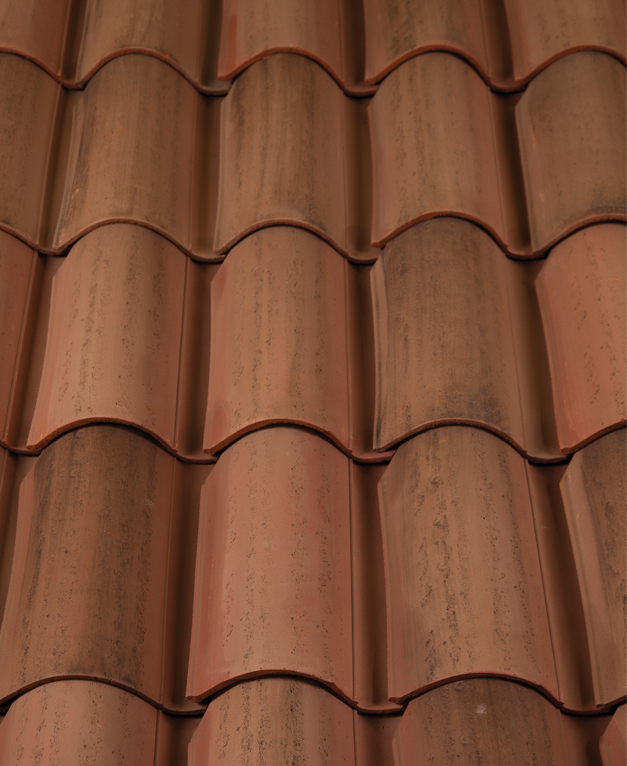

Classic S Mission clay roof tile, CB364-R Vintage Carmel Blend.

CB364-R Vintage Carmel Blend
(Light, Medium, & Dark Variations)
Solar Reflectance Avg. – 0.32
Thermal Emittance Avg. – 0.83

Vintage Buff Blend Selections

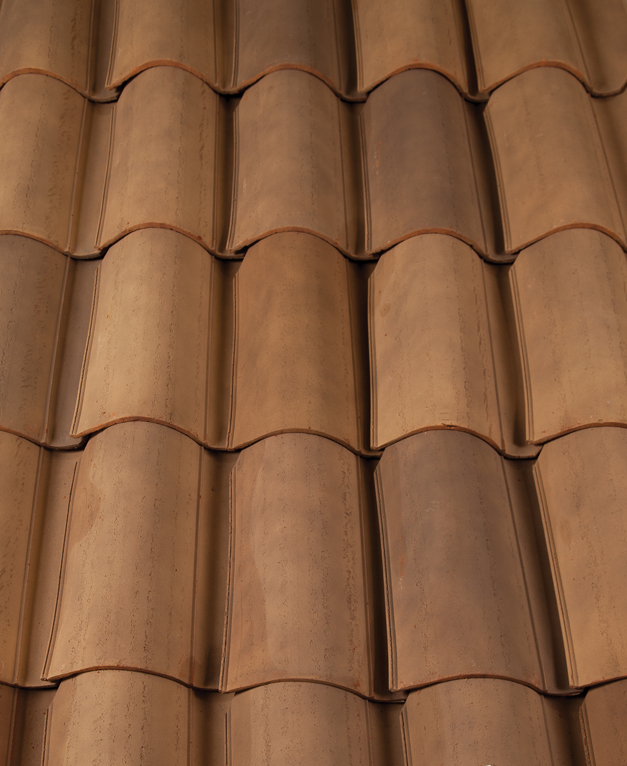

Classic S Mission clay roof tile, B331-R Zorro Blend.

B331-R Zorro Blend
(Light, Medium, & Dark Variations)
Solar Reflectance Avg. – 0.29
Thermal Emittance Avg. – 0.84

Green Blend Selections
Classic S Mission clay roof tile, B305 Weathered Green Blend®.

B305 Weathered Green Blend®
(Light, Medium, & Dark Variations)
CRRC Product ID # 0882-0003
Solar Reflectance Avg. – 0.43
Thermal Emittance Avg. – 0.82

Sandcast Colors and Blend Selections
Classic S Mission clay roof tile, F46-SSC Veneto Diores Blend.

F46-SSC Veneto Diores Blend
(Light, Medium, & Dark Variations)
Solar Reflectance Avg. – 0.40
Thermal Emittance Avg. – 0.84

Classic S Mission clay roof tile, F4645-SSC Tuscan Gold Blend.

F4645-SSC Tuscan Gold Blend
(Light, Medium, & Dark Variations)
Solar Reflectance Avg. – 0.39
Thermal Emittance Avg. – 0.85

Classic S Mission clay roof tile, CB360-SC Café Mocca Blend.

CB360-SC Café Mocca Blend
(Light, Medium, & Dark Variations)
Solar Reflectance Avg. – 0.30
Thermal Emittance Avg. – 0.84

Classic "S" Mission clay roof tile, 2F43-MSC Villa Rosso Blend.

2F43-MSC Villa Rosso Blend
(Light, Medium, & Dark Variations)
Solar Reflectance Avg. – 0.33
Thermal Emittance Avg. – 0.84

Classic S Mission clay roof tile, 2F45-SSC Tierra Brown Blend.

2F45-SSC Tierra Brown Blend
(Light, Medium, & Dark Variations)
Solar Reflectance Avg. – 0.33
Thermal Emittance Avg. – 0.86

Classic S Mission clay roof tile, CB46-SC Rustic Tuscan Blend.

CB46-SC Rustic Tuscan Blend
(Light, Medium, & Dark Variations)
Solar Reflectance Avg. – 0.47
Thermal Emittance Avg. – 0.83

Classic S Mission clay roof tile, CB47-SM Rustic Provence Blend.

CB47-SM Rustic
Provence Blend

(Light, Medium, & Dark Variations)
Solar Reflectance Avg. – 0.42
Thermal Emittance Avg. – 0.84

Classic S Mission clay roof tile, CB389-SC Marco Blend.

CB389-SC Marco Blend
(Light, Medium, & Dark Variations)
Solar Reflectance Avg. – 0.36
Thermal Emittance Avg. – 0.84

Classic S Mission clay roof tile, B2F45-MSCXL Tierra Brown Extra Light Blend.

B2F45-MSCXL Tierra Brown Extra Light Blend
(Extra Light, Light,
Medium, & Dark Variations)

Solar Reflectance Avg. – 0.37
Thermal Emittance Avg. – 0.85

Classic S Mission clay roof tile, CB2F3445-SC Chocolate Mocca Blend.

CB2F3445-SC Chocolate
Mocca Blend

(Light, Medium, & Dark Variations)
Solar Reflectance Avg. – 0.34
Thermal Emittance Avg. – 0.86

Also available in all standard and designer blends not pictured

NOTE: Some tiles may have slight variations in color due to the inherent nature of clay tile and the limitations and/or variations of viewing photos on your individual monitor and its variable color and/or resolution scheme.

Classic “S” Mission Clay Roof Tile Specification

Open Classic "S" Mission Clay Roof Tile Installation Specification.

Open ARCAT Specwizard page. Open ARCAT BIM Objects page.

TRI Installation Manual

Download TRI Concrete and Clay Roof Tile Installation Manual, The Tile Roofing Institute.

TRI Cold and Snow Installation Manual

Download TRI Cold and Snow Install Guide - Tile Roofing Institute.

01-Roof-Area-(Flashing-ID)- Summary-Drawings
Download Roof Areas PDF Download Summary Drawings PDF
Felt-Underlayment 06-Felt-Underlayment2
Download Felt Underlayment
(SHP LAP) PDF
Download DWG (ZIP)
Download Felt Underlayment PDF
Download DWG (ZIP)
07-Plumbing-Vent-Flashing 08-Valley-Underlayment
Download Plumbing Vent Flashing PDF
Download DWG (ZIP)
Download Valley Underlayment Woven Double Layer PDF
Download DWG (ZIP)
09-Valley-Underlayment1 10-Valley-Underlayment2
Download Valley Underlayment Woven Single Layer PDF
Download DWG (ZIP)
Download Valley Underlayment Overlapping PDF
Download DWG (ZIP)
11-Section-at-Valley classic-s-field-detail
Download Section at Valley PDF
Download DWG (ZIP)
Download Field Detail PDF
Download DWG (ZIP)
13-Eave-Detail 14-Eave-Stucco-Fascia
Download Eave Detail PDF
Download DWG (ZIP)
Download Eave Stucco Fascia PDF
Download DWG (ZIP)
15-Eave-Gutter_Wood-Fascia 16-Gable_Eave-detail-Option-1
Download Eave-Gutter/
Wood Fascia PDF
Download DWG (ZIP)
Download Gable/Eave Detail PDF
Download DWG (ZIP)
16A-Gable_Eave-detail-Option-2 17-Wall-Flashing
Download Gable/Eave Detail PDF
Download DWG (ZIP)
Download Head Wall Flashing with Counterflashing PDF
Download DWG (ZIP)
18-Flashing-at-Wall-Detail 19-Sidewall-Flashing
Download Head Wall Flashing with Counterflashing PDF
Download DWG (ZIP)
Download Sidewall Flashing Detail PDF
Download DWG (ZIP)
20-Ridge-and-Hip-End-Detail 21-Ridge-and-Hip-End-Boostering
Download Ridge & Hip Plate End Detail PDF
Download DWG (ZIP)
Download Ridge & Hip End Booster PDF
Download DWG (ZIP)
22-Ridge-and-Hip-End-Booster-Detail 23-Single-Slope-Ridge-Detail
Download Ridge & Hip End Booster PDF
Download DWD (ZIP)
Download Tile Ridge: Single Slope PDF
Download DWG (ZIP)
24-Under-Ridge-Closure 25-Chimney-Flashing-Case-1-Back-View
Download Under Ridge Closure PDF
Download DWG (ZIP)
Download Chimney Flashing
Back View 1 PDF
Download DWG (ZIP)
26-Chimney-Flashing-Case-1-Front-View 27-Chimney-Flashing-Case-1-Side-View
Download Chimney Flashing
Front View 1 PDF
Download DWG (ZIP)
Download Chimney Flashing
Side View 1 PDF
Download DWG (ZIP)
Download Chimney Flashing
Back View 2 PDF
Download DWG (ZIP)
Download Chimney Flashing
Side View 2 PDF
Download DWG (ZIP)
30-Chimney-Flashing-Case-2-Front-View 31-Chimney-Flashing-Case-3-Back-View
Download Chimney Flashing
Front View 2 PDF
Download DWG (ZIP)
Download Chimney Flashing
Back View 3 PDF
Download DWG (ZIP)
32-Chimney-Flashing-Case-3-Side-View
Download Chimney Flashing
Side View 3 PDF
Download DWG (ZIP)
Download Chimney Flashing
Front View 3 PDF
Download DWG (ZIP)
34-Skylight-Detail-Side
Download Skylight Detail PDF
Download DWG (ZIP)
Download Skylight Underlayment Detail PDF
Download DWG (ZIP)
Download Concealed Gutter PDF
Download DWG (ZIP)
Download AH-160 Polyfoam Adhesive Medium Paddy Application PDF
Download DWG (ZIP)
Download AH-160 Polyfoam Adhesive Large Paddy Application PDF
Download DWG (ZIP)
Download AH-160 Polyfoam Adhesive PDF
Download DWG (ZIP)
39(A)-AH-160-(Polyfoam-Adhesive)-Guam 39(B)-AH-160-(Polyfoam-Adhesive)-Guam
Download AH-160 Polyfoam Guam Application PDF
Download DWG (ZIP)
Download AH-160 Polyfoam Guam Application PDF
Download DWG (ZIP)
40-Twisted-Wire classics-twopieceeave-sideview
Download Classic “S” Mission “Tyle-Tye” Field Detail
(MTL. Deck) PDF
Download DWG (ZIP)
Download Classic “S” Mission (Two Piece Eave) Mud Ball Birdstop PDF
Download DWG (ZIP)

CC/Codes, Certifications

  • IAPMO Uniform Evaluation Report No. 0356 (covers City of Los Angeles and is in lieu of ICC-ES)
  • Class A, E108 (UL790)
  • ASTM C1167, Grade 1
  • TDI Approval RC-21
  • Miami-Dade County Approval 17-0329.12 Exp. 02/16/22
  • Florida Building Code, FL22539.3

Click on the following links to view reports in PDF format:

IAPMO Uniform Evaluation Report No. 0356

SDS Safety Data

TDI Approval; RC-21

Miami-Dade County Approval 17-0329.12 Exp. 02/16/22

Florida Building Code, FL22539.3 (FBC Online Product Listing)

Download MCA Clay Roof Tile sample 50 year warranty.

Download MCA Clay Roof Tile Classic S Mission catalog.
Download MCA Clay Roof Tile General Catalog.
