ROMAN PAN TILE
Item Code: R1007

Roman Pan Clay Roof Tile is truly an architectural legacy of Ancient Roman and Greek artistic design. Re-creating this traditional flat Roman Pan Tile and pairing it with high-crown Classic Tapered Mission Tops, MCA captures this timeless architecture for both commercial and custom residential projects.

Available in a variety of textures, including Sand Cast and Pebbled, and an endless array of cool roof-rated colors and blends, MCA Roman Pan Clay Roof Tile adds an inviting Tuscan look to any building. Choose from our Designer’s Blends, or create your own custom blend.

MCA Roman Pan Clay Roof Tile is made in the USA and is ASTM C1167 Grade 1, the highest quality clay product available.

Competitively priced, this product is also backed by a 50-year limited warranty.

Metric conversion of lumber is actual dimensions of lumber; use lumber of the closest dimensions available.
*Dimension of the head of the tile.

Tile Specifications
Actual Size:	19″ x 10″
Exposed Size:	16″ x 14″ O.C.
Weight per square:	910 lbs.
Weight per Pan Piece: Weight per Piece Top:	8 lbs. 6 lbs.
No. of pieces per square:	130 (65 8″ Straight tops, 65 pans)
Metric Tile Specifications:
Actual Size:	483mm x 254mm
Exposed Size:	406mm x 355.6 O.C.
Weight per M2:	44.38 kg
Weight per Piece Pan: Weight per Piece Top:	3.62 kg 2.72 kg
No. of pieces per M2:	14 pcs

You can click the links below to view the color selection of your choice.

Earth Tone | Vintage Earth Tone | Vintage Buff

Earth Tone Color Family

2F18 Cinnamon

Solar Reflectance – 0.35
Thermal Emittance – 0.97

F40 Natural Red

CRRC Product ID # 0882-0030
Solar Reflectance – 0.45
Thermal Emittance – 0.88

2F43 Brick Red

CRRC Product ID # 0882-0027
Solar Reflectance – 0.42
Thermal Emittance – 0.84

2F23 Canyon Red

Solar Reflectance – 0.36
Thermal Emittance – 0.88

2F72 Mahogany

Solar Reflectance – 0.27
Thermal Emittance – 0.85

2F22 Burnt Sienna

2F45 Tobacco

CRRC Product ID # 0882-0026
Solar Reflectance – 0.42
Thermal Emittance – 0.86

2F28 Carbon

Solar Reflectance – 0.29
Thermal Emittance – 0.83

2F19 Ironwood

CRRC Product ID # 0882-0049
Solar Reflectance – 0.28
Thermal Emittance – 0.83

Vintage Earth Tone Color Family

CC136M Cafe Rustic Medium

Solar Reflectance – 0.37
Thermal Emittance – 0.89

CB397 Antique Kiln Flash

CC16M Old Santa Barbara Medium

Solar Reflectance – 0.34
Thermal Emittance – 0.84

CC134M Taupe Smoke Medium

Solar Reflectance – 0.33
Thermal Emittance – 0.86

Vintage Buff Color Family

CB383M Teja Bianco Medium

Roman Pan clay tile, CB372M Veneto Diores medium variation color of blend

CF227M Veneto Diores Medium

Roman Pan clay tile, CB382M Tuscan Gold medium variation color of blend

CF226M Tuscan Gold Medium

Also available in all standard and designer colors not pictured

You can click the links below to view the color selection of your choice.

Earth Tone | Vintage Earth Tone | Vintage Buff Color | Sandcast Colors

Earth Tone Color Family

F40 Natural Red

CRRC Product ID # 0882-0030
Solar Reflectance – 0.45
Thermal Emittance – 0.88

2F43 Brick Red

CRRC Product ID # 0882-0027
Solar Reflectance – 0.42
Thermal Emittance – 0.84

Vintage Earth Tone Color Family

clay roof top tile, Light variation color of CB364-R Vintage Carmel blend

CB364-R Vintage Carmel Blend
(Light Variation within Blend)

clay roof top tile, Medium variation color of CB364-R Vintage Carmel blend

CB364-R Vintage Carmel Blend
(Medium Variation within Blend)

clay roof top tile, Dark variation color of CB364-R Vintage Carmel blend

CB364-R Vintage Carmel Blend
(Dark Variation within Blend)

clay roof top tile, Medium variation color of B330-R Old Santa Barbara blend

B330-R Old Santa Barbara Blend
(Medium Variation within Blend)

Vintage Buff Color Family

clay roof top tile, Light variation color of CB383-R Teja Bianco Blend

CB383-R Teja Bianco Blend
(Light Variation within Blend)

clay roof top tile, Medium variation color of CB383-R Teja Bianco Blend

CB383-R Teja Bianco Blend
(Medium Variation within Blend)

clay roof top tile, Dark variation color of CB383-R Teja Bianco Blend

CB383-R Teja Bianco Blend
(Dark Variation within Blend)

Sandcast Color Family

clay roof top tile, Light variation color of F46-SSC Veneto Diores Blend

F46-SSC Veneto Diores Blend
(Light Variation within Blend)

clay roof top tile, Medium variation color of F46-SSC Veneto Diores Blend

F46-SSC Veneto Diores Blend
(Medium Variation within Blend)

Clay roof top tile, Dark variation color of F46-SSC Veneto Diores Blend

F46-SSC Veneto Diores Blend
(Dark Variation within Blend)

Clay roof top tile, Light variation color of F4645-SSC Tuscan Gold Blend

F4645-SSC Tuscan Gold Blend
(Light Variation within Blend)

Clay roof top tile, Medium variation color of F4645-SSC Tuscan Gold Blend

F4645-SSC Tuscan Gold Blend
(Medium Variation within Blend)

Clay roof top tile, Dark variation color of F4645-SSC Tuscan Gold Blend

F4645-SSC Tuscan Gold Blend
(Dark Variation within Blend)

Clay roof top tile, Light variation color of CB387-SC Solare Blend

CB387-SC Solare Blend
(Light Variation within Blend)

Clay roof top tile, Medium variation color of CB387-SC Solare Blend

CB387-SC Solare Blend
(Medium Variation within Blend)

Clay roof top tile, Dark variation color of CB387-SC Solare Blend

CB387-SC Solare Blend
(Dark Variation within Blend)

Clay roof top tile, Light variation color of 2F43-S Rosso Antico Blend

2F43-S Rosso Antico Blend
(Light Variation within Blend)

Clay roof top tile, Medium variation color of 2F43-S Rosso Antico Blend

2F43-S Rosso Antico Blend
(Medium Variation within Blend)

Clay roof top tile, Dark variation color of 2F43-S Rosso Antico Blend

2F43-S Rosso Antico Blend
(Dark Variation within Blend)

Clay roof top tile, Light variation color of CB360-SC Café Mocca Blend

CB360-SC Café Mocca Blend
(Light Variation within Blend)

Clay roof top tile, Medium variation color of CB360-SC Café Mocca Blend

CB360-SC Café Mocca Blend
(Medium Variation within Blend)

Clay roof top tile, Dark variation color of CB360-SC Café Mocca Blend

CB360-SC Café Mocca Blend
(Dark Variation within Blend)

Clay roof top tile, Light variation color of 2F43-SSC Villa Rosso Blend

2F43-SSC Villa Rosso Blend
(Light Variation within Blend)

Clay roof top tile, Medium variation color of 2F43-SSC Villa Rosso Blend

2F43-SSC Villa Rosso Blend
(Medium Variation within Blend)

Clay roof top tile, Dark variation color of 2F43-SSC Villa Rosso Blend

2F43-SSC Villa Rosso Blend
(Dark Variation within Blend)

Clay roof top tile, Light variation color of 2F45-SSC Tierra Brown Blend

2F45-SSC Tierra Brown Blend
(Light Variation within Blend)

Clay roof top tile, Medium variation color of 2F45-SSC Tierra Brown Blend

2F45-SSC Tierra Brown Blend
(Medium Variation within Blend)

Clay roof top tile, Dark variation color of 2F45-SSC Tierra Brown Blend

2F45-SSC Tierra Brown Blend
(Dark Variation within Blend)

Also available in all standard and designer colors not pictured

You can click the links below to view the color selection of your choice.

Standard Earth Tone Blends | Vintage Earth Tone Blends | Vintage Buff Color |
Sandcast Colors & Blends

Standard Earth Tone Blend Selections

B308 Canyon Red Blend

CRRC Product ID # 0882-0056
Solar Reflectance Avg. – 0.38
Thermal Emittance Avg. – 0.85

Vintage Earth Tone Blend Selections

CB393 Firestone Flash Blend

CB397 Antique Kiln Flash Blend

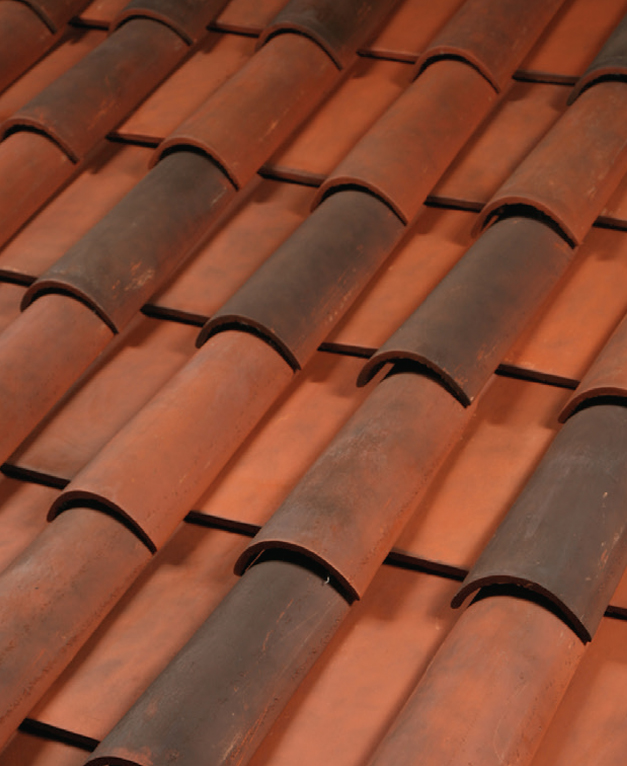

Roman Pan, B330-R Old Santa Barbara Blend

B330-R Old Santa Barbara Blend
(Light, Medium, & Dark Variations)
CRRC Product ID # 0882-0059
Solar Reflectance Avg. – 0.33
Thermal Emittance Avg. – 0.84

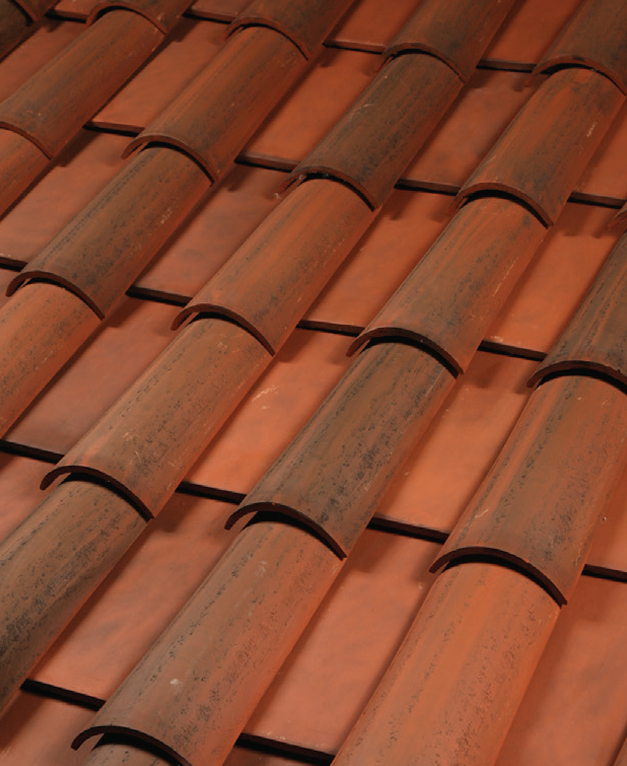

B340-R Vintage Red Blend
(Light, Medium, & Dark Variations)

CB228 Shady Canyon Blend

CB399 Agoura Hills Blend

Vintage Buff Blend Selections

B331-R Zorro Blend
(Light, Medium, & Dark Variations)

Solar Reflectance Avg. – 0.383
Thermal Emittance Avg. – 0.82

Standard Colors and Blend Selections

Roman Pan display, CB361-SC Montage Blend

CB361-SC Montage Blend
(Light, Medium, & Dark Variations)

Also available in all standard and designer blends not pictured

NOTE: Some tiles may have slight variations in color due to the inherent nature of clay tile and the limitations and/or variations of viewing photos on your individual monitor and its variable color and/or resolution scheme.

TRI Installation Manual

TRI Cold and Snow Installation Manual

CC/Codes, Certifications

IAPMO Uniform Evaluation Report No. 0356 (covers City of Los Angeles and is in lieu of ICC-ES)
Class A, E108 (UL790)
ASTM C1167, Grade 1
TDI Approval RC-21
Miami-Dade County Approval 17-0329.14 Exp. 02/16/22
Florida Building Code, FL22539.9
